3-60 — BRAKE PIPING; VACUUM (#75014) — 40 parça

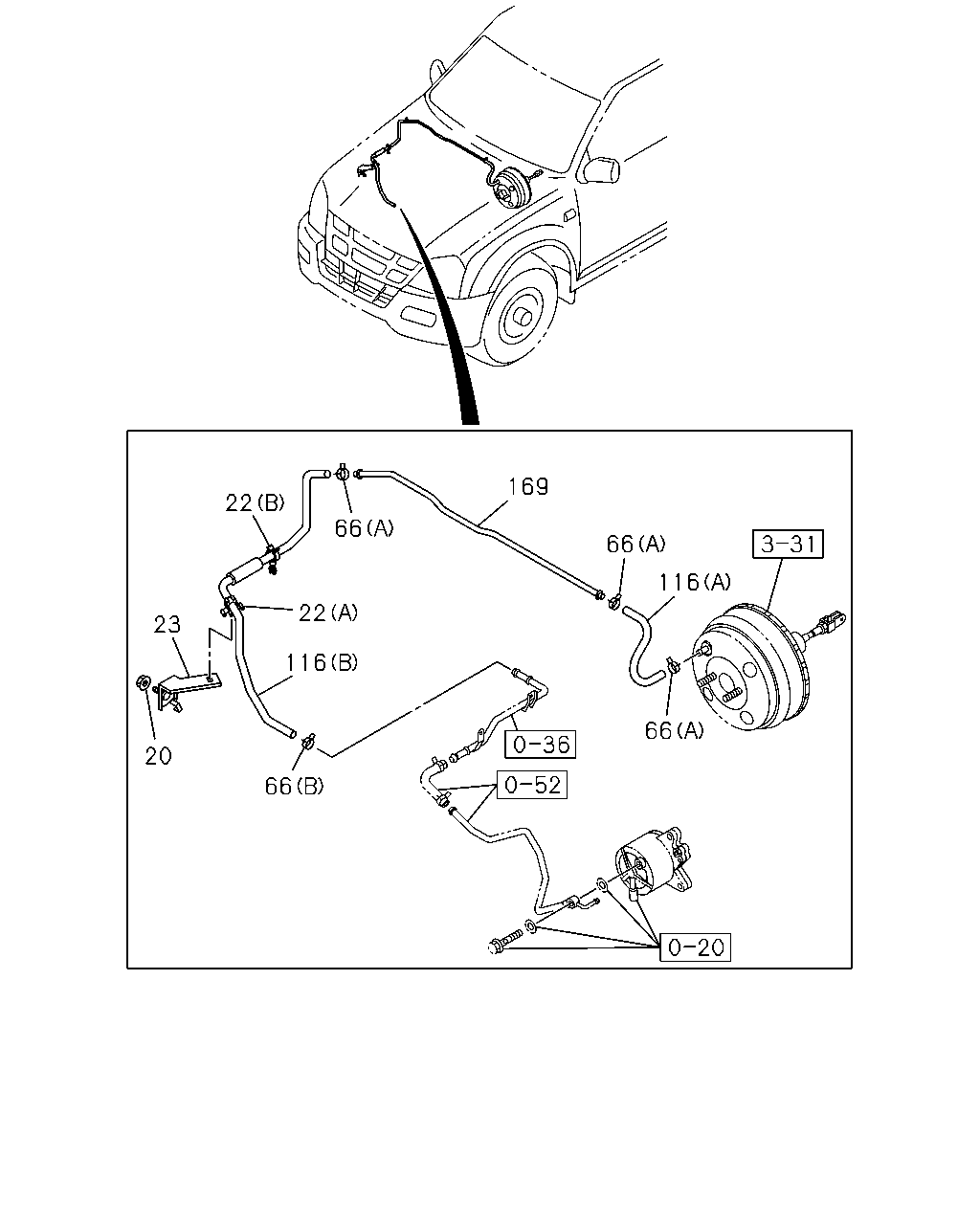

çizim 118575
169 22 66 66 116 22 23 116 66 20 66
BalonParca AdiParca NoAdetTipApplied Date A B
20 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 0503-0508 ●
20 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 0509-0606 ● ●
22 CLIP; HOSE,VAC TANK
(A) 		8-97089-536-0 01 1 0503-0508 ●
22 CLIP; HOSE,VAC TANK
(A) 		8-97089-536-0 01 1 0509-0606 ● ●
22 CLIP; HOSE,VAC TANK
(B) 		8-97362-925-0 01 1 0503-0508 ●
22 CLIP; HOSE,VAC TANK
(B) 		8-97362-925-0 01 1 0509-0606 ● ●
23 BRACKET; VAC PIPE 8-97383-288-0 01 1 0503-0508 ●
23 BRACKET; VAC PIPE 8-97383-288-0 01 1 0509-0606 ● ●
66 CLIP; VAC HOSE,M/VAC
(A) ID=15.5 		8-94367-944-0 01 1 0503-0508 ●
66 CLIP; VAC HOSE,M/VAC
(A) ID=15.5 		8-94367-944-0 01 1 0509-0604 ● ●
66 CLIP; VAC HOSE,M/VAC
(A) ID=15.5 		8-98035-872-0 01 1 0605- ● ●
66 CLIP; VAC HOSE,M/VAC
(A) ID=15.5 		8-94367-944-0 02 1 0503-0508 ●
66 CLIP; VAC HOSE,M/VAC
(A) ID=15.5 		8-94367-944-0 02 1 0509-0604 ● ●
66 CLIP; VAC HOSE,M/VAC
(A) ID=15.5 		8-98035-872-0 02 1 0605-0606 ● ●
66 CLIP; VAC HOSE,M/VAC
(B) ID=16 		8-97173-222-0 01 1 0503-0508 ●
66 CLIP; VAC HOSE,M/VAC
(B) ID=16 		8-97173-222-0 01 1 0509-0606 ● ●
66 CLIP; VAC HOSE,M/VAC
(C) ID=16 		8-98036-539-0 01 1 0607- ● ●
116 HOSE; VAC,M/VAC
(A) 		8-97315-630-2 01 1 0503-0508 ●
116 HOSE; VAC,M/VAC
(A) 		8-97315-630-2 01 1 0509-0606 ● ●
116 HOSE; VAC,M/VAC
(C) 		8-97944-842-1 01 1 0607- ● ●
116 HOSE; VAC,M/VAC
(B) 		8-97383-296-1 01 1 0503-0508 ●
116 HOSE; VAC,M/VAC
(B) 		8-97383-296-1 01 1 0509-0606 ● ●
169 PIPE; VAC,BOOSTER SIDE 8-97315-612-2 01 1 0503-0508 ●
169 PIPE; VAC,BOOSTER SIDE 8-97315-612-2 01 1 0509-0606 ● ●

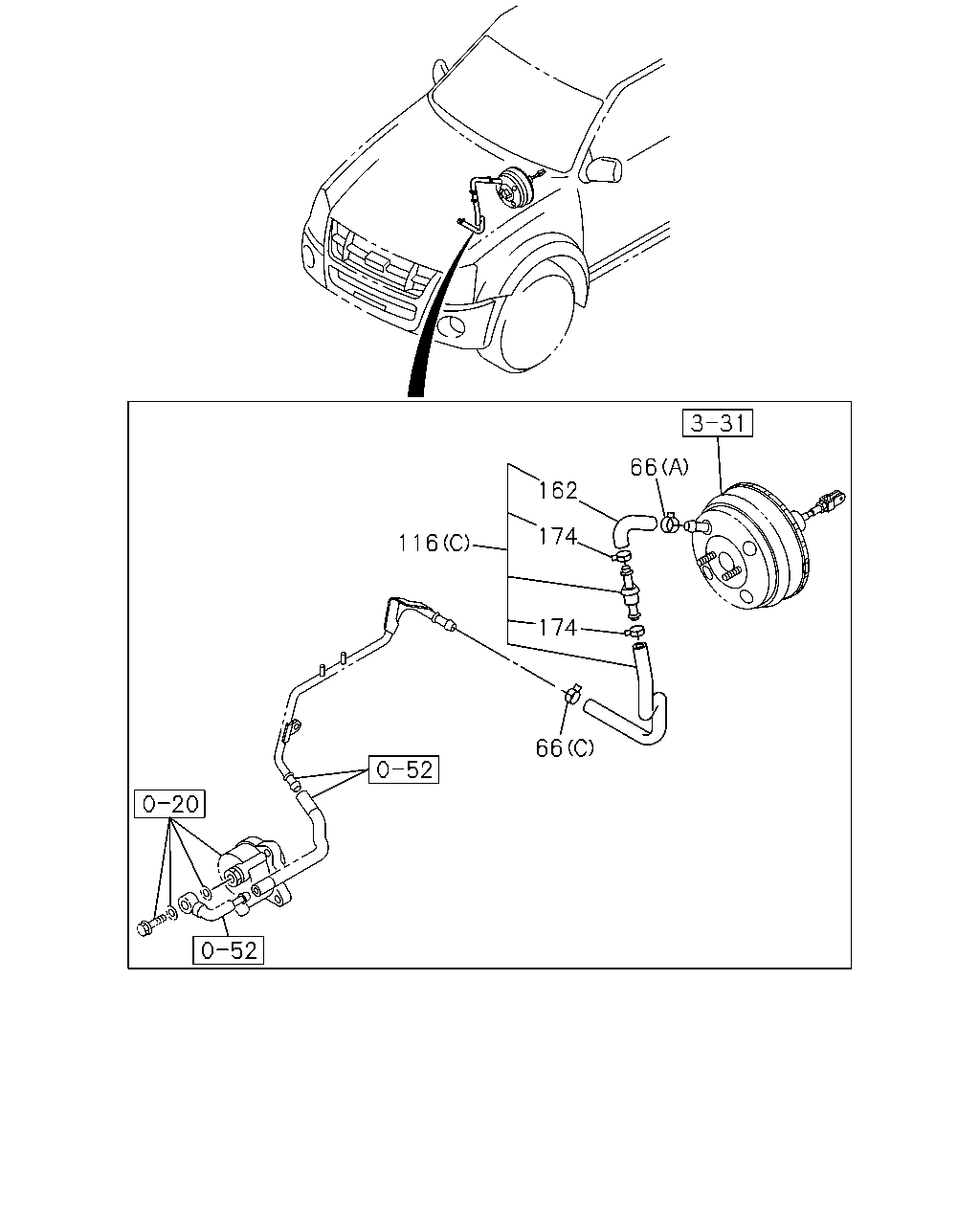

çizim 118718
66 162 174 116 174 66
BalonParca AdiParca NoAdetTipApplied Date A B
66 CLIP; VAC HOSE,M/VAC
(A) ID=15.5 		8-94367-944-0 01 1 0503-0508 ●
66 CLIP; VAC HOSE,M/VAC
(A) ID=15.5 		8-94367-944-0 01 1 0509-0604 ● ●
66 CLIP; VAC HOSE,M/VAC
(A) ID=15.5 		8-98035-872-0 01 1 0605- ● ●
66 CLIP; VAC HOSE,M/VAC
(A) ID=15.5 		8-94367-944-0 02 1 0503-0508 ●
66 CLIP; VAC HOSE,M/VAC
(A) ID=15.5 		8-94367-944-0 02 1 0509-0604 ● ●
66 CLIP; VAC HOSE,M/VAC
(A) ID=15.5 		8-98035-872-0 02 1 0605-0606 ● ●
66 CLIP; VAC HOSE,M/VAC
(B) ID=16 		8-97173-222-0 01 1 0503-0508 ●
66 CLIP; VAC HOSE,M/VAC
(B) ID=16 		8-97173-222-0 01 1 0509-0606 ● ●
66 CLIP; VAC HOSE,M/VAC
(C) ID=16 		8-98036-539-0 01 1 0607- ● ●
116 HOSE; VAC,M/VAC
(A) 		8-97315-630-2 01 1 0503-0508 ●
116 HOSE; VAC,M/VAC
(A) 		8-97315-630-2 01 1 0509-0606 ● ●
116 HOSE; VAC,M/VAC
(C) 		8-97944-842-1 01 1 0607- ● ●
116 HOSE; VAC,M/VAC
(B) 		8-97383-296-1 01 1 0503-0508 ●
116 HOSE; VAC,M/VAC
(B) 		8-97383-296-1 01 1 0509-0606 ● ●
162 HOSE; VAC 8-98037-609-0 01 1 0607- ● ●
174 CLIP; VAC HOSE
ID=15.5 		8-98008-097-0 02 1 0607- ● ●
