51032 - UCR/UCS-LHD
▶
3 - Brakes, Brake System
▶
3-58 - FIXING PARTS; OIL PIPING
▶
3-58 — FIXING PARTS; OIL PIPING
(#75013) — 39 parça
Tümü
A - UCB6VF
B - UCS6VF
◀

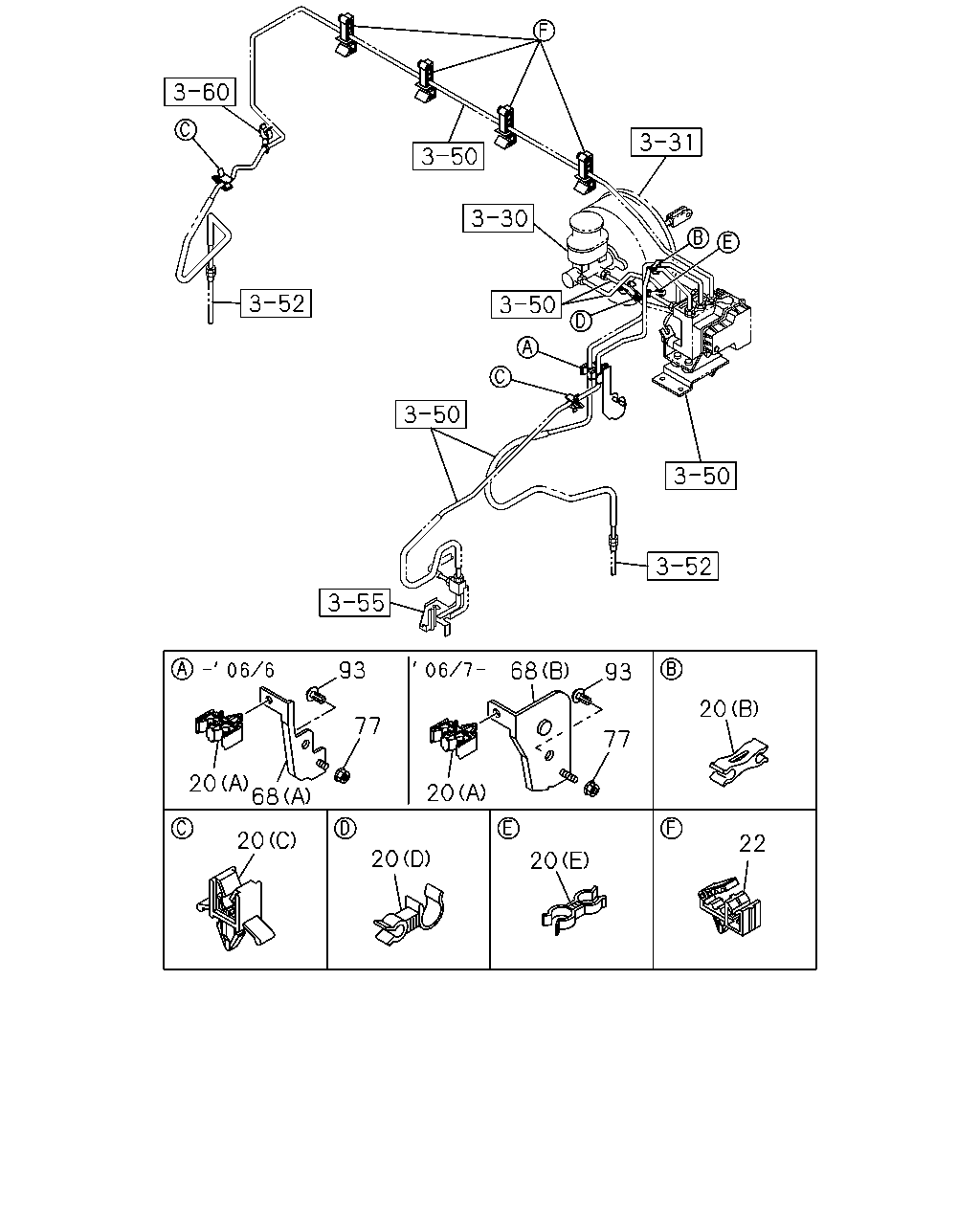

[358A] ENGINE ROOM (25 parça)

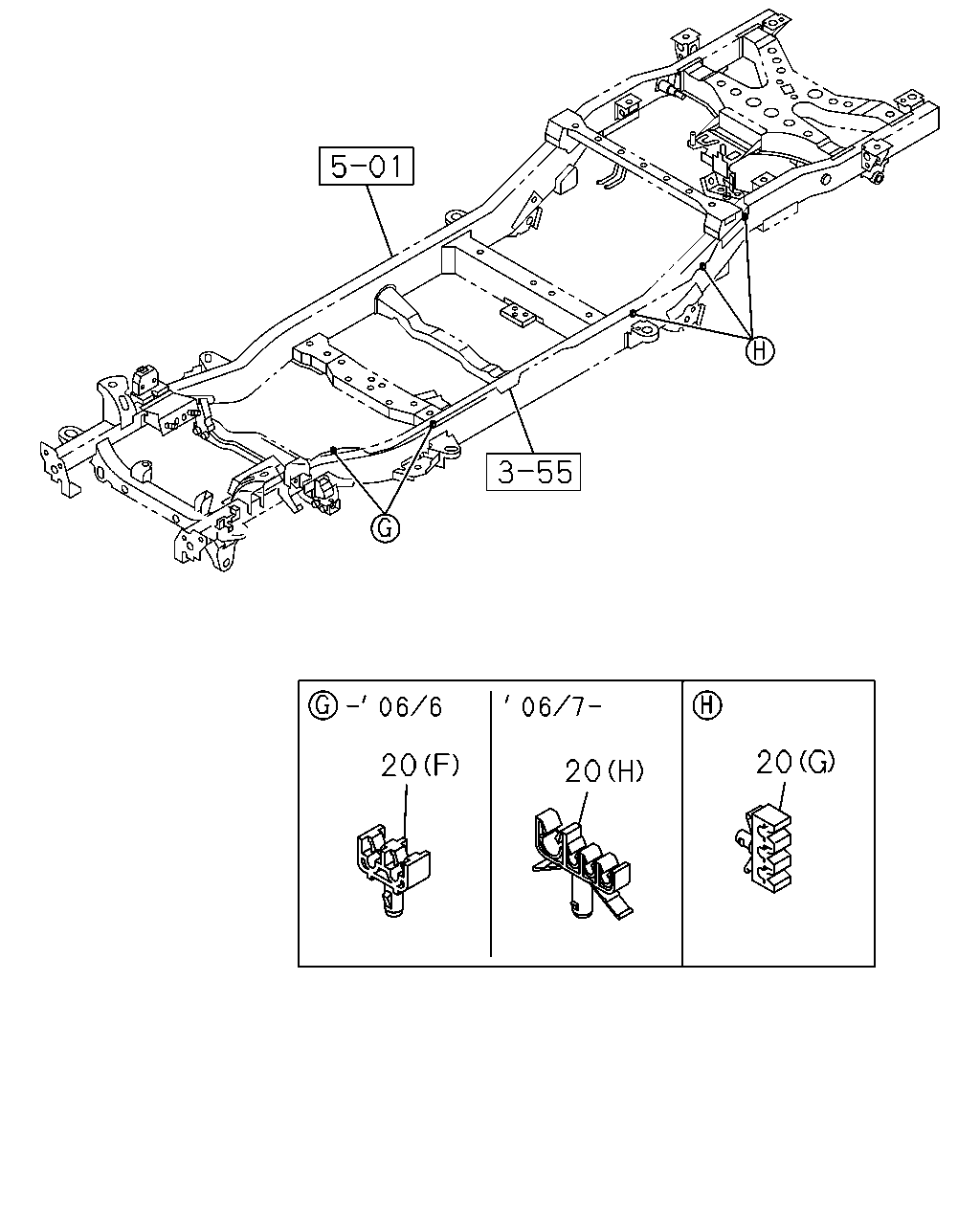

[358A] FRAME SIDE (14 parça)
▶
93
68
93
20
77
77
20
68
20
20
22
20
20
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
20
CLIP; BRK PIPE
(D) ID=10.5 & 4.8
8-97019-966-0
01
1
0503-0504
●
20
CLIP; BRK PIPE
(G) ID=10 & 6.8X2 OR 8.4X3
8-97249-906-1
03
1
0503-0508
●
20
CLIP; BRK PIPE
(G) ID=10 & 6.8X2 OR 8.4X3
8-97249-906-1
03
1
0509-
●
●
20
CLIP; BRK PIPE
(F) ID=6.8X2
8-97251-124-0
02
1
0503-0508
●
20
CLIP; BRK PIPE
(F) ID=6.8X2
8-97251-124-0
02
1
0509-0606
●
●
20
CLIP; BRK PIPE
(H) ID=8.7 & 7.1X3
8-98043-266-0
02
1
0607-
●
●
20
CLIP; BRK PIPE
(C) ID=4.76
8-97300-443-0
02
1
0503-0508
●
20
CLIP; BRK PIPE
(C) ID=4.76
8-97300-443-0
02
1
0509-
●
●
20
CLIP; BRK PIPE
(B) ID=4.6X2
8-94241-454-0
01
1
0503-0508
●
20
CLIP; BRK PIPE
(B) ID=4.6X2
8-94241-454-0
01
1
0509-
●
●
20
CLIP; BRK PIPE
(A) ID=4.76X2
8-97249-905-0
01
1
0503-0508
●
20
CLIP; BRK PIPE
(A) ID=4.76X2
8-97249-905-0
01
1
0509-
●
●
20
CLIP; BRK PIPE
(E) ID=4.8
8-97300-405-0
01
1
0503-0508
●
20
CLIP; BRK PIPE
(E) ID=4.8
8-97300-405-0
01
1
0509-0606
●
●
22
CLIP; PIPE TO FRAME
ID=10 & 4.76X3
8-97249-904-0
04
1
0503-0508
●
22
CLIP; PIPE TO FRAME
ID=10 & 4.76X3
8-97249-904-0
04
1
0509-
●
●
68
BRACKET; CLIP
(A)
8-97236-433-4
01
1
0503-0508
●
68
BRACKET; CLIP
(A)
8-97236-433-4
01
1
0509-0606
●
●
68
BRACKET; CLIP
(B)
8-98006-970-0
01
1
0607-
●
●
77
NUT; BRKT,OIL PIPE
M6 FLANGE
0-91180-106-0
01
1
0503-0508
●
77
NUT; BRKT,OIL PIPE
M6 FLANGE
0-91180-106-0
01
1
0509-0606
●
●
77
NUT; BRKT,OIL PIPE
M6 FLANGE
0-91180-106-0
01
1
0607-
●
●
77
NUT; BRKT,OIL PIPE
A/T 4 SPEED-JATCO(RMK) M6 FLANGE
0-91180-106-0
01
1
0607-
●
93
CLIP; BRKT
OD=25
8-94279-810-0
01
1
0503-0508
●
93
CLIP; BRKT
OD=25
8-94279-810-0
01
1
0509-
●
●
20
20
20
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
20
CLIP; BRK PIPE
(D) ID=10.5 & 4.8
8-97019-966-0
01
1
0503-0504
●
20
CLIP; BRK PIPE
(G) ID=10 & 6.8X2 OR 8.4X3
8-97249-906-1
03
1
0503-0508
●
20
CLIP; BRK PIPE
(G) ID=10 & 6.8X2 OR 8.4X3
8-97249-906-1
03
1
0509-
●
●
20
CLIP; BRK PIPE
(F) ID=6.8X2
8-97251-124-0
02
1
0503-0508
●
20
CLIP; BRK PIPE
(F) ID=6.8X2
8-97251-124-0
02
1
0509-0606
●
●
20
CLIP; BRK PIPE
(H) ID=8.7 & 7.1X3
8-98043-266-0
02
1
0607-
●
●
20
CLIP; BRK PIPE
(C) ID=4.76
8-97300-443-0
02
1
0503-0508
●
20
CLIP; BRK PIPE
(C) ID=4.76
8-97300-443-0
02
1
0509-
●
●
20
CLIP; BRK PIPE
(B) ID=4.6X2
8-94241-454-0
01
1
0503-0508
●
20
CLIP; BRK PIPE
(B) ID=4.6X2
8-94241-454-0
01
1
0509-
●
●
20
CLIP; BRK PIPE
(A) ID=4.76X2
8-97249-905-0
01
1
0503-0508
●
20
CLIP; BRK PIPE
(A) ID=4.76X2
8-97249-905-0
01
1
0509-
●
●
20
CLIP; BRK PIPE
(E) ID=4.8
8-97300-405-0
01
1
0503-0508
●
20
CLIP; BRK PIPE
(E) ID=4.8
8-97300-405-0
01
1
0509-0606
●
●
