51032 - UCR/UCS-LHD
▶
3 - Brakes, Brake System
▶
3-55 - BRAKE PIPING; OIL,REAR
▶
3-55 — BRAKE PIPING; OIL,REAR
(#75012) — 22 parça
Tümü
A - UCB6VF
B - UCS6VF
◀

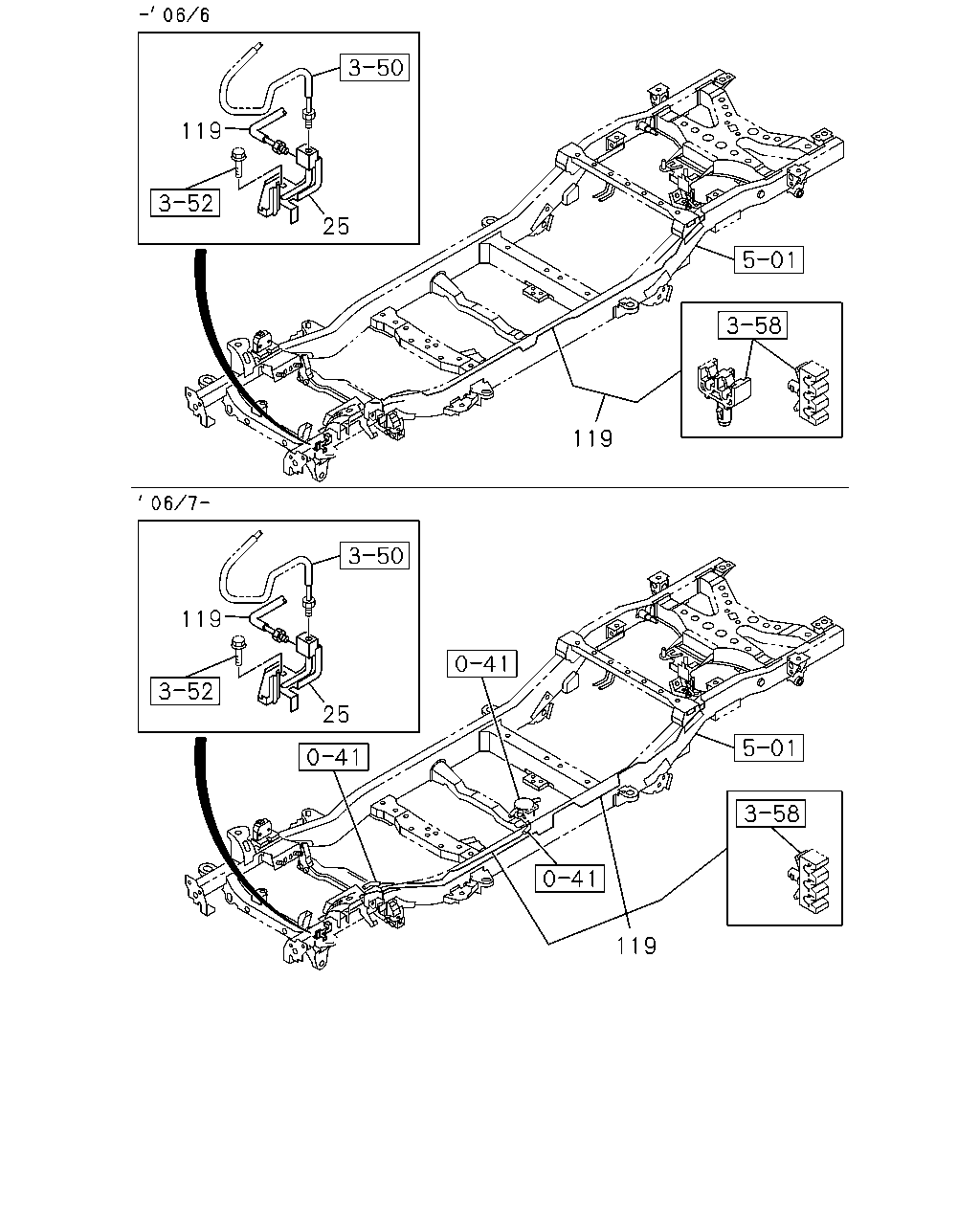

[355A] NO.1 (7 parça)

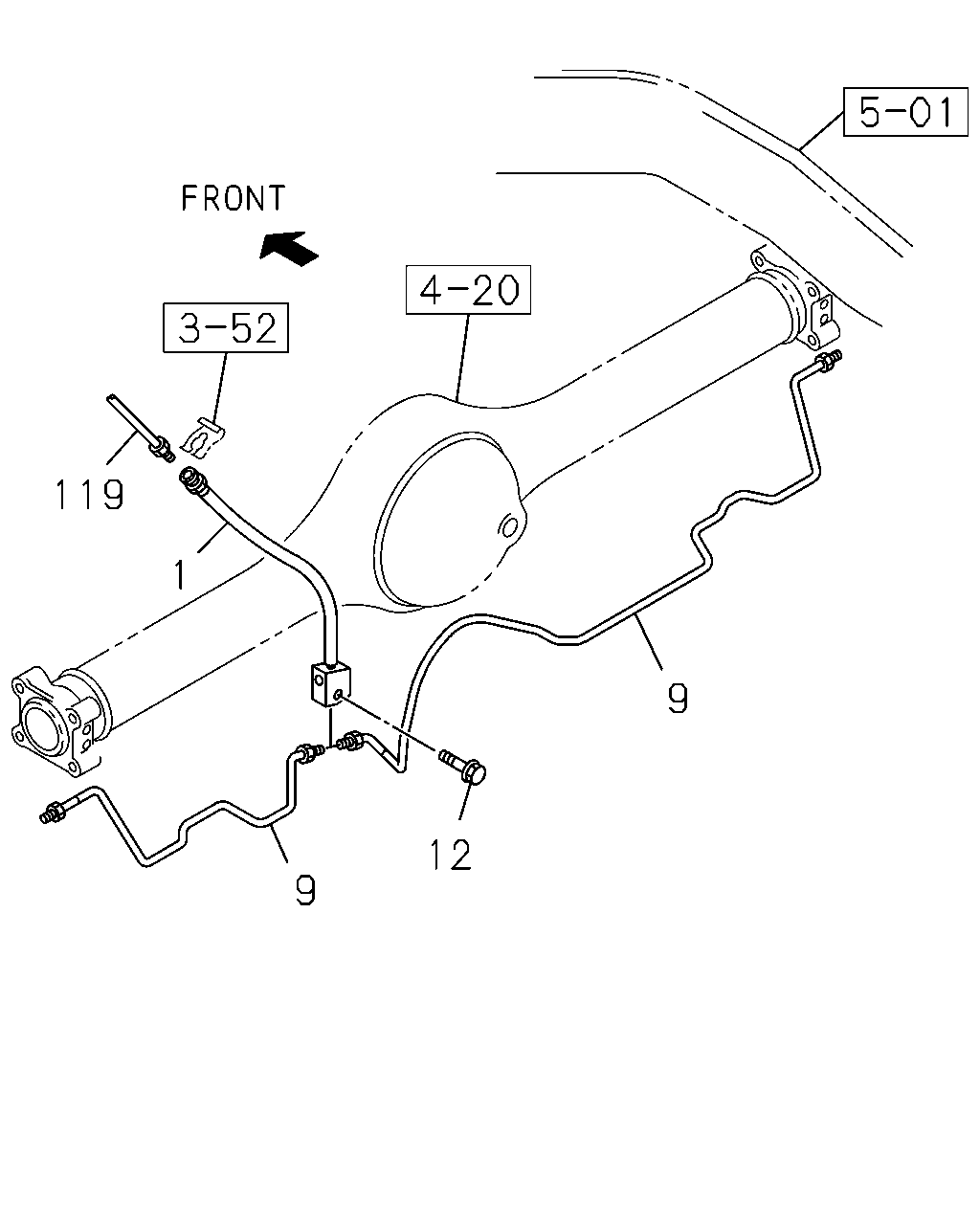

[355A] NO.2 (15 parça)
▶
119
25
119
119
119
25
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
25
CONNECTOR
8-97258-536-1
01
1
0503-0508
●
25
CONNECTOR
8-97258-536-1
01
1
0509-0606
●
●
25
CONNECTOR
8-98008-369-0
01
1
0607-0609
●
●
25
CONNECTOR
8-98046-620-0
01
1
0610-
●
●
119
PIPE; BRK,2WAY TO RR
8-97367-143-0
01
1
0503-0508
●
119
PIPE; BRK,2WAY TO RR
8-97367-143-0
01
1
0509-0606
●
●
119
PIPE; BRK,2WAY TO RR
8-98043-608-0
01
1
0607-
●
●
119
1
9
12
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
HOSE; FLEX,RR BRK
8-97371-745-0
01
1
0503-0508
●
1
HOSE; FLEX,RR BRK
8-97371-745-0
01
1
0509-0606
●
●
1
HOSE; FLEX,RR BRK
8-98018-485-0
01
1
0607-0807
●
●
1
HOSE; FLEX,RR BRK
8-98122-045-0
01
1
0808-
●
●
9
PIPE; BRK,RR AXLE
8-97217-850-3
01
1
0503-0508
●
9
PIPE; BRK,RR AXLE
8-97217-850-3
01
1
0509-0606
●
●
9
PIPE; BRK,RR AXLE
8-97944-704-0
01
1
0607-
●
●
9
PIPE; BRK,RR AXLE
8-97236-447-4
01
1
0503-0508
●
9
PIPE; BRK,RR AXLE
8-97236-447-4
01
1
0509-0606
●
●
9
PIPE; BRK,RR AXLE
8-97944-706-0
01
1
0607-
●
●
12
BOLT; FLEX HOSE TO RR AXLE
M8X30 FLANGE
0-28650-830-0
01
1
0503-0508
●
12
BOLT; FLEX HOSE TO RR AXLE
M8X30 FLANGE
0-28650-830-0
01
1
0509-
●
●
119
PIPE; BRK,2WAY TO RR
8-97367-143-0
01
1
0503-0508
●
119
PIPE; BRK,2WAY TO RR
8-97367-143-0
01
1
0509-0606
●
●
119
PIPE; BRK,2WAY TO RR
8-98043-608-0
01
1
0607-
●
●
