◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51032 - UCR/UCS-LHD ▶ 3 - Brakes, Brake System ▶ 3-52 - BRAKE PIPING; OIL,FRONT ▶
3-52 — BRAKE PIPING; OIL,FRONT (#75011) — 24 parça
çizim 118561
9 6 1 5 8 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,FRT BRK 8-97363-805-0 01 1 0503-0508 ●
1 HOSE; FLEX,FRT BRK 8-97363-805-0 01 1 0509-0606 ● ●
1 HOSE; FLEX,FRT BRK 8-98006-707-0 01 1 0607-0808 ● ●
1 HOSE; FLEX,FRT BRK 8-98122-043-0 01 1 0809- ● ●
1 HOSE; FLEX,FRT BRK 8-97330-454-0 01 1 0503-0508 ●
1 HOSE; FLEX,FRT BRK 8-97330-454-0 01 1 0509-0606 ● ●
1 HOSE; FLEX,FRT BRK 8-98006-706-0 01 1 0607-0808 ● ●
1 HOSE; FLEX,FRT BRK 8-98122-042-0 01 1 0809- ● ●
5 BOLT; EYE,FLEX HOSE,FRT BRK
M10X22 		5-09675-017-0 02 1 0503-0508 ●
5 BOLT; EYE,FLEX HOSE,FRT BRK
M10X22 		5-09675-017-0 02 1 0509-0606 ● ●
5 BOLT; EYE,FLEX HOSE,FRT BRK
M10X22 		8-97359-818-0 02 1 0607- ● ●
6 NUT; FLEX HOSE,FRT BRK
M8 FLANGE 		0-91180-108-0 02 1 0503-0508 ●
6 NUT; FLEX HOSE,FRT BRK
M8 FLANGE 		0-91180-108-0 02 1 0509- ● ●
8 GASKET; FLEX HOSE,FRT BRK
ID=10.2 OD=16.0 		9-09571-410-0 04 1 0503-0508 ●
8 GASKET; FLEX HOSE,FRT BRK
ID=10.2 OD=16.0 		9-09571-410-0 04 1 0509- ● ●
9 CLIP; FLEX HOSE,FRT BRK 8-94137-662-0 03 1 0503-0508 ●
9 CLIP; FLEX HOSE,FRT BRK 8-94137-662-0 03 1 0509-0606 ● ●
9 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 03 1 0607- ● ●

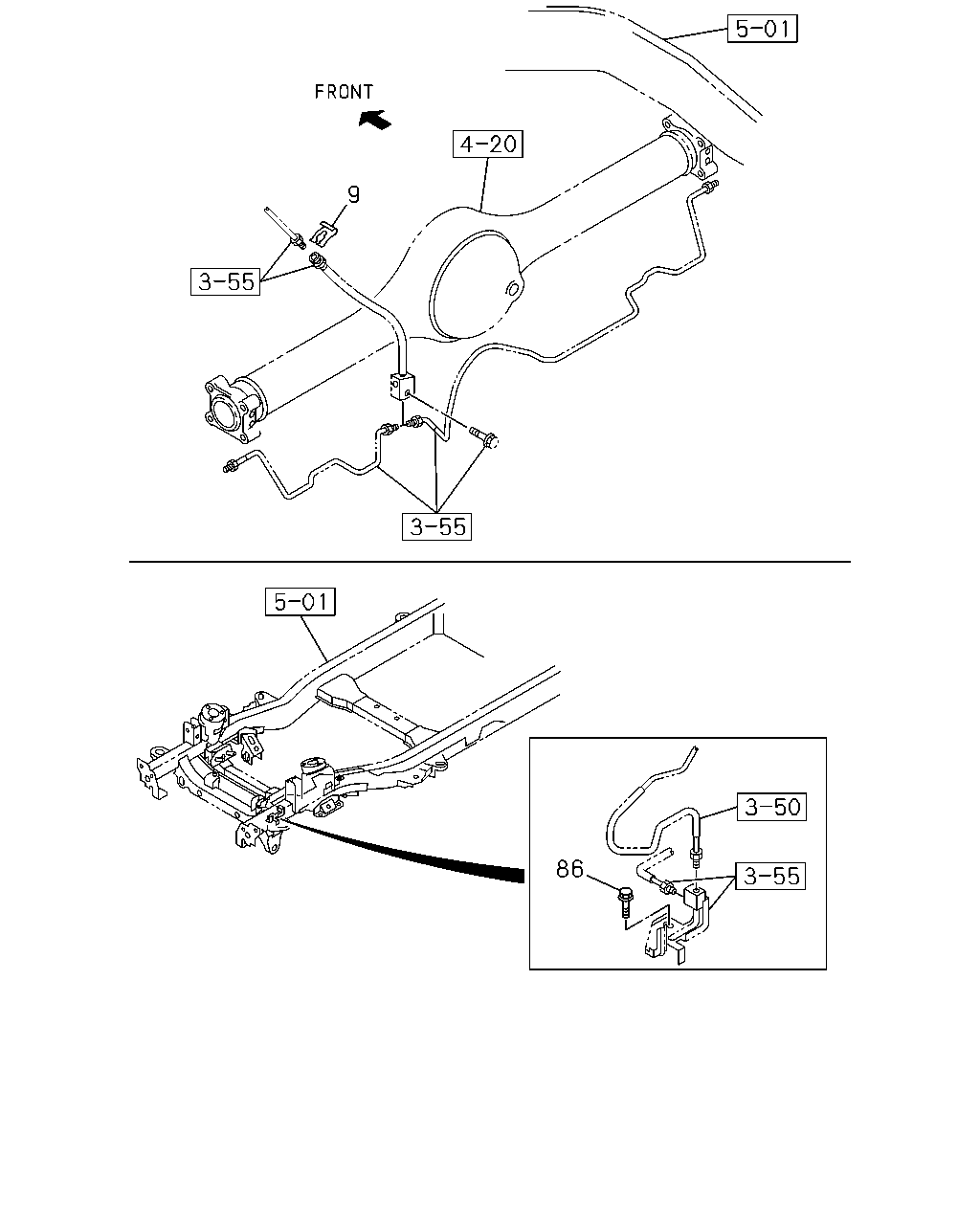

çizim 118570
9 86
BalonParca AdiParca NoAdetTipApplied Date A B
9 CLIP; FLEX HOSE,FRT BRK 8-94137-662-0 03 1 0503-0508 ●
9 CLIP; FLEX HOSE,FRT BRK 8-94137-662-0 03 1 0509-0606 ● ●
9 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 03 1 0607- ● ●
86 BOLT; BRK PIPE
M8X20 FLANGE 		0-28650-820-0 01 1 0503-0508 ●
86 BOLT; BRK PIPE
M8X20 FLANGE 		0-28650-820-0 01 1 0509-0511 ● ●
86 BOLT; BRK PIPE
M8X25 FLANGE 		0-28650-825-0 01 1 0512- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
