Isuzu WW
▶
SUV
▶
UCR
▶
51032 - UCR/UCS-LHD
▶
3 - Brakes, Brake System
▶
3-50 - BRAKE PIPING; OIL,MASTER CYLINDER
▶
3-50 — BRAKE PIPING; OIL,MASTER CYLINDER
(#75010) — 49 parça
Tümü
A - UCB6VF
B - UCS6VF
◀

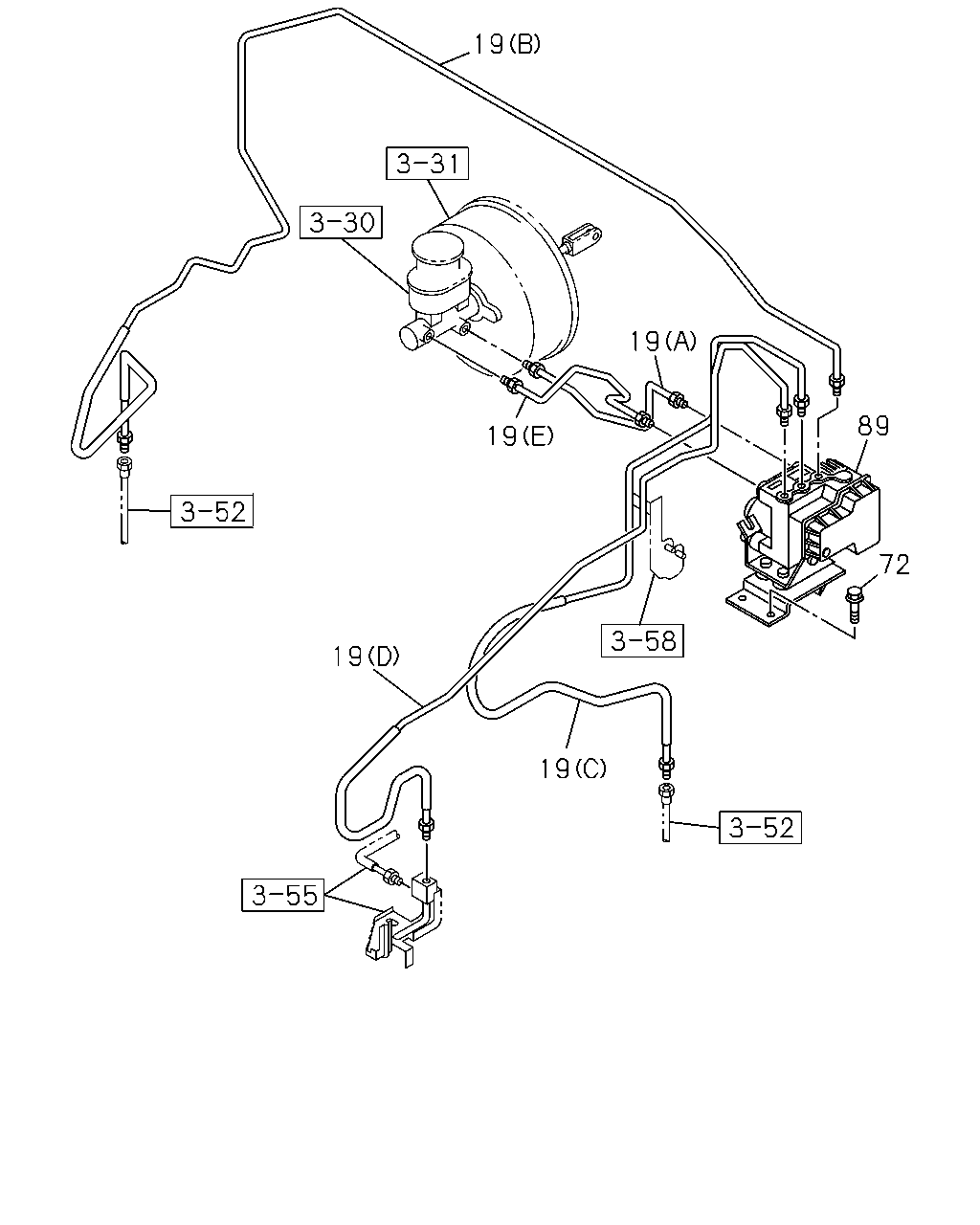

[350A] PIPING;ENGINE ROOM (25 parça)

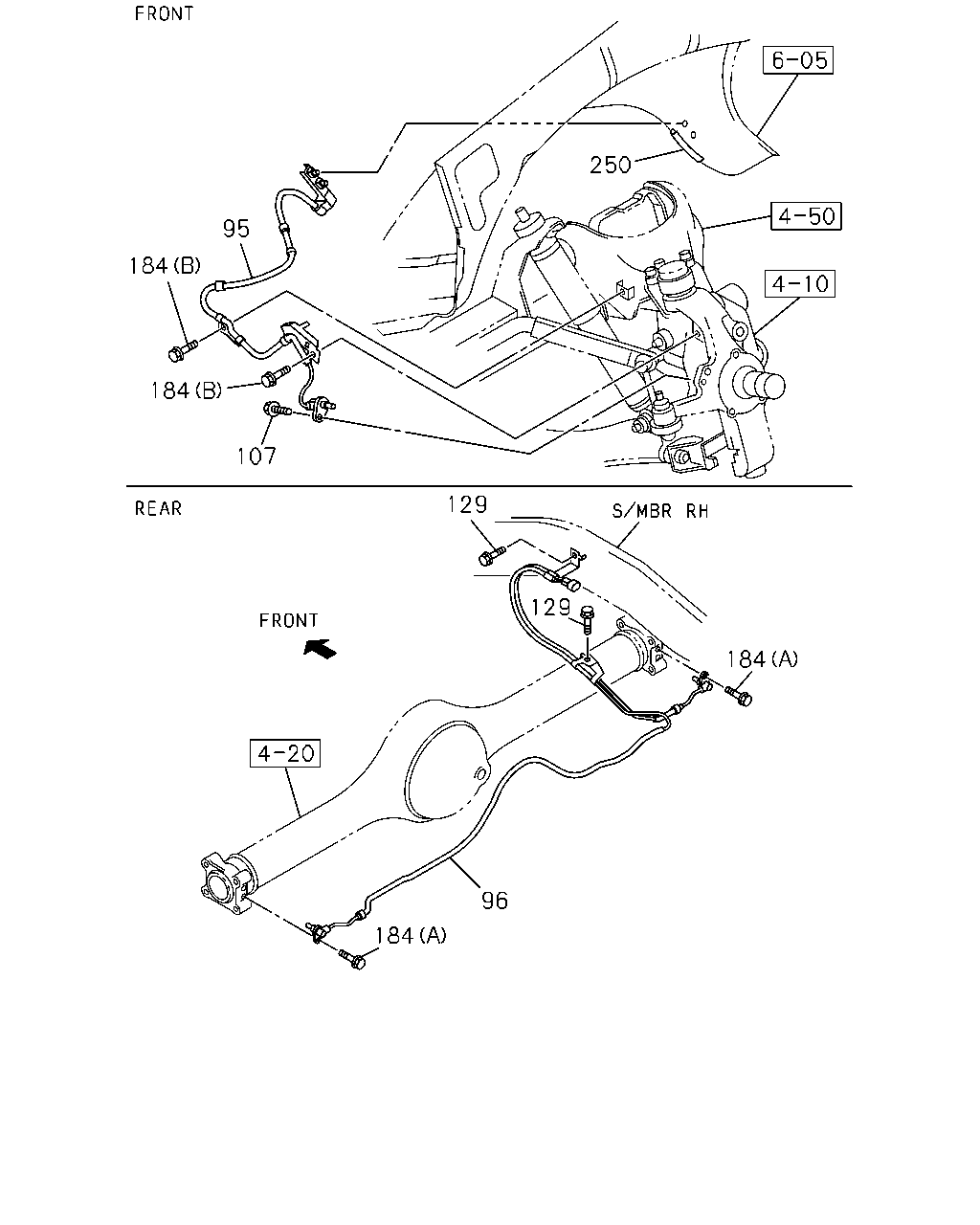

[350A] SENSOR;SPD (21 parça)

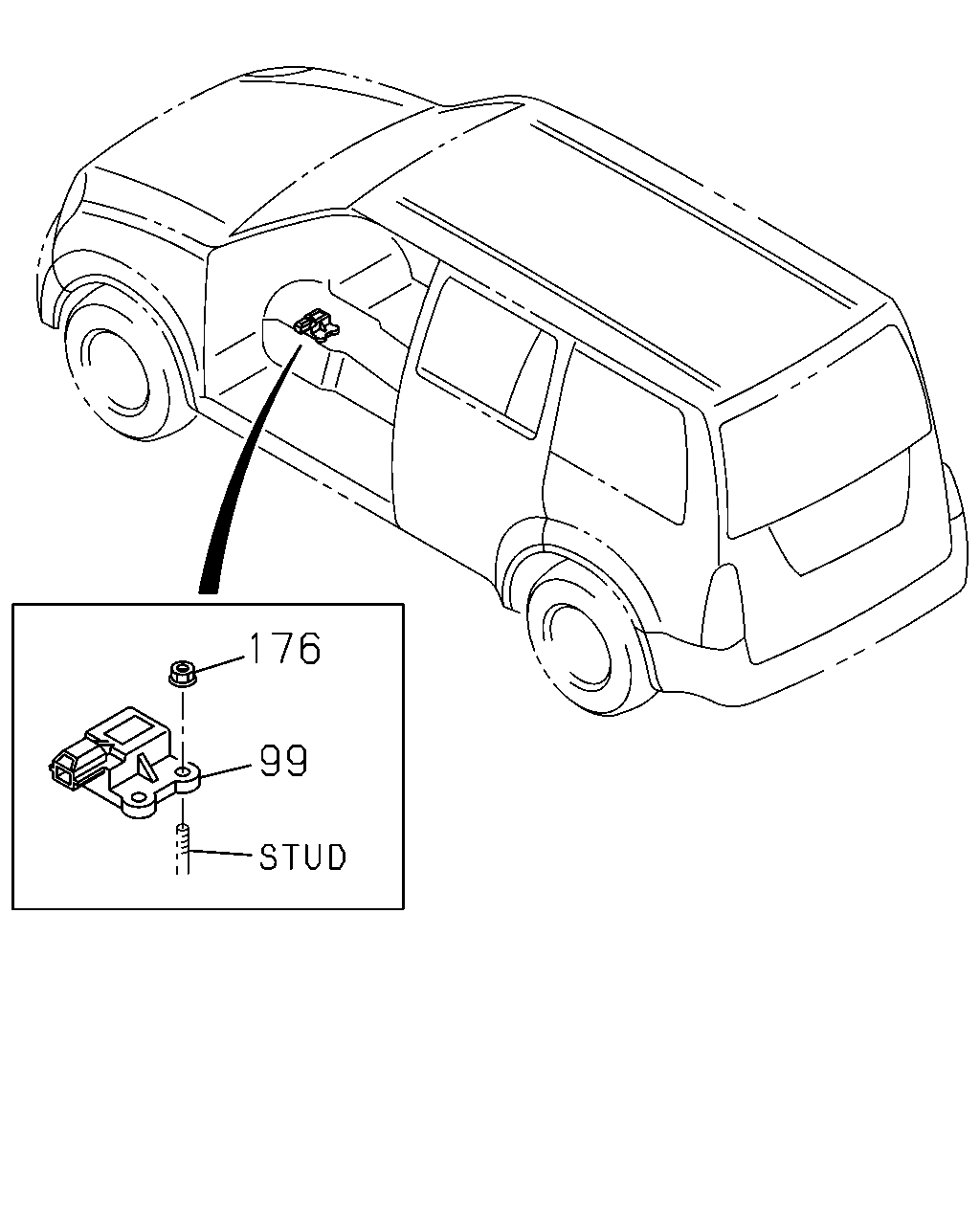

[350A] SENSOR;DECELERATION (3 parça)
▶
19
19
89
19
72
19
19
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
19
PIPE; BRK,M/CYL TO UNION
(A)
8-97315-587-1
01
1
0503-0508
●
19
PIPE; BRK,M/CYL TO UNION
(A)
8-97315-587-1
01
1
0509-0606
●
●
19
PIPE; BRK,M/CYL TO UNION
(A)
8-97944-785-2
01
1
0607-
●
●
19
PIPE; BRK,M/CYL TO UNION
(E)
8-97315-588-3
01
1
0503-0508
●
19
PIPE; BRK,M/CYL TO UNION
(E)
8-97315-588-3
01
1
0509-0606
●
●
19
PIPE; BRK,M/CYL TO UNION
(E)
8-97944-771-1
01
1
0607-
●
●
19
PIPE; BRK,M/CYL TO UNION
(C)
8-97324-509-0
01
1
0503-0508
●
19
PIPE; BRK,M/CYL TO UNION
(C)
8-97324-509-0
01
1
0509-0606
●
●
19
PIPE; BRK,M/CYL TO UNION
(C)
8-97944-758-1
01
1
0607-
●
●
19
PIPE; BRK,M/CYL TO UNION
(D)
8-97332-910-0
01
1
0503-0508
●
19
PIPE; BRK,M/CYL TO UNION
(D)
8-97332-910-0
01
1
0509-0606
●
●
19
PIPE; BRK,M/CYL TO UNION
(D)
8-97944-757-1
01
1
0607-
●
●
19
PIPE; BRK,M/CYL TO UNION
(B)
8-97321-284-3
01
1
0503-0508
●
19
PIPE; BRK,M/CYL TO UNION
(B)
8-97321-284-3
01
1
0509-0606
●
●
19
PIPE; BRK,M/CYL TO UNION
(B)
8-97944-769-0
01
1
0607-
●
●
72
BOLT; BRKT TO BODY
M6X16 FLANGE
0-28650-616-0
03
1
0503-0508
●
72
BOLT; BRKT TO BODY
M6X16 FLANGE
0-28650-616-0
03
1
0509-
●
●
89
HYDRAULIC UNIT; ANTI LOCK BRK
8-97329-787-0
01
1
0503-0505
●
89
HYDRAULIC UNIT; ANTI LOCK BRK
8-98004-194-0
01
1
0506-0606
●
89
HYDRAULIC UNIT; ANTI LOCK BRK
8-98008-783-0
01
1
0607-1008
●
89
HYDRAULIC UNIT; ANTI LOCK BRK
8-98008-783-0
01
1
1009-
●
89
HYDRAULIC UNIT; ANTI LOCK BRK
8-97379-144-0
01
1
0509-0509
●
89
HYDRAULIC UNIT; ANTI LOCK BRK
8-98004-195-0
01
1
0509-0606
●
89
HYDRAULIC UNIT; ANTI LOCK BRK
8-98008-784-0
01
1
0607-1008
●
89
HYDRAULIC UNIT; ANTI LOCK BRK
8-98008-784-0
01
1
1009-
●
250
95
184
184
107
129
129
184
96
184
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
95
SENSOR; SPD,FRT WHEEL
8-97236-106-2
01
1
0503-0508
●
95
SENSOR; SPD,FRT WHEEL
8-97236-106-2
01
1
0509-0606
●
●
95
SENSOR; SPD,FRT WHEEL
8-97387-990-1
01
1
0607-
●
●
95
SENSOR; SPD,FRT WHEEL
8-97370-590-0
01
1
0503-0508
●
95
SENSOR; SPD,FRT WHEEL
8-97370-590-0
01
1
0509-0606
●
●
95
SENSOR; SPD,FRT WHEEL
8-97387-989-1
01
1
0607-
●
●
96
SENSOR; SPD,RR WHEEL
8-97362-460-0
01
1
0503-0508
●
96
SENSOR; SPD,RR WHEEL
8-97362-460-0
01
1
0509-0606
●
●
96
SENSOR; SPD,RR WHEEL
8-97387-992-1
01
1
0607-
●
●
107
BOLT; WHEEL SPD SENSOR
M6X10 FLANGE
0-28050-610-0
02
1
0503-0508
●
107
BOLT; WHEEL SPD SENSOR
M6X10 FLANGE
0-28050-610-0
02
1
0509-
●
●
129
BOLT; BRKT
M6X16 FLANGE
0-28650-616-0
02
1
0503-0508
●
129
BOLT; BRKT
M6X16 FLANGE
0-28650-616-0
02
1
0509-
●
●
184
BOLT; CLIP
(B) M6X10 FLANGE
0-28050-610-0
02
1
0503-0508
●
184
BOLT; CLIP
(B) M6X10 FLANGE
0-28050-610-0
02
1
0503-0508
●
184
BOLT; CLIP
(B) M6X10 FLANGE
0-28050-610-0
02
1
0509-
●
●
184
BOLT; CLIP
(B) M6X10 FLANGE
0-28050-610-0
02
1
0509-
●
●
184
BOLT; CLIP
(A) M6X16 FLANGE
0-28650-616-0
02
1
0503-0508
●
184
BOLT; CLIP
(A) M6X16 FLANGE
0-28650-616-0
02
1
0509-
●
●
250
FINISHER; HARNESS
L=80
5-71997-133-0
01
1
0503-0508
●
250
FINISHER; HARNESS
L=80
5-71997-133-0
01
1
0509-
●
●
176
99
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
99
SENSOR; DECELERATION
8-97262-548-0
01
1
0509-0606
●
99
SENSOR; DECELERATION
8-98013-796-0
01
1
0607-
●
176
NUT; SENSOR
M6 FLANGE
0-91180-206-0
02
1
0509-
●
