7-43 — SUN VISOR AND ASSIST GRIP (#7501) — 151 parça

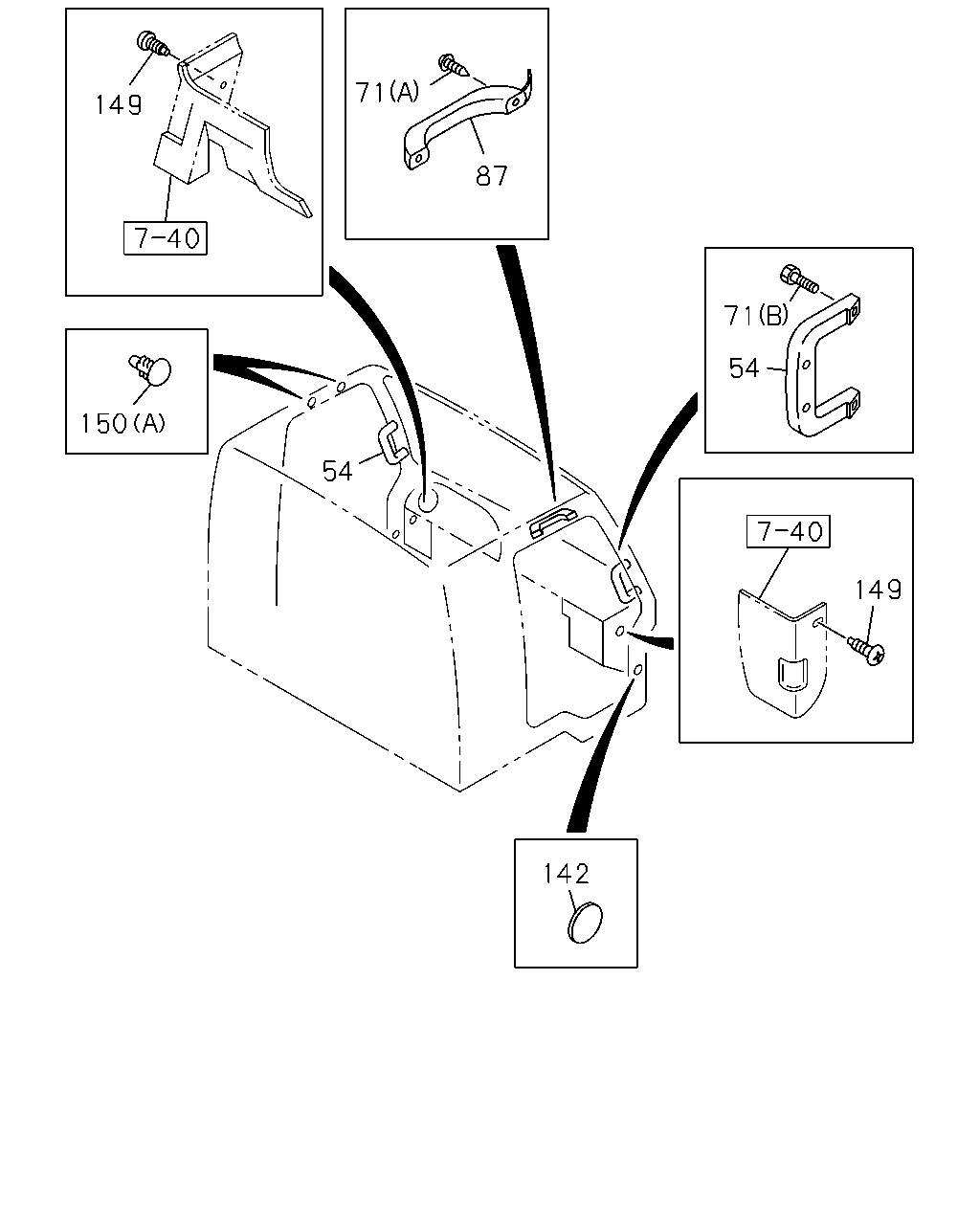

71 149 87 71 54 150 54 149 142

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
54	GRIP; ASSIST,QUARTER SIDE TAI	8-97535-018-0	02	1	9811-0610	●
54	GRIP; ASSIST,QUARTER SIDE TAI	1-73618-185-1	02	1	0611-	●
54	GRIP; ASSIST,QUARTER SIDE TAI	8-97535-020-0	01	1	9811-9906		●
54	GRIP; ASSIST,QUARTER SIDE TAI	8-97535-088-0	01	1	9907-		●
54	GRIP; ASSIST,QUARTER SIDE TAI	8-97535-019-0	01	1	9811-9906		●
54	GRIP; ASSIST,QUARTER SIDE TAI	8-97535-087-0	01	1	9907-		●
71	SCREW (B) M6X20 W/LK&PL WASHER	1-09981-509-0	04	1	9811-0211	●
71	SCREW (B) M6X34 W/LK&PL WASHER TAI	8-94279-411-0	04	1	0212-0304	●
71	SCREW (B) M6X20 W/LK&PL WASHER	1-09981-509-0	04	1	0305-0610	●
71	SCREW (B) M6X34 W/LK&PL WASHER TAI	8-94279-411-0	04	1	0611-	●
71	SCREW (A) M6X35 W/PL WASHER TAI	1-09981-422-0	02	1	9811-0310	●	●
71	SCREW (A) M6X30 W/LK WASHER TAI	5-09981-064-0	02	1	0311-0610	●	●
71	SCREW ASSIST GRIP<EG5> (A) M6X30 W/LK WASHER TAI	5-09981-064-0	02	1	0611-	●	●
71	SCREW (C) M5X14 W/PL WASHER TAI	5-09981-050-0	06	1	9811-	●	●
71	SCREW (B) M6X20 W/LK&PL WASHER	1-09981-073-0	02	1	9811-		●
87	GRIP; ASSIST,CANT RAIL SIDE	1-73618-170-0	01	1	9811-9906	●	●
87	GRIP; ASSIST,CANT RAIL SIDE DARK GRAY TAI	8-97098-476-2	01	1	9907-0610	●	●
87	GRIP; ASSIST,CANT RAIL SIDE ASSIST GRIP<EG5> DARK GRAY TAI	8-97098-476-2	01	1	0611-	●	●
142	SEAL; ASSIST GRIP OD=25 BLACK TAI	1-76798-019-0	02	1	9811-0610	●
142	SEAL; ASSIST GRIP OD=25 BLACK TAI	1-76798-019-0	03	1	0611-	●
149	SCREW; ASSIST GRIP HOLE M6X12	8-97094-854-0	02	1	0611-	●
149	SCREW; ASSIST GRIP HOLE M6X16 TAI	8-94479-534-0	02	1	9811-0302	●
149	SCREW; ASSIST GRIP HOLE M6X12	8-97094-854-0	02	1	0303-0610	●
150	CLIP; ASSIST GRIP HOLE EXC. ASSIST GRIP<EG5> (A) OD=6 L=17 LIGHT GRAY TAI	1-73996-301-0	04	1	0611-0704		●
150	CLIP; ASSIST GRIP HOLE EXC. ASSIST GRIP<EG5> (A) OD=6 L=17 LIGHT GRAY TAI	1-73996-301-0	04	1	0705-	●	●
150	CLIP; ASSIST GRIP HOLE (A) OD=6 L=17 DARK GRAY	1-73996-128-1	02	1	9811-9906	●	●
150	CLIP; ASSIST GRIP HOLE (A) OD=6 L=17 LIGHT GRAY TAI	1-73996-301-0	02	1	9907-0610	●	●
150	CLIP; ASSIST GRIP HOLE ASSIST GRIP<EG5> (A) OD=6 L=17 LIGHT GRAY TAI	1-73996-301-0	02	1	0611-	●	●
150	CLIP; ASSIST GRIP HOLE (B) OD=6 L=17 DARK GRAY	1-73996-128-1	04	1	9811-9906		●
150	CLIP; ASSIST GRIP HOLE (B) OD=6 L=17 DARK GRAY	1-73996-364-0	04	1	9907-		●

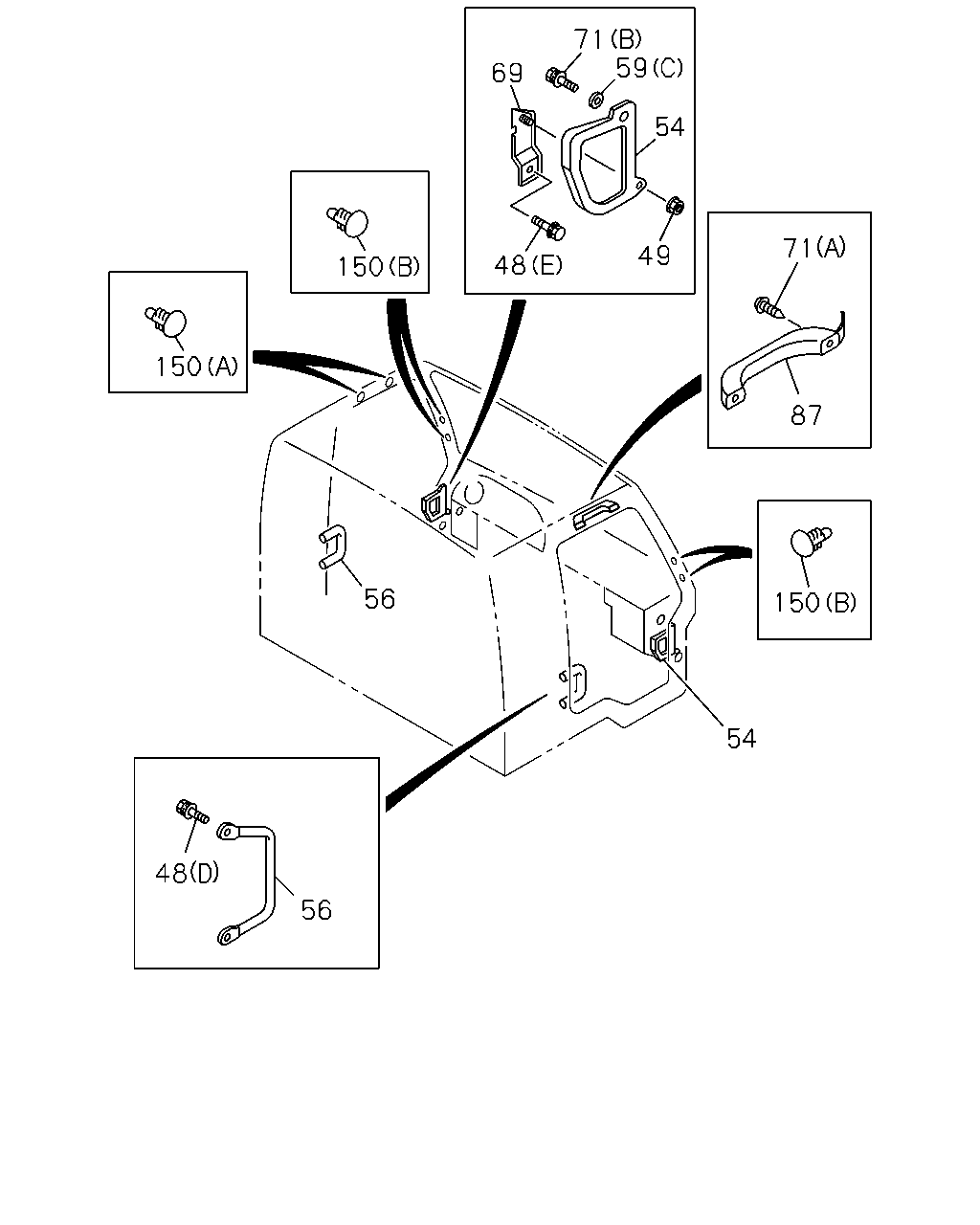

71 59 69 54 71 49 48 150 150 87 56 150 54 48 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
48	BOLT; ASSIST GRIP (B) M6X16 W/LK&PL WASHER TAI	1-09980-492-0	04	1	9811-	●	●
48	BOLT; ASSIST GRIP (A) M6X33.5 W/LK&PL WASHER	1-09980-613-1	02	1	9811-	●	●
48	BOLT; ASSIST GRIP (C) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	9811-	●	●
48	BOLT; ASSIST GRIP (D) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	9811-		●
48	BOLT; ASSIST GRIP (E) M8X24.5 W/LK&PL WASHER TAI	8-94279-208-0	02	1	9811-		●
49	NUT; ASSIST GRIP M6 FLANGE	0-91150-106-0	02	1	9811-0602		●
49	NUT; ASSIST GRIP M6 FLANGE	0-91180-106-0	02	1	0603-		●
54	GRIP; ASSIST,QUARTER SIDE TAI	8-97535-018-0	02	1	9811-0610	●
54	GRIP; ASSIST,QUARTER SIDE TAI	1-73618-185-1	02	1	0611-	●
54	GRIP; ASSIST,QUARTER SIDE TAI	8-97535-020-0	01	1	9811-9906		●
54	GRIP; ASSIST,QUARTER SIDE TAI	8-97535-088-0	01	1	9907-		●
54	GRIP; ASSIST,QUARTER SIDE TAI	8-97535-019-0	01	1	9811-9906		●
54	GRIP; ASSIST,QUARTER SIDE TAI	8-97535-087-0	01	1	9907-		●
56	GRIP; ASSIST,SIDE SILL TAI	8-97535-021-0	02	1	9811-		●
59	COVER; ASSIST GRIP (B) OUTER	1-71998-789-2	02	1	9811-	●	●
59	COVER; ASSIST GRIP (A) INNER	1-71998-790-2	02	1	9811-	●	●
59	COVER; ASSIST GRIP (C)	1-73617-069-0	02	1	9811-9906		●
59	COVER; ASSIST GRIP (C)	1-73617-565-0	02	1	9907-		●
69	BRACKET; ASSIST GRIP	1-73618-178-2	01	1	9811-		●
69	BRACKET; ASSIST GRIP	1-73618-181-1	01	1	9811-		●
71	SCREW (B) M6X20 W/LK&PL WASHER	1-09981-509-0	04	1	9811-0211	●
71	SCREW (B) M6X34 W/LK&PL WASHER TAI	8-94279-411-0	04	1	0212-0304	●
71	SCREW (B) M6X20 W/LK&PL WASHER	1-09981-509-0	04	1	0305-0610	●
71	SCREW (B) M6X34 W/LK&PL WASHER TAI	8-94279-411-0	04	1	0611-	●
71	SCREW (A) M6X35 W/PL WASHER TAI	1-09981-422-0	02	1	9811-0310	●	●
71	SCREW (A) M6X30 W/LK WASHER TAI	5-09981-064-0	02	1	0311-0610	●	●
71	SCREW ASSIST GRIP<EG5> (A) M6X30 W/LK WASHER TAI	5-09981-064-0	02	1	0611-	●	●
71	SCREW (C) M5X14 W/PL WASHER TAI	5-09981-050-0	06	1	9811-	●	●
71	SCREW (B) M6X20 W/LK&PL WASHER	1-09981-073-0	02	1	9811-		●
87	GRIP; ASSIST,CANT RAIL SIDE	1-73618-170-0	01	1	9811-9906	●	●
87	GRIP; ASSIST,CANT RAIL SIDE DARK GRAY TAI	8-97098-476-2	01	1	9907-0610	●	●
87	GRIP; ASSIST,CANT RAIL SIDE ASSIST GRIP<EG5> DARK GRAY TAI	8-97098-476-2	01	1	0611-	●	●
150	CLIP; ASSIST GRIP HOLE EXC. ASSIST GRIP<EG5> (A) OD=6 L=17 LIGHT GRAY TAI	1-73996-301-0	04	1	0611-0704		●
150	CLIP; ASSIST GRIP HOLE EXC. ASSIST GRIP<EG5> (A) OD=6 L=17 LIGHT GRAY TAI	1-73996-301-0	04	1	0705-	●	●
150	CLIP; ASSIST GRIP HOLE (A) OD=6 L=17 DARK GRAY	1-73996-128-1	02	1	9811-9906	●	●
150	CLIP; ASSIST GRIP HOLE (A) OD=6 L=17 LIGHT GRAY TAI	1-73996-301-0	02	1	9907-0610	●	●
150	CLIP; ASSIST GRIP HOLE ASSIST GRIP<EG5> (A) OD=6 L=17 LIGHT GRAY TAI	1-73996-301-0	02	1	0611-	●	●
150	CLIP; ASSIST GRIP HOLE (B) OD=6 L=17 DARK GRAY	1-73996-128-1	04	1	9811-9906		●
150	CLIP; ASSIST GRIP HOLE (B) OD=6 L=17 DARK GRAY	1-73996-364-0	04	1	9907-		●

64 64 62 48 48 66 103 48 59 68 66 48 59 103 48 48 59 68 48 59 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
48	BOLT; ASSIST GRIP (B) M6X16 W/LK&PL WASHER TAI	1-09980-492-0	04	1	9811-	●	●
48	BOLT; ASSIST GRIP (A) M6X33.5 W/LK&PL WASHER	1-09980-613-1	02	1	9811-	●	●
48	BOLT; ASSIST GRIP (C) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	9811-	●	●
48	BOLT; ASSIST GRIP (D) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	9811-		●
48	BOLT; ASSIST GRIP (E) M8X24.5 W/LK&PL WASHER TAI	8-94279-208-0	02	1	9811-		●
59	COVER; ASSIST GRIP (B) OUTER	1-71998-789-2	02	1	9811-	●	●
59	COVER; ASSIST GRIP (A) INNER	1-71998-790-2	02	1	9811-	●	●
59	COVER; ASSIST GRIP (C)	1-73617-069-0	02	1	9811-9906		●
59	COVER; ASSIST GRIP (C)	1-73617-565-0	02	1	9907-		●
62	GRIP; ASSIST,ROOF PANEL	1-71907-492-0	01	1	9811-	●	●
64	SHEET; ASSIST GRIP 25X25 TAI	8-94272-533-0	04	1	9811-	●	●
66	BOLT; ASSIST GRIP BRKT M8X20.5 W/LK&PL WASHER TAI	8-94279-207-0	04	1	9811-	●	●
68	BRACKET; ASSIST GRIP,FRT PANEL	1-65580-203-0	02	1	9811-	●	●
103	GRIP; ASSIST,FRT PNL TAI	1-71998-791-2	01	1	0611-	●
103	GRIP; ASSIST,FRT PNL TAI	1-71998-792-2	01	1	0611-	●
103	GRIP; ASSIST,FRT PNL TAI	8-97535-023-1	01	1	9811-0610	●	●
103	GRIP; ASSIST,FRT PNL TAI	8-97535-023-1	01	1	0611-		●
103	GRIP; ASSIST,FRT PNL TAI	8-97535-022-1	01	1	9811-0610	●	●
103	GRIP; ASSIST,FRT PNL TAI	8-97535-022-1	01	1	0611-		●

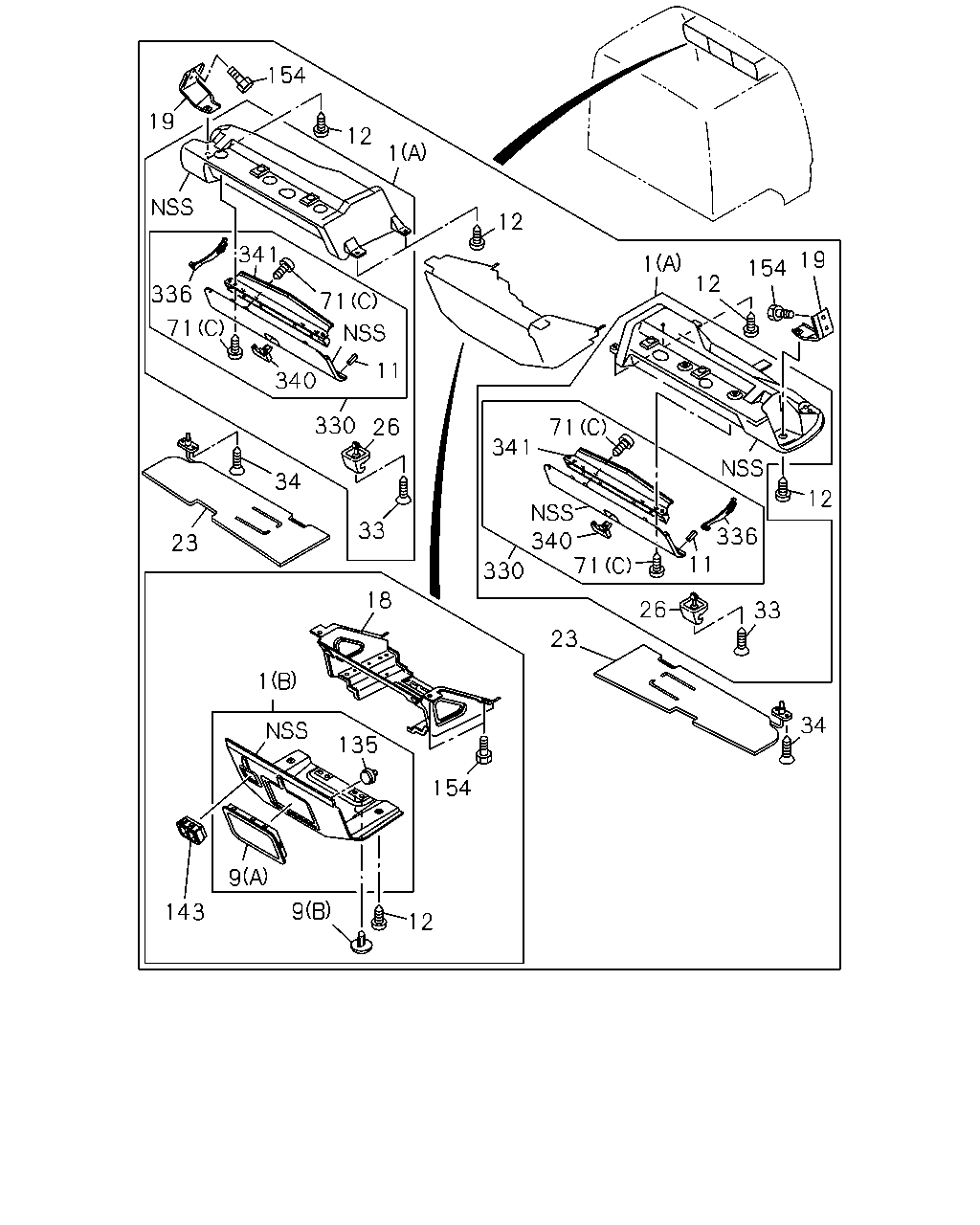

154 19 12 1 12 341 19 1 154 12 336 71 71 11 340 330 26 71 341 34 12 340 71 33 336 11 23 330 18 26 33 23 1 34 135 154 9 9 143 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BOARD; HEADER SHELF EXC. MAP LAMP<C85> (B)	1-72448-663-0	01	1	0611-	●
1	BOARD; HEADER SHELF (B)	1-72448-573-1	01	1	9811-9906	●	●
1	BOARD; HEADER SHELF (B)	1-72448-702-0	01	1	9907-0610	●	●
1	BOARD; HEADER SHELF MAP LAMP<C85> (B)	1-72448-702-0	01	1	0611-	●	●
1	BOARD; HEADER SHELF (A)	1-73318-616-1	01	1	9811-9906	●	●
1	BOARD; HEADER SHELF (A)	1-72448-665-0	01	1	9907-0003	●	●
1	BOARD; HEADER SHELF (A) TAI	1-73318-691-0	01	1	0004-	●	●
1	BOARD; HEADER SHELF (A)	1-73317-362-1	01	1	9811-9906	●	●
1	BOARD; HEADER SHELF (A)	1-72448-664-0	01	1	9907-0003	●	●
1	BOARD; HEADER SHELF (A) TAI	1-73318-690-0	01	1	0004-	●	●
9	COVER; HOLE,HEADER SHELF CENTER (A) TAI	1-72448-547-2	01	1	9811-0610	●	●
9	COVER; HOLE,HEADER SHELF CENTER MAP LAMP<C85> (A) TAI	1-72448-547-2	01	1	0611-	●	●
9	COVER; HOLE,HEADER SHELF CENTER (B) OD=6 L=17 DARK GRAY	1-73996-128-1	02	1	9811-9908	●	●
9	COVER; HOLE,HEADER SHELF CENTER (B) OD=6 L=17 DARK GRAY	1-73996-364-0	02	1	9909-0610	●	●
9	COVER; HOLE,HEADER SHELF CENTER MAP LAMP<C85> (B) OD=6 L=17 DARK GRAY	1-73996-364-0	02	1	0611-	●	●
11	CAP; HEADER SHELF TAI	8-94270-538-0	04	1	9811-	●	●
12	SCREW; HEADER SHELF M6X24 W/LK&PL WASHER TAI	8-94279-404-0	12	1	9811-	●	●
18	SUPPORT; HEADER SHELF CENTER EXC. MAP LAMP<C85>	8-97865-124-1	01	1	0611-	●	●
18	SUPPORT; HEADER SHELF CENTER	1-72448-636-1	01	1	9811-0610	●	●
18	SUPPORT; HEADER SHELF CENTER MAP LAMP<C85>	1-72448-636-1	01	1	0611-	●	●
19	SUPPORT ASM; HEADER SHELF TAI	1-72448-324-1	01	1	9811-	●	●
19	SUPPORT ASM; HEADER SHELF TAI	1-72448-323-1	01	1	9811-	●	●
23	SUN VISOR TAI	1-73138-156-1	01	1	0611-	●
23	SUN VISOR TAI	1-73138-157-1	01	1	0611-	●
23	SUN VISOR TAI	8-97535-056-0	01	1	9811-9906	●	●
23	SUN VISOR TAI	8-97535-089-0	01	1	9907-0610	●	●
23	SUN VISOR TAI	8-97535-089-0	01	1	0611-		●
23	SUN VISOR TAI	8-97535-057-0	01	1	9811-9906	●	●
23	SUN VISOR TAI	8-97535-090-0	01	1	9907-0610	●	●
23	SUN VISOR TAI	8-97535-090-0	01	1	0611-		●
26	HOLDER; SUN VISOR	1-73138-142-0	02	1	9811-9906	●	●
26	HOLDER; SUN VISOR TAI	1-73137-175-0	02	1	9907-	●	●
33	SCREW; HOLDER,SUN VISOR M4X16 TAPPING OVAL-HEAD	0-70580-416-0	02	1	9811-0603	●	●
33	SCREW; HOLDER,SUN VISOR M4X16 TAPPING OVAL-HEAD	0-70540-416-0	02	1	0604-	●	●
34	SCREW; SUN VISOR M6X25 TAI	1-09981-441-0	04	1	0611-		●
34	SCREW; SUN VISOR M6X25 TAI	1-09981-441-0	04	1	9811-0610	●	●
34	SCREW; SUN VISOR M6X25 TAI	1-09981-441-0	02	1	0611-0611	●	●
34	SCREW; SUN VISOR M6X25 TAI	1-09981-441-0	02	1	0611-0611	●
34	SCREW; SUN VISOR M6X25 TAI	1-09981-441-0	02	1	0611-	●
34	SCREW; SUN VISOR M6X25 TAI	1-09981-441-0	02	1	0611-	●
71	SCREW (B) M6X20 W/LK&PL WASHER	1-09981-509-0	04	1	9811-0211	●
71	SCREW (B) M6X34 W/LK&PL WASHER TAI	8-94279-411-0	04	1	0212-0304	●
71	SCREW (B) M6X20 W/LK&PL WASHER	1-09981-509-0	04	1	0305-0610	●
71	SCREW (B) M6X34 W/LK&PL WASHER TAI	8-94279-411-0	04	1	0611-	●
71	SCREW (A) M6X35 W/PL WASHER TAI	1-09981-422-0	02	1	9811-0310	●	●
71	SCREW (A) M6X30 W/LK WASHER TAI	5-09981-064-0	02	1	0311-0610	●	●
71	SCREW ASSIST GRIP<EG5> (A) M6X30 W/LK WASHER TAI	5-09981-064-0	02	1	0611-	●	●
71	SCREW (C) M5X14 W/PL WASHER TAI	5-09981-050-0	06	1	9811-	●	●
71	SCREW (B) M6X20 W/LK&PL WASHER	1-09981-073-0	02	1	9811-		●
135	CLIP; HEADER SHELF EXC. MAP LAMP<C85> OD=7.9 BLACK TAI	8-94279-974-1	06	1	0611-	●
135	CLIP; HEADER SHELF D6X23 DARK GRAY TAI	1-09987-238-0	02	1	9811-0209	●	●
135	CLIP; HEADER SHELF D6X23 BLACK	1-09987-114-0	02	1	0210-	●	●
135	CLIP; HEADER SHELF OD=7.9 BLACK TAI	8-94279-974-1	03	1	9811-0610	●	●
135	CLIP; HEADER SHELF MAP LAMP<C85> OD=7.9 BLACK TAI	8-94279-974-1	03	1	0611-	●	●
143	BEZEL TAI	1-72448-532-0	01	1	9811-0610	●	●
143	BEZEL TAI	1-72448-532-0	01	1	0611-	●
143	BEZEL MAP LAMP<C85> TAI	1-72448-532-0	01	1	0611-		●
154	BOLT; SUPPORT M6X19.5 W/LK&PL WASHER TAI	8-94279-201-0	08	1	9811-	●	●
330	LID; HEADER SHELF	1-72448-360-3	02	1	9811-9906	●	●
330	LID; HEADER SHELF TAI	1-72448-679-0	02	1	9907-	●	●
336	STAY; LID TAI	1-72448-379-3	04	1	9811-	●	●
340	LOCK; HEADER SHELF TAI	1-72448-376-0	02	1	9811-	●	●
341	HINGE; LID,HEADER SHELF TAI	1-72448-403-1	02	1	9811-	●	●
