3-10 — BRAKE PEDAL AND CONTROL (#75006) — 62 parça

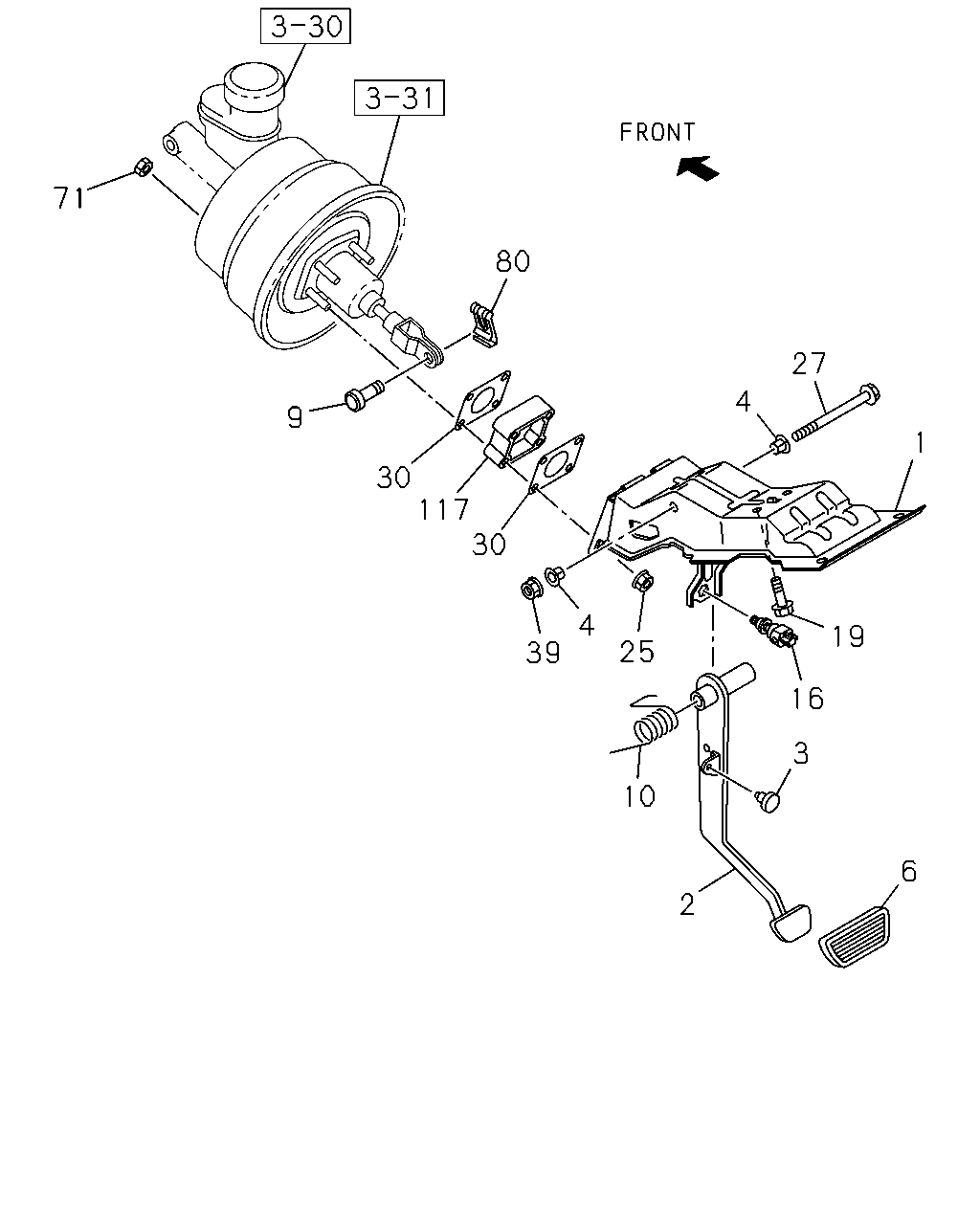

çizim 118559
71 80 27 4 9 1 30 117 30 4 19 25 39 16 3 10 6 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 BRACKET ASM; PEDAL
A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) 		8-97358-793-0 01 1 0503-0508 ●
1 BRACKET ASM; PEDAL
A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) 		8-97358-793-0 01 1 0509-0606 ●
1 BRACKET ASM; PEDAL
A/T 4 SPEED-JATCO(RMK) 		8-97358-793-0 01 1 0509-0606 ●
1 BRACKET ASM; PEDAL
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) 		8-98013-695-0 01 1 0607- ●
1 BRACKET ASM; PEDAL
A/T 4 SPEED-JATCO(RMK) 		8-98013-695-0 01 1 0607- ●
2 PEDAL; BRK
A/T 4 SPEED-JATCO(RMK) 		8-97354-045-0 01 1 0503-0508 ●
2 PEDAL; BRK
A/T 4 SPEED-JATCO(RMK) 		8-97354-045-0 01 1 0509- ● ●
2 PEDAL; BRK
M/T MUA 5 SPEED 5G(RSP) 		8-97354-044-0 01 1 0503-0606 ●
2 PEDAL; BRK
M/T MUA 5 SPEED 5H(MWQ) 		8-97354-044-0 01 1 0607- ●
3 STOPPER; BRK PEDAL
A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) 		8-97302-035-0 01 1 0503-0508 ●
3 STOPPER; BRK PEDAL
A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) 		8-97302-035-0 01 1 0509-0606 ●
3 STOPPER; BRK PEDAL
A/T 4 SPEED-JATCO(RMK) 		8-97302-035-0 01 1 0509-0606 ●
3 STOPPER; BRK PEDAL
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) 		8-97302-035-0 01 1 0607- ●
3 STOPPER; BRK PEDAL
A/T 4 SPEED-JATCO(RMK) 		8-97302-035-0 01 1 0607- ●
4 BUSHING; BRK PEDAL
A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) 		8-97301-688-0 02 1 0503-0508 ●
4 BUSHING; BRK PEDAL
A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) 		8-97301-688-0 02 1 0509-0606 ●
4 BUSHING; BRK PEDAL
A/T 4 SPEED-JATCO(RMK) 		8-97301-688-0 02 1 0509-0606 ●
4 BUSHING; BRK PEDAL
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) 		8-97301-688-0 02 1 0607-1008 ●
4 BUSHING; BRK PEDAL
A/T 4 SPEED-JATCO(RMK) 		8-97301-688-0 02 1 0607-1008 ●
6 COVER; BRK PEDAL
A/T 4 SPEED-JATCO(RMK) 		8-97263-035-0 01 1 0503-0508 ●
6 COVER; BRK PEDAL
A/T 4 SPEED-JATCO(RMK) 		8-97263-035-0 01 1 0509- ● ●
6 COVER; BRK PEDAL
M/T MUA 5 SPEED 5G(RSP) 		8-97318-799-0 01 1 0503-0606 ●
6 COVER; BRK PEDAL
M/T MUA 5 SPEED 5H(MWQ) 		8-97318-799-0 01 1 0607- ●
9 PIN; JAW JOINT 8-97311-602-0 01 1 0503-0508 ●
9 PIN; JAW JOINT 8-97311-602-0 01 1 0509- ● ●
10 SPRING; RETURN,BRK PEDAL
A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) 		8-97333-917-0 01 1 0503-0508 ●
10 SPRING; RETURN,BRK PEDAL
A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) 		8-97333-917-0 01 1 0509-0606 ●
10 SPRING; RETURN,BRK PEDAL
A/T 4 SPEED-JATCO(RMK) 		8-97333-917-0 01 1 0509-0606 ●
10 SPRING; RETURN,BRK PEDAL
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) 		8-97387-813-0 01 1 0607- ●
10 SPRING; RETURN,BRK PEDAL
A/T 4 SPEED-JATCO(RMK) 		8-97387-813-0 01 1 0607- ●
16 SWITCH; STOP LAMP
A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) 		8-97301-684-0 01 1 0503-0508 ●
16 SWITCH; STOP LAMP
A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) 		8-97301-684-0 01 1 0509-0606 ●
16 SWITCH; STOP LAMP
A/T 4 SPEED-JATCO(RMK) 		8-97301-684-0 01 1 0509-0606 ●
16 SWITCH; STOP LAMP
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) 		8-97301-684-0 01 1 0607- ●
16 SWITCH; STOP LAMP
A/T 4 SPEED-JATCO(RMK) 		8-97301-684-0 01 1 0607- ●
19 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0503-0508 ●
19 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0509- ● ●
25 NUT; FLANGE,MTG BRKT TO BODY
M8 FLANGE 		8-97943-102-0 04 1 0503-0508 ●
25 NUT; FLANGE,MTG BRKT TO BODY
M8 FLANGE 		8-97943-102-0 04 1 0509-0606 ● ●
25 NUT; FLANGE,MTG BRKT TO BODY
M8 FLANGE 		8-97581-233-0 04 1 0607- ● ●
27 SHAFT; BRK PEDAL
A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) 		8-97304-171-0 01 1 0503-0508 ●
27 SHAFT; BRK PEDAL
A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) 		8-97304-171-0 01 1 0509-0606 ●
27 SHAFT; BRK PEDAL
A/T 4 SPEED-JATCO(RMK) 		8-97304-171-0 01 1 0509-0606 ●
27 SHAFT; BRK PEDAL
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) 		8-97304-171-0 01 1 0607- ●
27 SHAFT; BRK PEDAL
A/T 4 SPEED-JATCO(RMK) 		8-97304-171-0 01 1 0607- ●
30 GASKET; M/VAC TO BODY 8-97301-539-0 02 1 0503-0508 ●
30 GASKET; M/VAC TO BODY 8-97301-539-0 02 1 0509-0606 ● ●
30 GASKET; M/VAC TO BODY 8-97943-457-0 02 1 0607- ● ●
39 NUT; STOPPER LK
A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) M10 LOCK NUT FLANGE 		0-91303-610-0 01 1 0503-0508 ●
39 NUT; STOPPER LK
A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) M10 LOCK NUT FLANGE 		0-91303-610-0 01 1 0509-0606 ●
39 NUT; STOPPER LK
A/T 4 SPEED-JATCO(RMK) M10 LOCK NUT FLANGE 		0-91303-610-0 01 1 0509-0606 ●
39 NUT; STOPPER LK
M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK) M10 LOCK NUT FLANGE 		0-91380-010-0 01 1 0607- ●
39 NUT; STOPPER LK
A/T 4 SPEED-JATCO(RMK) M10 LOCK NUT FLANGE 		0-91380-010-0 01 1 0607- ●
71 NUT; BRK M/CYL 8-97301-598-0 02 1 0503-0508 ●
71 NUT; BRK M/CYL 8-97301-598-0 02 1 0509-0606 ● ●
71 NUT; BRK M/CYL 8-98031-675-0 02 1 0607- ● ●
80 PIN; SNAP,BRK PEDAL 8-97311-594-0 01 1 0503-0508 ●
80 PIN; SNAP,BRK PEDAL 8-97311-594-0 01 1 0509-0606 ● ●
80 PIN; SNAP,BRK PEDAL 8-98007-161-0 01 1 0607- ● ●
117 SPACER; M/VAC TO BODY 8-97354-052-0 01 1 0503-0508 ●
117 SPACER; M/VAC TO BODY 8-97354-052-0 01 1 0509-0606 ● ●
117 SPACER; M/VAC TO BODY 8-98008-069-0 01 1 0607- ● ●
