51032 - UCR/UCS-LHD
▶
3 - Brakes, Brake System
▶

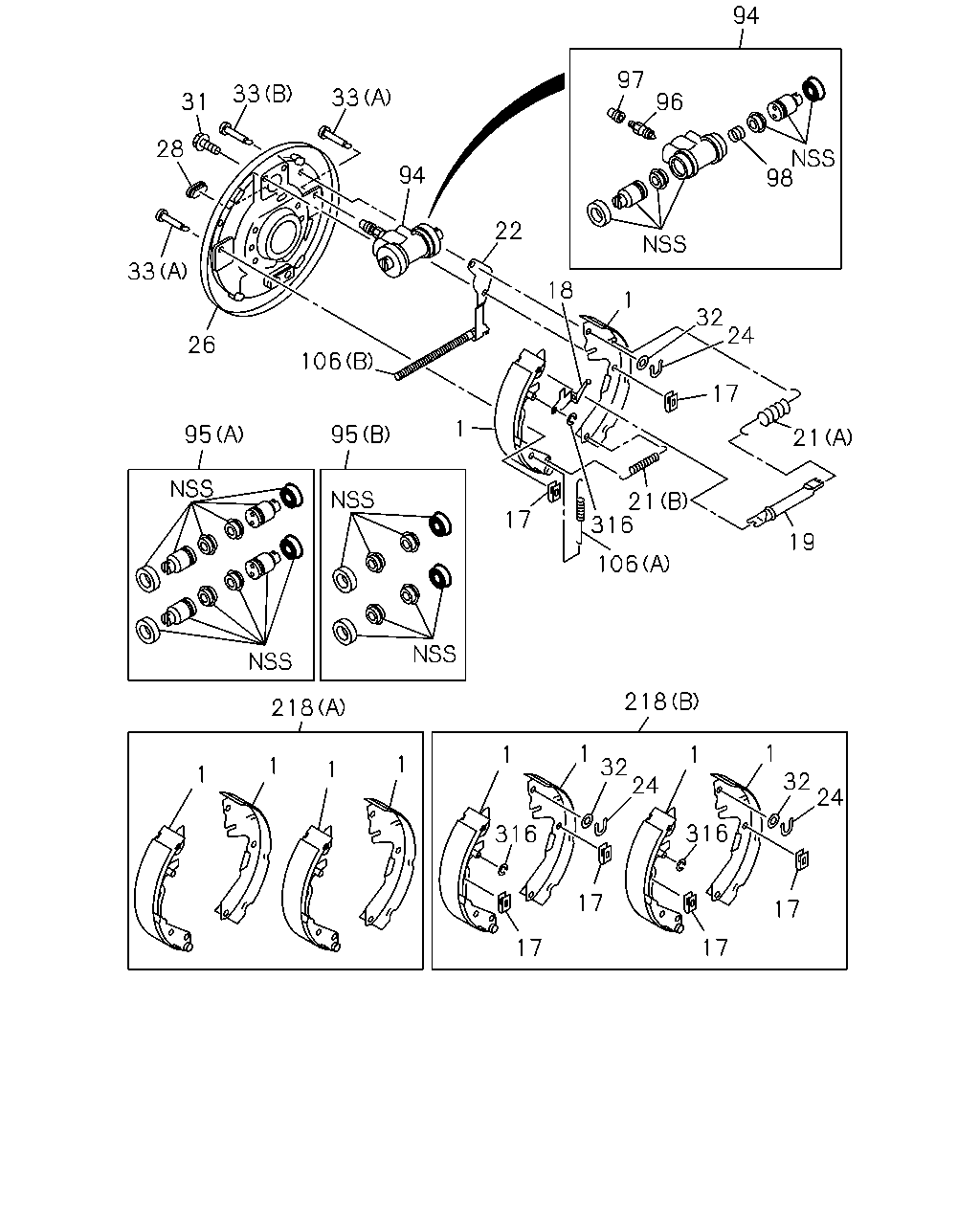

3-05 - REAR WHEEL BRAKE
▶
3-05 — REAR WHEEL BRAKE
(#75005) — 79 parça
Tümü
A - UCB6VF
B - UCS6VF
94
98
96
97
1
24
32
17
21
19
21
316
106
218
1
32
24
17
17
17
17
316
24
32
1
1
1
316
1
1
1
1
218
17
1
95
95
106
26
33
22
18
94
33
33
31
28
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
SHOE; BRK,RR
TRAILING
8-97376-319-0
02
1
0503-0508
●
1
SHOE; BRK,RR
TRAILING
8-97376-319-0
02
1
0509-
●
●
1
SHOE; BRK,RR
LEADING
8-97376-318-0
01
1
0503-0508
●
1
SHOE; BRK,RR
LEADING
8-97376-318-0
01
1
0509-0606
●
●
1
SHOE; BRK,RR
LEADING
8-98007-961-0
01
1
0607-
●
●
1
SHOE; BRK,RR
LEADING
8-97376-317-0
01
1
0503-0508
●
1
SHOE; BRK,RR
LEADING
8-97376-317-0
01
1
0509-0606
●
●
1
SHOE; BRK,RR
LEADING
8-98007-960-0
01
1
0607-
●
●
17
SPRING; SHOE HOLD DOWN
8-97301-510-0
04
1
0503-0508
●
17
SPRING; SHOE HOLD DOWN
8-97301-510-0
04
1
0509-
●
●
18
LEVER; AUTO ADJ
8-97301-504-0
01
1
0503-0508
●
18
LEVER; AUTO ADJ
8-97301-504-0
01
1
0509-0606
●
●
18
LEVER; AUTO ADJ
8-98007-997-0
01
1
0607-
●
●
18
LEVER; AUTO ADJ
8-97301-503-0
01
1
0503-0508
●
18
LEVER; AUTO ADJ
8-97301-503-0
01
1
0509-0606
●
●
18
LEVER; AUTO ADJ
8-98007-996-0
01
1
0607-
●
●
19
ADJUSTER; RR BRK
8-97301-528-0
01
1
0503-0508
●
19
ADJUSTER; RR BRK
8-97301-528-0
01
1
0509-0606
●
●
19
ADJUSTER; RR BRK
8-98007-980-0
01
1
0607-
●
●
19
ADJUSTER; RR BRK
8-97301-527-0
01
1
0503-0508
●
19
ADJUSTER; RR BRK
8-97301-527-0
01
1
0509-0606
●
●
19
ADJUSTER; RR BRK
8-98007-979-0
01
1
0607-
●
●
21
SPRING; SHOE,RET
(B)
8-97301-502-0
02
1
0503-0508
●
21
SPRING; SHOE,RET
(B)
8-97301-502-0
02
1
0509-0606
●
●
21
SPRING; SHOE,RET
(B)
8-98008-002-0
02
1
0607-
●
●
21
SPRING; SHOE,RET
(A)
8-97301-523-0
02
1
0503-0508
●
21
SPRING; SHOE,RET
(A)
8-97301-523-0
02
1
0509-0606
●
●
21
SPRING; SHOE,RET
(A)
8-98008-005-0
02
1
0607-
●
●
22
LEVER; PARKING BRK,WHEEL BRK
8-97301-520-0
01
1
0503-0508
●
22
LEVER; PARKING BRK,WHEEL BRK
8-97301-520-0
01
1
0509-0606
●
●
22
LEVER; PARKING BRK,WHEEL BRK
8-98007-967-0
01
1
0607-
●
●
22
LEVER; PARKING BRK,WHEEL BRK
8-97301-519-0
01
1
0503-0508
●
22
LEVER; PARKING BRK,WHEEL BRK
8-97301-519-0
01
1
0509-0606
●
●
22
LEVER; PARKING BRK,WHEEL BRK
8-98007-966-0
01
1
0607-
●
●
24
RETAINER; PARKING BRK
8-97301-493-0
02
1
0503-0508
●
24
RETAINER; PARKING BRK
8-97301-493-0
02
1
0509-
●
●
26
PLATE; BACK,RR BRK
8-97301-515-1
01
1
0503-0508
●
26
PLATE; BACK,RR BRK
8-97301-515-1
01
1
0509-
●
●
26
PLATE; BACK,RR BRK
8-97301-514-1
01
1
0503-0508
●
26
PLATE; BACK,RR BRK
8-97301-514-1
01
1
0509-
●
●
28
COVER; ADJ HOLE
8-97301-477-0
04
1
0503-0508
●
28
COVER; ADJ HOLE
8-97301-477-0
04
1
0509-
●
●
31
BOLT; RR WHEEL CYL
8-97333-973-0
04
1
0503-0508
●
31
BOLT; RR WHEEL CYL
8-97333-973-0
04
1
0509-0606
●
●
31
BOLT; RR WHEEL CYL
8-98008-015-0
04
1
0607-
●
●
32
WASHER; LK
8-97301-492-0
02
1
0503-0508
●
32
WASHER; LK
8-97301-492-0
02
1
0509-
●
●
33
PIN; SHOE HOLD DOWN
(A)
8-97301-509-0
04
1
0503-0508
●
33
PIN; SHOE HOLD DOWN
(A)
8-97301-509-0
04
1
0509-
●
●
33
PIN; SHOE HOLD DOWN
(B)
8-97301-511-0
02
1
0503-0508
●
33
PIN; SHOE HOLD DOWN
(B)
8-97301-511-0
02
1
0509-0606
●
●
33
PIN; SHOE HOLD DOWN
(B)
8-98008-034-0
02
1
0607-
●
●
94
CYLINDER; WHEEL,RR BRK
8-97301-478-0
02
1
0503-0508
●
94
CYLINDER; WHEEL,RR BRK
8-97301-478-0
02
1
0509-0606
●
●
94
CYLINDER; WHEEL,RR BRK
8-97319-300-0
02
1
0607-
●
●
95
CUP SET; RR WHEEL CYL
(B) WO/PISTON
5-87832-247-0
01
1
1009-
●
●
95
CUP SET; RR WHEEL CYL
(A) W/PISTON
5-87832-026-0
01
1
0503-0508
●
95
CUP SET; RR WHEEL CYL
(A) W/PISTON
5-87832-026-0
01
1
0509-0606
●
●
95
CUP SET; RR WHEEL CYL
(A) W/PISTON
5-87832-068-0
01
1
0607-
●
●
96
SCREW; BLEEDER,RR BRK
8-97301-484-0
02
1
0503-0508
●
96
SCREW; BLEEDER,RR BRK
8-97301-484-0
02
1
0509-
●
●
97
CAP; BLEEDER,RR WHEEL CYL
8-97301-485-0
02
1
0503-0508
●
97
CAP; BLEEDER,RR WHEEL CYL
8-97301-485-0
02
1
0509-
●
●
98
SPRING; RR WHEEL CYL
8-97301-483-0
02
1
0503-0508
●
98
SPRING; RR WHEEL CYL
8-97301-483-0
02
1
0509-
●
●
106
SPRING; ADJ LEVER
(B)
8-97301-526-0
02
1
0503-0508
●
106
SPRING; ADJ LEVER
(B)
8-97301-526-0
02
1
0509-0606
●
●
106
SPRING; ADJ LEVER
(B)
8-98009-797-0
02
1
0607-
●
●
106
SPRING; ADJ LEVER
(A)
8-97301-525-0
01
1
0503-0508
●
106
SPRING; ADJ LEVER
(A)
8-97301-525-0
01
1
0509-0606
●
●
106
SPRING; ADJ LEVER
(A)
8-98008-007-0
01
1
0607-
●
●
106
SPRING; ADJ LEVER
(A)
8-97301-524-0
01
1
0503-0508
●
106
SPRING; ADJ LEVER
(A)
8-97301-524-0
01
1
0509-0606
●
●
106
SPRING; ADJ LEVER
(A)
8-98008-006-0
01
1
0607-
●
●
218
SHOE KIT; BRK,RR
(A)
5-87832-147-0
01
1
0503-0508
●
218
SHOE KIT; BRK,RR
(A)
5-87832-147-0
01
1
0509-0606
●
●
218
SHOE KIT; BRK,RR
(B)
8-98018-036-0
01
1
0607-
●
●
316
RING; SNAP
8-97330-511-0
02
1
0503-0508
●
316
RING; SNAP
8-97330-511-0
02
1
0509-
●
●
