Isuzu WW
▶
SUV
▶
UCR
▶
51032 - UCR/UCS-LHD
▶
2 - Clutch, Transmission, Trans Axle
▶

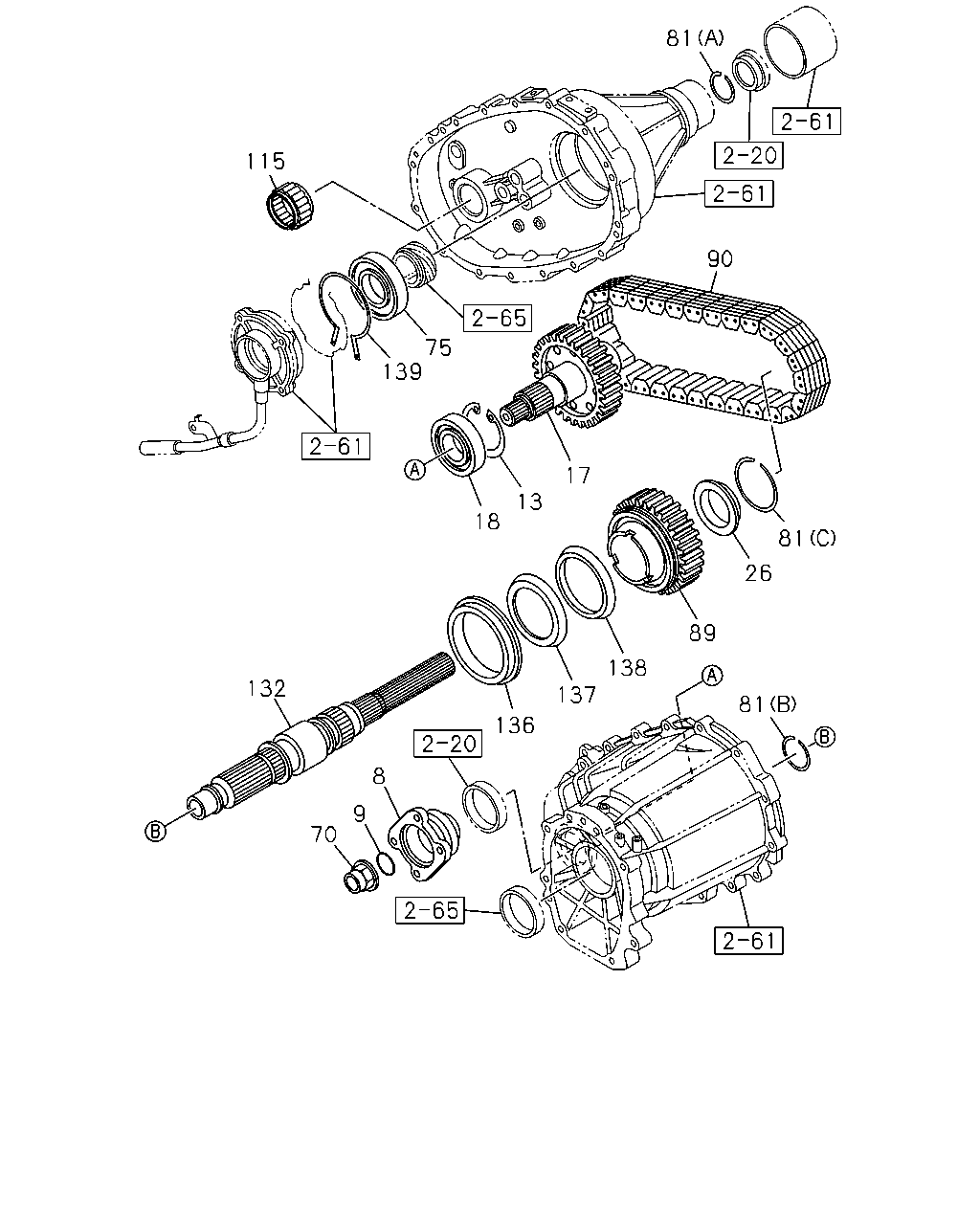

2-66 - MANUAL TRANSFER GEAR; OUTPUT
▶
2-66 — MANUAL TRANSFER GEAR; OUTPUT
(#75003) — 23 parça
81
115
90
75
139
17
13
18
81
26
89
138
132
137
81
136
8
9
70
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
8
FLANGE; OUTPUT
A/T 4 SPEED-JATCO(RMK)
8-97319-825-2
01
1
0509-
9
GASKET; SHAFT
A/T 4 SPEED-JATCO(RMK) ID=29.7 OD=36.1
8-94483-035-0
01
1
0509-
13
RING; SNAP,OUTPUT,FRT
A/T 4 SPEED-JATCO(RMK) ID=67
8-97305-402-0
01
1
0509-
17
SHAFT; OUTPUT
A/T 4 SPEED-JATCO(RMK)
8-97231-853-0
01
1
0509-
18
BEARING; BALL,OUTPUT,FRT
A/T 4 SPEED-JATCO(RMK) NSK
8-94422-172-1
01
1
0509-
26
WASHER; THRUST
A/T 4 SPEED-JATCO(RMK)
8-97239-774-0
01
1
0509-
70
NUT; RR OUTPUT SHAFT,TRANSFER
A/T 4 SPEED-JATCO(RMK)
8-97305-605-0
01
1
0509-0603
70
NUT; RR OUTPUT SHAFT,TRANSFER
A/T 4 SPEED-JATCO(RMK) M36 FLANGE
8-97358-603-0
01
1
0604-
75
BEARING; BALL,RR OUTPUT
A/T 4 SPEED-JATCO(RMK)
8-97234-737-0
01
1
0509-
81
RING; SNAP
A/T 4 SPEED-JATCO(RMK) (A) T=1.9
8-97305-404-1
01
1
0509-
81
RING; SNAP
A/T 4 SPEED-JATCO(RMK) (B) T=1.4
8-97305-405-0
01
1
0509-
81
RING; SNAP
A/T 4 SPEED-JATCO(RMK) (C) T=2.15 RED
8-97305-407-0
01
1
0509-
81
RING; SNAP
A/T 4 SPEED-JATCO(RMK) (C) T=2.10 NON COLOR
8-97305-408-0
01
1
0509-
81
RING; SNAP
A/T 4 SPEED-JATCO(RMK) (C) T=2.05 BLUE
8-97305-409-0
01
1
0509-
81
RING; SNAP
A/T 4 SPEED-JATCO(RMK) (C) T=2.00 WHITE
8-97305-410-0
01
1
0509-
89
SPROCKET; DRIVE
A/T 4 SPEED-JATCO(RMK) Z=48
8-98013-525-0
01
1
0509-
90
CHAIN; DRIVE
A/T 4 SPEED-JATCO(RMK)
8-97323-177-0
01
1
0509-
115
BEARING; NEEDLE
A/T 4 SPEED-JATCO(RMK)
8-97234-747-0
01
1
0509-
132
SHAFT; MAIN,TRANSFER
A/T 4 SPEED-JATCO(RMK)
8-97231-833-3
01
1
0509-
136
BLOCK RING; 2-4
A/T 4 SPEED-JATCO(RMK) Z=48
8-94363-054-1
01
1
0509-
137
RING; OUTSIDE,2-4
A/T 4 SPEED-JATCO(RMK) OD=90.0
8-94363-055-1
01
1
0509-
138
RING; INSIDE,2-4
A/T 4 SPEED-JATCO(RMK) OD=95.8
8-94363-056-0
01
1
0509-
139
RING; RETAINING,RR OUTPUT
A/T 4 SPEED-JATCO(RMK) ID=76
8-97305-012-0
01
1
0509-
