Isuzu WW
▶
SUV
▶
UCR
▶
51032 - UCR/UCS-LHD
▶
2 - Clutch, Transmission, Trans Axle
▶
2-65 - MANUAL TRANSFER GEAR; INPUT AND IDLE
▶

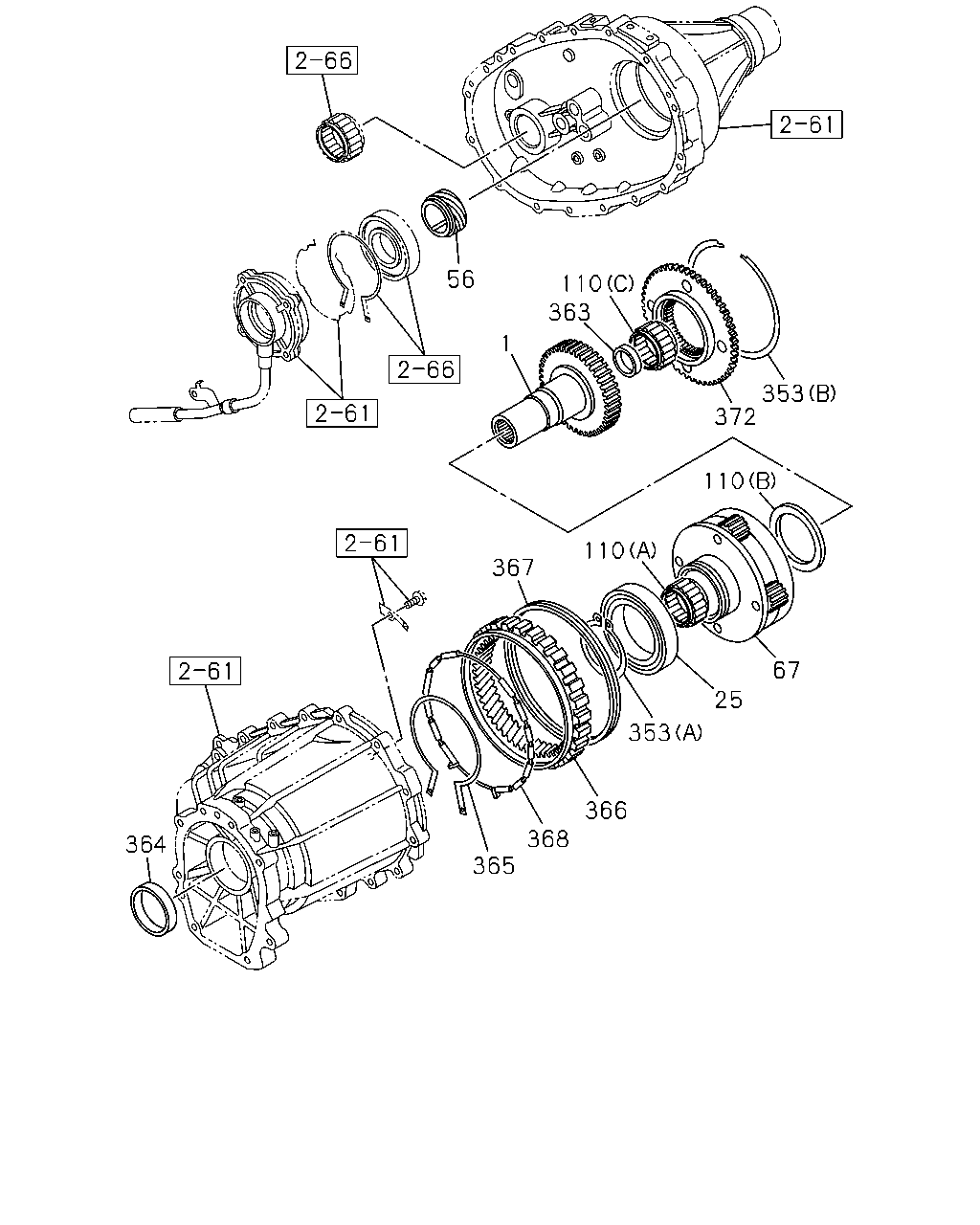

2-65 — MANUAL TRANSFER GEAR; INPUT AND IDLE
(#75002) — 17 parça
56
110
363
1
353
372
110
110
367
67
25
353
366
364
368
365
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SHAFT; GEAR,INPUT
A/T 4 SPEED-JATCO(RMK)
8-97373-467-0
01
1
0509-
25
BEARING; BALL,INPUT SHAFT
A/T 4 SPEED-JATCO(RMK) NSK
8-97234-735-0
01
1
0509-
56
GEAR; SPD DRIVE,TRANSFER
A/T 4 SPEED-JATCO(RMK) Z=6
8-97238-581-0
01
1
0509-
67
CARRIER; TRANSFER
A/T 4 SPEED-JATCO(RMK)
8-97252-987-1
01
1
0509-1001
67
CARRIER; TRANSFER
A/T 4 SPEED-JATCO(RMK)
8-98158-116-0
01
1
1002-
110
BEARING; NEEDLE
A/T 4 SPEED-JATCO(RMK) (A)
8-97234-739-0
01
1
0509-
110
BEARING; NEEDLE
A/T 4 SPEED-JATCO(RMK) (B)
8-97234-741-0
01
1
0509-
110
BEARING; NEEDLE
A/T 4 SPEED-JATCO(RMK) (C)
8-97234-743-0
01
1
0509-
353
RING; SNAP,CARRIER
A/T 4 SPEED-JATCO(RMK) (A) ID=65.5
8-97305-403-0
01
1
0509-
353
RING; SNAP,CARRIER
A/T 4 SPEED-JATCO(RMK) (B) ID=137
8-97305-406-0
01
1
0509-
363
CAP; SEAL,INPUT SHAFT
A/T 4 SPEED-JATCO(RMK)
8-97238-725-0
01
1
0509-
364
SEAL; OIL,COVER,INPUT
A/T 4 SPEED-JATCO(RMK) NOK
8-97238-999-0
01
1
0509-
365
RING; RETAINING,OUTER INPUT
A/T 4 SPEED-JATCO(RMK) ID=97
8-97305-010-1
01
1
0509-
366
GEAR; INTERNAL,HIGH-LOW
A/T 4 SPEED-JATCO(RMK) Z=27
8-97231-831-2
01
1
0509-
367
RING; RETAINING,SPIRAL TYPE
A/T 4 SPEED-JATCO(RMK) ID=162 OD=176
8-97247-459-0
01
1
0509-
368
RING; DAMPER,TRANSFER
A/T 4 SPEED-JATCO(RMK) ID=168.4 OD=178
8-97320-914-0
01
1
0509-
372
TEETH; DOG,PLANETARY
A/T 4 SPEED-JATCO(RMK) Z=56
8-97358-244-0
01
1
0509-
