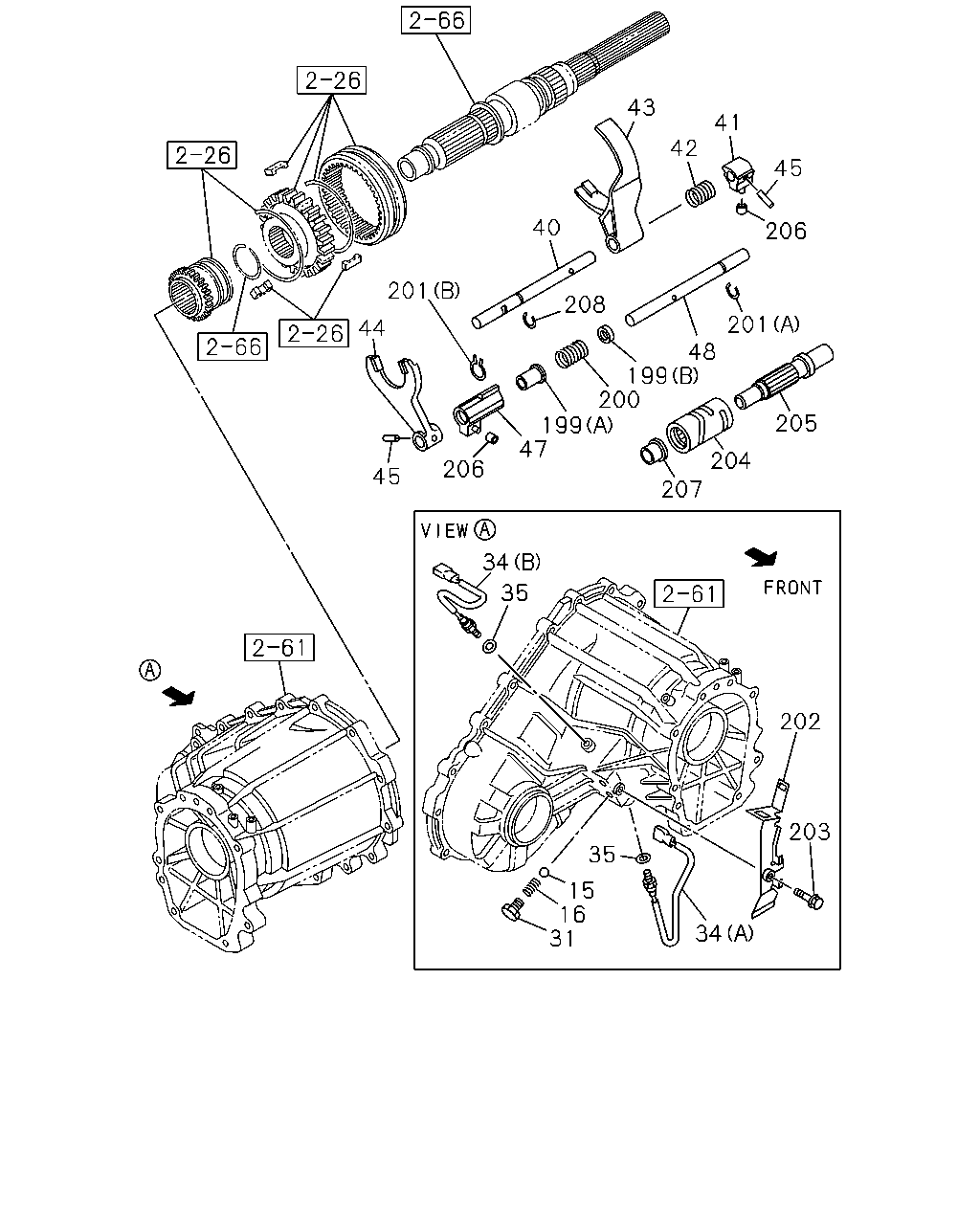

2-62 — TRANSFER SIDE CASE AND SHIFT LEVER (#75001) — 36 parça

43 41 42 45 40 206 201 208 201 44 48 199 200 199 47 205 204 206 45 207 34 35 202 203 35 15 16 31 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
15	BALL; DETENT,SHIFT ROD,TRANSFER A/T 4 SPEED-JATCO(RMK)	8-94435-335-0	02	1	0509-
16	SPRING; DETENT,SHIFT ROD,TRANSFER A/T 4 SPEED-JATCO(RMK) L=23.4	8-97145-374-0	02	1	0509-
31	PLUG; DETENT BALL,TRANSFER A/T 4 SPEED-JATCO(RMK) M12X9	9-99202-312-0	02	1	0509-0603
31	PLUG; DETENT BALL,TRANSFER A/T 4 SPEED-JATCO(RMK) M12X9	0-92002-412-0	02	1	0604-
34	SWITCH; TRANSFER INDICATOR A/T 4 SPEED-JATCO(RMK) (A)	8-97314-204-0	01	1	0509-0603
34	SWITCH; TRANSFER INDICATOR A/T 4 SPEED-JATCO(RMK) (A)	8-97358-605-0	01	1	0604-1405
34	SWITCH; TRANSFER INDICATOR A/T 4 SPEED-JATCO(RMK) (A)	8-98181-804-0	01	1	1406-
34	SWITCH; TRANSFER INDICATOR A/T 4 SPEED-JATCO(RMK) (B)	8-97314-205-0	01	1	0509-0603
34	SWITCH; TRANSFER INDICATOR A/T 4 SPEED-JATCO(RMK) (B)	8-97358-606-0	01	1	0604-1405
34	SWITCH; TRANSFER INDICATOR A/T 4 SPEED-JATCO(RMK) (B)	8-98180-974-0	01	1	1406-
35	GASKET; INDICATOR SWITCH,TRANSFER A/T 4 SPEED-JATCO(RMK) ID=14.2 OD=20.0	9-09571-414-0	02	1	0509-
40	ROD; SHIFT,4X2-4X4,TRANSFER A/T 4 SPEED-JATCO(RMK)	8-97234-229-0	01	1	0509-
41	BLOCK; SHIFT,4X2-4X4,TRANSFER A/T 4 SPEED-JATCO(RMK)	8-97234-233-1	01	1	0509-
42	SPRING; GEAR LOCK RELEASE,TRANSFER A/T 4 SPEED-JATCO(RMK)	8-97239-010-1	01	1	0509-
43	ARM; SHIFT,4X2-4X4,TRANSFER A/T 4 SPEED-JATCO(RMK)	8-97234-231-0	01	1	0509-
44	ARM; SHIFT,HIGH-LOW,TRANSFER A/T 4 SPEED-JATCO(RMK)	8-97300-106-1	01	1	0509-
45	PIN; SPR,SHIFT ARM TO ROD A/T 4 SPEED-JATCO(RMK) D=4.2 L=25	8-94171-541-0	02	1	0509-
47	BLOCK; SHIFT,LOW-HIGH,TRANSFER A/T 4 SPEED-JATCO(RMK)	8-97234-234-1	01	1	0509-1001
47	BLOCK; SHIFT,LOW-HIGH,TRANSFER A/T 4 SPEED-JATCO(RMK)	8-98161-034-0	01	1	1002-
48	ROD; SHIFT,HIGH-LOW,TRANSFER A/T 4 SPEED-JATCO(RMK)	8-97234-230-0	01	1	0509-
199	COLLAR; TRANSFER CONTROL A/T 4 SPEED-JATCO(RMK) (A)	8-97234-662-1	01	1	0509-
199	COLLAR; TRANSFER CONTROL A/T 4 SPEED-JATCO(RMK) (B)	8-97234-663-1	01	1	0509-
200	SPRING; SHIFT HIGH-LOW A/T 4 SPEED-JATCO(RMK)	8-97239-011-0	01	1	0509-
201	RING; SNAP,SHIFT A/T 4 SPEED-JATCO(RMK) (A) ID=12	8-94460-357-0	01	1	0509-
201	RING; SNAP,SHIFT A/T 4 SPEED-JATCO(RMK) (B) ID=23	8-97305-011-1	01	1	0509-
202	BRACKET; SWITCH A/T 4 SPEED-JATCO(RMK)	8-97305-519-2	01	1	0509-0603
202	BRACKET; SWITCH A/T 4 SPEED-JATCO(RMK)	8-97358-324-0	01	1	0604-
203	BOLT; BRACKET,SWITCH A/T 4 SPEED-JATCO(RMK) M8X25 FLANGE	0-28680-825-0	01	1	0509-0601
203	BOLT; BRACKET,SWITCH A/T 4 SPEED-JATCO(RMK) M8X25 FLANGE	0-28650-825-0	01	1	0602-
204	DRUM; SHIFT A/T 4 SPEED-JATCO(RMK)	8-97358-246-0	01	1	0509-1001
204	DRUM; SHIFT A/T 4 SPEED-JATCO(RMK)	8-98158-123-0	01	1	1002-
205	SHAFT; SHIFT DRUM A/T 4 SPEED-JATCO(RMK)	8-97231-855-0	01	1	0509-
206	ROLLER; GUIDE,SHIFT A/T 4 SPEED-JATCO(RMK)	8-97234-499-0	02	1	0509-
207	BUSH; CONTROL SHAFT A/T 4 SPEED-JATCO(RMK)	8-97239-687-0	01	1	0509-1001
207	BUSH; CONTROL SHAFT A/T 4 SPEED-JATCO(RMK)	8-98158-124-0	01	1	1002-
208	RING; SNAP,SHIFT A/T 4 SPEED-JATCO(RMK) ID=12	8-94460-357-0	01	1	0509-
