2-61 — TRANSFER CASE AND GEAR SHIFTER (#75000) — 32 parça

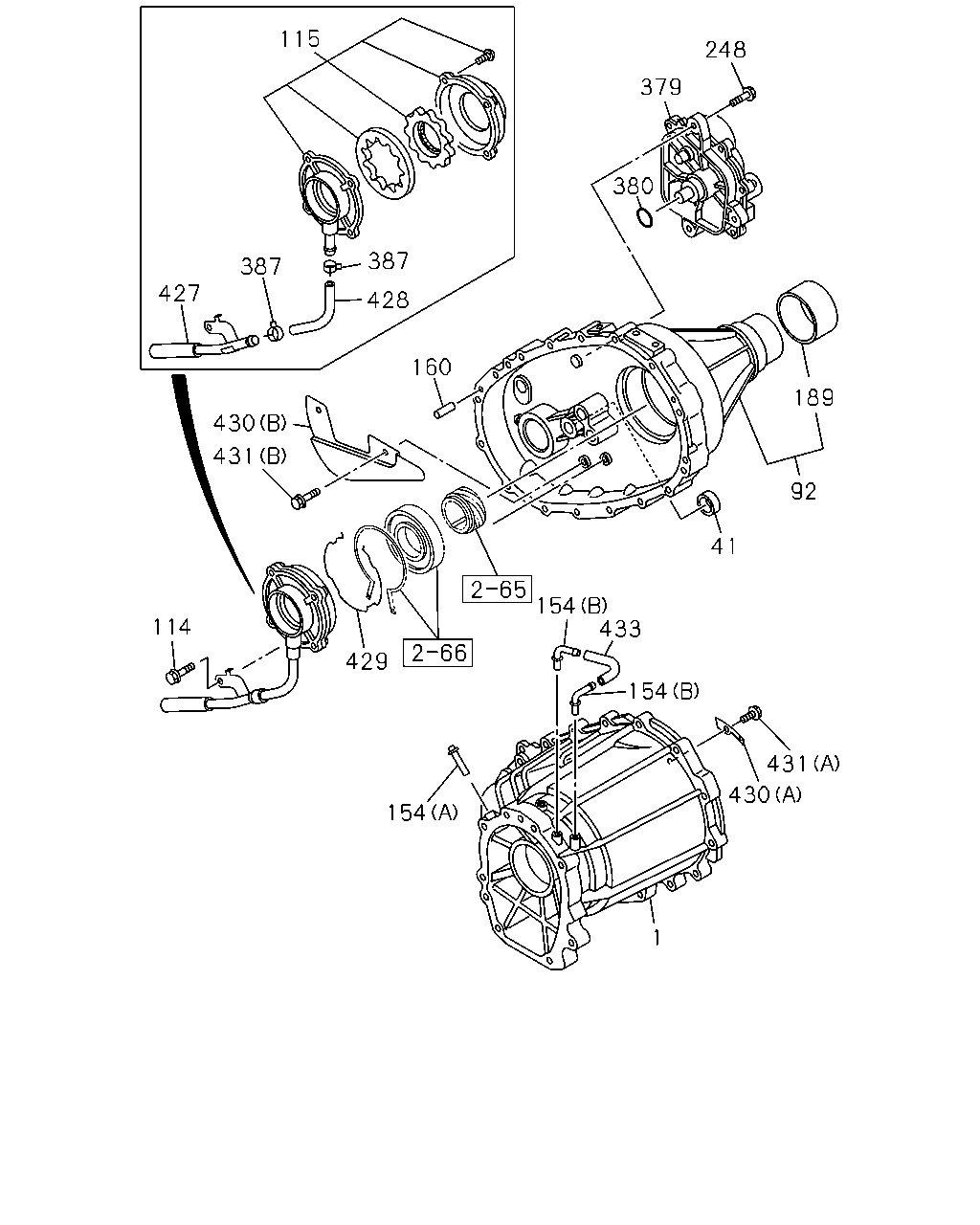

çizim 118713
115 248 379 380 387 387 427 428 160 189 430 431 92 41 154 433 114 429 154 431 430 154 1
BalonParca AdiParca NoAdetTipApplied Date
1 CASE; TRANSFER
A/T 4 SPEED-JATCO(RMK) 		8-97306-571-5 01 1 0509-
41 SEAL; OIL,SHIFT ROD
A/T 4 SPEED-JATCO(RMK) 		8-97238-998-0 01 1 0509-
92 COVER; RR,TRANSFER
A/T 4 SPEED-JATCO(RMK) 		8-98013-523-0 01 1 0509-
114 BOLT; OIL PUMP,TRANSFER
A/T 4 SPEED-JATCO(RMK) M8X20 FLANGE 		0-28680-820-0 01 1 0509-0601
114 BOLT; OIL PUMP,TRANSFER
A/T 4 SPEED-JATCO(RMK) M8X20 FLANGE 		0-28650-820-0 01 1 0602-
115 PUMP ASM; OIL,TRANSFER
A/T 4 SPEED-JATCO(RMK) 		8-97233-741-0 01 1 0509-0603
115 PUMP ASM; OIL,TRANSFER
A/T 4 SPEED-JATCO(RMK) 		8-98029-157-0 01 1 0604-
154 PIPE; BREATHER
A/T 4 SPEED-JATCO(RMK) (A) 		8-97173-545-0 01 1 0509-0603
154 PIPE; BREATHER
A/T 4 SPEED-JATCO(RMK) (A) 		8-97358-319-0 01 1 0604-
154 PIPE; BREATHER
A/T 4 SPEED-JATCO(RMK) (B) 		8-97305-517-0 02 1 0509-0603
154 PIPE; BREATHER
A/T 4 SPEED-JATCO(RMK) (B) 		8-97358-318-0 02 1 0604-
160 PIN; KNOCK,SHIFT CASE
A/T 4 SPEED-JATCO(RMK) OD=10 L=20 		8-97135-423-0 02 1 0509-
189 COVER; DUST,OIL SEAL
A/T 4 SPEED-JATCO(RMK) 		8-94310-493-0 01 1 0509-0603
189 COVER; DUST,OIL SEAL
A/T 4 SPEED-JATCO(RMK) 		8-98027-802-0 01 1 0604-1109
189 COVER; DUST,OIL SEAL
A/T 4 SPEED-JATCO(RMK) 		8-98173-748-0 01 1 1110-
248 BOLT
A/T 4 SPEED-JATCO(RMK) M8X30 FLANGE 		0-28680-830-0 03 1 0509-0601
248 BOLT
A/T 4 SPEED-JATCO(RMK) M8X30 FLANGE 		0-28650-830-0 03 1 0602-
379 ACTUATOR; TRANSFER,2-4 SHIFT
A/T 4 SPEED-JATCO(RMK) 		8-97366-626-0 01 1 0509-1110
379 ACTUATOR; TRANSFER,2-4 SHIFT
A/T 4 SPEED-JATCO(RMK) 		8-98196-415-0 01 1 1111-
380 GASKET; ACTUATOR
A/T 4 SPEED-JATCO(RMK) ID=29.7 OD=36.7 		8-97318-475-0 01 1 0509-
387 CLAMP; HOSE
A/T 4 SPEED-JATCO(RMK) ID=16 		8-94392-924-0 02 1 0509-0603
387 CLAMP; HOSE
A/T 4 SPEED-JATCO(RMK) ID=16 		8-97329-628-0 02 1 0604-
427 SCREEN; OIL PUMP
A/T 4 SPEED-JATCO(RMK) 		8-97234-488-3 01 1 0509-
428 HOSE; OIL PUMP
A/T 4 SPEED-JATCO(RMK) ID=9.5 OD=16.5 L=80 		8-98009-116-0 01 1 0509-
429 RING; SNAP,OIL PUMP
A/T 4 SPEED-JATCO(RMK) 		8-97240-666-0 01 1 0509-
430 PLATE; BAFFLE
A/T 4 SPEED-JATCO(RMK) (A) 		8-97239-130-0 01 1 0509-
430 PLATE; BAFFLE
A/T 4 SPEED-JATCO(RMK) (B) 		8-97249-300-1 01 1 0509-
431 BOLT; BAFFLE PLATE
A/T 4 SPEED-JATCO(RMK) (A) M6X16 FLANGE 		0-28680-616-0 01 1 0509-0601
431 BOLT; BAFFLE PLATE
A/T 4 SPEED-JATCO(RMK) (A) M6X16 FLANGE 		0-28650-616-0 01 1 0602-
431 BOLT; BAFFLE PLATE
A/T 4 SPEED-JATCO(RMK) (B) M8X20 FLANGE 		0-28680-820-0 02 1 0509-0601
431 BOLT; BAFFLE PLATE
A/T 4 SPEED-JATCO(RMK) (B) M8X20 FLANGE 		0-28650-820-0 02 1 0602-
433 HOSE; AIR,TRANSFER
A/T 4 SPEED-JATCO(RMK) 		8-97236-080-0 01 1 0509-
