7-40 — INSTRUMENT PANEL AND BOX (#7500) — 110 parça

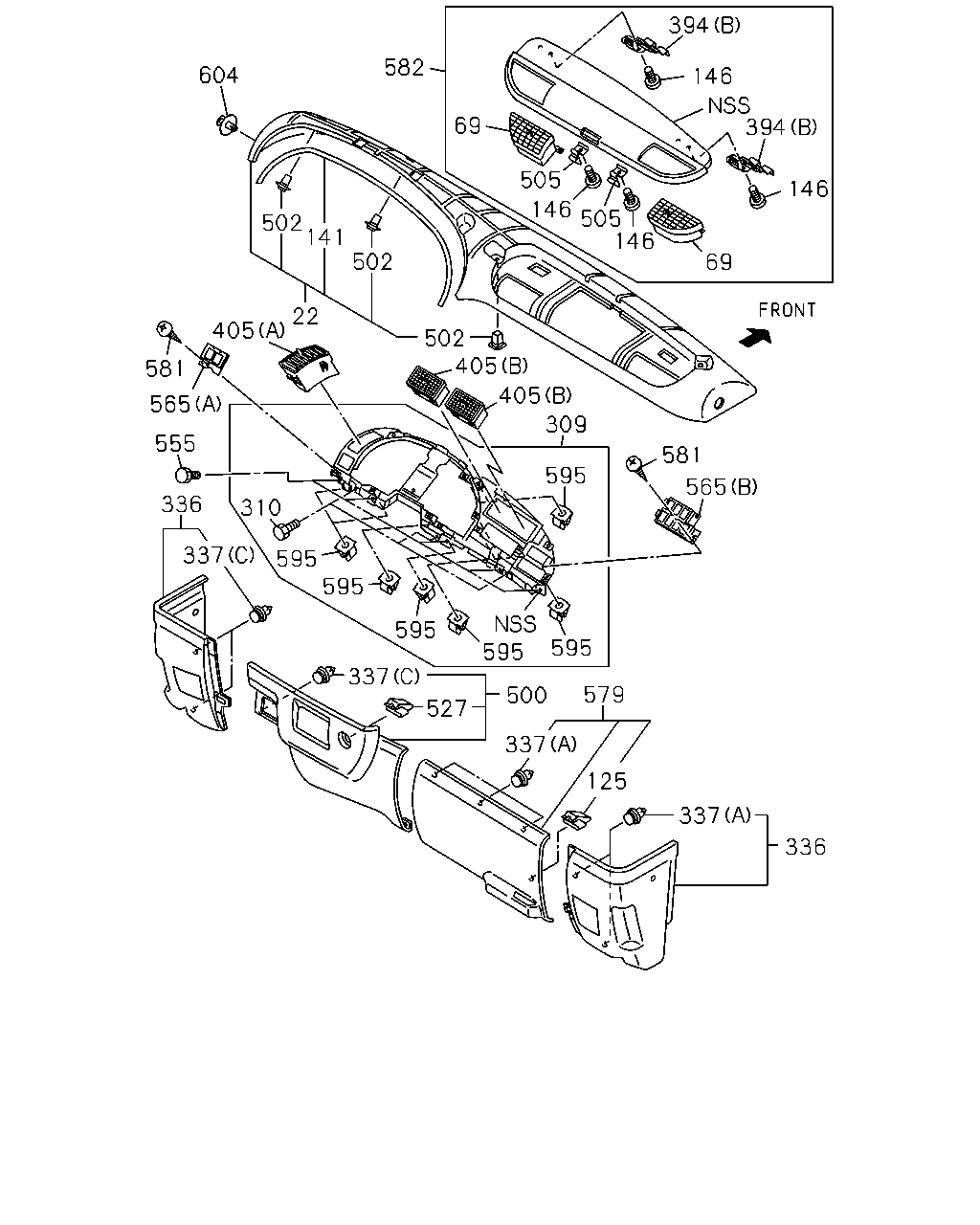

çizim 98786
394 582 604 146 394 69 505 146 146 505 146 502 141 502 69 22 405 502 405 581 405 565 309 555 581 595 565 336 310 337 595 595 595 595 595 337 579 500 527 337 125 337 336
BalonParca AdiParca NoAdetTipApplied Date A B
22 PAD; INST 1-72318-415-2 01 1 9811-9906 ● ●
22 PAD; INST 1-72318-435-3 01 1 9907- ● ●
69 GRILLE; SIDE,AIR OUTLET 1-76368-029-5 01 1 9811- ● ●
69 GRILLE; SIDE,AIR OUTLET 1-76368-028-5 01 1 9811- ● ●
125 CLIP; INST PANEL
TAI 		8-97217-066-0 08 1 0611- ● ●
125 CLIP; INST PANEL 8-97853-939-4 09 1 9811-9812 ● ●
125 CLIP; INST PANEL
TAI 		8-97217-066-0 09 1 9901-0610 ● ●
125 CLIP; INST PANEL
TAI 		8-97217-066-0 01 1 0611- ● ●
141 PROTECTOR; EDGE
TAI 		1-72318-430-0 01 1 9811- ● ●
146 SCREW; TAP
M5X14 TAI 		8-94279-325-0 10 1 9811- ● ●
309 PANEL; SW,INST 1-72418-018-3 01 1 9811- ● ●
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER TAI 		8-94279-201-0 05 1 9811- ● ●
336 COVER; INST PANEL SIDE 1-72438-132-0 01 1 9811-9906 ● ●
336 COVER; INST PANEL SIDE 1-72438-194-0 01 1 9907- ● ●
336 COVER; INST PANEL SIDE 1-72438-130-1 01 1 9811-9906 ● ●
336 COVER; INST PANEL SIDE 1-72438-193-0 01 1 9907- ● ●
337 FASTENER; COVER
(A) TAI 		1-72438-124-2 08 1 9811- ● ●
337 FASTENER; COVER
(C) TAI 		1-72438-137-0 06 1 9811- ● ●
337 FASTENER; COVER
(B) TAI 		1-72438-138-0 06 1 9811- ● ●
394 HOLDER; PANEL
(A) TAI 		1-72438-066-0 06 1 9811- ● ●
394 HOLDER; PANEL
(B) TAI 		1-72558-026-5 02 1 9811-0407 ● ●
394 HOLDER; PANEL
(B) 		1-72558-048-0 02 1 0408- ● ●
405 GRILLE ASM; METER VENT
(A) 		1-76368-062-0 01 1 9811- ● ●
405 GRILLE ASM; METER VENT
(B) BLACK 		8-94333-730-4 02 1 9811- ● ●
500 CLUSTER; INST CENTER 1-72438-126-3 01 1 9811-9906 ● ●
500 CLUSTER; INST CENTER 1-72438-192-1 01 1 9907- ● ●
502 GROMMET; SCREW,CENTER,CLUSTER
TAI 		8-94279-084-2 04 1 9811- ● ●
505 LOCK; LID
TAI 		1-72558-024-2 02 1 9811- ● ●
527 CLIP; INST CLUSTER 8-97853-939-4 04 1 9811-9812 ● ●
527 CLIP; INST CLUSTER
TAI 		8-97217-066-0 04 1 9901- ● ●
555 BOLT; PAD
M10X25 FLANGE 		0-28281-025-0 07 1 9811-0512 ● ●
555 BOLT; PAD
M10X25 FLANGE 		0-28251-025-0 07 1 0601-0604 ● ●
555 BOLT; PAD
M10X25 FLANGE 		8-98041-453-0 07 1 0605- ● ●
555 BOLT; PAD
M6X19.5 W/LK&PL WASHER TAI 		8-94279-201-0 03 1 9811- ● ●
565 BEZEL; SW PANEL
(B) 		1-72418-020-1 01 1 9811- ● ●
565 BEZEL; SW PANEL
(A) 		1-72418-021-1 01 1 9811- ● ●
579 COVER; INST PNL 1-72438-128-1 01 1 9811-9906 ● ●
579 COVER; INST PNL 1-72438-195-1 01 1 9907- ● ●
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 9811-0604 ● ●
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 02 1 0605- ● ●
582 LID; FUSE & RELAY 1-72548-140-1 01 1 9811-9906 ● ●
582 LID; FUSE & RELAY 1-72548-146-1 01 1 9907- ● ●
595 NUT; HOOK
TAI 		1-72418-013-0 10 1 9811- ● ●
604 CLIP; INST PAD
TAI 		1-09983-123-0 01 1 9811- ● ●
çizim 98787
597
BalonParca AdiParca NoAdetTipApplied Date A B
597 SEAL; HOLE,DASH
OD=16 BLACK 		1-76798-037-0 02 1 0104- ● ●

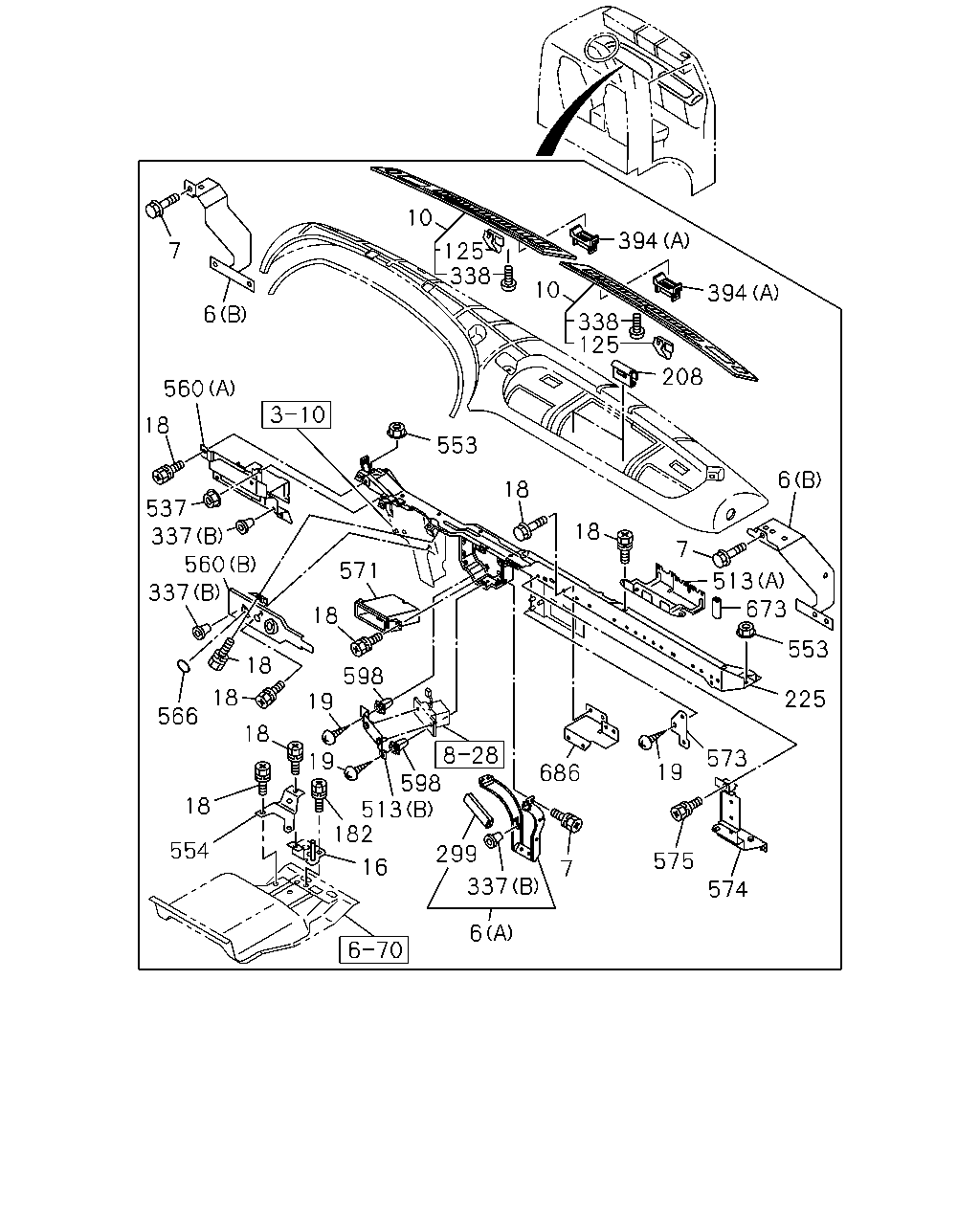

çizim 99050
10 394 7 125 338 10 394 6 338 125 208 560 18 553 6 18 537 337 18 7 560 337 571 513 673 18 553 18 598 18 225 19 566 18 598 513 182 573 19 19 686 18 299 554 575 16 7 337 574 6
BalonParca AdiParca NoAdetTipApplied Date A B
6 SUPPORT; INST PANEL
EXC. HEATER & DEFROSTER(C41),A/C MAN CONT(C60) (B) 		1-65681-063-3 01 1 0611- ●
6 SUPPORT; INST PANEL
EXC. HEATER & DEFROSTER(C41),A/C MAN CONT(C60) (B) 		1-65681-064-2 01 1 0611- ●
6 SUPPORT; INST PANEL
(A) 		1-65681-035-6 01 1 9811- ● ●
7 BOLT; SUPPORT,INST PNL
EXC. HEATER & DEFROSTER(C41),A/C MAN CONT(C60) M6X19.5 W/LK&PL WASHER TAI 		8-94279-201-0 05 1 0611- ●
7 BOLT; SUPPORT,INST PNL
M6X19.5 W/LK&PL WASHER TAI 		8-94279-201-0 06 1 9811- ● ●
10 PANEL ASM; GARNISH
EXC. HEATER & DEFROSTER(C41),A/C MAN CONT(C60) 		1-72438-157-1 01 1 0611- ●
10 PANEL ASM; GARNISH
EXC. HEATER & DEFROSTER(C41),A/C MAN CONT(C60) 		1-72438-158-1 01 1 0611- ●
10 PANEL ASM; GARNISH
W/SPEAKER NET 		1-72437-601-6 01 1 9811-0610 ● ●
10 PANEL ASM; GARNISH
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) W/SPEAKER NET 		1-72437-601-6 01 1 0611- ●
10 PANEL ASM; GARNISH
W/SPEAKER NET 		1-72437-601-6 01 1 0611- ●
10 PANEL ASM; GARNISH
W/SPEAKER NET 		1-72437-600-6 01 1 9811-0610 ● ●
10 PANEL ASM; GARNISH
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) W/SPEAKER NET 		1-72437-600-7 01 1 0611- ●
10 PANEL ASM; GARNISH
W/SPEAKER NET 		1-72437-600-7 01 1 0611- ●
16 BRACKET; INST PNL 1-79738-802-1 01 1 9811- ● ●
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER TAI 		8-94279-201-0 09 1 9811-0610 ● ●
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER TAI 		8-94279-201-0 11 1 0611- ● ●
18 BOLT; BRKT
M6X20 W/LK&PL WASHER TAI 		8-94279-203-0 03 1 9811- ● ●
19 SCREW; BRKT
M5X14 TAI 		8-94279-325-0 02 1 9811-0610 ● ●
19 SCREW; BRKT
PTO CONTROL<SV6> M5X14 TAI 		8-94279-325-0 02 1 0611- ●
19 SCREW; BRKT
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) M5X14 TAI 		8-94279-325-0 02 1 0611- ●
19 SCREW; BRKT
M5X14 TAI 		8-94279-325-0 02 1 0611- ●
125 CLIP; INST PANEL
TAI 		8-97217-066-0 08 1 0611- ● ●
125 CLIP; INST PANEL 8-97853-939-4 09 1 9811-9812 ● ●
125 CLIP; INST PANEL
TAI 		8-97217-066-0 09 1 9901-0610 ● ●
125 CLIP; INST PANEL
TAI 		8-97217-066-0 01 1 0611- ● ●
182 BOLT; BRKT,INST PANEL
M6X19.5 W/LK&PL WASHER TAI 		8-94279-201-0 02 1 9811- ● ●
208 HOLDER; BOX,DASH SIDE
TAI 		1-72558-027-2 02 1 9811- ● ●
225 FRAME; FACIA 1-65681-028-8 01 1 9811- ● ●
299 FINISHER; STAY,INST CENTER
L=150 SERVICED BY L=190 		1-71998-300-0 01 1 0006- ● ●
337 FASTENER; COVER
(A) TAI 		1-72438-124-2 08 1 9811- ● ●
337 FASTENER; COVER
(C) TAI 		1-72438-137-0 06 1 9811- ● ●
337 FASTENER; COVER
(B) TAI 		1-72438-138-0 06 1 9811- ● ●
338 SCREW; COVER
M5X14 TAI 		8-94279-325-0 10 1 9811-0208 ● ●
338 SCREW; COVER
M5X14 		8-94148-576-1 10 1 0209-0309 ● ●
338 SCREW; COVER
M5X14 TAI 		8-94279-325-0 10 1 0310-0610 ● ●
338 SCREW; COVER
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) M5X14 TAI 		8-94279-325-0 10 1 0611- ●
338 SCREW; COVER
M5X14 TAI 		8-94279-325-0 10 1 0611- ●
394 HOLDER; PANEL
(A) TAI 		1-72438-066-0 06 1 9811- ● ●
394 HOLDER; PANEL
(B) TAI 		1-72558-026-5 02 1 9811-0407 ● ●
394 HOLDER; PANEL
(B) 		1-72558-048-0 02 1 0408- ● ●
513 BRACKET; RELAY
PTO CONTROL<SV6> (B) TAI 		1-73908-043-1 01 1 0611- ●
513 BRACKET; RELAY
(A) 		8-97865-168-3 01 1 9811- ● ●
537 NUT; BRKT
M6 FLANGE 		0-91150-106-0 01 1 9811-0602 ● ●
537 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 0603- ● ●
553 NUT; FRAME
M8 FLANGE 		0-91150-108-0 04 1 9811-0602 ● ●
553 NUT; FRAME
M8 FLANGE 		0-91180-108-0 04 1 0603- ● ●
554 BRACKET; CENTER BEZEL 1-65681-039-2 01 1 9811- ● ●
560 BRACKET
(A) 		1-65681-045-6 01 1 9811-0610 ● ●
560 BRACKET
(A) 		1-65681-216-0 01 1 0611- ● ●
560 BRACKET
(B) 		1-65681-043-2 01 1 9811-0610 ● ●
560 BRACKET
(B) 		1-65681-224-3 01 1 0611- ● ●
566 PLUG; HOLE
OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 9811-0610 ● ●
571 BEZEL; POCKET 1-72438-060-1 01 1 9811-9812 ● ●
571 BEZEL; POCKET 1-72438-151-3 01 1 9901-0610 ● ●
571 BEZEL; POCKET 1-72438-151-3 01 1 0611- ● ●
571 BEZEL; POCKET
EXC. RADIO CLARION(SK2),RADIO AM/FM STEREO & TAPE PLAYER(UN3) 		1-72438-151-3 01 1 0611- ● ●
573 BRACKET; PANEL,RELAY BOX
TAI 		1-73908-023-2 01 1 9811-0610 ● ●
573 BRACKET; PANEL,RELAY BOX
HEATER & DEFROSTER(C41),A/C MAN CONT(C60) TAI 		1-73908-023-2 01 1 0611- ●
573 BRACKET; PANEL,RELAY BOX
TAI 		1-73908-023-2 01 1 0611- ●
574 PANEL; RELAY BOX 1-73908-058-7 01 1 9811- ● ●
575 BOLT; PANEL
M6X19.5 W/LK&PL WASHER TAI 		8-94279-201-0 02 1 9811- ● ●
598 GROMMET; SCREW
PTO CONTROL<SV6> TAI 		8-94279-084-2 02 1 0611- ●
673 FINISHER; BRKT,RELAY
L=30 		8-94273-221-0 01 1 0006-0009 ● ●
673 FINISHER; BRKT,RELAY
L=50 TAI 		8-94270-377-1 01 1 0010- ● ●
686 BRACKET; SENSOR & RELAY 1-65681-227-1 01 1 0611- ● ●
