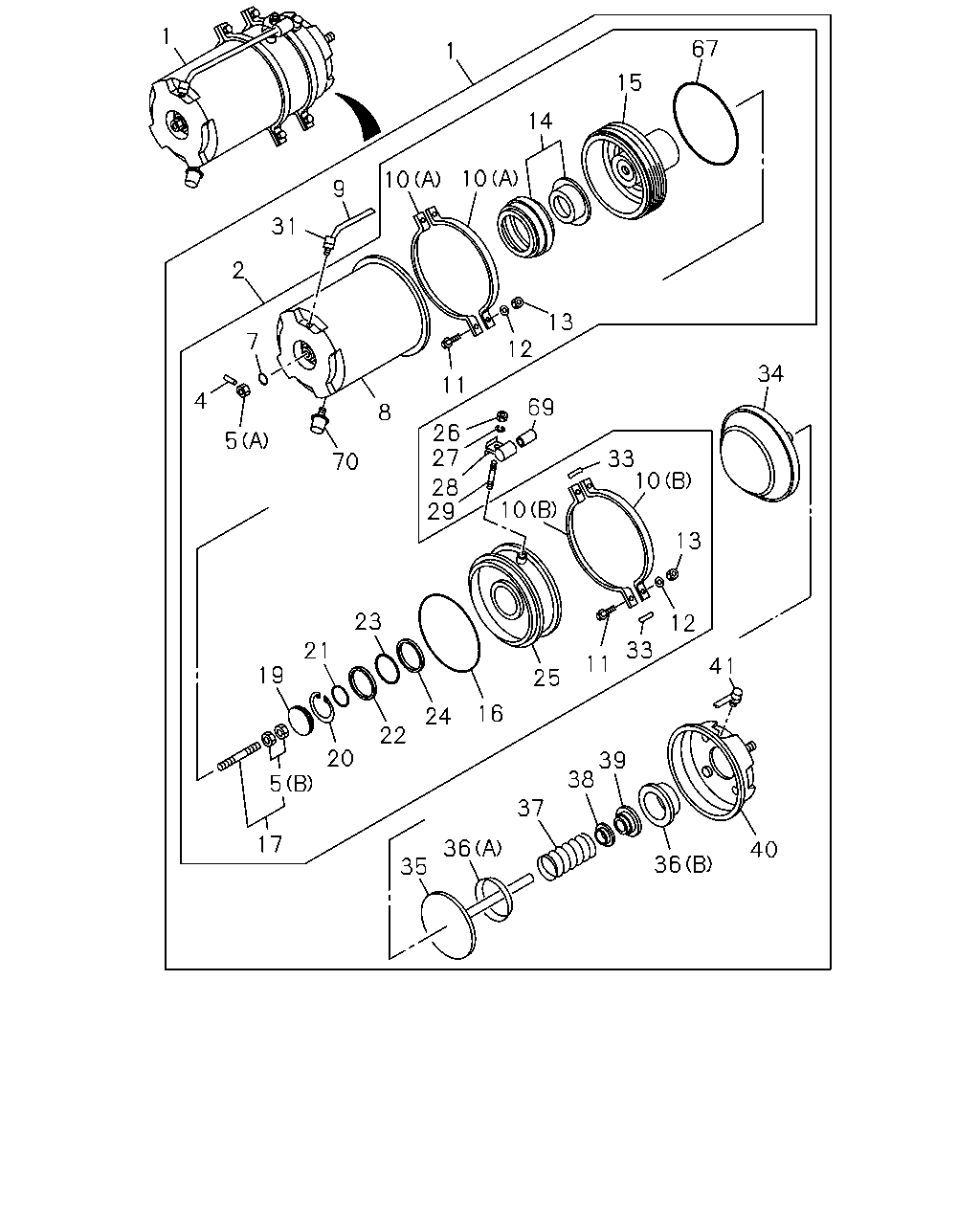

3-41 — REAR BRAKE POWER CHAMBER (#750) — 94 parça
çizim 29331
1 67 1 15 14 10 10 9 31 2 13 7 12 34 11 4 69 8 26 27 5 33 10 70 28 29 10 13 23 12 33 21 11 41 19 25 16 24 22 20 39 38 5 37 17 36 40 36 35
BalonParca AdiParca NoAdetTipApplied Date
1 CHAMBER ASM; SPRING 1-48250-177-1 02 1 9204-9504
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48250-177-1 02 1 9505-
1 CHAMBER ASM; SPRING 1-48250-176-1 02 1 9204-9504
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48250-176-1 02 1 9505-
2 CHAMBER; EMERGENCY 1-48252-021-0 02 1 9204-9504
2 CHAMBER; EMERGENCY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48252-021-0 02 1 9505-
2 CHAMBER; EMERGENCY 1-48252-020-0 02 1 9204-9504
2 CHAMBER; EMERGENCY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48252-020-0 02 1 9505-
4 PIN; STRAIGHT,SPR CHAMBER 1-48259-056-0 08 1 9204-9504
4 PIN; STRAIGHT,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-056-0 08 1 9505-
5 NUT; SHELL
(A) 		1-48259-054-0 04 1 9204-9504
5 NUT; SHELL
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-48259-054-0 04 1 9505-
5 NUT; SHELL
(B) 		1-48259-074-0 04 1 9204-9504
5 NUT; SHELL
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		1-48259-074-0 04 1 9505-
7 GASKET 1-48259-055-0 04 1 9204-9504
7 GASKET
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-055-0 04 1 9505-
8 SHELL; CYL,SPR CHAMBER 1-48259-070-0 02 1 9204-9504
8 SHELL; CYL,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-070-0 02 1 9505-
8 SHELL; CYL,SPR CHAMBER 1-48259-069-0 02 1 9204-9504
8 SHELL; CYL,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-069-0 02 1 9505-
9 PIPE ASM; SHELL 1-48259-076-0 04 1 9204-9504
9 PIPE ASM; SHELL
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-076-0 04 1 9505-
10 RING; CLAMP,SPR CHAMBER
(A) 		1-48259-016-0 08 1 9204-9504
10 RING; CLAMP,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-48259-016-0 08 1 9505-
10 RING; CLAMP,SPR CHAMBER
(B) 		1-48259-031-0 08 1 9204-9504
10 RING; CLAMP,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		1-48259-031-0 08 1 9505-
11 BOLT; CLAMP RING 1-48259-035-0 16 1 9204-9504
11 BOLT; CLAMP RING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-035-0 16 1 9505-
12 WASHER; LK,CLAMP RING 1-48259-046-0 16 1 9204-9504
12 WASHER; LK,CLAMP RING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-046-0 16 1 9505-
13 NUT; CLAMP RING
M10 		9-09110-510-0 16 1 9204-9504
13 NUT; CLAMP RING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 		9-09110-510-0 16 1 9505-
14 SPRING & SEAT SET 1-48259-037-0 04 1 9204-9504
14 SPRING & SEAT SET
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-037-0 04 1 9505-
15 PISTON 1-48262-005-0 04 1 9204-9504
15 PISTON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48262-005-0 04 1 9505-
16 GASKET 1-48259-048-0 04 1 9204-9504
16 GASKET
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-048-0 04 1 9505-
17 BOLT ASM; EMERGENCY 1-48259-073-0 04 1 9204-9504
17 BOLT ASM; EMERGENCY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-073-0 04 1 9505-
19 COVER; PISTON 1-48269-011-0 04 1 9204-9504
19 COVER; PISTON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48269-011-0 04 1 9505-
20 RING; RET 1-48259-060-0 04 1 9204-9504
20 RING; RET
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-060-0 04 1 9505-
21 GASKET; SPR CHAMBER 1-48259-049-0 04 1 9204-9504
21 GASKET; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-049-0 04 1 9505-
22 RING; BACKUP,SPR CHAMBER 1-48259-019-0 04 1 9204-9504
22 RING; BACKUP,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-019-0 04 1 9505-
23 GASKET; SPR CHAMBER 1-48259-047-0 04 1 9204-9504
23 GASKET; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-047-0 04 1 9505-
24 BEARING; SPR CHAMBER 1-48259-020-0 04 1 9204-9504
24 BEARING; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-020-0 04 1 9505-
25 PLATE; PRESSURE,SPR CHAMBER 1-48259-088-0 02 1 9204-9504
25 PLATE; PRESSURE,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-088-0 02 1 9505-
25 PLATE; PRESSURE,SPR CHAMBER 1-48259-087-0 02 1 9204-9504
25 PLATE; PRESSURE,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-087-0 02 1 9505-
26 NUT; PRESSURE PLATE 1-48259-058-0 08 1 9204-9504
26 NUT; PRESSURE PLATE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-058-0 08 1 9505-
27 WASHER; PRESSURE PLATE 1-48259-057-0 04 1 9204-9504
27 WASHER; PRESSURE PLATE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-057-0 04 1 9505-
28 BRACKET; PRESSURE PLATE,HOSE 1-48259-059-0 04 1 9204-9504
28 BRACKET; PRESSURE PLATE,HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-059-0 04 1 9505-
29 STUD; PRESSURE PLATE 1-48259-050-0 04 1 9204-9504
29 STUD; PRESSURE PLATE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-050-0 04 1 9505-
31 CONNECTOR 1-09660-574-0 04 1 9204-9504
31 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-09660-574-0 04 1 9505-
33 RETAINER; DIAPH 1-48259-044-0 08 1 9204-9504
33 RETAINER; DIAPH
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-044-0 08 1 9505-
34 DIAPHRAGM 1-48252-011-0 04 1 9204-9504
34 DIAPHRAGM
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48252-011-0 04 1 9505-
35 PLATE; ROD END,SPR CHAMBER 1-48253-011-0 04 1 9204-9504
35 PLATE; ROD END,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48253-011-0 04 1 9505-
36 RETAINER; SPR CHAMBER
(A) 		1-48259-033-0 04 1 9204-9504
36 RETAINER; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-48259-033-0 04 1 9505-
36 RETAINER; SPR CHAMBER
(B) 		1-48259-043-0 04 1 9204-9504
36 RETAINER; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		1-48259-043-0 04 1 9505-
37 SPRING; LWR,SPR CHAMBER 1-48255-003-0 04 1 9204-9504
37 SPRING; LWR,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48255-003-0 04 1 9505-
38 COVER; ROD & PLATE 1-48259-066-0 04 1 9204-9504
38 COVER; ROD & PLATE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-066-0 04 1 9505-
39 COVER; ROD & PLATE 1-48259-065-0 04 1 9204-9504
39 COVER; ROD & PLATE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-065-0 04 1 9505-
40 COVER ASM; LWR,SPR CHAMBER 1-48259-082-1 02 1 9204-9504
40 COVER ASM; LWR,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-082-1 02 1 9505-
40 COVER ASM; LWR,SPR CHAMBER 1-48259-081-1 02 1 9204-9504
40 COVER ASM; LWR,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-081-1 02 1 9505-
41 PIPE ASM; LWR COVER 1-48259-080-0 04 1 9204-9504
41 PIPE ASM; LWR COVER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-080-0 04 1 9505-
67 GASKET; SPR CHAMBER 1-48259-053-0 04 1 9204-9504
67 GASKET; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-053-0 04 1 9505-
69 HOSE; PRESSURE PLATE 1-48259-051-0 04 1 9204-9504
69 HOSE; PRESSURE PLATE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-051-0 04 1 9505-
70 COVER; EXH,SPR CHAMBER 1-48259-052-0 04 1 9204-9504
70 COVER; EXH,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-052-0 04 1 9505-
