◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 10624 - FSR-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-31 - FRONT DOOR GLASS AND REGULATOR ▶
6-31 — FRONT DOOR GLASS AND REGULATOR (#75) — 83 parça

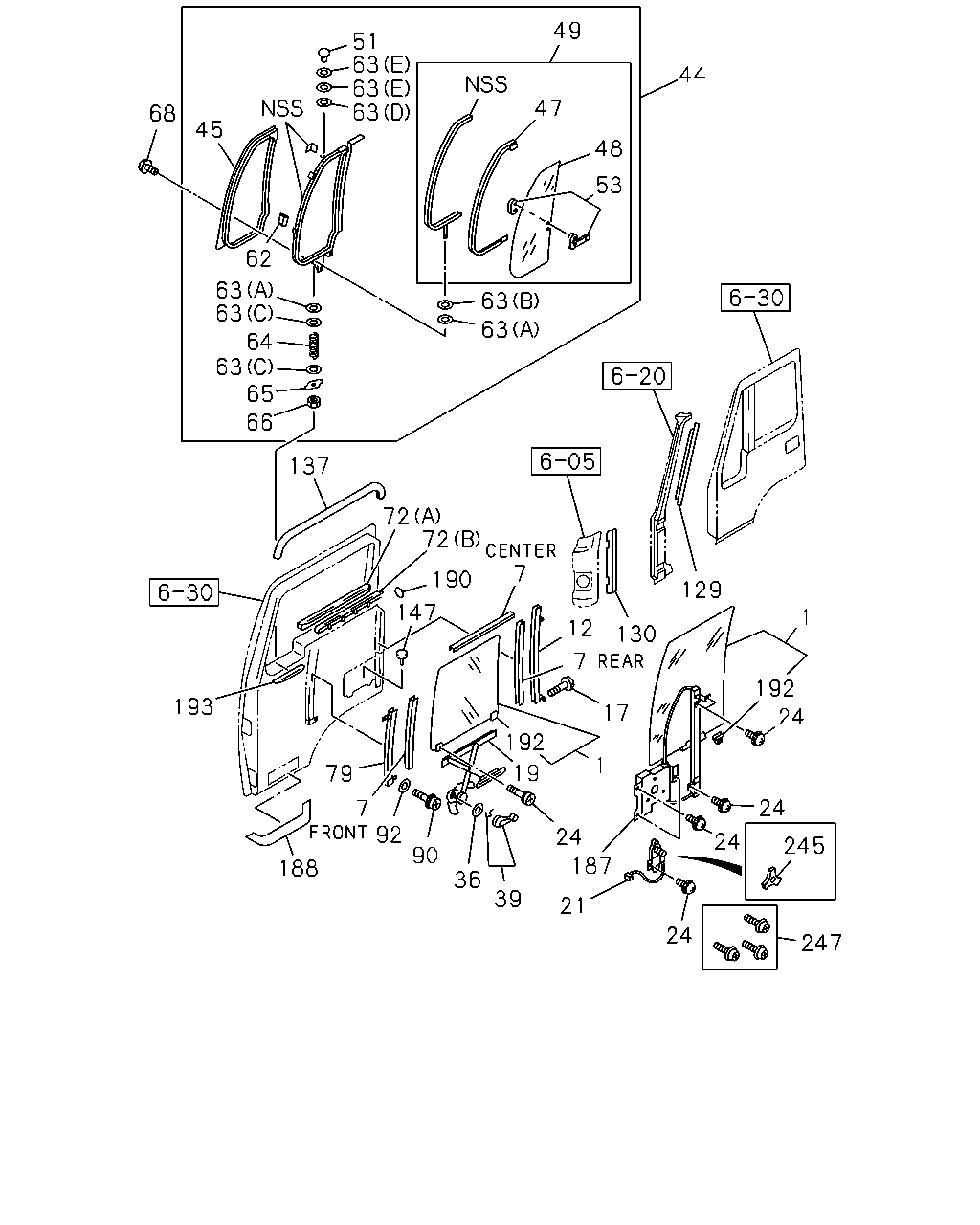

çizim 29598
68 45 51 63 63 63 49 44 47 48 53 62 63 63 64 63 65 66 63 63 137 72 72 190 147 7 193 79 188 7 92 90 36 39 21 187 24 19 192 1 17 7 12 130 129 1 192 24 24 24 245 24 247
BalonParca AdiParca NoAdetTipApplied Date A B
1 GLASS; FRT DOOR
POWER WINDOW<A30> 		1-76147-186-0 01 1 9206- ●
1 GLASS; FRT DOOR
POWER WINDOW<A30> 		1-76147-134-0 01 1 9206- ●
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> 		1-76147-084-3 01 1 9202- ●
1 GLASS; FRT DOOR 1-76147-084-3 01 1 9202- ●
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> 		1-76147-080-3 01 1 9202- ●
1 GLASS; FRT DOOR 1-76147-080-3 01 1 9202- ●
7 GLASS RUN; FRT DOOR
FRONT 		1-74317-035-0 02 1 9202- ● ●
7 GLASS RUN; FRT DOOR
REAR L=558 		1-74317-042-0 02 1 9202- ● ●
7 GLASS RUN; FRT DOOR
CENTER 		1-74317-044-0 02 1 9202- ● ●
12 CHANNEL; GLASS RUN,FRT 1-74337-184-0 01 1 9202- ● ●
12 CHANNEL; GLASS RUN,FRT 1-74337-177-0 01 1 9202- ● ●
17 SCREW; RR CHANNEL
M6X16 W/LK&PL WASHER 		1-09981-431-0 06 1 9202- ● ●
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW<A30> 		1-74417-063-0 01 1 9202- ●
19 REGULATOR; WINDOW,FRT DOOR 1-74417-063-0 01 1 9202- ●
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW<A30> 		1-74417-062-0 01 1 9202- ●
19 REGULATOR; WINDOW,FRT DOOR 1-74417-062-0 01 1 9202- ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		1-74417-073-0 01 1 9206- ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		1-74417-069-2 01 1 9206- ●
24 SCREW; WINDOW REG
POWER WINDOW<A30> M6X16 W/LK&PL WASHER 		9-03920-616-0 14 1 9206- ●
24 SCREW; WINDOW REG
EXC. POWER WINDOW<A30> M6X12 W/LK&PL WASHER 		1-09981-430-0 16 1 9202- ●
24 SCREW; WINDOW REG
M6X12 W/LK&PL WASHER 		1-09981-430-0 16 1 9202- ●
36 ESCUTCHEON; HANDLE,WINDOW REG
EXC. POWER WINDOW<A30> 		1-74458-020-0 02 1 9202- ●
36 ESCUTCHEON; HANDLE,WINDOW REG 1-74458-020-0 02 1 9202- ●
39 HANDLE; WINDOW REG,FRT DOOR
EXC. POWER WINDOW<A30> 		5-74457-001-3 02 1 9202- ●
39 HANDLE; WINDOW REG,FRT DOOR 5-74457-001-3 02 1 9202- ●
44 VENTILATOR ASM; CROSS,FRT DOOR 1-76148-023-4 01 1 9202- ● ●
44 VENTILATOR ASM; CROSS,FRT DOOR 1-76148-022-4 01 1 9202- ● ●
45 WEATHERSTRIP; CROSS,VENTILATOR 1-76717-050-7 01 1 9202- ● ●
45 WEATHERSTRIP; CROSS,VENTILATOR 1-76717-049-7 01 1 9202- ● ●
47 PROTECTOR; DIVISION BAR 1-76147-126-0 02 1 9202- ● ●
48 GLASS; CROSS VENTILATOR 1-76147-089-2 01 1 9202- ● ●
48 GLASS; CROSS VENTILATOR 1-76147-069-2 01 1 9202- ● ●
49 FRAME; INNER,CROSS VENTILATOR 1-76148-034-0 01 1 9202- ● ●
49 FRAME; INNER,CROSS VENTILATOR 1-76148-032-0 01 1 9202- ● ●
51 RIVET; PIVOT,UPR 1-76347-048-0 02 1 9202- ● ●
53 HANDLE; CATCH,CROSS VENTILATOR 1-76148-026-0 01 1 9202- ● ●
53 HANDLE; CATCH,CROSS VENTILATOR 1-76148-025-0 01 1 9202- ● ●
62 SEAL; CROSS VENTILATOR 1-76147-127-0 02 1 9202- ● ●
63 WASHER; PL,VENTILATOR
(D) ID=5.0 OD=10 T=0.5 NYLON 		1-76147-113-0 06 1 9202- ● ●
63 WASHER; PL,VENTILATOR
(A) OD=13 T=1.0 		1-76347-046-0 04 1 9202- ● ●
63 WASHER; PL,VENTILATOR
(E) ID=5.0 T=0.7 		1-76347-047-0 02 1 9202- ● ●
63 WASHER; PL,VENTILATOR
(B) ID=6.1 OD=14 T=2.4 		8-94279-609-0 02 1 9202- ● ●
63 WASHER; PL,VENTILATOR
(C) ID=6.1 OD=14 T=1 		8-94279-619-0 04 1 9202- ● ●
64 SPRING; CROSS VENT 1-76347-045-2 02 1 9202- ● ●
65 WASHER; LK,VENTILATOR 8-94279-610-0 02 1 9202- ● ●
66 NUT; PIVOT,LWR
M6 		1-76147-112-0 02 1 9202- ● ●
68 SCREW; VENTILATOR
M6X12 W/LK&PL WASHER 		1-09981-430-0 06 1 9202- ● ●
68 SCREW; VENTILATOR
M6X10 		1-09981-511-0 02 1 9202- ● ●
72 SEAL; WAIST,FRT DOOR
THAILAND KD SPECIAL<PT6> (B) 		1-76738-068-0 01 1 9202-9212 ●
72 SEAL; WAIST,FRT DOOR
THAILAND KD SPECIAL<PT6> (B) 		1-76738-067-0 01 1 9202-9212 ●
72 SEAL; WAIST,FRT DOOR
(A) 		1-76737-094-4 01 1 9202- ● ●
72 SEAL; WAIST,FRT DOOR
(A) 		1-76737-093-4 01 1 9202- ● ●
72 SEAL; WAIST,FRT DOOR
EXC. THAILAND KD SPECIAL<PT6> (B) 		1-76737-145-1 01 1 9202-9212 ● ●
72 SEAL; WAIST,FRT DOOR
(B) 		1-76737-145-1 01 1 9301- ● ●
72 SEAL; WAIST,FRT DOOR
EXC. THAILAND KD SPECIAL<PT6> (B) 		1-76737-144-1 01 1 9202-9212 ● ●
72 SEAL; WAIST,FRT DOOR
(B) 		1-76737-144-1 01 1 9301- ● ●
79 CHANNEL; DOOR GLASS,FRT 1-74337-183-0 01 1 9202- ● ●
79 CHANNEL; DOOR GLASS,FRT 1-74337-176-0 01 1 9202- ● ●
90 SCREW; FRT CHANNEL
M6X16 W/LK&PL WASHER 		1-09981-431-0 04 1 9202- ● ●
92 WASHER; RUBBER,FRT CHANNEL,FRT DOOR
ID=5.5 		1-71997-525-1 02 1 9202- ● ●
129 SEAL; DOOR,SUB UPR 1-76718-142-4 01 1 9202-9204 ● ●
129 SEAL; DOOR,SUB UPR 1-76718-183-0 01 1 9205- ● ●
129 SEAL; DOOR,SUB UPR 1-76718-141-4 01 1 9202-9204 ● ●
129 SEAL; DOOR,SUB UPR 1-76718-182-0 01 1 9205- ● ●
130 SEAL; DOOR,SUB LWR
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		1-76718-164-1 01 1 9310- ●
130 SEAL; DOOR,SUB LWR
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		1-76718-163-1 01 1 9310- ●
130 SEAL; DOOR,SUB LWR
EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		1-76717-070-3 01 1 9202- ●
130 SEAL; DOOR,SUB LWR 1-76717-070-3 01 1 9202- ●
130 SEAL; DOOR,SUB LWR
EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		1-76717-069-3 01 1 9202- ●
130 SEAL; DOOR,SUB LWR 1-76717-069-3 01 1 9202- ●
137 SEAL; DOOR SUB,UPR 1-76717-086-0 01 1 9202- ● ●
137 SEAL; DOOR SUB,UPR 1-76717-085-0 01 1 9202- ● ●
147 STOPPER; FRT DOOR GLASS 1-74907-022-0 02 1 9202- ● ●
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		1-74417-072-0 01 1 9206- ●
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		1-74417-068-0 01 1 9206- ●
188 PROTECTOR; DOOR SEAL
CLEAR 		1-79997-320-1 01 1 9202- ● ●
188 PROTECTOR; DOOR SEAL
CLEAR 		1-79997-319-1 01 1 9202- ● ●
190 REFLECTOR; FRT DOOR INNER 5-76777-060-1 01 1 9202- ● ●
190 REFLECTOR; FRT DOOR INNER 5-76777-060-1 01 1 9202- ●
192 HOLDER; DOOR GLASS 1-74427-160-0 04 1 9202- ● ●
193 FINISHER; CROSS VENT
THAILAND KD SPECIAL<PT6> 		1-73338-257-1 02 1 9202-9212 ●
245 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> 		1-74417-074-0 02 1 9212- ●
247 SCREW; SET
POWER WINDOW<A30> 		1-74417-075-0 06 1 9212- ●
