2-55 — AUTO TRANS SHIFT CONTROL LEVER (#74997) — 67 parça

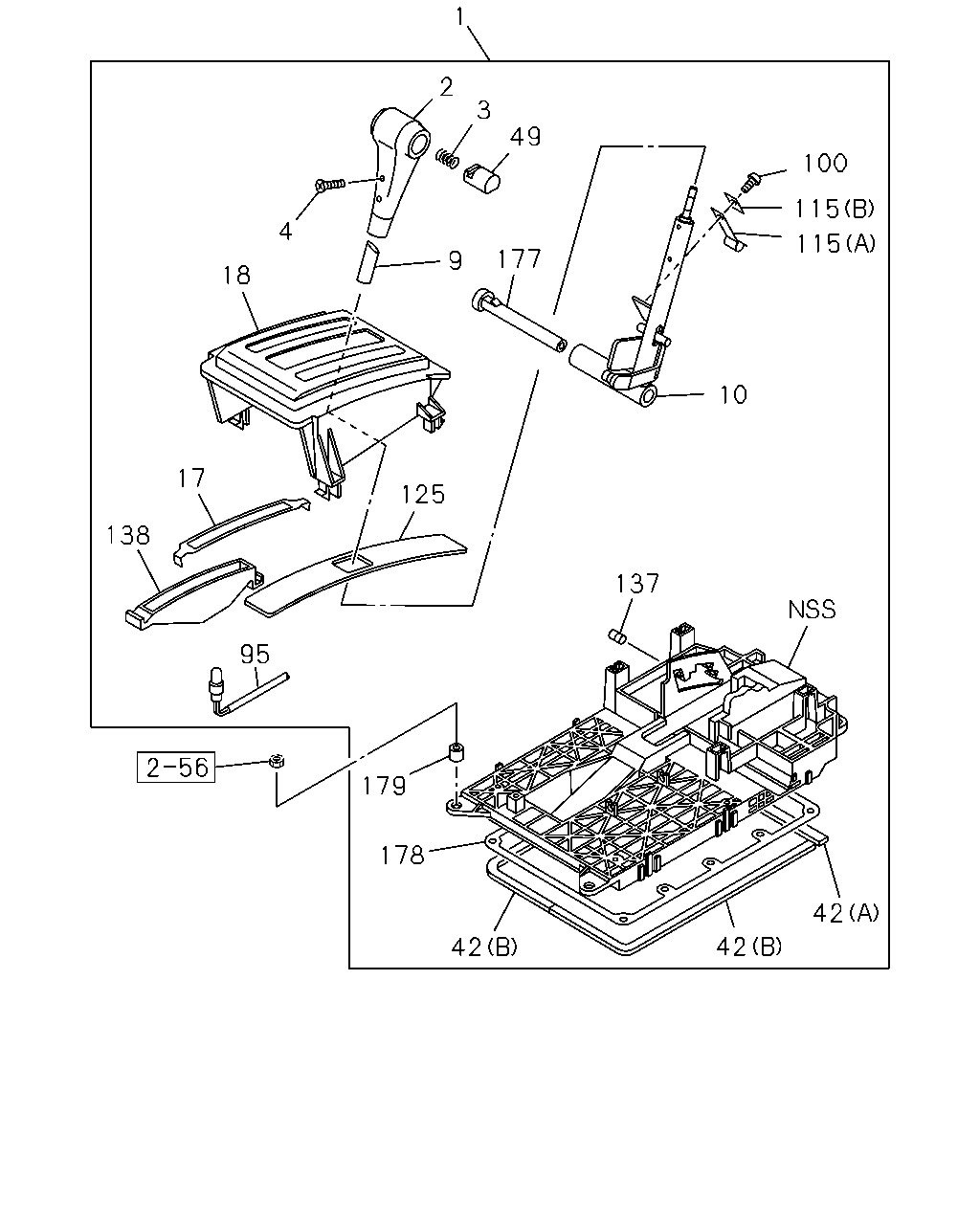

çizim 118560
1 2 3 49 100 115 4 115 177 9 18 10 17 125 138 137 95 179 178 42 42 42
BalonParca AdiParca NoAdetTipApplied Date
1 LEVER; SHIFT,A/T
SALES PACKAGE EQUIPMENT SPORTY<XK0> LIGHT GRAY 		8-97423-451-0 01 1 1108-
1 LEVER; SHIFT,A/T
DARK GRAY 		8-97391-005-1 01 1 0503-0511
1 LEVER; SHIFT,A/T
DARK GRAY 		8-97404-467-0 01 1 0512-0606
1 LEVER; SHIFT,A/T
LIGHT GRAY 		8-97403-672-1 01 1 0607-1001
1 LEVER; SHIFT,A/T
LIGHT GRAY 		8-97418-507-0 01 1 1002-1107
1 LEVER; SHIFT,A/T
EXC. SALES PACKAGE EQUIPMENT SPORTY<XK0> LIGHT GRAY 		8-97418-507-0 01 1 1108-
2 KNOB ASM; AUTO CONT LEVER
SALES PACKAGE EQUIPMENT SPORTY<XK0> DARK GRAY 		8-97423-452-0 01 1 1108-
2 KNOB ASM; AUTO CONT LEVER
DARK GRAY 		8-97394-407-0 01 1 0503-0606
2 KNOB ASM; AUTO CONT LEVER
DARK GRAY 		8-97407-873-0 01 1 0607-0607
2 KNOB ASM; AUTO CONT LEVER
DARK GRAY 		8-97408-716-0 01 1 0608-1107
2 KNOB ASM; AUTO CONT LEVER
EXC. SALES PACKAGE EQUIPMENT SPORTY<XK0> DARK GRAY 		8-97408-716-0 01 1 1108-
3 SPRING; RETURN,KNOB 8-97332-979-0 01 1 0503-
4 SCREW; KNOB TO LEVER 8-97332-950-0 02 1 0503-
9 SLEEVE; KNOB,SHIFT LEVER 8-97332-980-0 01 1 0503-
10 LEVER; A/T CONT 8-97332-987-0 01 1 0503-0606
10 LEVER; A/T CONT 8-98032-565-0 01 1 0607-
17 PLATE; INDICATOR 8-97332-933-0 01 1 0503-0606
18 COVER; INDICATOR,UPR
DARK GRAY 		8-97394-404-0 01 1 0503-0606
18 COVER; INDICATOR,UPR
LIGHT GRAY 		8-97407-871-0 01 1 0607-
42 SEAL; RUBBER
(A) 		8-97332-954-0 01 1 0503-0511
42 SEAL; RUBBER
(B) 		8-97332-955-0 02 1 0503-0511
49 BUTTON; PUSH,KNOB
DARK GRAY 		8-97394-405-0 01 1 0503-0606
49 BUTTON; PUSH,KNOB 8-98032-542-0 01 1 0607-
95 LAMP; INDICATOR 8-97332-981-0 01 1 0503-0606
100 SCREW 8-97332-953-0 01 1 0503-
115 PLATE; SPR,LEVER
(A) 		8-97332-936-0 01 1 0503-
115 PLATE; SPR,LEVER
(B) 		8-97332-939-0 01 1 0503-0606
125 COVER; SHIFT LEVER 8-97332-934-0 01 1 0503-0607
125 COVER; SHIFT LEVER 8-98052-035-0 01 1 0608-
137 CUSHION 8-97332-938-0 03 1 0503-
138 BOX; LAMP 8-97332-976-0 01 1 0503-0606
138 BOX; LAMP 8-98032-537-0 01 1 0607-
177 SHAFT; SHIFT LEVER,A/T 8-97332-952-0 01 1 0503-
178 SHEET; SHIFT LEVER 8-97332-935-0 01 1 0503-

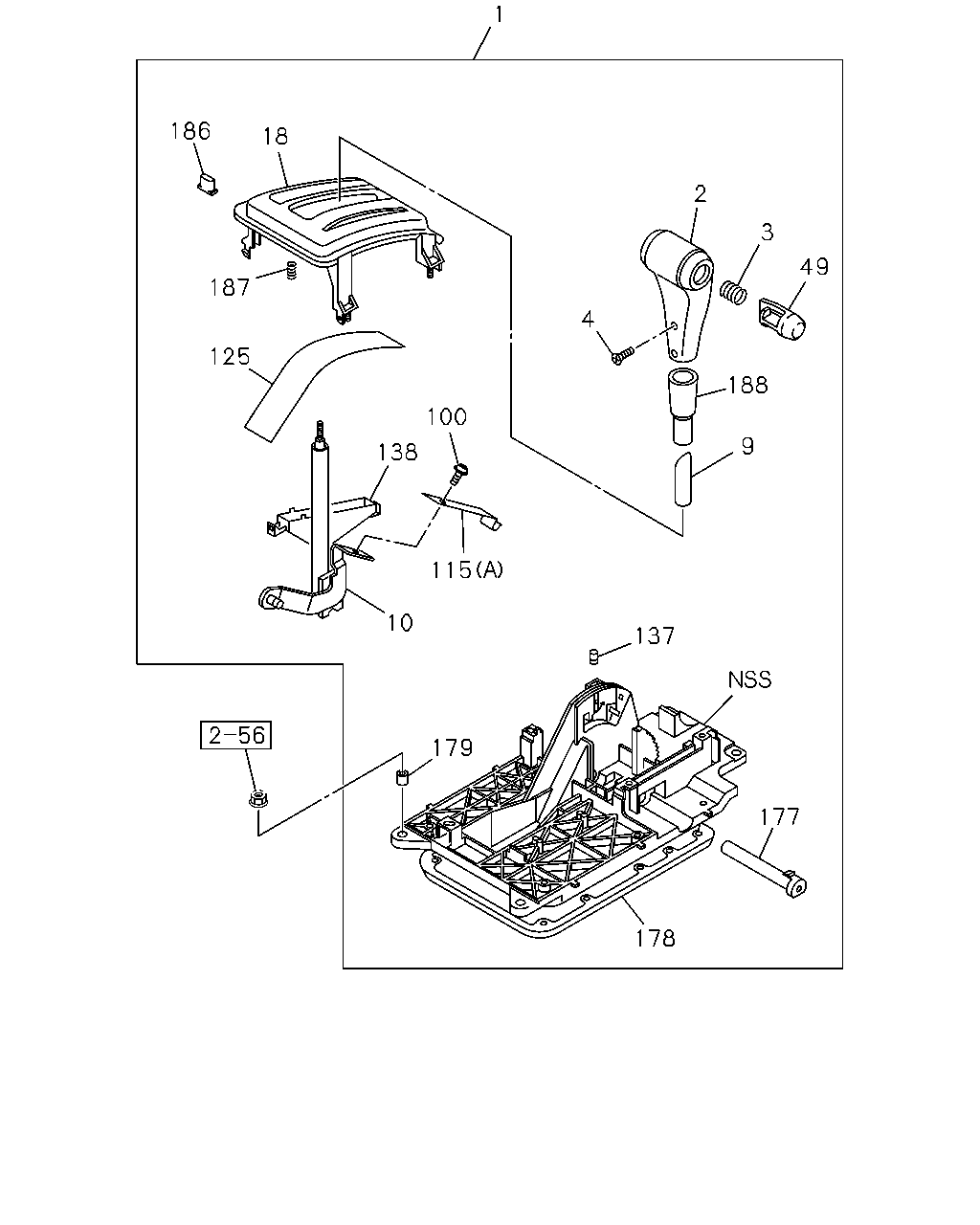

çizim 118719
1 186 18 2 3 49 187 4 125 188 100 9 138 115 10 137 179 177 178
BalonParca AdiParca NoAdetTipApplied Date
1 LEVER; SHIFT,A/T
SALES PACKAGE EQUIPMENT SPORTY<XK0> LIGHT GRAY 		8-97423-451-0 01 1 1108-
1 LEVER; SHIFT,A/T
DARK GRAY 		8-97391-005-1 01 1 0503-0511
1 LEVER; SHIFT,A/T
DARK GRAY 		8-97404-467-0 01 1 0512-0606
1 LEVER; SHIFT,A/T
LIGHT GRAY 		8-97403-672-1 01 1 0607-1001
1 LEVER; SHIFT,A/T
LIGHT GRAY 		8-97418-507-0 01 1 1002-1107
1 LEVER; SHIFT,A/T
EXC. SALES PACKAGE EQUIPMENT SPORTY<XK0> LIGHT GRAY 		8-97418-507-0 01 1 1108-
2 KNOB ASM; AUTO CONT LEVER
SALES PACKAGE EQUIPMENT SPORTY<XK0> DARK GRAY 		8-97423-452-0 01 1 1108-
2 KNOB ASM; AUTO CONT LEVER
DARK GRAY 		8-97394-407-0 01 1 0503-0606
2 KNOB ASM; AUTO CONT LEVER
DARK GRAY 		8-97407-873-0 01 1 0607-0607
2 KNOB ASM; AUTO CONT LEVER
DARK GRAY 		8-97408-716-0 01 1 0608-1107
2 KNOB ASM; AUTO CONT LEVER
EXC. SALES PACKAGE EQUIPMENT SPORTY<XK0> DARK GRAY 		8-97408-716-0 01 1 1108-
3 SPRING; RETURN,KNOB 8-97332-979-0 01 1 0503-
4 SCREW; KNOB TO LEVER 8-97332-950-0 02 1 0503-
9 SLEEVE; KNOB,SHIFT LEVER 8-97332-980-0 01 1 0503-
10 LEVER; A/T CONT 8-97332-987-0 01 1 0503-0606
10 LEVER; A/T CONT 8-98032-565-0 01 1 0607-
18 COVER; INDICATOR,UPR
DARK GRAY 		8-97394-404-0 01 1 0503-0606
18 COVER; INDICATOR,UPR
LIGHT GRAY 		8-97407-871-0 01 1 0607-
49 BUTTON; PUSH,KNOB
DARK GRAY 		8-97394-405-0 01 1 0503-0606
49 BUTTON; PUSH,KNOB 8-98032-542-0 01 1 0607-
100 SCREW 8-97332-953-0 01 1 0503-
115 PLATE; SPR,LEVER
(A) 		8-97332-936-0 01 1 0503-
115 PLATE; SPR,LEVER
(B) 		8-97332-939-0 01 1 0503-0606
125 COVER; SHIFT LEVER 8-97332-934-0 01 1 0503-0607
125 COVER; SHIFT LEVER 8-98052-035-0 01 1 0608-
137 CUSHION 8-97332-938-0 03 1 0503-
138 BOX; LAMP 8-97332-976-0 01 1 0503-0606
138 BOX; LAMP 8-98032-537-0 01 1 0607-
177 SHAFT; SHIFT LEVER,A/T 8-97332-952-0 01 1 0503-
178 SHEET; SHIFT LEVER 8-97332-935-0 01 1 0503-
186 BUTTON; SHIFT LOCK
DARK GRAY 		8-97407-872-0 01 1 0607-
187 SPRING; RETURN,SHIFT 8-98032-566-0 01 1 0607-
188 COVER; KNOB 8-98032-557-0 01 1 0607-
