Isuzu WW
▶
SUV
▶
UCR
▶
51032 - UCR/UCS-LHD
▶
2 - Clutch, Transmission, Trans Axle
▶
2-53 - TRANSMISSION OIL COOLER SYSTEM
▶

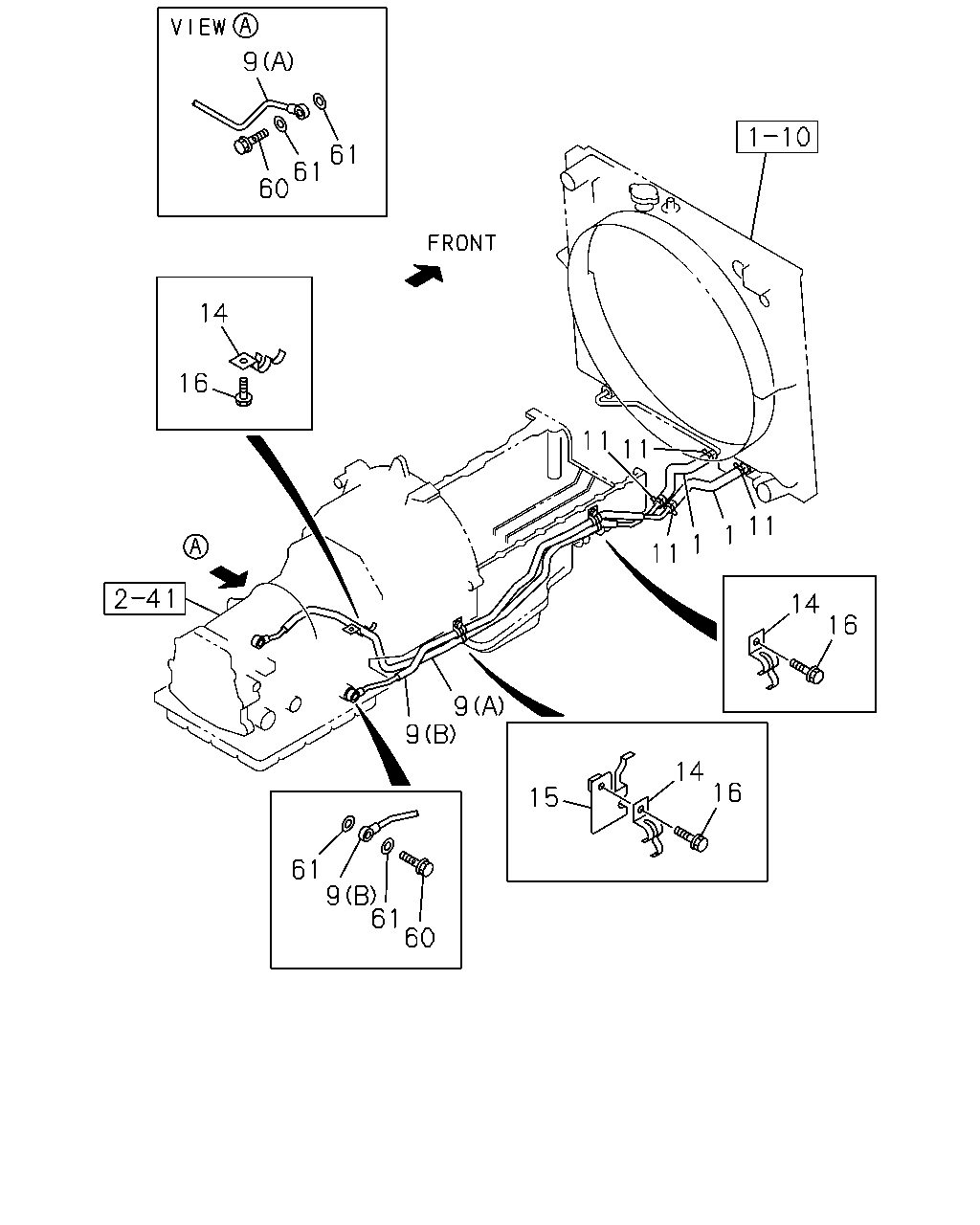

2-53 — TRANSMISSION OIL COOLER SYSTEM
(#74996) — 14 parça
9
61
61
60
14
16
11
11
11
1
1
11
14
16
9
9
14
16
15
61
9
61
60
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; ATF
L=250 SERVICED BY L=3000
0-02259-300-0
02
1
0503-
9
PIPE; ATF,INL,A/T
(A)
8-97363-584-1
01
1
0503-0712
9
PIPE; ATF,INL,A/T
(A)
8-97946-403-0
01
1
0801-
9
PIPE; ATF,INL,A/T
(B)
8-97363-585-2
01
1
0503-0712
9
PIPE; ATF,INL,A/T
(B)
8-97946-404-0
01
1
0801-
11
CLIP; PIPE
ID=13.5
8-97015-754-1
04
1
0503-0606
11
CLIP; PIPE
8-98008-165-0
04
1
0607-
14
CLIP; PIPE TO ENG SIDE
8-97177-700-0
03
1
0503-0606
14
CLIP; PIPE TO ENG SIDE
8-98008-163-0
03
1
0607-
15
BRACKET; ATF PIPE
8-97944-139-1
01
1
0503-0609
15
BRACKET; ATF PIPE
8-98050-694-0
01
1
0610-
16
BOLT; CLIP,ENG SIDE
M8X16 FLANGE
0-28050-816-0
03
1
0503-
60
BOLT; EYE,ATF PIPE
1-09675-033-0
02
1
0503-
61
GASKET; EYE BOLT,ATF PIPE
ID=14.2 OD=20.0
9-09571-414-0
04
1
0503-
