◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51032 - UCR/UCS-LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-50 - AUTO TRANS BRAKE AND DISC CLUTCH ▶
2-50 — AUTO TRANS BRAKE AND DISC CLUTCH (#74995) — 36 parça

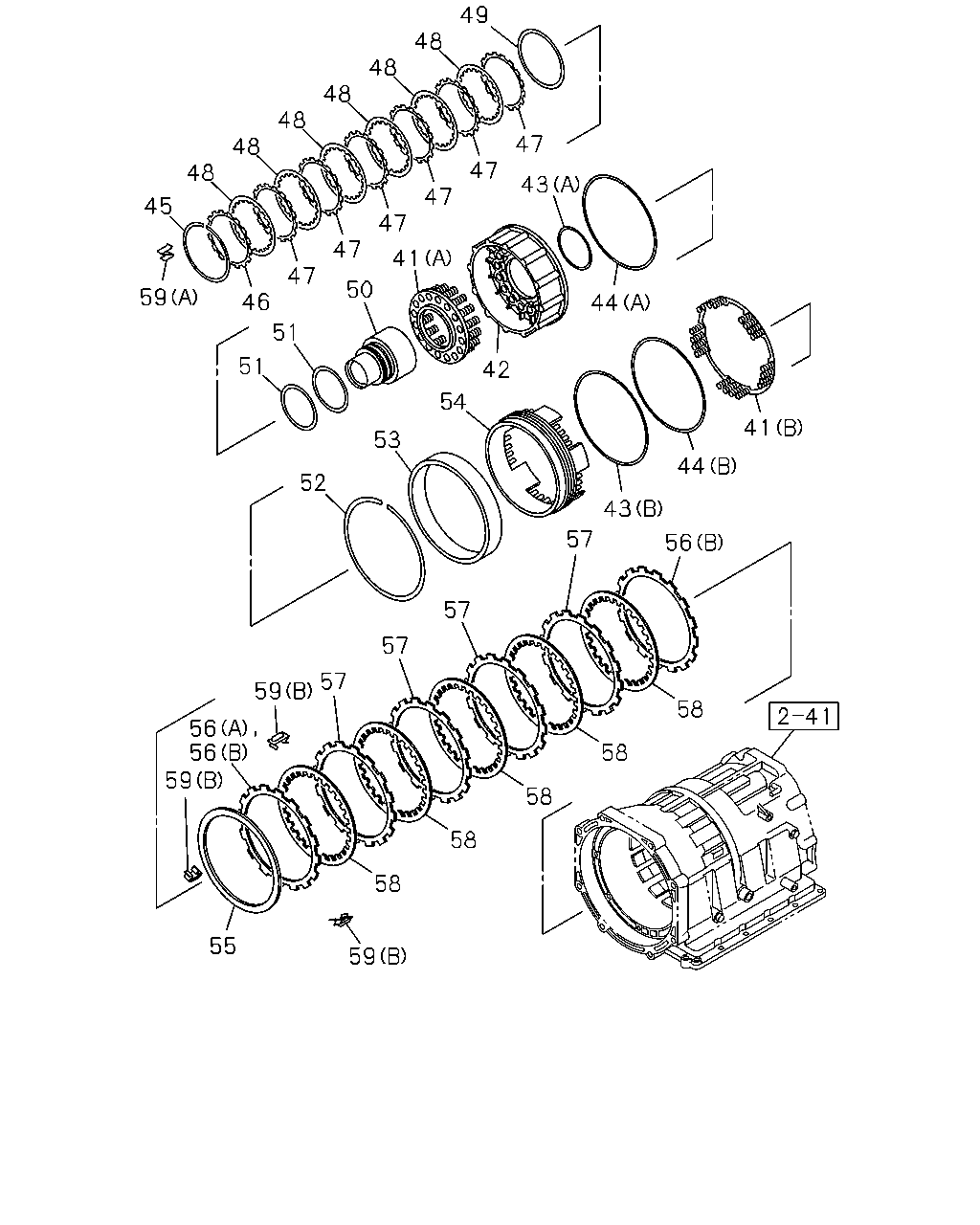

çizim 118557
49 48 48 48 48 47 48 47 48 43 47 45 47 47 41 47 50 59 46 44 51 51 42 54 41 53 44 52 43 57 56 57 57 57 59 58 56 56 59 58 58 58 58 55 59
BalonParca AdiParca NoAdetTipApplied Date
41 SPRING; RETURN,PISTON,BRAKE
(A) 		8-97331-047-0 01 1 0503-
41 SPRING; RETURN,PISTON,BRAKE
(B) 		8-97331-048-0 01 1 0503-
42 PISTON; LOW BRAKE 8-97331-046-0 01 1 0503-
43 SEAL; BRAKE PISTON,INNER
(A) 		8-94483-385-0 01 1 0503-
43 SEAL; BRAKE PISTON,INNER
(B) 		8-97330-992-0 01 1 0503-
44 SEAL; BRAKE PISTON,OUTER
(A) 		8-94483-382-0 01 1 0503-
44 SEAL; BRAKE PISTON,OUTER
(B) 		8-97330-993-0 01 1 0503-
45 RING; SNAP,LOW BRAKE PLATE 8-97330-964-0 01 1 0503-
46 PLATE; RET,LOW BRAKE
T=5.2 		8-97331-051-0 01 1 0503-
46 PLATE; RET,LOW BRAKE
T=5.4 		8-97331-052-0 01 1 0503-
46 PLATE; RET,LOW BRAKE
T=5.6 		8-97331-053-0 01 1 0503-
46 PLATE; RET,LOW BRAKE
T=5.8 		8-97331-054-0 01 1 0503-
46 PLATE; RET,LOW BRAKE
T=6.0 		8-97331-055-0 01 1 0503-
47 PLATE; DRIVEN,LOW BRAKE 8-97331-050-0 06 1 0503-
48 PLATE; DRIVE,LOW BRAKE 8-97330-996-0 06 1 0503-
49 PLATE; DISHED,LOW BRAKE 8-97331-001-0 01 1 0503-
50 SUPPORT; LOW BRAKE 8-97330-958-0 01 1 0503-
51 RING; SEAL,SUPPORT 8-97330-982-0 02 1 0503-
52 RING; SNAP,RET,2 & 4 BRAKE 8-97330-972-0 01 1 0503-
53 RETAINER; PISTON,2 & 4 BRAKE 8-97331-045-0 01 1 0503-
54 PISTON; 2 & 4 BRAKE 8-97331-042-0 01 1 0503-
55 PLATE; DISHED,2 & 4 BRAKE 8-97331-002-0 01 1 0503-
56 PLATE; RET,2 & 4 BRAKE
(A) T=5.6 		8-98126-858-0 01 1 0712-
56 PLATE; RET,2 & 4 BRAKE
(A) T=5.0 		8-97331-025-0 01 1 0503-
56 PLATE; RET,2 & 4 BRAKE
(A) T=5.2 		8-97331-026-0 01 1 0503-
56 PLATE; RET,2 & 4 BRAKE
(A) T=5.4 		8-97331-027-0 01 1 0503-
56 PLATE; RET,2 & 4 BRAKE
(B) T=5.6 		8-97331-028-0 02 1 0503-0711
56 PLATE; RET,2 & 4 BRAKE
(B) T=5.6 		8-97331-028-0 01 1 0712-
56 PLATE; RET,2 & 4 BRAKE
(A) T=5.8 		8-97331-029-0 01 1 0503-
56 PLATE; RET,2 & 4 BRAKE
(A) T=6.0 		8-97331-030-0 01 1 0503-
56 PLATE; RET,2 & 4 BRAKE
(A) T=6.2 		8-97331-031-0 01 1 0503-
56 PLATE; RET,2 & 4 BRAKE
(A) T=6.4 		8-97331-032-0 01 1 0503-
57 PLATE; DRIVEN,2 & 4 BRAKE 8-97331-009-0 04 1 0503-
58 PLATE; DRIVE,2 & 4 BRAKE 8-97330-999-0 05 1 0503-
59 SPRING; PLATE HOLD
(A) 		8-97331-043-0 01 1 0503-
59 SPRING; PLATE HOLD
(B) 		8-97331-044-0 03 1 0503-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
