2-49 — AUTO TRANS INHIBITOR SWITCH (#74994) — 19 parça

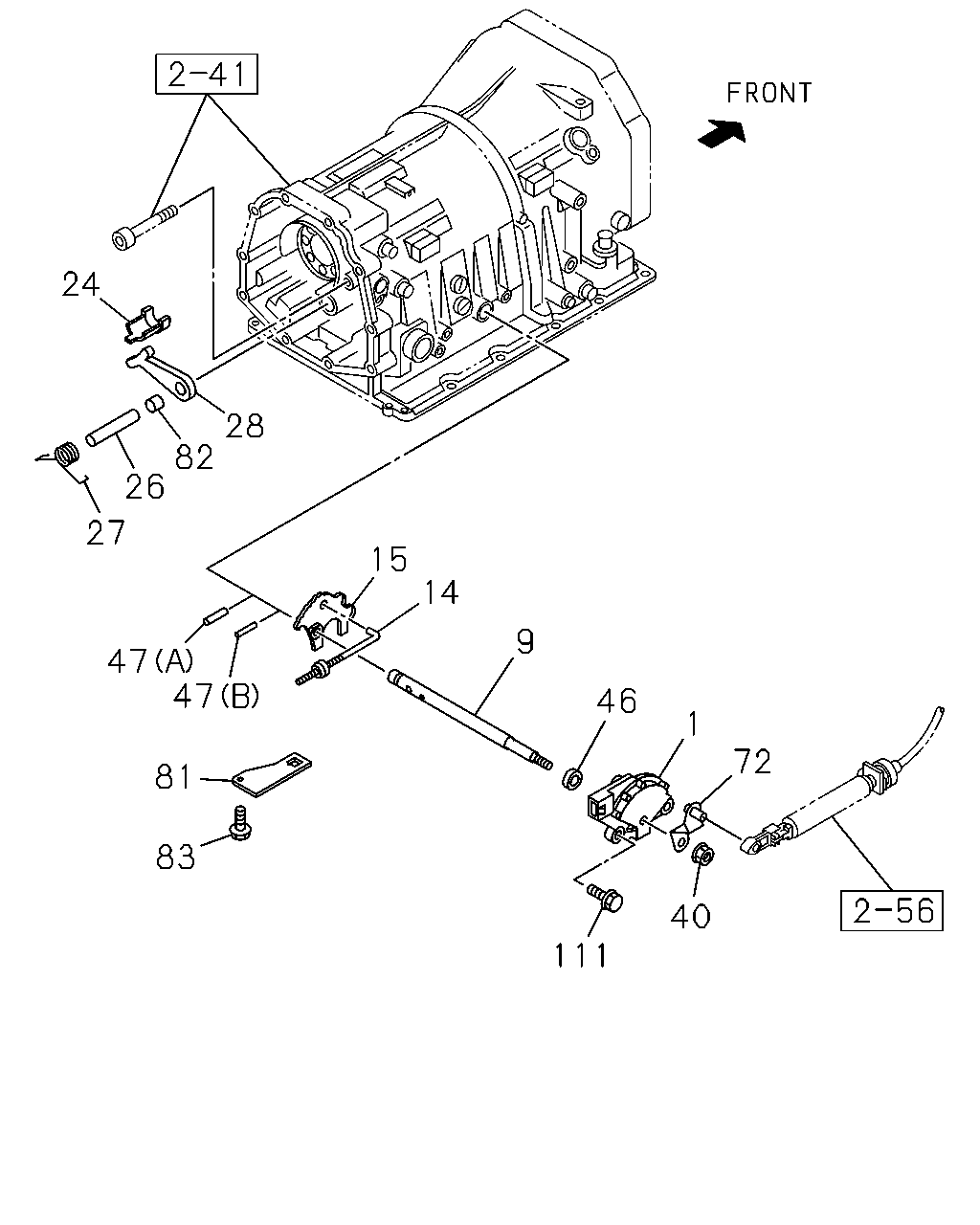

çizim 118562
24 28 82 26 27 15 14 9 47 47 46 1 72 81 83 40 111
BalonParca AdiParca NoAdetTipApplied Date
1 SWITCH; INHIBITOR,A/T 8-97331-105-0 01 1 0503-
9 SHAFT; MANUAL,A/T 8-97331-106-0 01 1 0503-
14 ROD ASM; PARKING,A/T 8-97331-114-0 01 1 0503-
15 PLATE; MANUAL SHAFT,A/T 8-97331-107-0 01 1 0503-
24 SUPPORT; ACTUATOR,A/T 8-97331-116-0 01 1 0503-0711
24 SUPPORT; ACTUATOR,A/T 8-98126-857-0 01 1 0712-
26 SHAFT; PARKING PAWL,A/T 8-97331-117-0 01 1 0503-
27 SPRING; PAWL RETURN,A/T 8-97331-118-0 01 1 0503-
28 PAWL; PARKING,A/T 8-97331-119-0 01 1 0503-0711
28 PAWL; PARKING,A/T 8-98126-855-0 01 1 0712-
40 NUT; LEVER TO SHAFT
M10 FLANGE 		0-91180-110-0 01 1 0503-
46 SEAL; OIL 8-97330-908-0 01 1 0503-
47 PIN; ROLL SHAFT
(A) 		8-97331-125-0 01 1 0503-
47 PIN; ROLL SHAFT
(B) 		8-97331-126-0 01 1 0503-
72 LEVER; SELECT CONT 8-97231-904-1 01 1 0503-
81 SPRING; DETENT,MANUAL CONT PLATE 8-97331-113-0 01 1 0503-
82 SPACER; DETENT SPRING 8-97330-950-0 01 1 0503-
83 SCREW; DETENT SPRING,MANUAL CONT PLATE 8-97331-124-0 01 1 0503-0711
111 BOLT; INHIBITOR SW 8-97331-127-0 02 1 0503-
