2-47 — AUTO TRANS PLANETARY GEAR AND GOVERNOR (#74993) — 64 parça

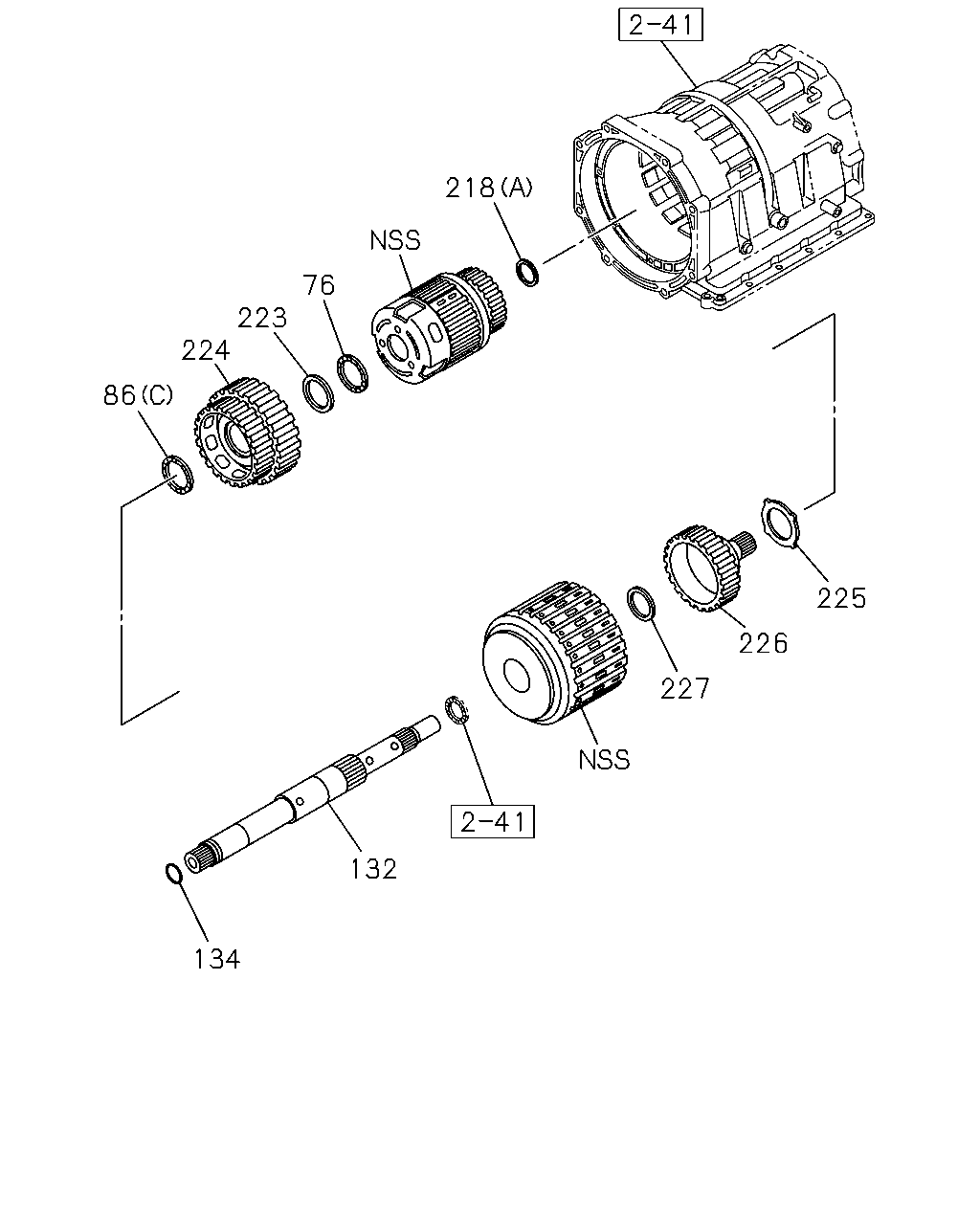

çizim 118552
218 76 223 224 86 225 226 227 132 134
BalonParca AdiParca NoAdetTipApplied Date
76 BEARING; THRUST,CARRIER 8-97330-927-0 01 1 0503-
86 BEARING; THRUST,SUN GEAR
(A) 		8-97330-919-0 01 1 0503-
86 BEARING; THRUST,SUN GEAR
(B) 		8-97330-920-0 01 1 0503-
86 BEARING; THRUST,SUN GEAR
(C) 		8-97330-926-0 01 1 0503-0711
86 BEARING; THRUST,SUN GEAR
(C) 		8-97374-016-0 01 1 0712-
132 SHAFT; INPUT,A/T 8-97330-931-0 01 1 0503-
134 SEAL; INPUT SHAFT,FRT 8-97331-697-0 01 1 0503-
218 BEARING; THRUST,INTERNAL GEAR
(A) 		8-97330-928-0 01 1 0503-
218 BEARING; THRUST,INTERNAL GEAR
(B) 		8-97330-938-0 01 1 0503-
223 RACE; BRG,CARRIER 8-97330-946-0 01 1 0503-
224 GEAR ASM; SUN,FRT 8-97357-796-0 01 1 0503-0711
224 GEAR ASM; SUN,FRT 8-97374-015-0 01 1 0712-
225 RACE; BRG,SUN GEAR 8-97330-949-0 01 1 0503-
226 HUB; HIGH CLUTCH 8-97331-038-0 01 1 0503-
227 BEARING; HUB,HIGH CLUTCH 8-97330-925-0 01 1 0503-

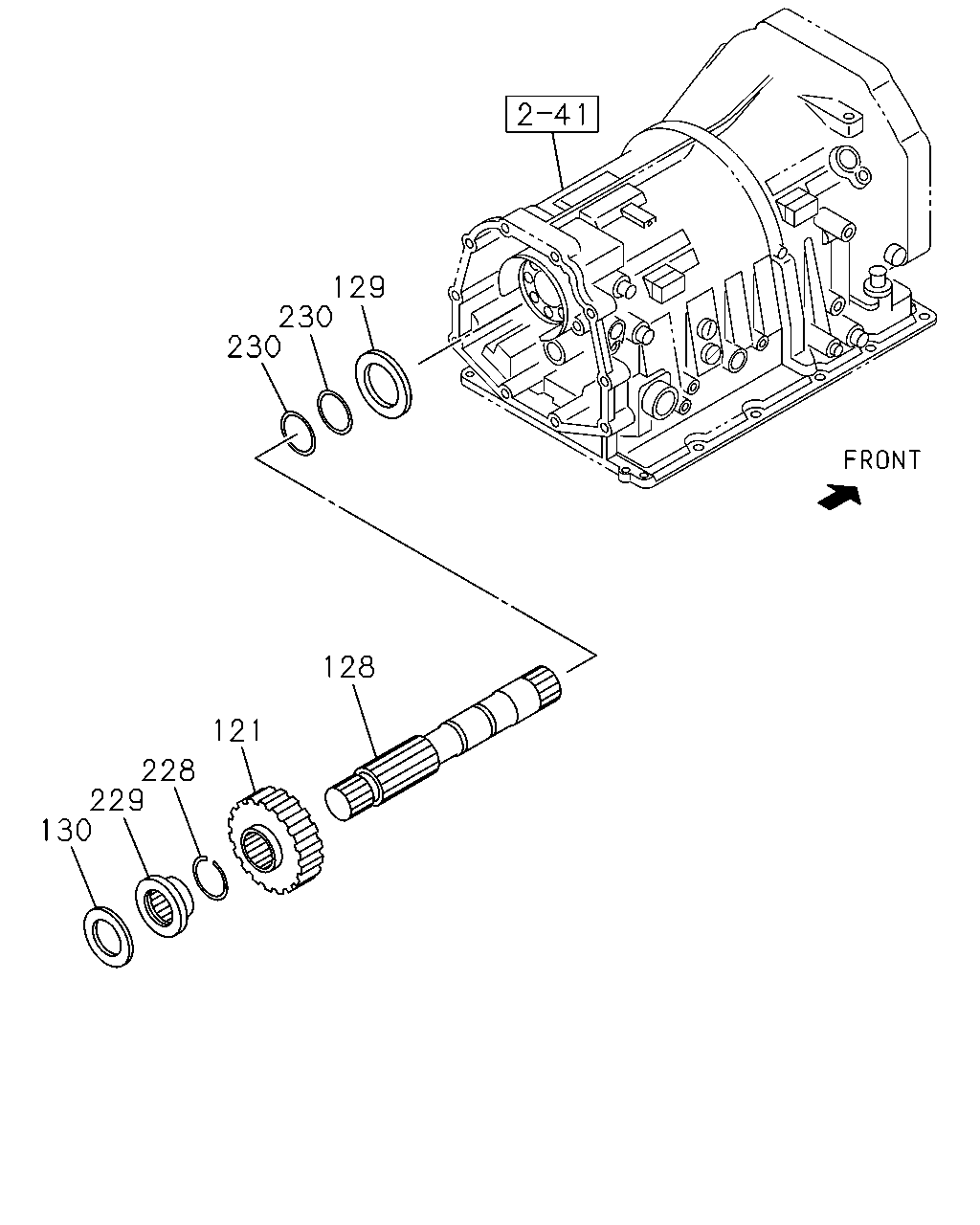

çizim 118555
129 230 230 128 121 228 229 130
BalonParca AdiParca NoAdetTipApplied Date
121 GEAR; PARKING LK,A/T 8-97330-962-0 01 1 0503-
128 SHAFT; OUTPUT,A/T 8-97330-960-0 01 1 0503-0508
128 SHAFT; OUTPUT,A/T
4X2(UCB***) 		8-97330-960-0 01 1 0509-
128 SHAFT; OUTPUT,A/T
4X4(UCS***) 		8-97330-961-0 01 1 0509-
129 BEARING; OUTPUT SHAFT,FRT,A/T 8-97330-918-0 01 1 0503-
130 BEARING; OUTPUT SHAFT,RR,A/T 8-97330-918-0 01 1 0503-
228 RING; SNAP,OUTPUT SHAFT 8-97330-963-0 02 1 0503-0508
228 RING; SNAP,OUTPUT SHAFT
4X2(UCB***) 		8-97330-963-0 02 1 0509-
228 RING; SNAP,OUTPUT SHAFT
4X4(UCS***) 		8-97330-963-0 01 1 0509-
229 SPACER; OUTPUT SHAFT 8-97330-951-0 01 1 0503-
230 RING; SEAL,OUTPUT SHAFT 8-97330-983-0 02 1 0503-

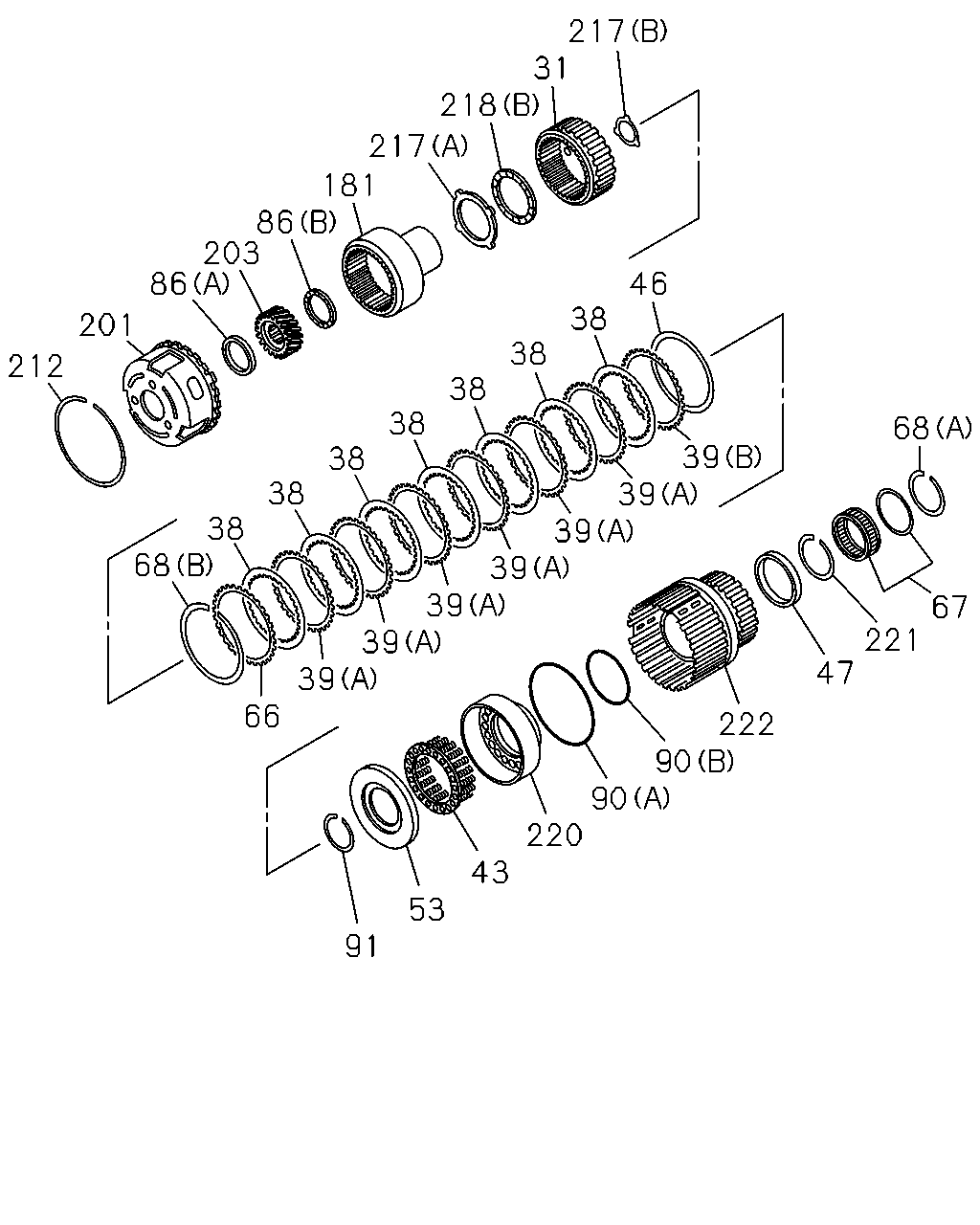

çizim 118568
217 31 218 217 181 86 203 86 46 38 201 38 212 38 38 68 39 39 39 39 39 39 39 38 38 38 68 67 221 47 66 222 90 90 220 43 53 91
BalonParca AdiParca NoAdetTipApplied Date
31 GEAR ASM; INTERNAL,PLANETARY,A/T 8-97330-953-0 01 1 0503-
38 PLATE; DRIVE,LOW & REV,A/T 8-97330-998-0 07 1 0503-0711
38 PLATE; DRIVE,LOW & REV,A/T 8-98126-848-0 07 1 0712-
39 PLATE; DRIVEN,LOW & REV,A/T
(A) 		8-97331-005-0 06 1 0503-0711
39 PLATE; DRIVEN,LOW & REV,A/T
(A) 		8-97331-005-0 07 1 0712-
39 PLATE; DRIVEN,LOW & REV,A/T
(B) 		8-97331-008-0 01 1 0503-0711
43 SPRING; PISTON RETURN,A/T 8-97330-981-0 01 1 0503-
46 PLATE; DISHED,LOW & REV,A/T 8-97331-004-0 01 1 0503-
47 BEARING; NEEDLE,LOW & REV 8-97330-954-0 01 1 0503-
53 RETAINER; LOW & REV,CLU SPR 8-97331-041-0 01 1 0503-
66 PLATE; RET,CLU,LOW & REV,A/T
T=3.8 		8-97331-010-0 01 1 0503-
66 PLATE; RET,CLU,LOW & REV,A/T
T=4.0 		8-97331-011-0 01 1 0503-
66 PLATE; RET,CLU,LOW & REV,A/T
T=4.2 		8-97331-012-0 01 1 0503-
66 PLATE; RET,CLU,LOW & REV,A/T
T=4.4 		8-97331-013-0 01 1 0503-
66 PLATE; RET,CLU,LOW & REV,A/T
T=4.6 		8-97331-014-0 01 1 0503-
66 PLATE; RET,CLU,LOW & REV,A/T
T=4.8 		8-97331-024-0 01 1 0503-
67 CLUTCH ASM; ONEWAY,LOW & REV,A/T 8-97330-959-0 01 1 0503-
68 RING; SNAP,CLU,LOW & REV,A/T
(A) 		8-97330-965-0 01 1 0503-
68 RING; SNAP,CLU,LOW & REV,A/T
(B) 		8-97330-966-0 01 1 0503-
86 BEARING; THRUST,SUN GEAR
(A) 		8-97330-919-0 01 1 0503-
86 BEARING; THRUST,SUN GEAR
(B) 		8-97330-920-0 01 1 0503-
86 BEARING; THRUST,SUN GEAR
(C) 		8-97330-926-0 01 1 0503-0711
86 BEARING; THRUST,SUN GEAR
(C) 		8-97374-016-0 01 1 0712-
90 SEAL; PISTON,LOW & REV
(A) 		8-97330-990-0 01 1 0503-
90 SEAL; PISTON,LOW & REV
(B) 		8-97330-991-0 01 1 0503-
91 RING; SNAP,SPRING RET 8-97330-969-0 01 1 0503-
181 CARRIER ASM; RR PLANETARY,A/T 8-97330-952-0 01 1 0503-
201 CARRIER; PLANETARY 8-97357-797-0 01 1 0503-
203 GEAR; SUN 8-97330-956-0 01 1 0503-
212 RING; SNAP,PLANETARY CARRIER 8-97330-967-0 01 1 0503-
217 RACE; THRUST BRG,INTERNAL GEAR
(A) 		8-97330-939-0 01 1 0503-
217 RACE; THRUST BRG,INTERNAL GEAR
(B) 		8-97330-947-0 01 1 0503-
218 BEARING; THRUST,INTERNAL GEAR
(A) 		8-97330-928-0 01 1 0503-
218 BEARING; THRUST,INTERNAL GEAR
(B) 		8-97330-938-0 01 1 0503-
220 PISTON; LOW CLUTCH 8-97331-040-0 01 1 0503-0711
220 PISTON; LOW CLUTCH 8-97374-932-0 01 1 0712-
221 RING; SNAP,BRG,LOW CLUTCH 8-94483-379-0 01 1 0503-
222 DRUM; LOW CLUTCH 8-97331-039-0 01 1 0503-
