◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51032 - UCR/UCS-LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-45 - AUTO TRANS CLUTCH AND PLANETARY GEAR ▶
2-45 — AUTO TRANS CLUTCH AND PLANETARY GEAR (#74992) — 33 parça

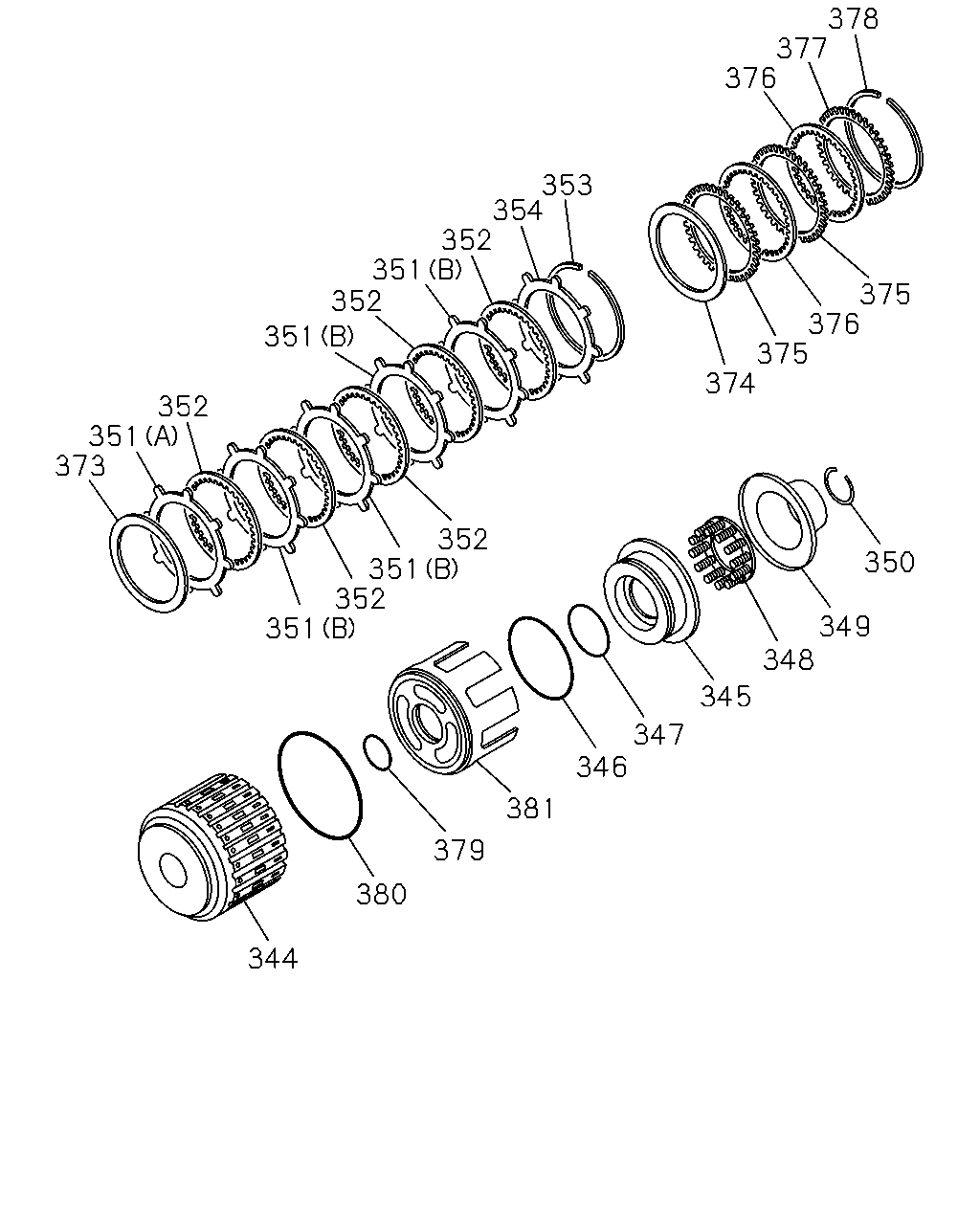

çizim 118563
378 377 376 353 354 352 351 352 375 376 375 374 351 352 351 373 352 351 352 351 350 349 348 345 347 346 381 379 380 344
BalonParca AdiParca NoAdetTipApplied Date
344 DRUM; HIGH CLU 8-97330-978-0 01 1 0503-
345 PISTON; HIGH CLU 8-97331-033-0 01 1 0503-0711
345 PISTON; HIGH CLU 8-97376-053-0 01 1 0712-
346 SEAL; HIGH CLU PISTON,OUTER 8-97330-989-0 01 1 0503-
347 SEAL; HIGH CLU PISTON,INNER 8-97331-035-0 01 1 0503-
348 SPRING; RETURN,HIGH CLU PISTON 8-97330-980-0 01 1 0503-
349 RETAINER; RETURN SPRING,CLU PISTON 8-97331-034-0 01 1 0503-
350 RING; SNAP,SPRING RET,HIGH CLU 8-97330-975-0 01 1 0503-
351 PLATE; DRIVEN,HIGH CLU,A/T
(A) T=2.0 		8-97331-007-0 01 1 0503-
351 PLATE; DRIVEN,HIGH CLU,A/T
(B) T=2.9 		8-97357-799-0 04 1 0503-
352 PLATE; DRIVE,HIGH CLU,A/T 8-97331-000-0 05 1 0503-
353 RING; SNAP,HIGH CLU PLATE 8-97330-976-0 01 1 0503-
354 PLATE; RET,HIGH CLU
T=4.7 		8-98126-849-0 01 1 0712-
354 PLATE; RET,HIGH CLU
T=4.9 		8-98126-850-0 01 1 0712-
354 PLATE; RET,HIGH CLU
T=5.1 		8-98126-851-0 01 1 0712-
354 PLATE; RET,HIGH CLU
T=5.3 		8-98126-852-0 01 1 0712-
354 PLATE; RET,HIGH CLU
T=4.6 		8-97331-019-0 01 1 0503-
354 PLATE; RET,HIGH CLU
T=4.8 		8-97331-020-0 01 1 0503-
354 PLATE; RET,HIGH CLU
T=5.0 		8-97331-021-0 01 1 0503-
354 PLATE; RET,HIGH CLU
T=5.2 		8-97331-022-0 01 1 0503-
354 PLATE; RET,HIGH CLU
T=5.4 		8-97331-023-0 01 1 0503-
373 PLATE; DISHED,HIGH CLU 8-97331-003-0 01 1 0503-
374 PLATE; DISHED,REV CLU 8-97331-049-0 01 1 0503-
375 PLATE; DRIVEN,REV CLU 8-97331-006-0 02 1 0503-
376 PLATE; DRIVE,REV CLU 8-97330-997-0 02 1 0503-
377 PLATE; RET,REV CLU
T=4.8 		8-97331-015-0 01 1 0503-
377 PLATE; RET,REV CLU
T=5.0 		8-97331-016-0 01 1 0503-
377 PLATE; RET,REV CLU
T=5.2 		8-97331-017-0 01 1 0503-
377 PLATE; RET,REV CLU
T=5.4 		8-97331-018-0 01 1 0503-
378 RING; SNAP,REV CLU PLATE 8-97330-973-0 01 1 0503-
379 SEAL; REV CLU PISTON,INNER 8-97330-994-0 01 1 0503-
380 SEAL; REV CLU PISTON,OUTER 8-97330-995-0 01 1 0503-
381 PISTON; REV CLUTCH 8-97357-798-0 01 1 0503-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
