◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51032 - UCR/UCS-LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-43 - AUTO TRANS CONTROL VALVE; UPPER BODY ▶
2-43 — AUTO TRANS CONTROL VALVE; UPPER BODY (#74990) — 34 parça

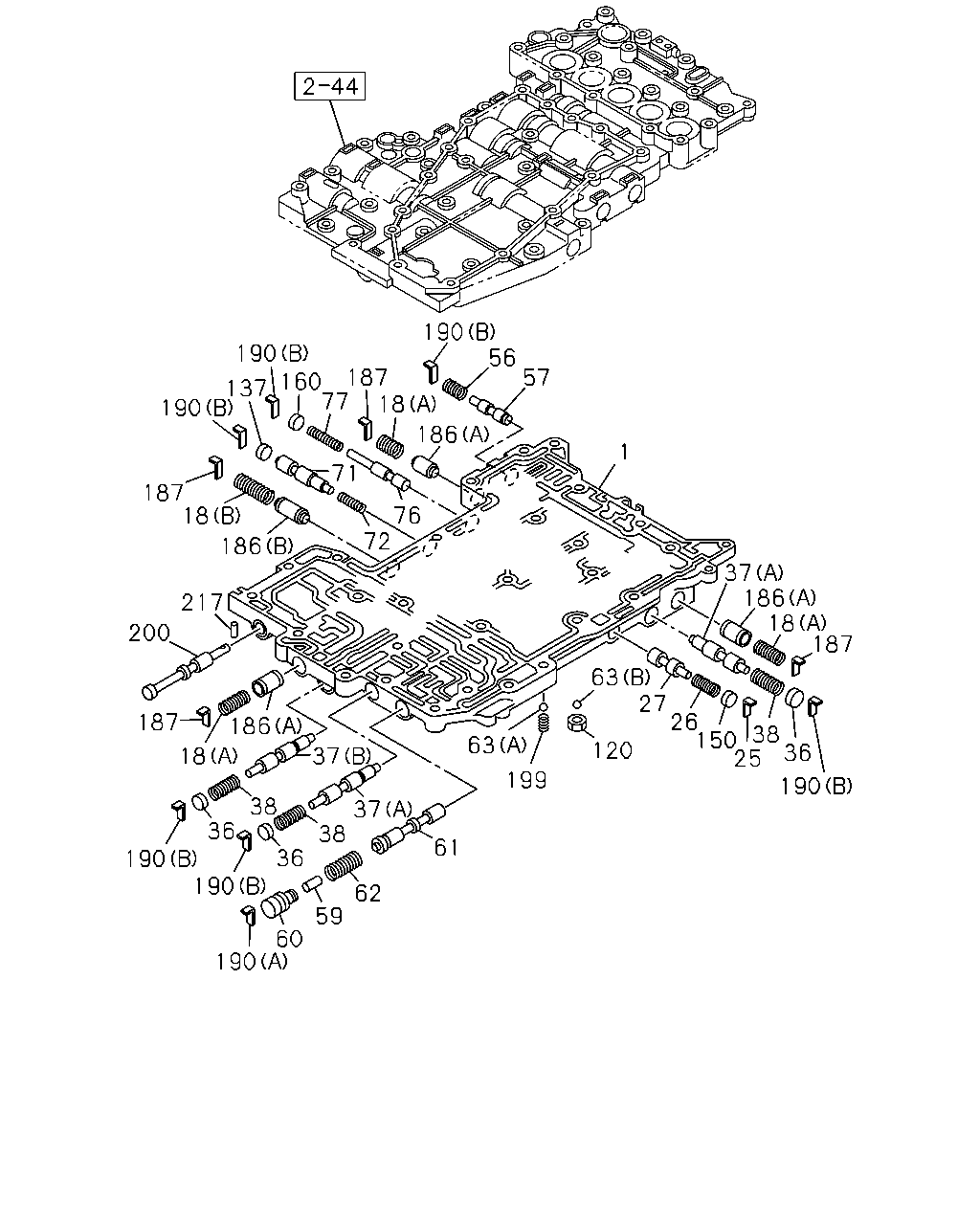

çizim 118556
190 56 57 190 187 160 77 18 137 190 186 1 71 187 18 76 72 186 37 186 18 187 217 200 63 27 26 38 150 36 25 186 187 37 63 120 18 199 190 38 37 38 62 36 61 36 190 190 59 60 190
BalonParca AdiParca NoAdetTipApplied Date
1 BODY ASM; UPR,VALVE,A/T 8-97331-058-0 01 1 0503-
18 SPRING; ACCUMLATOR CONT VLV
(A) 		8-97092-821-0 03 1 0503-
18 SPRING; ACCUMLATOR CONT VLV
(B) 		8-97331-077-0 01 1 0503-
25 PLATE; RET,SHIFT CONT VLV 8-97331-080-0 01 1 0503-
26 SPRING; SHIFT CONT VLV 8-97331-076-0 01 1 0503-
27 VALVE; SHIFT CONT,UPR BODY 8-97331-084-0 01 1 0503-
36 PLUG; SPOOL CONT VLV,UPR BODY 8-97331-098-0 03 1 0503-
37 VALVE; SPOOL CONT,UPR BODY
(A) 		8-97331-086-0 02 1 0503-
37 VALVE; SPOOL CONT,UPR BODY
(B) 		8-97331-090-0 01 1 0503-
38 SPRING; SPOOL CONT VLV 8-97331-068-0 03 1 0503-
56 SPRING; PILOT VALVE,SPOOL CONT 8-97331-066-0 01 1 0503-
57 VALVE; PILOT,SPOOL CONT 8-97331-088-0 01 1 0503-
59 SLEEVE; LOCKUP CONT VALVE 8-97331-095-0 01 1 0503-
60 PLUG; LOCKUP CONT VALVE 8-97331-094-0 01 1 0503-
61 VALVE; LOCKUP CONT,UPR BODY 8-97331-093-0 01 1 0503-
62 SPRING; LOCKUP CONT VALVE 8-97331-067-0 01 1 0503-
63 BALL; STEEL,VLV UPR,A/T
(A) 		8-97135-609-0 10 1 0503-
63 BALL; STEEL,VLV UPR,A/T
(B) 		8-97331-092-0 01 1 0503-
71 VALVE; LOW,VLV UPR RR,A/T 8-97331-082-0 01 1 0503-
72 SPRING; VLV LOW,VLV UPR RR,A/T 8-97331-070-0 01 1 0503-
76 VALVE; REV CLU,A/T 8-97331-085-0 01 1 0503-
77 SPRING; VLV,REV,A/T 8-97331-074-0 01 1 0503-
120 NUT; UPR BODY,VLV,A/T 8-97112-969-0 02 1 0503-
137 PLUG; LOW MODULATOR VALVE 8-97331-099-0 01 1 0503-
150 PLUG; SHIFT VLV 8-97331-099-0 01 1 0503-
160 PLUG; VLV BODY 8-97331-097-0 01 1 0503-
186 PISTON; ACCUMLATOR VLV,A/T
(A) 		8-94342-922-0 03 1 0503-
186 PISTON; ACCUMLATOR VLV,A/T
(B) 		8-97331-056-0 01 1 0503-
187 PLATE; ACCUM CONT VLV,A/T 8-94385-905-0 04 1 0503-
190 PLATE; VLV RET,A/T
(A) 		8-94385-905-0 01 1 0503-
190 PLATE; VLV RET,A/T
(B) 		8-97331-080-0 06 1 0503-
199 SPRING; VALVE,A/T 8-97331-079-0 01 1 0503-
200 VALVE; MANUAL,UPR BODY 8-97331-065-0 01 1 0503-
217 PIN; DOWEL 8-97331-120-0 01 1 0503-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
