◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10775 - FRR/FVR(TAIWAN) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-30 - LOCK CYLINDER SET ▶
7-30 — LOCK CYLINDER SET (#7499) — 13 parça

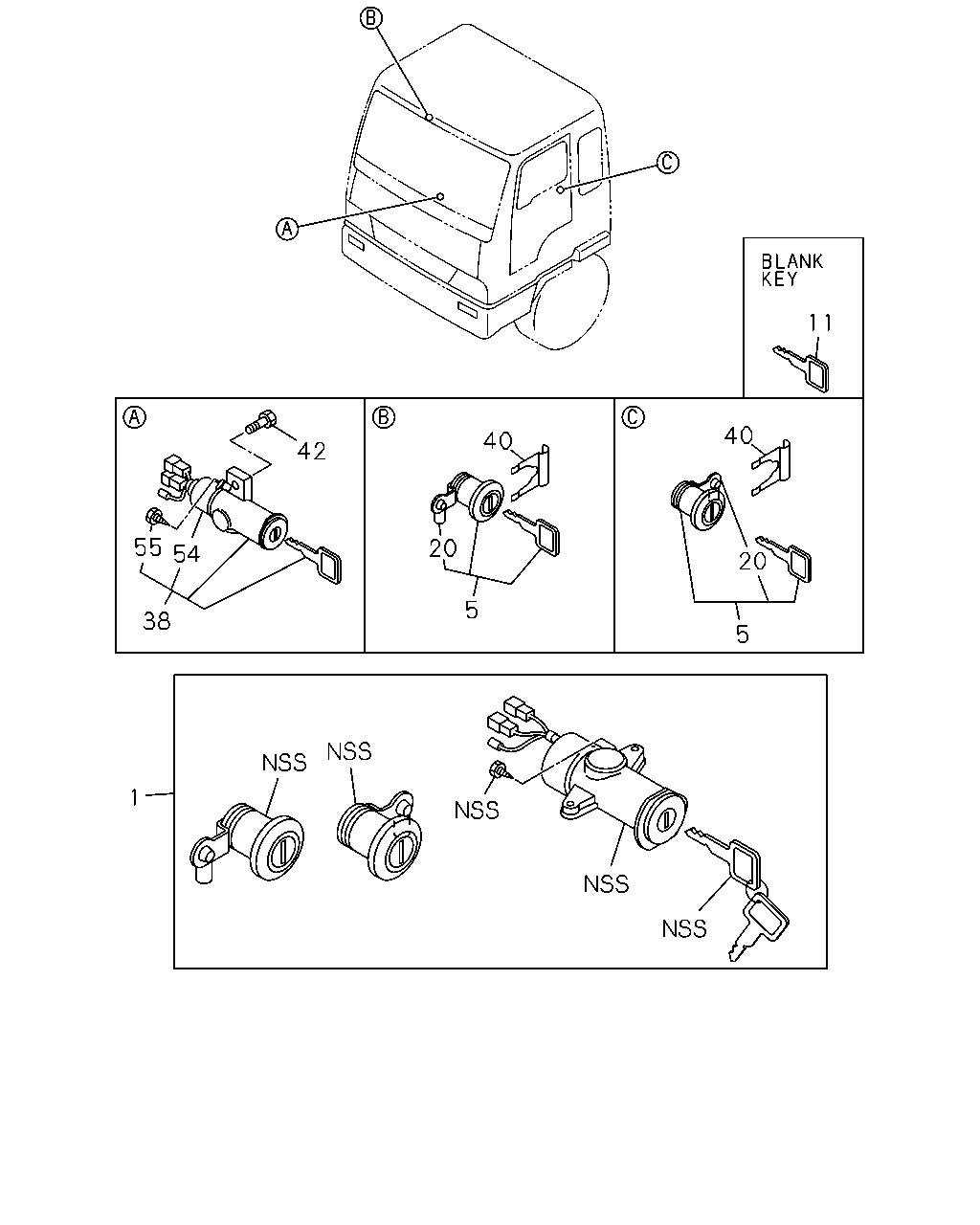

çizim 26340
11 40 40 42 55 20 54 20 5 38 5 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 CYLINDER SET; CAR LOCK 1-79138-199-4 01 1 9811- ● ●
5 CYLINDER ASM; DOOR LOCK 1-79138-203-2 01 1 9811- ● ●
5 CYLINDER ASM; DOOR LOCK 1-79138-202-2 01 1 9811- ● ●
11 KEY; BLANK
WO/ROSIN 		1-79137-129-1 AR 1 9811- ● ●
11 KEY; BLANK
W/ROSIN 		1-79137-130-1 AR 1 9811- ● ●
20 SNAP; DOOR LOCK CYL
GREEN 		1-79138-193-0 01 1 9811- ● ●
20 SNAP; DOOR LOCK CYL
PINK 		1-79138-192-0 01 1 9811- ● ●
38 LOCK ASM; STRG 1-79138-201-2 01 1 9811- ● ●
40 CLIP; CYL LK 1-79137-033-1 02 1 9811- ● ●
42 BOLT; STRG LOCK
M8X30 W/PL WASHER 		1-09981-482-2 02 1 9811-0106 ● ●
42 BOLT; STRG LOCK
M8X30 W/PL WASHER TAI 		1-09980-621-1 02 1 0107- ● ●
54 SWITCH ASM; STRG LOCK CYL 1-79137-050-1 01 1 9811- ● ●
55 SCREW; SWITCH
M3X10 W/LK WASHER 		9-03910-310-0 02 1 9811- ● ●
