2-41 — AUTO TRANS CASE,CONVERTER AND OIL PUMP (#74988) — 45 parça

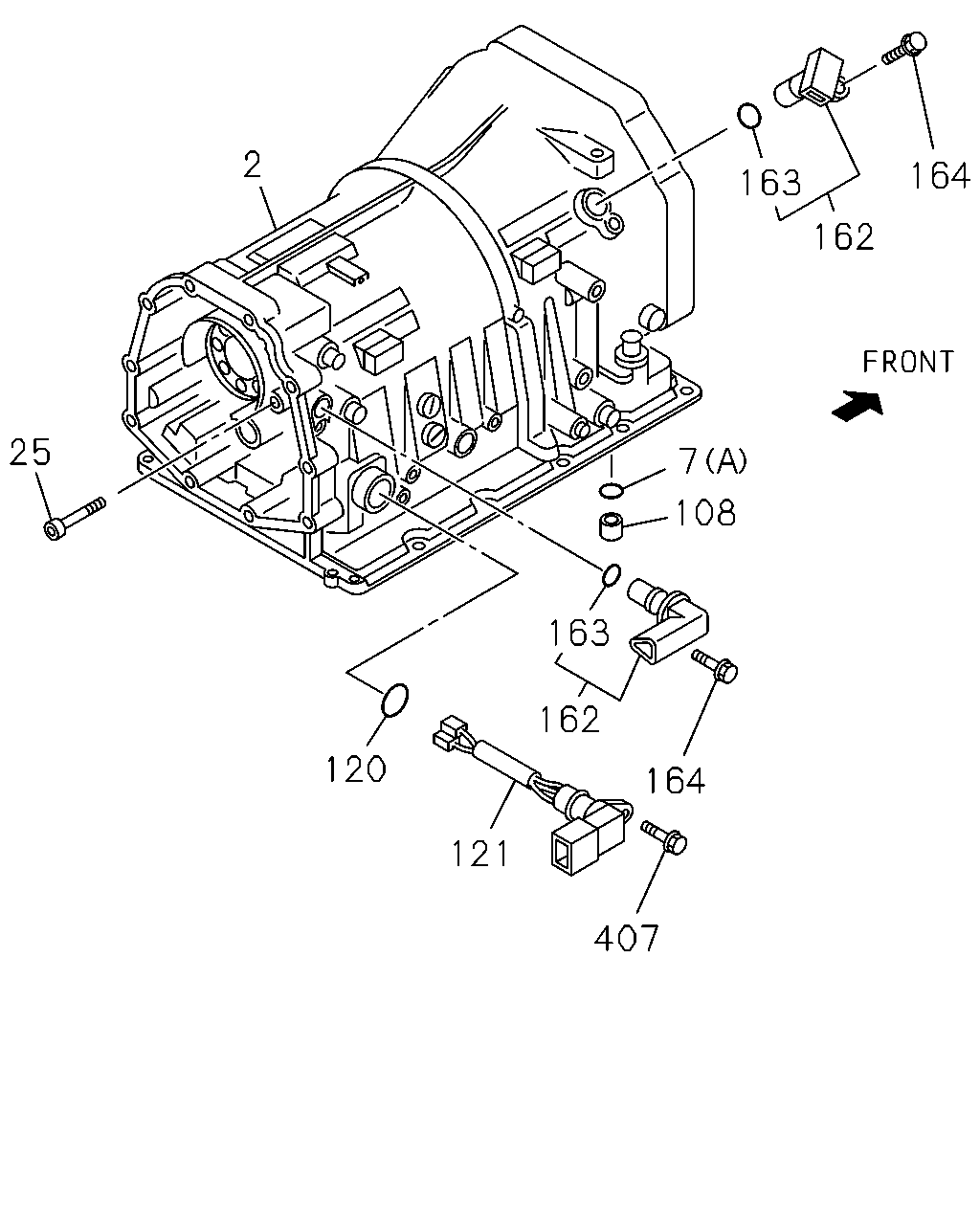

çizim 118549
2 164 163 162 25 7 108 163 162 120 164 121 407
BalonParca AdiParca NoAdetTipApplied Date
2 CASE ASM; A/T 8-97330-900-0 01 1 0503-0711
2 CASE ASM; A/T 8-97383-551-0 01 1 0712-
7 SEAL; OIL,LIP,A/T
(A) 		8-94385-664-0 01 1 0503-
7 SEAL; OIL,LIP,A/T
(B) 		8-97330-904-0 01 1 0503-0711
7 SEAL; OIL,LIP,A/T
(B) 		8-98126-853-0 01 1 0712-
25 PIN; SPR,BRG HSG,A/T 8-97330-914-0 07 1 0503-
108 SLEEVE; LOW & REV BRAKE,A/T 8-94385-683-0 01 1 0503-
120 SEAL; TRANS,ELEC CONN 8-97330-987-0 01 1 0503-
121 CONNECTOR; ELEC 8-97331-112-0 01 1 0503-
162 SENSOR; REVOLUTION,A/T CONT 8-97331-108-0 02 1 0503-
163 GASKET; REV SENSOR,A/T 8-97330-988-0 02 1 0503-0711
163 GASKET; REV SENSOR,A/T 8-98126-854-0 02 1 0712-
164 BOLT; REV SENSOR,A/T 8-94483-616-0 02 1 0503-
407 BOLT; ELEC CONNECTOR 8-94483-616-0 01 1 0503-

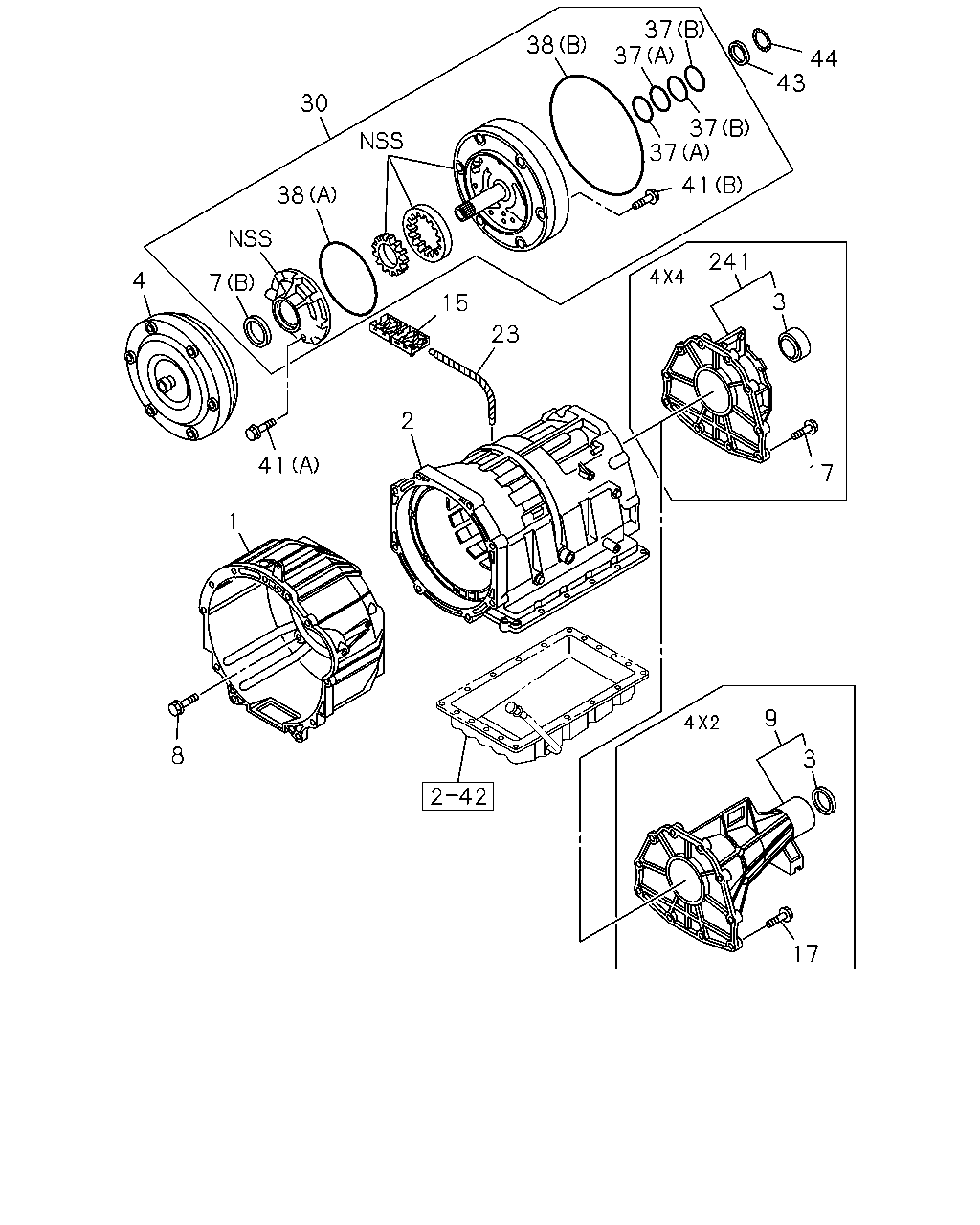

çizim 118579
37 37 38 44 43 30 37 37 41 38 241 4 7 3 15 23 2 41 17 1 9 8 3 17
BalonParca AdiParca NoAdetTipApplied Date
1 HOUSING; CONV,A/T 8-97330-899-0 01 1 0503-
2 CASE ASM; A/T 8-97330-900-0 01 1 0503-0711
2 CASE ASM; A/T 8-97383-551-0 01 1 0712-
3 SEAL; OIL,RR COVER,A/T 8-97330-910-0 01 1 0503-0508
3 SEAL; OIL,RR COVER,A/T
4X2(UCB***) 		8-97330-910-0 01 1 0509-
3 SEAL; OIL,RR COVER,A/T
4X4(UCS***) 		8-97330-909-0 01 1 0509-
4 CONVERTER ASM; TORQUE,A/T 8-97368-547-0 01 1 0503-
7 SEAL; OIL,LIP,A/T
(A) 		8-94385-664-0 01 1 0503-
7 SEAL; OIL,LIP,A/T
(B) 		8-97330-904-0 01 1 0503-0711
7 SEAL; OIL,LIP,A/T
(B) 		8-98126-853-0 01 1 0712-
8 BOLT; HSG TO CASE
M8X35 		8-97330-912-0 08 1 0503-
9 COVER ASM; RR,A/T 8-97330-901-0 01 1 0503-0508
9 COVER ASM; RR,A/T
4X2(UCB***) 		8-97330-901-0 01 1 0509-
15 BREATHER; A/T CASE 8-97301-433-1 01 1 0503-
17 BOLT; REAR COVER TO CASE
M8X35 		8-97330-912-0 10 1 0503-
23 HOSE; BREATHER,A/T
L=580 SERVICED BY L=3000 		0-04750-300-0 01 1 0503-
30 PUMP ASM; OIL,A/T 8-97357-220-0 01 1 0503-
37 RING; SEAL,OIL PUMP,A/T
(A) 		8-94483-322-0 02 1 0503-
37 RING; SEAL,OIL PUMP,A/T
(B) 		8-97330-984-0 02 1 0503-
38 GASKET; OIL PUMP,A/T
(A) 		8-97330-985-0 01 1 0503-
38 GASKET; OIL PUMP,A/T
(B) 		8-97330-986-0 01 1 0503-
41 BOLT; OIL PUMP HSG,A/T
(A) M8X45 FLANGE 		8-97330-913-0 08 1 0503-
41 BOLT; OIL PUMP HSG,A/T
(B) M6X25 FLANGE 		8-97331-123-0 08 1 0503-
43 RACE; THRUST BRG,OIL PUMP,A/T
T=1.4 		8-97330-940-0 01 1 0503-
43 RACE; THRUST BRG,OIL PUMP,A/T
T=1.6 		8-97330-941-0 01 1 0503-
43 RACE; THRUST BRG,OIL PUMP,A/T
T=1.8 		8-97330-942-0 01 1 0503-
43 RACE; THRUST BRG,OIL PUMP,A/T
T=2.0 		8-97330-943-0 01 1 0503-
43 RACE; THRUST BRG,OIL PUMP,A/T
T=2.2 		8-97330-944-0 01 1 0503-
43 RACE; THRUST BRG,OIL PUMP,A/T
T=2.4 		8-97330-945-0 01 1 0503-
44 BEARING; THRUST,OIL PUMP,A/T 8-97330-924-0 01 1 0503-
241 ADAPTER; A/T
4X4(UCS***) 		8-97330-902-0 01 1 0509-
