Isuzu WW
▶
SUV
▶
UCR
▶
51032 - UCR/UCS-LHD
▶
2 - Clutch, Transmission, Trans Axle
▶

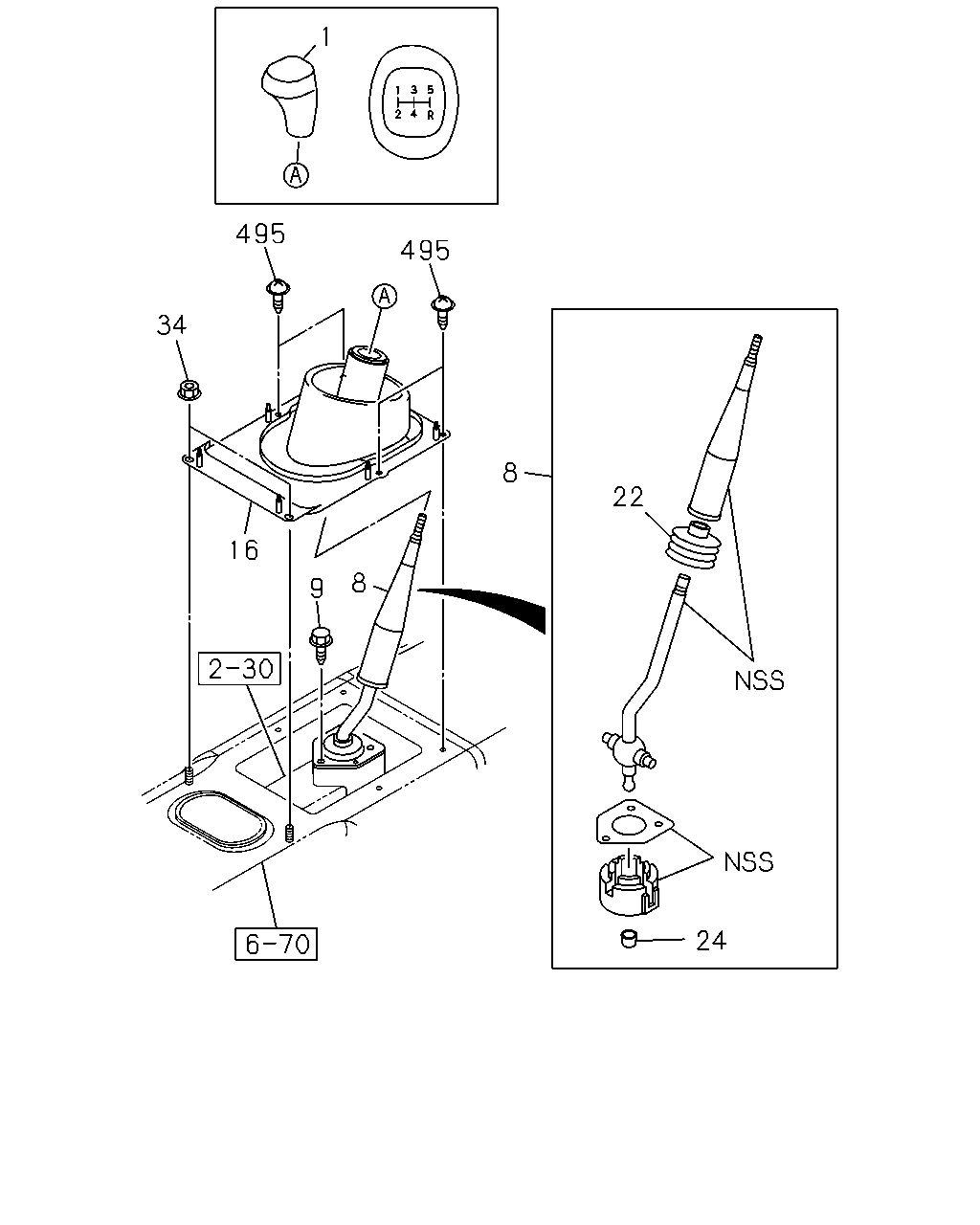

2-35 - MANUAL TRANSMISSION SHIFT CONTROL LEVER
▶
2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER
(#74986) — 22 parça
Tümü
A - M/T MUA 5 SPEED 5H
B - M/T MUA 5 SPEED 5G
1
495
495
34
8
22
16
8
9
24
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
KNOB; CHANGE LEVER
SALES PACKAGE EQUIPMENT SPORTY<XK0> DARK GRAY
8-97423-447-0
01
1
1111-
●
1
KNOB; CHANGE LEVER
DARK GRAY
8-97398-543-0
01
1
0503-0512
●
1
KNOB; CHANGE LEVER
DARK GRAY
8-97406-181-0
01
1
0601-0606
●
1
KNOB; CHANGE LEVER
DARK GRAY
8-97406-182-0
01
1
0607-1110
●
1
KNOB; CHANGE LEVER
EXC. SALES PACKAGE EQUIPMENT SPORTY<XK0> DARK GRAY
8-97406-182-0
01
1
1111-
●
8
LEVER; CHANGE
8-97944-094-0
01
1
0503-0606
●
8
LEVER; CHANGE
8-97945-707-0
01
1
0607-0610
●
8
LEVER; CHANGE
8-97945-847-0
01
1
0611-0802
●
8
LEVER; CHANGE
8-97947-101-1
01
1
0803-
●
9
BOLT; CHANGE LEVER
M8X20 FLANGE
0-28650-820-0
03
1
0503-0606
●
9
BOLT; CHANGE LEVER
M8X20 FLANGE
0-28650-820-0
03
1
0607-
●
16
BOOT; CHANGE LEVER
8-97235-879-2
01
1
0503-0606
●
16
BOOT; CHANGE LEVER
8-97235-879-2
01
1
0607-
●
22
COVER; DUST,CHANGE LEVER
8-97945-801-0
01
1
0611-
●
24
BUSHING; CHANGE LEVER
8-97943-618-0
01
1
0503-0606
●
24
BUSHING; CHANGE LEVER
8-97943-618-0
01
1
0607-
●
34
NUT
M6 FLANGE
8-97063-399-0
02
1
0503-0606
●
34
NUT
M6 FLANGE
8-97063-399-0
02
1
0607-0702
●
34
NUT
M6 FLANGE
8-98055-704-0
02
1
0703-
●
495
SCREW; GROMMET
M5X16 TAPPING W/PL WASHER
0-74305-516-0
04
1
0503-0605
●
495
SCREW; GROMMET
M5X16 TAPPING W/PL WASHER
0-74365-516-0
04
1
0606-0606
●
495
SCREW; GROMMET
M5X16 TAPPING W/PL WASHER
0-74365-516-0
04
1
0607-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
