2-30 — GEAR SHIFTER AND QUADRANT BOX (#74985) — 86 parça

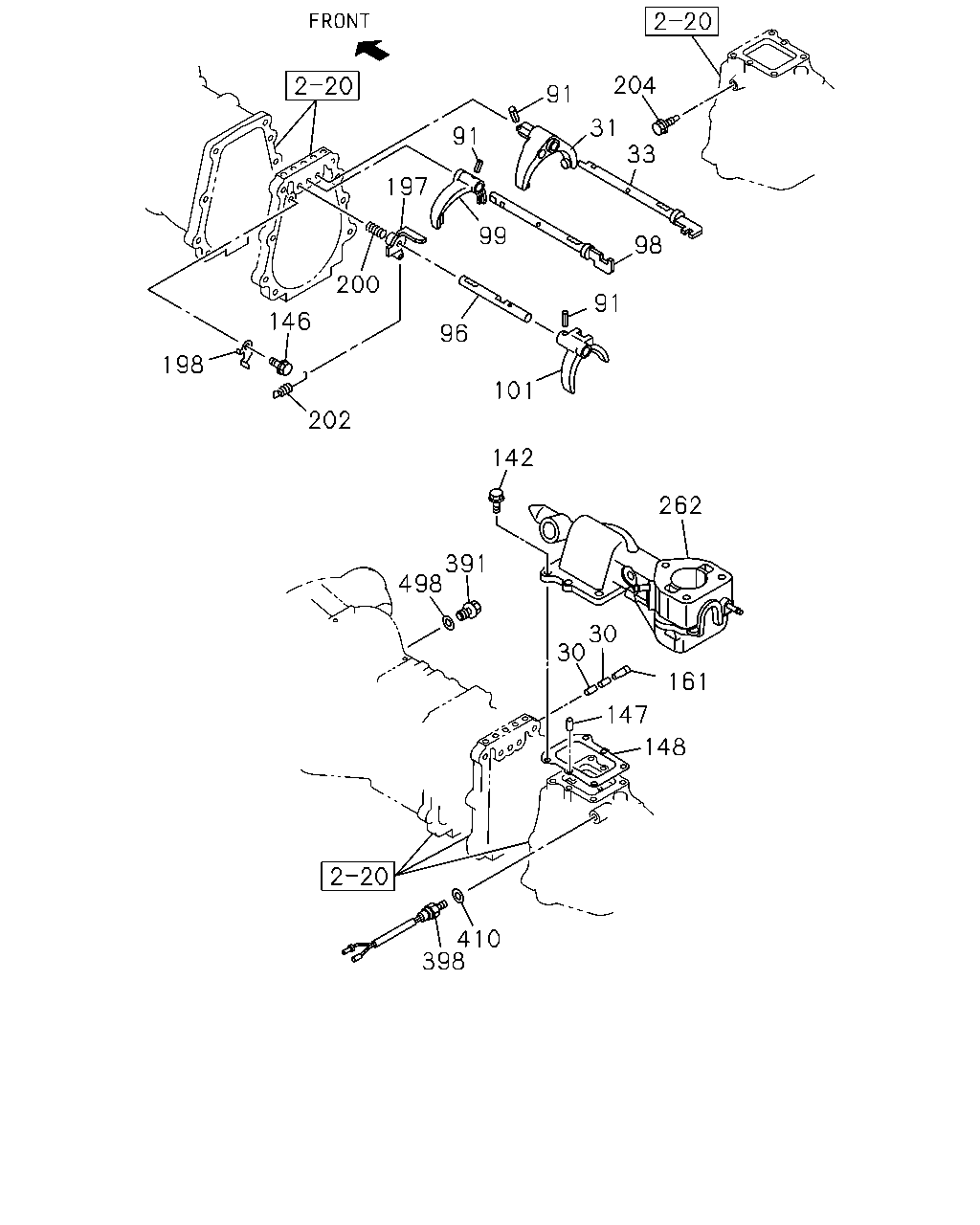

çizim 118543
204 91 31 91 33 197 99 98 200 91 146 96 198 101 202 142 262 391 498 30 30 161 147 148 410 398
BalonParca AdiParca NoAdetTipApplied Date A B
30 PIN; INTER LK
OD=5.5 L=10 		5-33534-002-1 02 1 0503-0606 ●
30 PIN; INTER LK
OD=5.5 L=10 		5-33534-002-1 02 1 0607- ●
31 ARM; SHIFT,LOW & 2ND 8-94421-912-2 01 1 0503-0606 ●
31 ARM; SHIFT,LOW & 2ND 8-94421-912-2 01 1 0607- ●
33 ROD; SHIFT,LOW & 2ND 8-97019-061-2 01 1 0503-0606 ●
33 ROD; SHIFT,LOW & 2ND 8-97019-061-2 01 1 0607- ●
91 PIN; SPR,SHIFT ARM
D=4.2 L=25 		8-94171-541-0 03 1 0503-0606 ●
91 PIN; SPR,SHIFT ARM
D=4.2 L=25 		8-94171-541-0 03 1 0607- ●
96 ROD; SHIFT,5TH 8-94440-079-1 01 1 0503-0606 ●
96 ROD; SHIFT,5TH 8-94440-079-1 01 1 0607- ●
98 ROD; SHIFT,TOP & 3RD 8-97019-060-3 01 1 0503-0606 ●
98 ROD; SHIFT,TOP & 3RD 8-97019-060-3 01 1 0607- ●
99 ARM; SHIFT,4TH & 3RD 8-94421-911-2 01 1 0503-0606 ●
99 ARM; SHIFT,4TH & 3RD 8-94421-911-2 01 1 0607- ●
101 ARM; SHIFT,REV & 5TH 8-94448-755-2 01 1 0503-0606 ●
101 ARM; SHIFT,REV & 5TH 8-94448-755-2 01 1 0607- ●
142 BOLT; QUAD BOX
M8X22 FLANGE 		8-94448-815-3 04 1 0503-0604 ●
142 BOLT; QUAD BOX
M8X22 FLANGE 		8-97365-376-0 04 1 0605-0606 ●
142 BOLT; QUAD BOX
M8X22 FLANGE 		8-97365-376-0 04 1 0607- ●
146 BOLT; REV INHIBITOR
M8X20 FLANGE 		0-28080-820-0 01 1 0503-0512 ●
146 BOLT; REV INHIBITOR
M8X20 FLANGE 		0-28050-820-0 01 1 0601-0606 ●
146 BOLT; REV INHIBITOR
M8X20 FLANGE 		0-28050-820-0 01 1 0607- ●
147 PIN; KNOCK
OD=6 L=12 		9-08150-612-0 02 1 0503-0606 ●
147 PIN; KNOCK
OD=6 L=12 		9-08150-612-0 02 1 0607- ●
148 GASKET; QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 		8-97083-599-0 01 1 0503-0606 ●
148 GASKET; QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 		8-97083-599-0 01 1 0607- ●
161 PLUG; INTER LK HOLE 8-94239-543-1 01 1 0503-0606 ●
161 PLUG; INTER LK HOLE 8-94239-543-1 01 1 0607- ●
197 INHIBITOR; REV SHIFT 8-94448-753-0 01 1 0503-0606 ●
197 INHIBITOR; REV SHIFT 8-94448-753-0 01 1 0607- ●
198 BRACKET; REV INHIBITOR 8-94448-199-0 01 1 0503-0606 ●
198 BRACKET; REV INHIBITOR 8-94448-199-0 01 1 0607- ●
200 SPRING; REV INHIBITOR,COMP 8-94448-807-0 01 1 0503-0606 ●
200 SPRING; REV INHIBITOR,COMP 8-94448-807-0 01 1 0607- ●
202 SPRING; REV INHIBITOR,EXT 8-97017-500-0 01 1 0503-0606 ●
202 SPRING; REV INHIBITOR,EXT 8-97017-500-0 01 1 0607- ●
204 STOPPER; REV INHIBITOR 8-94479-434-2 01 1 0503-0604 ●
204 STOPPER; REV INHIBITOR 8-98035-673-0 01 1 0605-0606 ●
204 STOPPER; REV INHIBITOR 8-98035-673-0 01 1 0607- ●
262 BOX ASM; SHIFT CONT 8-97357-040-0 01 1 0503-0603 ●
262 BOX ASM; SHIFT CONT 8-98017-729-0 01 1 0604-0606 ●
262 BOX ASM; SHIFT CONT 8-98017-729-0 01 1 0607-1204 ●
262 BOX ASM; SHIFT CONT 8-98203-264-0 01 1 1205- ●
391 PLUG; SW HOLE
M14X11 		8-94252-142-0 01 1 0503-0604 ●
391 PLUG; SW HOLE
M14X11 		8-98035-674-0 01 1 0605-0606 ●
391 PLUG; SW HOLE
M14X11 		8-98035-674-0 01 1 0607-1008 ●
398 SWITCH; REV LAMP 8-97138-635-0 01 1 0503-0604 ●
398 SWITCH; REV LAMP 8-98035-681-0 01 1 0605-0606 ●
398 SWITCH; REV LAMP 8-98035-681-0 01 1 0607-1405 ●
398 SWITCH; REV LAMP 8-98181-802-0 01 1 1406- ●
410 GASKET; REV SW
ALSO INCLUDED IN GASKET SET(M/T). ID=14.2 OD=20.0 		9-09571-414-0 01 1 0503-0606 ●
410 GASKET; REV SW
ALSO INCLUDED IN GASKET SET(M/T). ID=14.2 OD=20.0 		9-09571-414-0 01 1 0607- ●
498 GASKET; SWITCH,1ST & 2ND
ID=14.2 OD=20.0 		9-09571-414-0 01 1 0503-0606 ●
498 GASKET; SWITCH,1ST & 2ND
ID=14.2 OD=20.0 		9-09571-414-0 01 1 0607-1008 ●
çizim 118545
262 271 268 271 289 172 171 22 22 132 248 174 261 248 459 274
BalonParca AdiParca NoAdetTipApplied Date A B
22 CAP; RETURN SPR,SHIFT BLOCK 8-97181-326-0 02 1 0503-0606 ●
22 CAP; RETURN SPR,SHIFT BLOCK 8-97181-326-0 02 1 0607- ●
132 SPRING; SELECT STOP 8-97181-395-0 01 1 0503-0606 ●
132 SPRING; SELECT STOP 8-97181-395-0 01 1 0607- ●
171 SWITCH; NEUTRAL 8-97138-631-0 01 1 0503-0606 ●
171 SWITCH; NEUTRAL 8-97138-631-0 01 1 0607-0612 ●
171 SWITCH; NEUTRAL 8-98035-680-0 01 1 0701- ●
172 GASKET; NEUTRAL SW
ALSO INCLUDED IN GASKET SET(M/T). ID=14.2 		8-94462-114-0 01 1 0503-0606 ●
172 GASKET; NEUTRAL SW
ALSO INCLUDED IN GASKET SET(M/T). ID=14.2 		8-94462-114-0 01 1 0607- ●
174 SPRING; REV 8-97181-394-0 01 1 0503-0606 ●
174 SPRING; REV 8-97181-394-0 01 1 0607- ●
248 RETAINER; CONT BOX 8-97181-325-0 02 1 0503-0606 ●
248 RETAINER; CONT BOX 8-97181-325-0 02 1 0607-1211 ●
248 RETAINER; CONT BOX 8-98210-983-0 02 1 1212- ●
261 ROD; GEAR CONT 8-97257-911-0 01 1 0503-0606 ●
261 ROD; GEAR CONT 8-97257-911-0 01 1 0607- ●
262 BOX ASM; SHIFT CONT 8-97357-040-0 01 1 0503-0603 ●
262 BOX ASM; SHIFT CONT 8-98017-729-0 01 1 0604-0606 ●
262 BOX ASM; SHIFT CONT 8-98017-729-0 01 1 0607-1204 ●
262 BOX ASM; SHIFT CONT 8-98203-264-0 01 1 1205- ●
268 LEVER; CONT,INTERNAL 8-97184-895-0 01 1 0503-0606 ●
268 LEVER; CONT,INTERNAL 8-97184-895-0 01 1 0607- ●
271 BUSHING; QUAD BOX
ID=14 L=12 		8-97203-909-0 02 1 0503-0603 ●
271 BUSHING; QUAD BOX
ID=14 L=12 		8-98017-908-0 02 1 0604-0606 ●
271 BUSHING; QUAD BOX
ID=14 L=12 		8-98017-908-0 02 1 0607- ●
274 COVER; SHAFT,QUAD BOX 8-97181-324-1 01 1 0503-0606 ●
274 COVER; SHAFT,QUAD BOX 8-97181-324-1 01 1 0607- ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX 8-97181-327-0 01 1 0503-0603 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX 8-98017-744-0 01 1 0604-0606 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX 8-98017-744-0 01 1 0607- ●
459 PIN; SPR,ROD TO ARM
OD=5 		8-97184-905-0 01 1 0503-0606 ●
459 PIN; SPR,ROD TO ARM
OD=5 		8-97184-905-0 01 1 0607- ●
