2-26 — MANUAL TRANSMISSION GEAR (#74984) — 169 parça

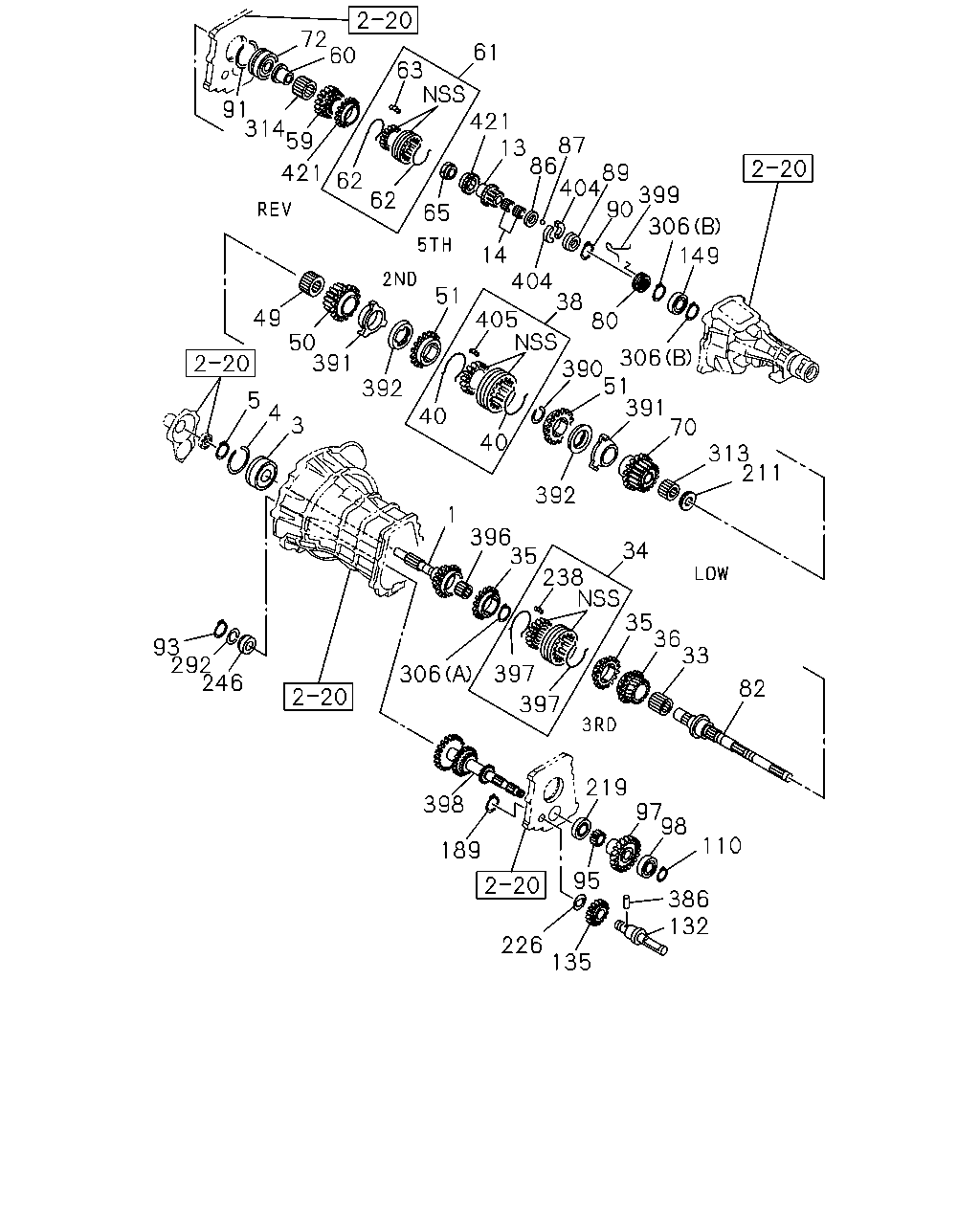

72 60 61 63 421 13 87 86 89 404 399 90 91 314 59 421 62 62 65 306 14 404 38 80 149 51 49 50 391 405 306 390 51 391 70 392 5 4 3 40 40 313 211 392 1 396 35 238 35 36 33 34 93 292 246 397 306 82 397 219 97 98 398 110 189 95 386 132 226 135

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; TOP GEAR,TRANS Z=26	8-97300-948-1	01	1	0503-0606	●
1	SHAFT; TOP GEAR,TRANS Z=26	8-97300-948-1	01	1	0607-1204		●
1	SHAFT; TOP GEAR,TRANS Z=26	8-98210-225-0	01	1	1205-		●
3	BEARING; TOP GEAR SHAFT NSK	8-94380-015-1	01	1	0503-0606	●
3	BEARING; TOP GEAR SHAFT NSK	8-94380-015-1	01	1	0607-		●
4	RING; SNAP,BRG TO TOP GEAR SHAFT NSK	8-94422-083-0	01	1	0503-0606	●
4	RING; SNAP,BRG TO TOP GEAR SHAFT NSK	8-94422-083-0	01	1	0607-		●
5	RING; SNAP,BRG TO TOP GEAR SHAFT ID=37.4	8-97254-316-0	01	1	0503-0606	●
5	RING; SNAP,BRG TO TOP GEAR SHAFT ID=37.4	8-97254-316-0	01	1	0607-		●
13	GEAR; 5TH,MAINSHAFT Z=24	8-97216-153-0	01	1	0503-0606	●
13	GEAR; 5TH,MAINSHAFT Z=22	8-97104-023-3	01	1	0607-1204		●
13	GEAR; 5TH,MAINSHAFT Z=22	8-98210-227-0	01	1	1205-		●
14	BEARING; NEEDLE,5TH NSK	8-97029-341-0	01	1	0503-0606	●
14	BEARING; NEEDLE,5TH NSK	8-97029-341-0	01	1	0607-1102		●
14	BEARING; NEEDLE,5TH NTN	8-98172-356-0	01	1	1103-		●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-028-1	01	1	0503-0606	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-028-1	01	1	0607-		●
34	SYNCHRONIZER; 4TH & 3RD	8-97188-798-0	01	1	0503-0606	●
34	SYNCHRONIZER; 4TH & 3RD	8-97104-027-0	01	1	0607-		●
35	RING; BLOCK,4TH & 3RD Z=45	8-94151-510-3	02	1	0503-0606	●
35	RING; BLOCK,4TH & 3RD Z=45	8-94151-510-3	02	1	0607-		●
36	GEAR; 3RD,MAINSHAFT Z=27	8-97216-150-1	01	1	0503-0606	●
36	GEAR; 3RD,MAINSHAFT Z=27	8-97216-150-1	01	1	0607-1204		●
36	GEAR; 3RD,MAINSHAFT Z=27	8-98210-226-0	01	1	1205-		●
38	SYNCHRONIZER; LOW & 2ND	8-97188-799-0	01	1	0503-0606	●
38	SYNCHRONIZER; LOW & 2ND	8-94363-059-1	01	1	0607-		●
40	SPRING; INSERT,LOW & 2ND	8-94448-045-0	02	1	0503-0606	●
40	SPRING; INSERT,LOW & 2ND	8-94448-045-0	02	1	0607-		●
49	BEARING; NEEDLE,2ND GEAR JTEKT	9-00096-625-0	01	1	0503-0606	●
49	BEARING; NEEDLE,2ND GEAR JTEKT	9-00096-625-0	01	1	0607-		●
50	GEAR; 2ND,MAINSHAFT Z=34	8-97300-953-1	01	1	0503-0606	●
50	GEAR; 2ND,MAINSHAFT Z=34	8-97300-953-1	01	1	0607-		●
51	RING; BLOCK,LOW & 2ND Z=48	8-94363-054-1	02	1	0503-0606	●
51	RING; BLOCK,LOW & 2ND Z=48	8-94363-054-1	02	1	0607-1106		●
51	RING; BLOCK,LOW & 2ND Z=36	8-98115-804-0	02	1	1107-		●
59	GEAR; REV MAINSHAFT Z=41	8-97104-025-2	01	1	0503-0606	●
59	GEAR; REV MAINSHAFT Z=41	8-97104-025-2	01	1	0607-1205		●
59	GEAR; REV MAINSHAFT Z=41	8-98210-228-0	01	1	1206-		●
60	COLLAR; REV MAIN	8-97031-079-0	01	1	0503-0606	●
60	COLLAR; REV MAIN	8-97031-079-0	01	1	0607-		●
61	SYNCHRONIZER; REV & 5TH	8-97188-800-0	01	1	0503-0606	●
61	SYNCHRONIZER; REV & 5TH	8-97030-106-1	01	1	0607-		●
62	SPRING; INSERT,REV & 5TH	5-33264-012-0	02	1	0503-0606	●
62	SPRING; INSERT,REV & 5TH	5-33264-012-0	02	1	0607-		●
63	INSERT; SYN,REV & 5TH	5-33263-001-0	03	1	0503-0606	●
63	INSERT; SYN,REV & 5TH	5-33263-001-0	03	1	0607-		●
65	NUT; MAINSHAFT M34	8-94422-071-1	01	1	0503-0606	●
65	NUT; MAINSHAFT M34	8-94422-071-1	01	1	0607-		●
70	GEAR; 1ST,MAINSHAFT Z=45	8-97300-952-1	01	1	0503-0606	●
70	GEAR; 1ST,MAINSHAFT Z=45	8-97300-952-1	01	1	0607-		●
72	BEARING; BALL,MAINSHAFT NSK	8-94380-017-1	01	1	0503-0606	●
72	BEARING; BALL,MAINSHAFT NSK	8-94380-017-1	01	1	0607-		●
80	GEAR; SPD DRIVE Z=6	8-94472-608-1	01	1	0503-0606	●
80	GEAR; SPD DRIVE Z=6	8-94472-608-1	01	1	0607-		●
82	SHAFT; MAIN,TRANS Z=28-34-26-27	8-97300-981-0	01	1	0503-0606	●
82	SHAFT; MAIN,TRANS Z=28-34-26-27	8-97300-981-0	01	1	0607-		●
86	WASHER; THRUST,5TH T=7.90 WHITE	8-94422-110-2	01	1	0503-0606	●
86	WASHER; THRUST,5TH T=7.90 WHITE	8-94422-110-2	01	1	0607-		●
86	WASHER; THRUST,5TH T=8.00 YELLOW	8-94422-111-2	01	1	0503-0606	●
86	WASHER; THRUST,5TH T=8.00 YELLOW	8-94422-111-2	01	1	0607-		●
86	WASHER; THRUST,5TH T=8.10 GREEN	8-94422-112-2	01	1	0503-0606	●
86	WASHER; THRUST,5TH T=8.10 GREEN	8-94422-112-2	01	1	0607-		●
86	WASHER; THRUST,5TH T=8.20 BLUE	8-94422-113-2	01	1	0503-0606	●
86	WASHER; THRUST,5TH T=8.20 BLUE	8-94422-113-2	01	1	0607-		●
87	BALL; THRUST WASHER	8-94201-356-0	01	1	0503-0606	●
87	BALL; THRUST WASHER	8-94201-356-0	01	1	0607-		●
89	RING; RET,THRUST RING ID=31.8	8-94422-395-0	01	1	0503-0606	●
89	RING; RET,THRUST RING ID=31.8	8-94422-395-0	01	1	0607-		●
90	RING; SNAP,THRUST RING ID=29.6	9-09180-032-0	01	1	0503-0606	●
90	RING; SNAP,THRUST RING ID=29.6	9-09180-032-0	01	1	0607-		●
91	RING; SNAP,CENTER BRG,MAINSHAFT ID=76.2	8-94322-411-0	01	1	0503-0606	●
91	RING; SNAP,CENTER BRG,MAINSHAFT ID=76.2	8-94322-411-0	01	1	0607-		●
93	RING; SNAP,COUNTER FRT BRG ID=23.2	9-09180-025-0	01	1	0503-0606	●
93	RING; SNAP,COUNTER FRT BRG ID=23.2	9-09180-025-0	01	1	0607-		●
95	GEAR; REV,COUNTER Z=19	8-94377-433-0	01	1	0503-0606	●
95	GEAR; REV,COUNTER Z=19	8-94377-433-0	01	1	0607-		●
97	GEAR; 5TH,COUNTER Z=49	8-97216-154-0	01	1	0503-0606	●
97	GEAR; 5TH,COUNTER Z=50	8-94377-434-0	01	1	0607-		●
98	BEARING; BALL,COUNTER END NSK	8-97018-535-1	01	1	0503-0606	●
98	BEARING; BALL,COUNTER END NSK	8-97018-535-1	01	1	0607-		●
110	RING; SNAP,COUNTER BRG T=1.10 WHITE	8-94422-103-0	01	1	0503-0606	●
110	RING; SNAP,COUNTER BRG T=1.10 WHITE	8-94422-103-0	01	1	0607-		●
110	RING; SNAP,COUNTER BRG T=1.20 YELLOW	8-94422-104-0	01	1	0503-0606	●
110	RING; SNAP,COUNTER BRG T=1.20 YELLOW	8-94422-104-0	01	1	0607-		●
110	RING; SNAP,COUNTER BRG T=1.30 BLUE	8-94422-105-0	01	1	0503-0606	●
110	RING; SNAP,COUNTER BRG T=1.30 BLUE	8-94422-105-0	01	1	0607-		●
110	RING; SNAP,COUNTER BRG T=1.40 PINK	8-94422-106-0	01	1	0503-0606	●
110	RING; SNAP,COUNTER BRG T=1.40 PINK	8-94422-106-0	01	1	0607-		●
110	RING; SNAP,COUNTER BRG T=1.50 GREEN	8-94422-107-0	01	1	0503-0606	●
110	RING; SNAP,COUNTER BRG T=1.50 GREEN	8-94422-107-0	01	1	0607-		●
110	RING; SNAP,COUNTER BRG T=1.60 BROWN	8-94422-108-0	01	1	0503-0606	●
110	RING; SNAP,COUNTER BRG T=1.60 BROWN	8-94422-108-0	01	1	0607-		●
132	SHAFT; REV	8-97019-155-1	01	1	0503-0606	●
132	SHAFT; REV	8-97019-155-1	01	1	0607-1308		●
132	SHAFT; REV	8-98249-849-0	01	1	1309-		●
135	GEAR; REV IDLER Z=33	8-94377-435-1	01	1	0503-0606	●
135	GEAR; REV IDLER Z=33	8-94377-435-1	01	1	0607-0705		●
135	GEAR; REV IDLER Z=33	8-98080-125-0	01	1	0706-0708		●
135	GEAR; REV IDLER Z=33	8-98082-803-0	01	1	0709-0809		●
135	GEAR; REV IDLER Z=33	8-98080-125-0	01	1	0810-1003		●
135	GEAR; REV IDLER Z=33	8-98146-726-1	01	1	1004-		●
149	BEARING; NEEDLE,MAINSHAFT,RR NSK	8-94173-863-0	01	1	0503-0606	●
149	BEARING; NEEDLE,MAINSHAFT,RR NSK	8-94173-863-0	01	1	0607-		●
189	RING; SNAP,REV,GEAR T=1.20 WHITE	8-94422-100-0	01	1	0503-0606	●
189	RING; SNAP,REV,GEAR T=1.20 WHITE	8-94422-100-0	01	1	0607-		●
189	RING; SNAP,REV,GEAR T=1.30 YELLOW	8-94422-101-0	01	1	0503-0606	●
189	RING; SNAP,REV,GEAR T=1.30 YELLOW	8-94422-101-0	01	1	0607-		●
189	RING; SNAP,REV,GEAR T=1.40 BLUE	8-94422-102-0	01	1	0503-0606	●
189	RING; SNAP,REV,GEAR T=1.40 BLUE	8-94422-102-0	01	1	0607-		●
211	BEARING; THRUST NEEDLE,1ST GEAR NSK	8-94148-935-0	01	1	0503-0606	●
211	BEARING; THRUST NEEDLE,1ST GEAR NSK	8-94148-935-0	01	1	0607-		●
219	BEARING; BALL,CLUSTER,RR NSK	8-94436-929-0	01	1	0503-0606	●
219	BEARING; BALL,CLUSTER,RR NSK	8-94436-929-0	01	1	0607-		●
226	WASHER; THRUST,REV GEAR,COUNTER ID=30.0	8-94223-069-1	01	1	0503-0606	●
226	WASHER; THRUST,REV GEAR,COUNTER ID=30.0	8-94223-069-1	01	1	0607-		●
238	INSERT	8-94448-202-2	03	1	0503-0606	●
238	INSERT	8-94448-202-2	03	1	0607-		●
246	BEARING; ROLLER,COUNTER SHAFT FRT NSK	8-97029-600-4	01	1	0503-0606	●
246	BEARING; ROLLER,COUNTER SHAFT FRT NSK	8-97029-600-4	01	1	0607-		●
292	RING; SNAP,BRG OUTER NSK	8-94422-081-0	01	1	0503-0606	●
292	RING; SNAP,BRG OUTER NSK	8-94422-081-0	01	1	0607-		●
306	RING; SNAP,MAINSHAFT (A) T=1.90 BLUE	8-97129-615-0	01	1	0503-0606	●
306	RING; SNAP,MAINSHAFT (A) T=1.90 BLUE	8-97129-615-0	01	1	0607-		●
306	RING; SNAP,MAINSHAFT (A) T=1.85 YELLOW	8-97129-616-0	01	1	0503-0606	●
306	RING; SNAP,MAINSHAFT (A) T=1.85 YELLOW	8-97129-616-0	01	1	0607-		●
306	RING; SNAP,MAINSHAFT (A) T=1.80 WHITE	8-97129-617-0	01	1	0503-0606	●
306	RING; SNAP,MAINSHAFT (A) T=1.80 WHITE	8-97129-617-0	01	1	0607-		●
306	RING; SNAP,MAINSHAFT (B) ID=27.9	9-09180-030-0	02	1	0503-0606	●
306	RING; SNAP,MAINSHAFT (B) ID=27.9	9-09180-030-0	02	1	0607-		●
313	BEARING; NEEDLE,LOW GEAR NSK	1-09811-028-1	01	1	0503-0606	●
313	BEARING; NEEDLE,LOW GEAR NSK	1-09811-028-1	01	1	0607-		●
314	BEARING; NEEDLE,REV GEAR NSK	8-94422-064-0	01	1	0503-0606	●
314	BEARING; NEEDLE,REV GEAR NSK	8-94422-064-0	01	1	0607-		●
314	BEARING; NEEDLE,REV GEAR JTEKT	8-94422-065-1	01	1	0503-0606	●
314	BEARING; NEEDLE,REV GEAR JTEKT	8-94422-065-1	01	1	0607-		●
386	PIN; REV SHAFT OD=6 L=40	9-08150-640-0	01	1	0503-0606	●
386	PIN; REV SHAFT OD=6 L=40	9-08150-640-0	01	1	0607-		●
390	RING; SNAP,CLU HUB T=1.80 WHITE	8-94422-088-2	01	1	0503-0606	●
390	RING; SNAP,CLU HUB T=1.80 WHITE	8-94422-088-2	01	1	0607-		●
390	RING; SNAP,CLU HUB T=1.85 YELLOW	8-94422-089-1	01	1	0503-0606	●
390	RING; SNAP,CLU HUB T=1.85 YELLOW	8-94422-089-1	01	1	0607-		●
390	RING; SNAP,CLU HUB T=1.90 BLUE	8-94422-090-2	01	1	0503-0606	●
390	RING; SNAP,CLU HUB T=1.90 BLUE	8-94422-090-2	01	1	0607-		●
391	RING; INSIDE,SYN OD=95.8	8-94363-056-0	02	1	0503-0606	●
391	RING; INSIDE,SYN OD=95.8	8-94363-056-0	02	1	0607-		●
392	RING; OUTSIDE,SYN OD=90.0	8-94363-055-1	02	1	0503-0606	●
392	RING; OUTSIDE,SYN OD=90.0	8-94363-055-1	02	1	0607-1106		●
392	RING; OUTSIDE,SYN OD=90.0	8-98115-793-0	02	1	1107-		●
396	BEARING; NEEDLE,MAINSHAFT NSK	8-94422-068-1	01	1	0503-0606	●
396	BEARING; NEEDLE,MAINSHAFT NSK	8-94422-068-1	01	1	0607-1102		●
396	BEARING; NEEDLE,MAINSHAFT NSK	8-98172-355-0	01	1	1103-		●
397	SPRING; INSERT,4TH & 3RD	8-94422-075-0	02	1	0503-0606	●
397	SPRING; INSERT,4TH & 3RD	8-94422-075-0	02	1	0607-		●
398	GEAR; COUNTER Z=44-32-25-19	8-97216-164-1	01	1	0503-0606	●
398	GEAR; COUNTER Z=44-32-25-19	8-97216-164-1	01	1	0607-		●
399	CLIP; SPEEDOMETER DRIVE GEAR	8-94310-229-0	01	1	0503-0606	●
399	CLIP; SPEEDOMETER DRIVE GEAR	8-94310-229-0	01	1	0607-		●
404	PLATE; THRUST	8-94421-892-0	02	1	0503-0606	●
404	PLATE; THRUST	8-94421-892-0	02	1	0607-		●
405	INSERT; SYN,LOW & 2ND	8-94363-062-1	03	1	0503-0606	●
405	INSERT; SYN,LOW & 2ND	8-94363-062-1	03	1	0607-		●
421	RING; BLOCK,REV & 5TH Z=36	8-97071-688-0	02	1	0503-0606	●
421	RING; BLOCK,REV & 5TH Z=36	8-97071-688-0	02	1	0607-		●

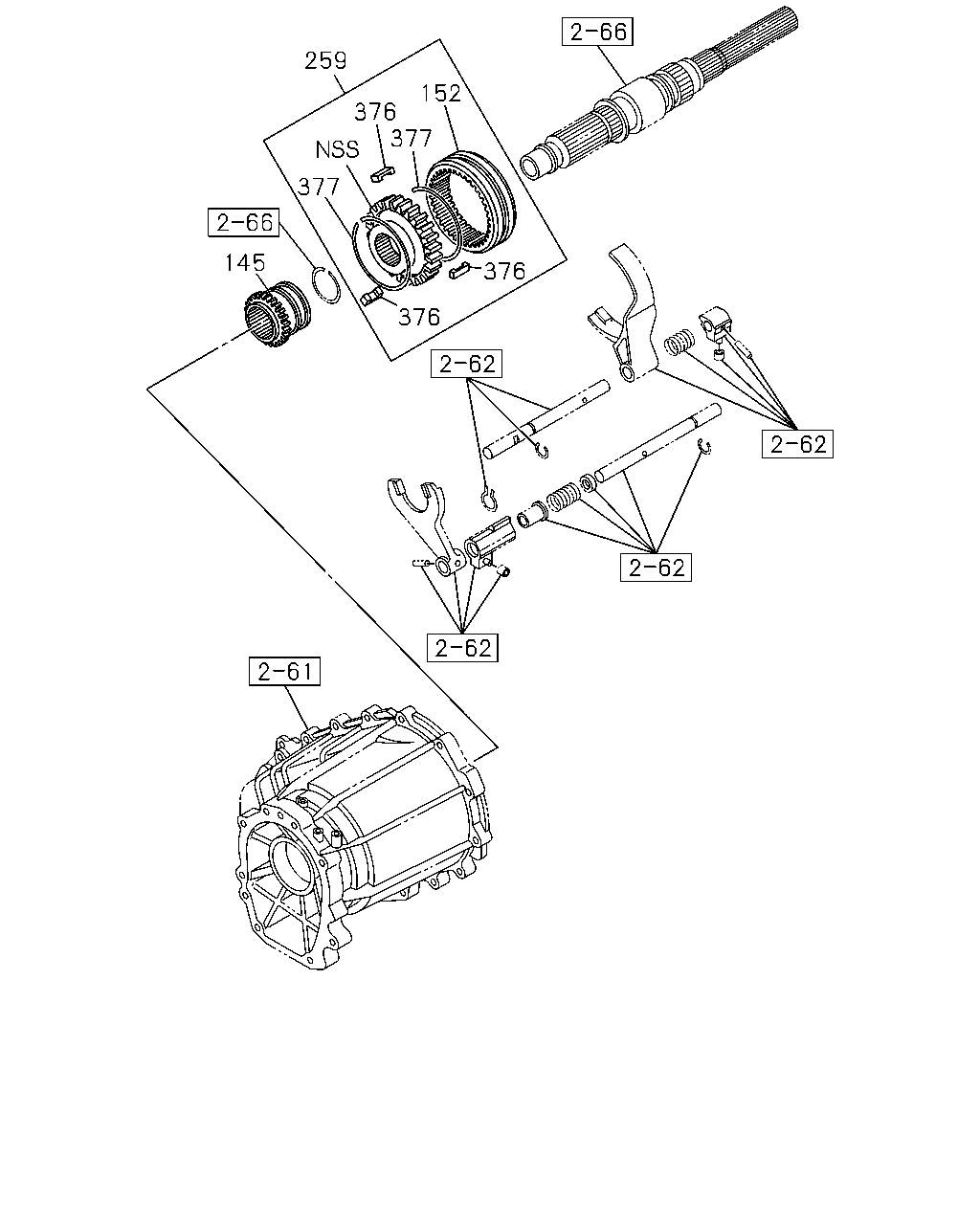

259 152 376 377 377 145 376 376

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	C
145	SLEEVE; HIGH-LOW SHIFT,TRANSFER 4X4(UCS***)	8-97358-245-0	01	1	0509-1109	●
145	SLEEVE; HIGH-LOW SHIFT,TRANSFER 4X4(UCS***)	8-98063-369-1	01	1	1110-	●
152	SLEEVE; 4X2-4X4 SHIFT,TRANSFER 4X4(UCS***)	8-94363-060-0	01	1	0509-	●
259	SYNCHRONIZER; 4X2-4X4,TRANSFER 4X4(UCS***)	8-97234-225-0	01	1	0509-	●
376	INSERT; 4X2-4X4 SYN,TRANSFER 4X4(UCS***)	8-97238-590-0	03	1	0509-	●
377	SPRING; INSERT,4X2-4X4 SYN,TRANSFER 4X4(UCS***)	8-94448-045-0	02	1	0509-	●
