2-25 — SPEEDOMETER DRIVEN GEAR (#74983) — 107 parça

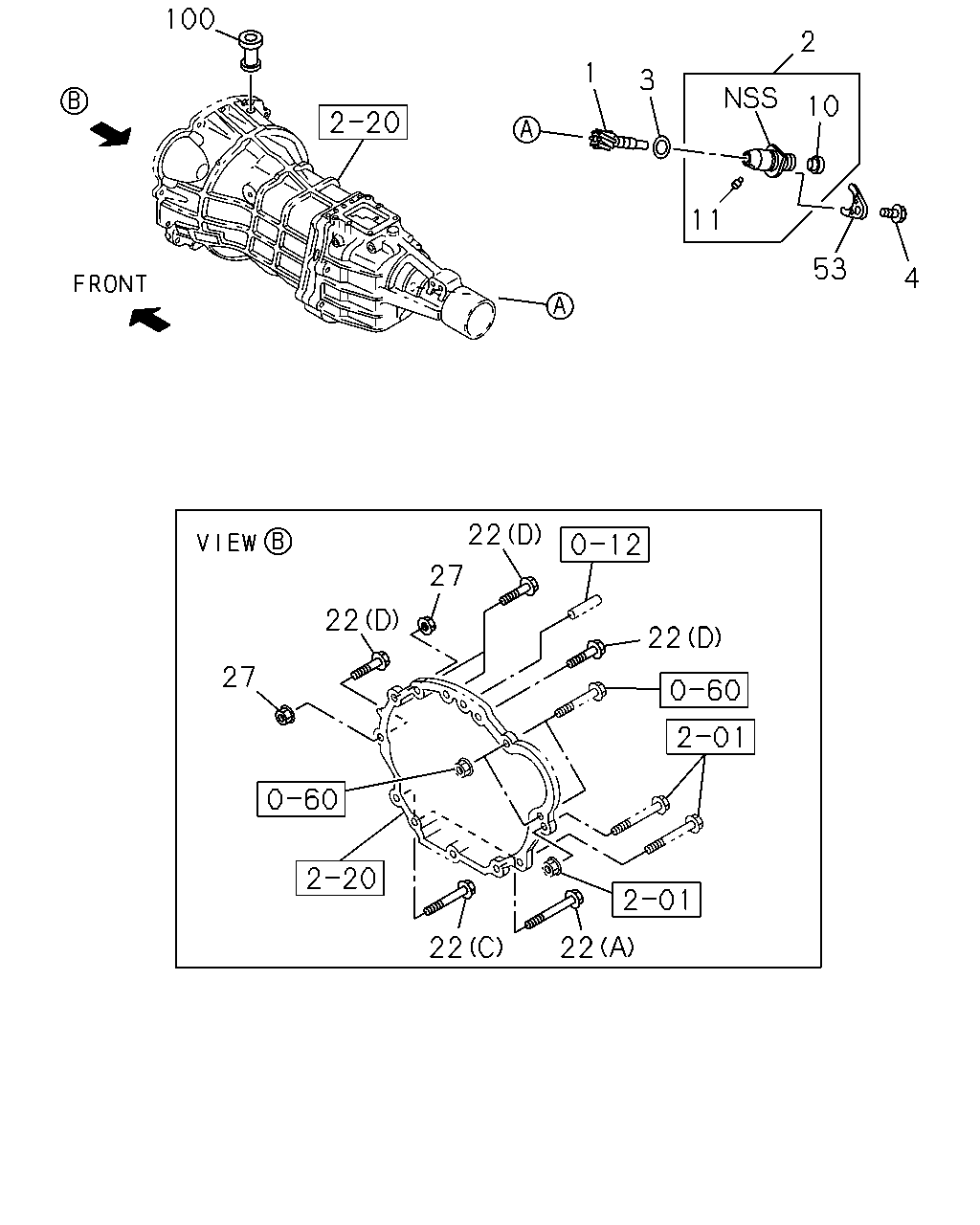

100 2 1 3 10 11 53 4 22 27 22 22 27 22 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	GEAR; DRIVEN,SPD Z=17	8-97012-085-2	01	1	0503-0606	●
1	GEAR; DRIVEN,SPD Z=18	8-97012-086-2	01	1	0607-		●
1	GEAR; DRIVEN,SPD 4X4(UCS***) Z=17	8-97238-583-0	01	1	0509-0606			●
1	GEAR; DRIVEN,SPD 4X4(UCS***) Z=18	8-97238-584-2	01	1	0607-			●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER	8-97021-133-4	01	1	0503-0606	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER	8-97021-133-4	01	1	0607-		●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER 4X4(UCS***)	8-97305-454-1	01	1	0509-			●
3	GASKET; BUSHING ID=21.7 OD=28.7	9-09921-100-0	01	1	0503-0508	●
3	GASKET; BUSHING ID=21.7 OD=28.7	9-09921-100-0	01	1	0509-0606	●
3	GASKET; BUSHING 4X4(UCS***) ID=21.7 OD=28.7	9-09921-100-0	01	1	0509-0606			●
3	GASKET; BUSHING 4X4(UCS***) ID=21.7 OD=28.7	9-09921-100-0	01	1	0607-			●
3	GASKET; BUSHING ID=21.7 OD=28.7	9-09921-100-0	01	1	0607-		●
4	BOLT; RET,DRIVEN GEAR M8X20 FLANGE	0-28050-820-0	01	1	0503-0508	●
4	BOLT; RET,DRIVEN GEAR M8X20 FLANGE	0-28050-820-0	01	1	0509-0606	●
4	BOLT; RET,DRIVEN GEAR 4X4(UCS***) M8X20 FLANGE	0-28050-820-0	01	1	0509-0606			●
4	BOLT; RET,DRIVEN GEAR 4X4(UCS***) M8X20 FLANGE	0-28050-820-0	01	1	0607-			●
4	BOLT; RET,DRIVEN GEAR M8X20 FLANGE	0-28050-820-0	01	1	0607-		●
10	SEAL; OIL,DRIVE GEAR NOK	8-97131-328-1	01	1	0503-0508	●
10	SEAL; OIL,DRIVE GEAR NOK	8-97131-328-1	01	1	0509-0606	●
10	SEAL; OIL,DRIVE GEAR 4X4(UCS***) NOK	8-97131-328-1	01	1	0509-0606			●
10	SEAL; OIL,DRIVE GEAR 4X4(UCS***) NOK	8-97131-328-1	01	1	0607-			●
10	SEAL; OIL,DRIVE GEAR NOK	8-97131-328-1	01	1	0607-		●
11	FILTER; BUSHING,SPEEDOMETER DRIVEN GEA	8-94446-571-1	01	1	0503-0508	●
11	FILTER; BUSHING,SPEEDOMETER DRIVEN GEA	8-94446-571-1	01	1	0509-0606	●
11	FILTER; BUSHING,SPEEDOMETER DRIVEN GEA 4X4(UCS***)	8-94446-571-1	01	1	0509-0606			●
11	FILTER; BUSHING,SPEEDOMETER DRIVEN GEA 4X4(UCS***)	8-94446-571-1	01	1	0607-			●
11	FILTER; BUSHING,SPEEDOMETER DRIVEN GEA	8-94446-571-1	01	1	0607-		●
22	BOLT; TRANS CASE TO ENG (A) M10X60 FLANGE	0-28051-060-0	02	1	0503-0606	●
22	BOLT; TRANS CASE TO ENG (A) M10X60 FLANGE	0-28051-060-0	02	1	0607-		●
22	BOLT; TRANS CASE TO ENG (C) M12X40 FLANGE	0-28051-240-0	01	1	0503-0606	●
22	BOLT; TRANS CASE TO ENG (C) M12X40 FLANGE	0-28051-240-0	01	1	0607-		●
22	BOLT; TRANS CASE TO ENG (D) M10X40 FLANGE	0-28051-040-0	04	1	0503-0606	●		●
22	BOLT; TRANS CASE TO ENG (D) M10X40 FLANGE	0-28051-040-0	04	1	0607-		●	●
22	BOLT; TRANS CASE TO ENG (B) M12X45 FLANGE	0-28051-245-0	04	1	0503-			●
27	NUT; CLU HSG TO TRANS M10 FLANGE	0-91180-110-0	02	1	0503-0606	●		●
27	NUT; CLU HSG TO TRANS M10 FLANGE	0-91180-110-0	02	1	0607-		●	●
53	PLATE; LOCK,DRIVEN GEAR	8-97021-019-0	01	1	0503-0508	●
53	PLATE; LOCK,DRIVEN GEAR	8-97021-019-0	01	1	0509-0606	●
53	PLATE; LOCK,DRIVEN GEAR 4X4(UCS***)	8-97021-019-0	01	1	0509-0606			●
53	PLATE; LOCK,DRIVEN GEAR 4X4(UCS***)	8-97021-019-0	01	1	0607-0703			●
53	PLATE; LOCK,DRIVEN GEAR	8-97021-019-0	01	1	0607-0703		●
53	PLATE; LOCK,DRIVEN GEAR 4X4(UCS***)	8-98035-572-0	01	1	0704-			●
53	PLATE; LOCK,DRIVEN GEAR	8-98035-572-0	01	1	0704-		●
100	PLUG; HOLE	8-97318-961-0	01	1	0503-0606	●		●
100	PLUG; HOLE	8-97318-961-0	01	1	0607-		●	●

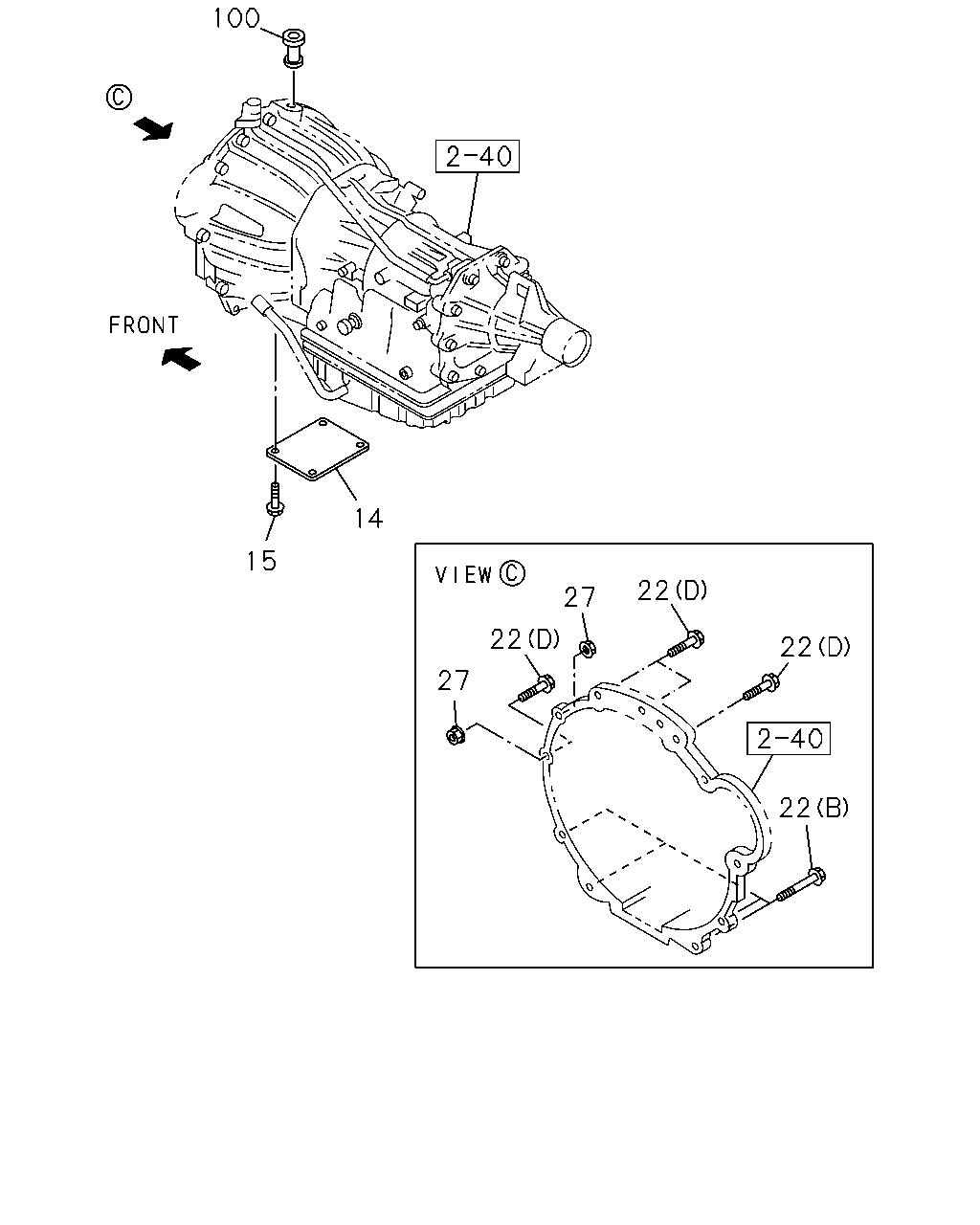

100 14 15 22 27 22 22 27 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
14	COVER; UNDER,TRANS	8-94375-252-0	01	1	0503-0608			●
14	COVER; UNDER,TRANS	8-98049-857-0	01	1	0609-			●
15	BOLT; UNDER COVER TO TRANS M6X16 FLANGE	0-28650-616-0	04	1	0503-			●
22	BOLT; TRANS CASE TO ENG (A) M10X60 FLANGE	0-28051-060-0	02	1	0503-0606	●
22	BOLT; TRANS CASE TO ENG (A) M10X60 FLANGE	0-28051-060-0	02	1	0607-		●
22	BOLT; TRANS CASE TO ENG (C) M12X40 FLANGE	0-28051-240-0	01	1	0503-0606	●
22	BOLT; TRANS CASE TO ENG (C) M12X40 FLANGE	0-28051-240-0	01	1	0607-		●
22	BOLT; TRANS CASE TO ENG (D) M10X40 FLANGE	0-28051-040-0	04	1	0503-0606	●		●
22	BOLT; TRANS CASE TO ENG (D) M10X40 FLANGE	0-28051-040-0	04	1	0607-		●	●
22	BOLT; TRANS CASE TO ENG (B) M12X45 FLANGE	0-28051-245-0	04	1	0503-			●
27	NUT; CLU HSG TO TRANS M10 FLANGE	0-91180-110-0	02	1	0503-0606	●		●
27	NUT; CLU HSG TO TRANS M10 FLANGE	0-91180-110-0	02	1	0607-		●	●
100	PLUG; HOLE	8-97318-961-0	01	1	0503-0606	●		●
100	PLUG; HOLE	8-97318-961-0	01	1	0607-		●	●

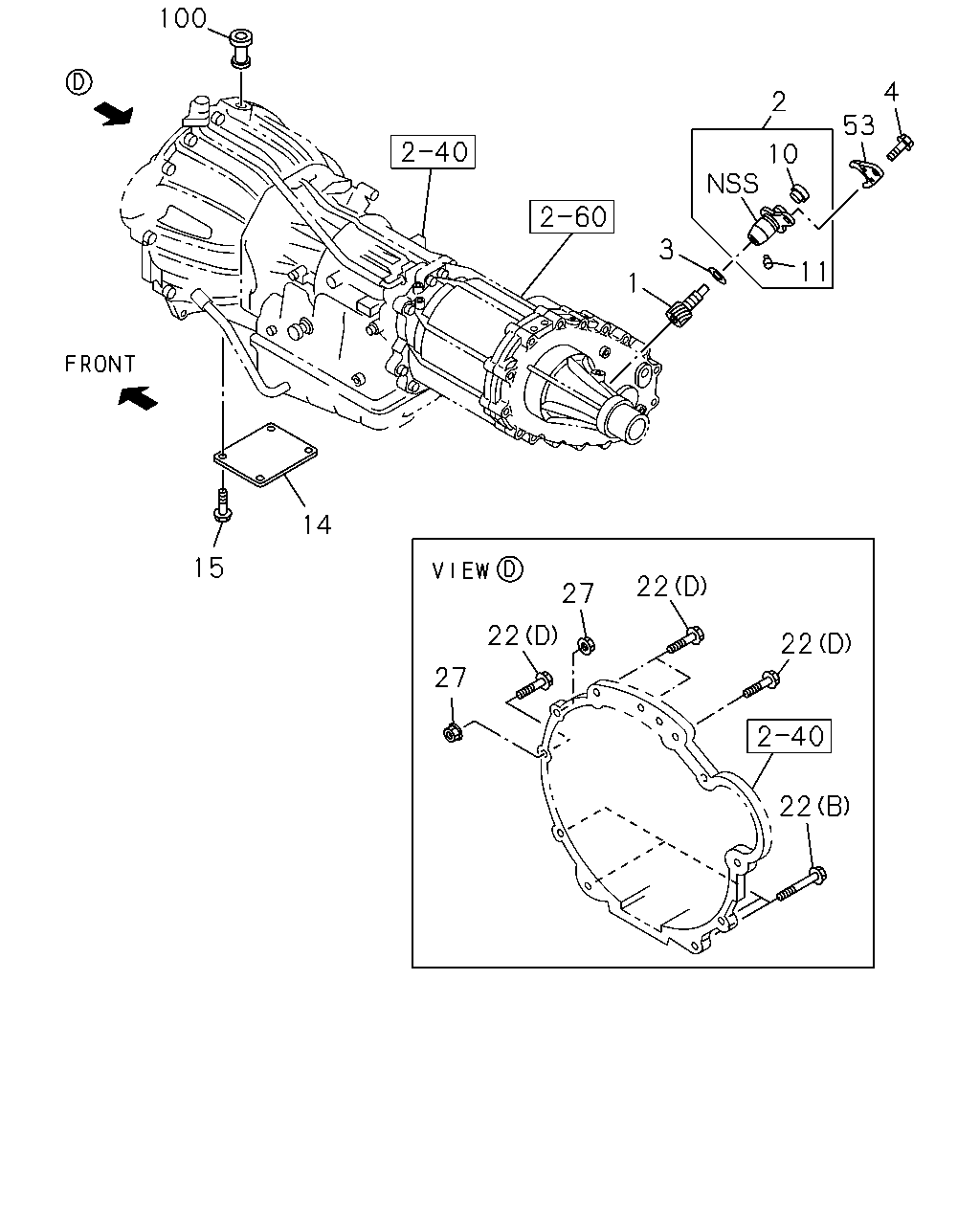

100 4 53 2 10 3 11 1 14 15 22 27 22 22 27 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	GEAR; DRIVEN,SPD Z=17	8-97012-085-2	01	1	0503-0606	●
1	GEAR; DRIVEN,SPD Z=18	8-97012-086-2	01	1	0607-		●
1	GEAR; DRIVEN,SPD 4X4(UCS***) Z=17	8-97238-583-0	01	1	0509-0606			●
1	GEAR; DRIVEN,SPD 4X4(UCS***) Z=18	8-97238-584-2	01	1	0607-			●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER	8-97021-133-4	01	1	0503-0606	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER	8-97021-133-4	01	1	0607-		●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER 4X4(UCS***)	8-97305-454-1	01	1	0509-			●
3	GASKET; BUSHING ID=21.7 OD=28.7	9-09921-100-0	01	1	0503-0508	●
3	GASKET; BUSHING ID=21.7 OD=28.7	9-09921-100-0	01	1	0509-0606	●
3	GASKET; BUSHING 4X4(UCS***) ID=21.7 OD=28.7	9-09921-100-0	01	1	0509-0606			●
3	GASKET; BUSHING 4X4(UCS***) ID=21.7 OD=28.7	9-09921-100-0	01	1	0607-			●
3	GASKET; BUSHING ID=21.7 OD=28.7	9-09921-100-0	01	1	0607-		●
4	BOLT; RET,DRIVEN GEAR M8X20 FLANGE	0-28050-820-0	01	1	0503-0508	●
4	BOLT; RET,DRIVEN GEAR M8X20 FLANGE	0-28050-820-0	01	1	0509-0606	●
4	BOLT; RET,DRIVEN GEAR 4X4(UCS***) M8X20 FLANGE	0-28050-820-0	01	1	0509-0606			●
4	BOLT; RET,DRIVEN GEAR 4X4(UCS***) M8X20 FLANGE	0-28050-820-0	01	1	0607-			●
4	BOLT; RET,DRIVEN GEAR M8X20 FLANGE	0-28050-820-0	01	1	0607-		●
10	SEAL; OIL,DRIVE GEAR NOK	8-97131-328-1	01	1	0503-0508	●
10	SEAL; OIL,DRIVE GEAR NOK	8-97131-328-1	01	1	0509-0606	●
10	SEAL; OIL,DRIVE GEAR 4X4(UCS***) NOK	8-97131-328-1	01	1	0509-0606			●
10	SEAL; OIL,DRIVE GEAR 4X4(UCS***) NOK	8-97131-328-1	01	1	0607-			●
10	SEAL; OIL,DRIVE GEAR NOK	8-97131-328-1	01	1	0607-		●
11	FILTER; BUSHING,SPEEDOMETER DRIVEN GEA	8-94446-571-1	01	1	0503-0508	●
11	FILTER; BUSHING,SPEEDOMETER DRIVEN GEA	8-94446-571-1	01	1	0509-0606	●
11	FILTER; BUSHING,SPEEDOMETER DRIVEN GEA 4X4(UCS***)	8-94446-571-1	01	1	0509-0606			●
11	FILTER; BUSHING,SPEEDOMETER DRIVEN GEA 4X4(UCS***)	8-94446-571-1	01	1	0607-			●
11	FILTER; BUSHING,SPEEDOMETER DRIVEN GEA	8-94446-571-1	01	1	0607-		●
14	COVER; UNDER,TRANS	8-94375-252-0	01	1	0503-0608			●
14	COVER; UNDER,TRANS	8-98049-857-0	01	1	0609-			●
15	BOLT; UNDER COVER TO TRANS M6X16 FLANGE	0-28650-616-0	04	1	0503-			●
22	BOLT; TRANS CASE TO ENG (A) M10X60 FLANGE	0-28051-060-0	02	1	0503-0606	●
22	BOLT; TRANS CASE TO ENG (A) M10X60 FLANGE	0-28051-060-0	02	1	0607-		●
22	BOLT; TRANS CASE TO ENG (C) M12X40 FLANGE	0-28051-240-0	01	1	0503-0606	●
22	BOLT; TRANS CASE TO ENG (C) M12X40 FLANGE	0-28051-240-0	01	1	0607-		●
22	BOLT; TRANS CASE TO ENG (D) M10X40 FLANGE	0-28051-040-0	04	1	0503-0606	●		●
22	BOLT; TRANS CASE TO ENG (D) M10X40 FLANGE	0-28051-040-0	04	1	0607-		●	●
22	BOLT; TRANS CASE TO ENG (B) M12X45 FLANGE	0-28051-245-0	04	1	0503-			●
27	NUT; CLU HSG TO TRANS M10 FLANGE	0-91180-110-0	02	1	0503-0606	●		●
27	NUT; CLU HSG TO TRANS M10 FLANGE	0-91180-110-0	02	1	0607-		●	●
53	PLATE; LOCK,DRIVEN GEAR	8-97021-019-0	01	1	0503-0508	●
53	PLATE; LOCK,DRIVEN GEAR	8-97021-019-0	01	1	0509-0606	●
53	PLATE; LOCK,DRIVEN GEAR 4X4(UCS***)	8-97021-019-0	01	1	0509-0606			●
53	PLATE; LOCK,DRIVEN GEAR 4X4(UCS***)	8-97021-019-0	01	1	0607-0703			●
53	PLATE; LOCK,DRIVEN GEAR	8-97021-019-0	01	1	0607-0703		●
53	PLATE; LOCK,DRIVEN GEAR 4X4(UCS***)	8-98035-572-0	01	1	0704-			●
53	PLATE; LOCK,DRIVEN GEAR	8-98035-572-0	01	1	0704-		●
100	PLUG; HOLE	8-97318-961-0	01	1	0503-0606	●		●
100	PLUG; HOLE	8-97318-961-0	01	1	0607-		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
