2-20 — MANUAL TRANSMISSION ASM AND CASE (#74982) — 139 parça

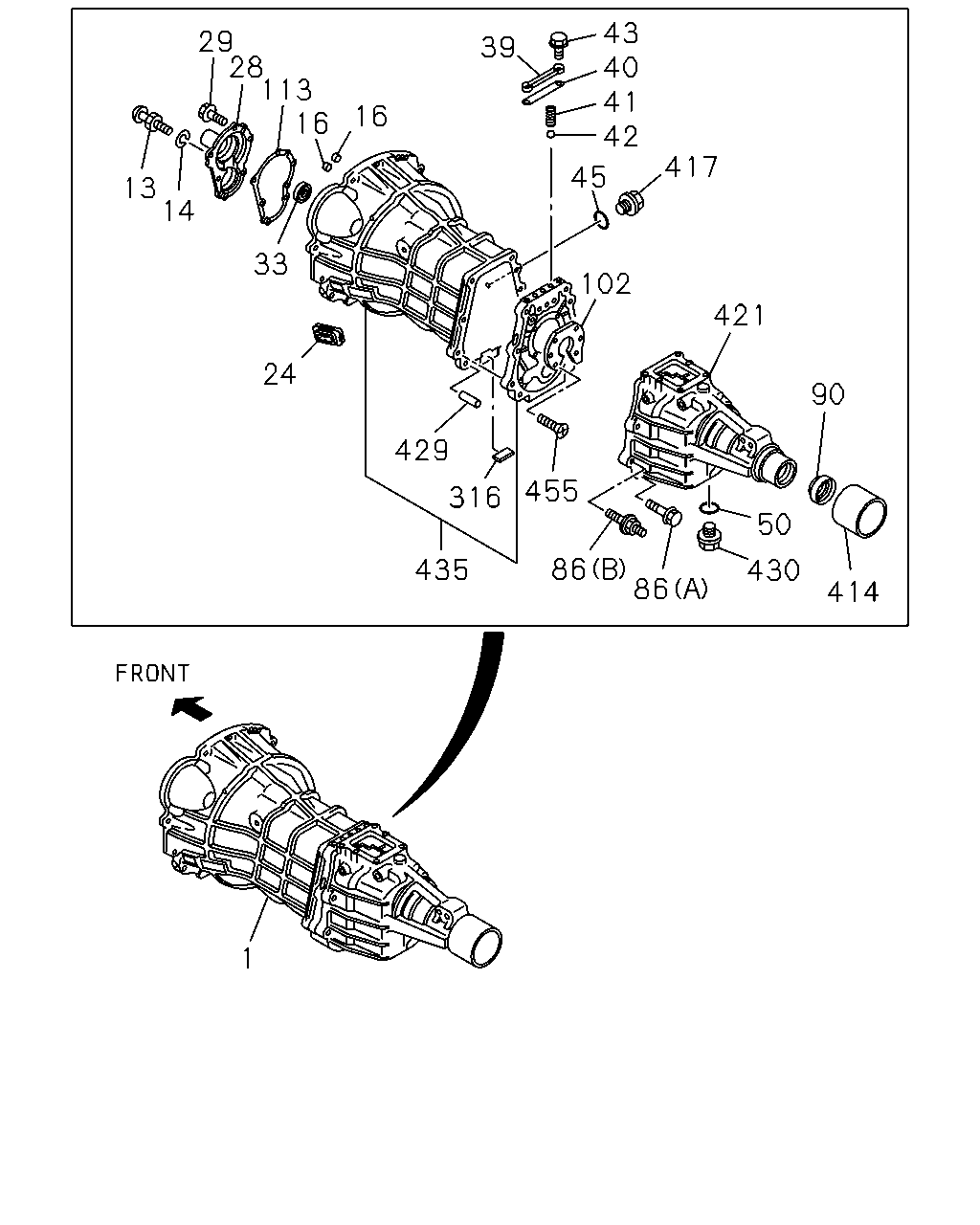

43 40 41 42 29 28 113 16 39 16 417 45 13 14 33 102 421 24 90 429 455 316 50 86 86 435 430 414 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TRANSMISSION ASM; MANUAL	8-97376-950-0	01	1	0503-0606	●
1	TRANSMISSION ASM; MANUAL	8-98036-612-0	01	1	0607-0709		●
1	TRANSMISSION ASM; MANUAL	8-98087-268-0	01	1	0710-0809		●
1	TRANSMISSION ASM; MANUAL	8-98132-781-0	01	1	0810-1004		●
1	TRANSMISSION ASM; MANUAL	8-98150-145-0	01	1	1005-		●
13	SUPPORT; SHIFT FORK L=47.5	8-97072-827-0	01	1	0503-0606	●
13	SUPPORT; SHIFT FORK L=47.5	8-97072-827-0	01	1	0607-		●
14	WASHER; LK,SUPPORT ID=12.2	9-09150-512-0	01	1	0503-0603	●
14	WASHER; LK,SUPPORT ID=12.2	0-91510-512-0	01	1	0604-0606	●
14	WASHER; LK,SUPPORT ID=12.2	0-91510-512-0	01	1	0607-		●
16	PLUG; SHIFT ROD OD=14	5-09609-004-0	02	1	0503-0604	●
16	PLUG; SHIFT ROD OD=14	8-97358-601-0	02	1	0605-0606	●
16	PLUG; SHIFT ROD OD=14	8-97358-601-0	02	1	0607-		●
24	COVER; CHECK HOLE,DUST	8-94156-700-0	01	1	0503-0606	●
24	COVER; CHECK HOLE,DUST	8-94156-700-0	01	1	0607-		●
28	COVER; FRT,TRANS CASE	8-97104-676-0	01	1	0503-0606	●
28	COVER; FRT,TRANS CASE	8-97104-676-0	01	1	0607-		●
29	BOLT; FRT COVER M8X22 FLANGE	8-94448-815-3	06	1	0503-0604	●
29	BOLT; FRT COVER M8X22 FLANGE	8-97365-376-0	06	1	0605-0606	●
29	BOLT; FRT COVER M8X22 FLANGE	8-97365-376-0	06	1	0607-		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-698-0	01	1	0503-0606	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-698-0	01	1	0607-		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-699-3	01	1	0503-0606	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-699-3	01	1	0607-		●
39	PLATE; DETENT SPR	8-94373-864-1	01	1	0503-0604	●
39	PLATE; DETENT SPR	8-98035-571-0	01	1	0605-0606	●
39	PLATE; DETENT SPR	8-98035-571-0	01	1	0607-		●
40	GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-600-1	01	1	0503-0606	●
40	GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-600-1	01	1	0607-		●
41	SPRING; DETENT BALL L=26.8	8-94320-193-0	03	1	0503-0606	●
41	SPRING; DETENT BALL L=26.8	8-94320-193-0	03	1	0607-		●
42	BALL; DETENT,GEAR SHIFT	8-94435-335-0	03	1	0503-0606	●
42	BALL; DETENT,GEAR SHIFT	8-94435-335-0	03	1	0607-		●
43	BOLT; PLATE TO PLATE M8X22 FLANGE	8-94448-815-3	02	1	0503-0604	●
43	BOLT; PLATE TO PLATE M8X22 FLANGE	8-97365-376-0	02	1	0605-0606	●
43	BOLT; PLATE TO PLATE M8X22 FLANGE	8-97365-376-0	02	1	0607-		●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0503-0606	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0607-		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0503-0508	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	0509-0606	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(UCS***) ID=17	8-97115-712-0	01	1	0509-0606			●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(UCS***). ID=17	8-97115-712-0	01	1	0607-			●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0607-		●
86	BOLT; RR COVER (A) M10X55 FLANGE	8-94473-959-1	03	1	0503-0604	●
86	BOLT; RR COVER (A) M10X55 FLANGE	8-98035-672-0	03	1	0605-0606	●
86	BOLT; RR COVER (A) M10X55 FLANGE	8-98035-672-0	03	1	0607-		●
86	BOLT; RR COVER (B) M10X18 M10X55 L=86.8	8-97305-468-0	05	1	0503-0606	●
86	BOLT; RR COVER (B) M10X18 M10X55 L=86.8	8-97305-468-0	05	1	0607-		●
86	BOLT; RR COVER 4X4(UCS***) (C) M8X45 FLANGE	0-28080-845-0	16	1	0509-0601			●
86	BOLT; RR COVER 4X4(UCS***) (C) M8X45 FLANGE	0-28050-845-0	16	1	0602-			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-705-3	01	1	0503-0508	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97046-705-3	01	1	0509-0606	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(UCS***) NOK	8-97046-705-3	01	1	0509-0606			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(UCS***). NOK	8-97046-705-3	01	1	0607-			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-705-3	01	1	0607-		●
102	RETAINER; BRG UPR,MAINSHAFT	8-97138-673-0	01	1	0503-0606	●
102	RETAINER; BRG UPR,MAINSHAFT	8-97138-673-0	01	1	0607-		●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-589-0	01	1	0503-0606	●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-589-0	01	1	0607-		●
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	0503-0606	●
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	0607-		●
414	COVER; DUST,RR COVER	8-94310-493-0	01	1	0503-0604	●
414	COVER; DUST,RR COVER	8-98027-802-0	01	1	0605-0606	●
414	COVER; DUST,RR COVER	8-98027-802-0	01	1	0607-		●
417	PLUG; OIL FILLER,TRANS	8-94310-917-0	01	1	0503-0508	●
417	PLUG; OIL FILLER,TRANS	8-94310-917-0	01	1	0509-0603	●
417	PLUG; OIL FILLER,TRANS 4X4(UCS***)	8-94310-917-0	01	1	0509-0603			●
417	PLUG; OIL FILLER,TRANS	8-94310-917-0	01	1	0604-0604	●
417	PLUG; OIL FILLER,TRANS 4X4(UCS***)	8-97365-373-0	01	1	0604-0604			●
417	PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	0605-0606	●
417	PLUG; OIL FILLER,TRANS 4X4(UCS***)	8-97365-373-0	01	1	0605-0606			●
417	PLUG; OIL FILLER,TRANS 4X4(UCS***)	8-97365-373-0	01	1	0607-			●
417	PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	0607-		●
421	COVER; RR,TRANS	8-97373-749-0	01	1	0503-0504	●
421	COVER; RR,TRANS	8-98014-386-0	01	1	0505-0606	●
421	COVER; RR,TRANS	8-98014-386-0	01	1	0607-1202		●
421	COVER; RR,TRANS	8-98191-921-0	01	1	1203-		●
429	PIN; STRAIGHT OD=10 L=40	5-09740-018-1	02	1	0503-0606	●
429	PIN; STRAIGHT OD=10 L=40	5-09740-018-1	02	1	0607-		●
429	PIN; STRAIGHT 4X4(UCS***) OD=10 L=20	8-97135-423-0	02	1	0509-			●
430	PLUG; OIL DRAIN	9-09662-004-0	01	1	0503-0508	●
430	PLUG; OIL DRAIN	9-09662-004-0	01	1	0509-0603	●
430	PLUG; OIL DRAIN 4X4(UCS***)	9-09662-004-0	01	1	0509-0603			●
430	PLUG; OIL DRAIN	9-09662-004-0	01	1	0604-0604	●
430	PLUG; OIL DRAIN 4X4(UCS***)	8-97365-374-0	01	1	0604-0604			●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	0605-0606	●
430	PLUG; OIL DRAIN 4X4(UCS***)	8-97365-374-0	01	1	0605-0606			●
430	PLUG; OIL DRAIN 4X4(UCS***)	8-97365-374-0	01	1	0607-			●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	0607-		●
435	CASE; TRANS	8-97376-846-0	01	1	0503-0604	●
435	CASE; TRANS	8-98047-232-0	01	1	0605-0606	●
435	CASE; TRANS	8-98047-232-0	01	1	0607-1004		●
435	CASE; TRANS	8-98162-753-0	01	1	1005-		●
455	SCREW; BRG RET M8X22	8-97062-754-0	04	1	0503-0604	●
455	SCREW; BRG RET M8X22	8-98035-654-0	04	1	0605-0606	●
455	SCREW; BRG RET M8X22	8-98035-654-0	04	1	0607-		●

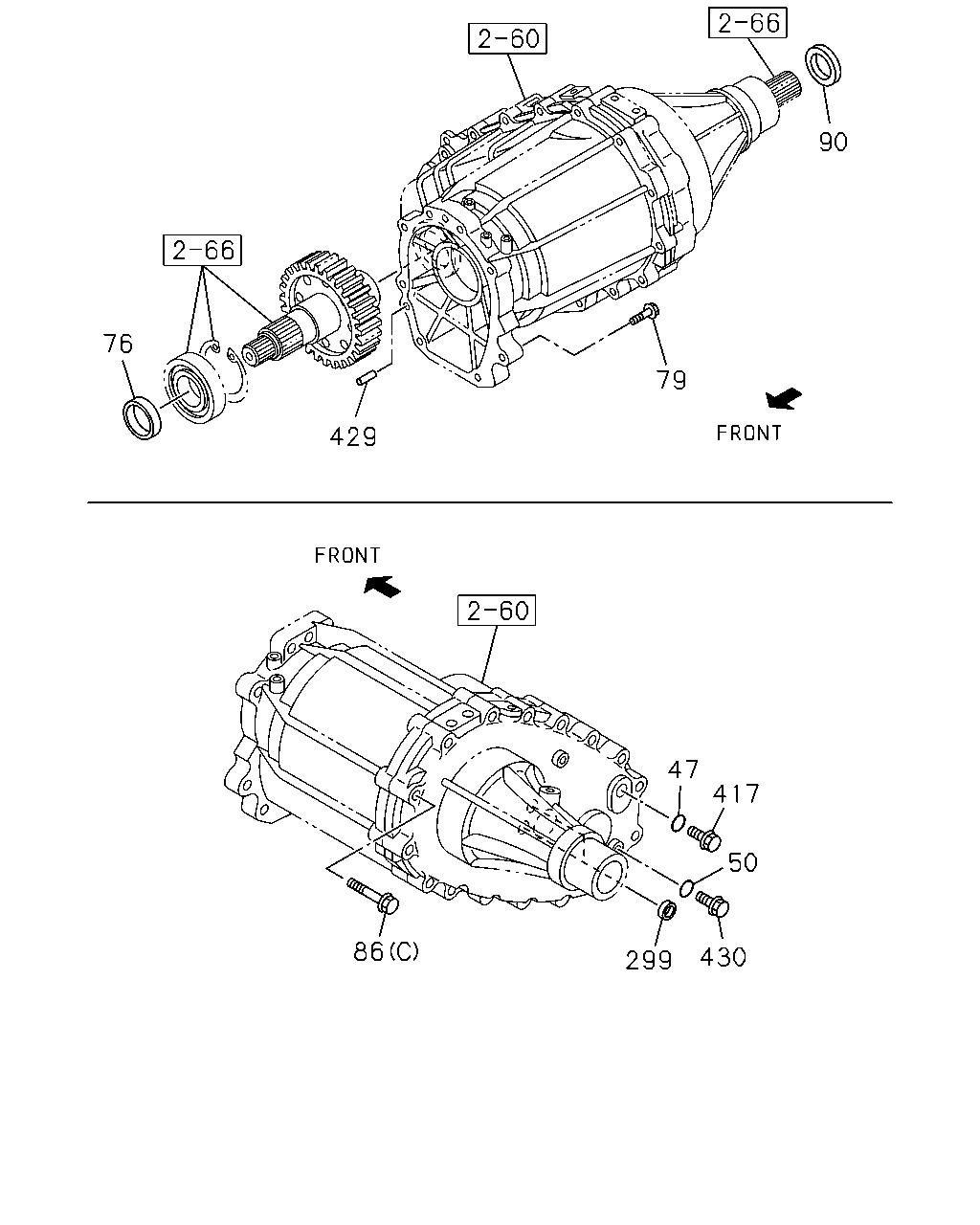

429 76 79 90 47 417 50 430 299 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
47	GASKET; FILLER PLUG,TRANSFER CASE 4X4(UCS***) ID=17	8-97115-712-0	01	1	0509-			●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0503-0508	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	0509-0606	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(UCS***) ID=17	8-97115-712-0	01	1	0509-0606			●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(UCS***). ID=17	8-97115-712-0	01	1	0607-			●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0607-		●
76	SEAL; OIL,TRANSFER CASE 4X4(UCS***) NOK	8-97238-999-0	01	1	0509-			●
79	BOLT; TRANSFER CASE 4X4(UCS***) M10X35 FLANGE	0-28051-035-0	07	1	0509-			●
86	BOLT; RR COVER (A) M10X55 FLANGE	8-94473-959-1	03	1	0503-0604	●
86	BOLT; RR COVER (A) M10X55 FLANGE	8-98035-672-0	03	1	0605-0606	●
86	BOLT; RR COVER (A) M10X55 FLANGE	8-98035-672-0	03	1	0607-		●
86	BOLT; RR COVER (B) M10X18 M10X55 L=86.8	8-97305-468-0	05	1	0503-0606	●
86	BOLT; RR COVER (B) M10X18 M10X55 L=86.8	8-97305-468-0	05	1	0607-		●
86	BOLT; RR COVER 4X4(UCS***) (C) M8X45 FLANGE	0-28080-845-0	16	1	0509-0601			●
86	BOLT; RR COVER 4X4(UCS***) (C) M8X45 FLANGE	0-28050-845-0	16	1	0602-			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-705-3	01	1	0503-0508	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97046-705-3	01	1	0509-0606	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(UCS***) NOK	8-97046-705-3	01	1	0509-0606			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(UCS***). NOK	8-97046-705-3	01	1	0607-			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-705-3	01	1	0607-		●
299	PLUG; SHIFTER ROD 4X4(UCS***) OD=14	5-09609-004-0	02	1	0509-0603			●
299	PLUG; SHIFTER ROD 4X4(UCS***) OD=14	8-97358-601-0	02	1	0604-			●
417	PLUG; OIL FILLER,TRANS	8-94310-917-0	01	1	0503-0508	●
417	PLUG; OIL FILLER,TRANS	8-94310-917-0	01	1	0509-0603	●
417	PLUG; OIL FILLER,TRANS 4X4(UCS***)	8-94310-917-0	01	1	0509-0603			●
417	PLUG; OIL FILLER,TRANS	8-94310-917-0	01	1	0604-0604	●
417	PLUG; OIL FILLER,TRANS 4X4(UCS***)	8-97365-373-0	01	1	0604-0604			●
417	PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	0605-0606	●
417	PLUG; OIL FILLER,TRANS 4X4(UCS***)	8-97365-373-0	01	1	0605-0606			●
417	PLUG; OIL FILLER,TRANS 4X4(UCS***)	8-97365-373-0	01	1	0607-			●
417	PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	0607-		●
429	PIN; STRAIGHT OD=10 L=40	5-09740-018-1	02	1	0503-0606	●
429	PIN; STRAIGHT OD=10 L=40	5-09740-018-1	02	1	0607-		●
429	PIN; STRAIGHT 4X4(UCS***) OD=10 L=20	8-97135-423-0	02	1	0509-			●
430	PLUG; OIL DRAIN	9-09662-004-0	01	1	0503-0508	●
430	PLUG; OIL DRAIN	9-09662-004-0	01	1	0509-0603	●
430	PLUG; OIL DRAIN 4X4(UCS***)	9-09662-004-0	01	1	0509-0603			●
430	PLUG; OIL DRAIN	9-09662-004-0	01	1	0604-0604	●
430	PLUG; OIL DRAIN 4X4(UCS***)	8-97365-374-0	01	1	0604-0604			●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	0605-0606	●
430	PLUG; OIL DRAIN 4X4(UCS***)	8-97365-374-0	01	1	0605-0606			●
430	PLUG; OIL DRAIN 4X4(UCS***)	8-97365-374-0	01	1	0607-			●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	0607-		●
