7-20 — MIRROR AND MIRROR STAY (#7498) — 161 parça

13 133 132 134 13 133 134 132 30 135 134 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	MIRROR ASM; OUTSIDE RR VIEW (A) TAI	8-97535-043-0	01	1	9811-0610	●	●
13	MIRROR ASM; OUTSIDE RR VIEW (B) TAI	1-71737-918-3	01	1	0611-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW (A) TAI	8-97535-044-0	01	1	9811-0610	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW WIDE<WU4> (C) TAI	1-71737-917-3	01	1	0611-	●	●
30	MIRROR; UNDER (A) TAI	8-97535-045-0	01	1	9811-0610	●	●
30	MIRROR; UNDER MIR O/S RR VIEW WIDE<WU4> (A) TAI	1-71798-591-1	01	1	0611-	●	●
30	MIRROR; UNDER (B) TAI	8-97535-046-0	01	1	9811-0610	●	●
30	MIRROR; UNDER MIR O/S RR VIEW WIDE<WU4> (B) TAI	1-71798-592-1	01	1	0611-	●	●
132	RING; MIRROR MIR O/S RR VIEW WIDE<WU4> (B) TAI	1-71737-933-0	01	1	0611-	●	●
132	RING; MIRROR MIR O/S RR VIEW WIDE<WU4> (A) TAI	1-71737-935-0	01	1	0611-	●	●
132	RING; MIRROR (C) TAI	1-71737-934-0	01	1	0611-	●	●
133	LENS; MIRROR,OUTSIDE MIR O/S RR VIEW WIDE<WU4> (B) TAI	1-71737-926-0	01	1	0611-	●	●
133	LENS; MIRROR,OUTSIDE (A) TAI	1-71737-927-0	01	1	0611-	●	●
134	CLIP; MIRROR LENS MIR O/S RR VIEW WIDE<WU4> TAI	1-71737-936-0	02	1	0611-	●	●
134	CLIP; MIRROR LENS TAI	1-71737-936-0	01	1	0611-	●	●
135	LENS; MIRROR,SIDE UNDER MIR O/S RR VIEW WIDE<WU4> TAI	1-71737-929-0	01	1	0611-	●	●

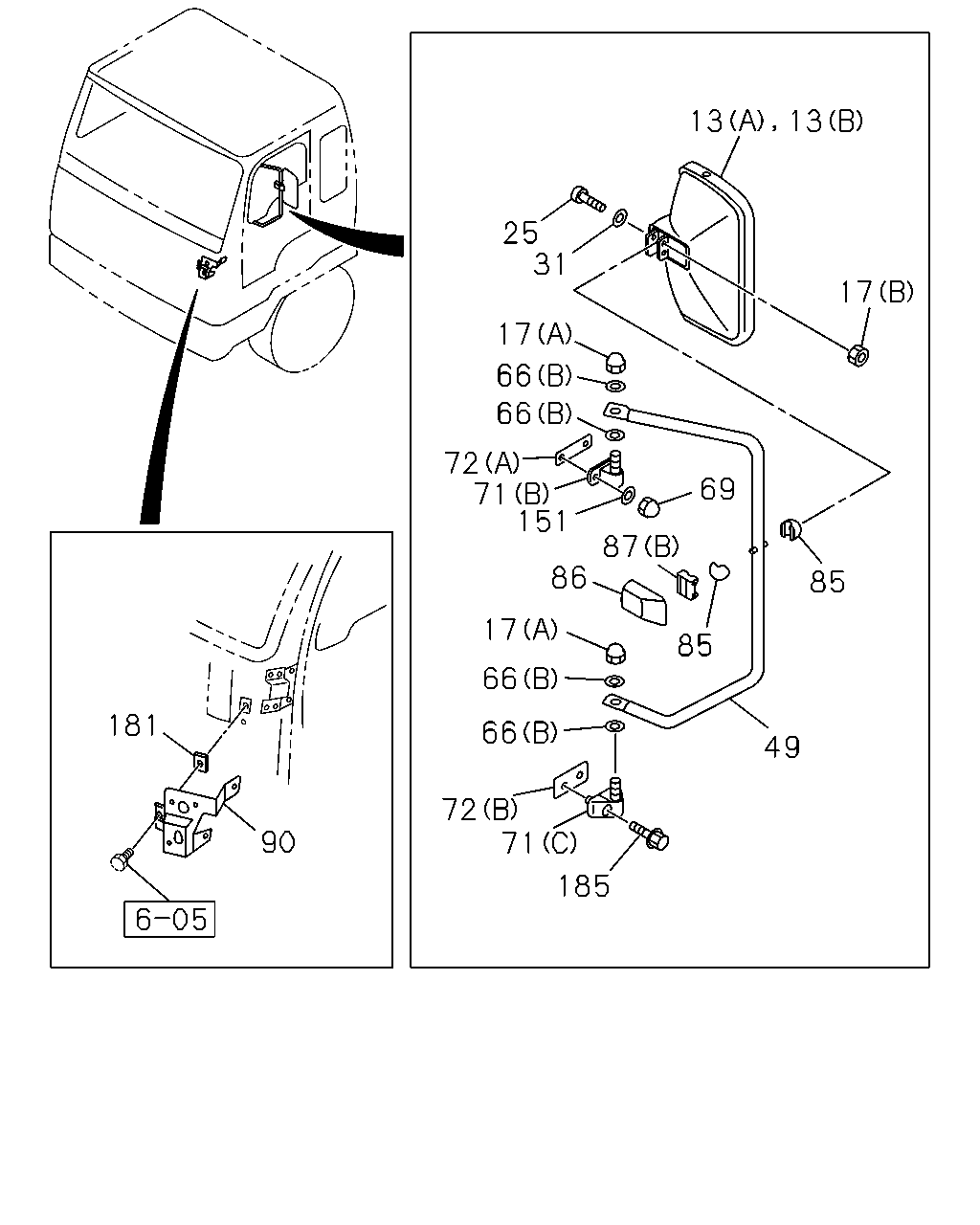

13 13 25 31 17 17 66 66 72 71 151 69 87 86 85 17 85 66 181 66 49 72 71 90 185

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	MIRROR ASM; OUTSIDE RR VIEW (A) TAI	8-97535-043-0	01	1	9811-0610	●	●
13	MIRROR ASM; OUTSIDE RR VIEW (B) TAI	1-71737-918-3	01	1	0611-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW (A) TAI	8-97535-044-0	01	1	9811-0610	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW WIDE<WU4> (C) TAI	1-71737-917-3	01	1	0611-	●	●
17	NUT; CAP,MIRROR STAY (A) M10 TAI	1-09984-134-0	01	1	0611-0611	●
17	NUT; CAP,MIRROR STAY (A) M10 TAI	1-09984-134-0	01	1	0611-	●	●
17	NUT; CAP,MIRROR STAY (A) M10 TAI	1-09984-183-0	05	1	9811-0208	●	●
17	NUT; CAP,MIRROR STAY (A) M10 TAI	1-09984-183-0	01	1	0209-0610	●	●
17	NUT; CAP,MIRROR STAY (B) M5 TAI	1-09984-124-0	02	1	0611-	●	●
17	NUT; CAP,MIRROR STAY (B) TAI	8-97535-069-0	02	1	9811-9906	●	●
17	NUT; CAP,MIRROR STAY (B) TAI	8-97535-069-0	08	1	9907-0610	●	●
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW WIDE<WU4> (B) M5 TAI	1-09984-124-0	06	1	0611-	●	●
17	NUT; CAP,MIRROR STAY (B) TAI	8-97535-069-0	06	1	9811-9906	●	●
17	NUT; CAP,MIRROR STAY (A) M10 TAI	1-09984-134-0	04	1	0209-	●	●
25	SCREW; OUTSIDE MIRROR TAI	8-97535-067-0	02	1	9811-9906	●	●
25	SCREW; OUTSIDE MIRROR TAI	8-97535-067-0	02	1	9811-9906	●	●
25	SCREW; OUTSIDE MIRROR TAI	8-97535-067-0	04	1	9907-0610	●	●
25	SCREW; OUTSIDE MIRROR	1-09981-541-0	02	1	0611-	●	●
25	SCREW; OUTSIDE MIRROR MIR O/S RR VIEW WIDE<WU4>	1-09981-541-0	02	1	0611-	●	●
31	PLATE; MIRROR TAI	8-97535-119-0	02	1	9901-9906	●	●
31	PLATE; MIRROR TAI	8-97535-119-0	08	1	9907-0610	●	●
31	PLATE; MIRROR TAI	8-97535-119-0	06	1	9901-9906	●	●
49	STAY; MIRROR SIDE TAI	8-97535-048-0	01	1	9811-9906	●
49	STAY; MIRROR SIDE TAI	8-97535-048-1	01	1	9907-0610	●	●
49	STAY; MIRROR SIDE MIR O/S RR VIEW WIDE<WU4> TAI	1-71798-762-2	01	1	0611-	●	●
49	STAY; MIRROR SIDE TAI	8-97535-047-0	01	1	9811-0610	●	●
49	STAY; MIRROR SIDE TAI	1-71798-491-3	01	1	0611-	●	●
49	STAY; MIRROR SIDE TAI	8-97535-049-0	01	1	9811-9906		●
66	WASHER; PL (B) ID=10.5 OD=26 T=2.6 TAI	1-09985-184-0	02	1	0611-0611	●
66	WASHER; PL (B) ID=10.5 OD=26 T=2.6 TAI	1-09985-184-0	02	1	0611-	●	●
66	WASHER; PL (B) ID=10.5 OD=26 T=2.6 TAI	1-09985-184-0	10	1	9811-0610	●	●
66	WASHER; PL (B) ID=10.5 OD=26 T=2.6 TAI	1-09985-184-0	08	1	0611-	●	●
66	WASHER; PL (A) ID=8.4 OD=16.0 T=1.6 TAI	1-09985-191-0	02	1	9811-	●	●
69	NUT; CAP M8 TAI	1-09984-187-0	02	1	9811-	●	●
71	BRACKET; OUTSIDE MIRROR (B)	1-71798-484-1	01	1	9811-	●	●
71	BRACKET; OUTSIDE MIRROR (C)	1-71798-486-2	01	1	9811-	●	●
71	BRACKET; OUTSIDE MIRROR (A)	1-71798-580-3	01	1	9811-	●	●
72	SHEET (A)	1-71798-487-3	01	1	9811-	●	●
72	SHEET (B)	1-71798-488-1	01	1	9811-	●	●
85	PIVOT; MAIN MIRROR MIR O/S RR VIEW WIDE<WU4> ID=22.2 TAI	1-71736-489-2	02	1	0611-	●	●
85	PIVOT; MAIN MIRROR TAI	8-97535-066-0	02	1	9811-9906	●	●
85	PIVOT; MAIN MIRROR TAI	8-97535-066-0	02	1	9811-9906	●	●
85	PIVOT; MAIN MIRROR TAI	8-97535-066-0	04	1	9907-0610	●	●
85	PIVOT; MAIN MIRROR ID=19.1 TAI	1-71737-633-2	02	1	0611-	●	●
86	COVER; STAY,OUTSIDE MIRROR TAI	8-97535-052-0	01	1	9811-9906	●	●
86	COVER; STAY,OUTSIDE MIRROR TAI	8-97535-052-0	01	1	9811-9906	●	●
86	COVER; STAY,OUTSIDE MIRROR TAI	8-97535-052-0	02	1	9907-0610	●	●
86	COVER; STAY,OUTSIDE MIRROR BLACK TAI	1-71737-760-1	01	1	0611-	●	●
86	COVER; STAY,OUTSIDE MIRROR MIR O/S RR VIEW WIDE<WU4> BLACK TAI	1-71737-760-1	01	1	0611-	●	●
87	SPACER (B) TAI	8-97535-051-0	01	1	9811-9906	●	●
87	SPACER (B) TAI	8-97535-051-0	01	1	9811-9906	●	●
87	SPACER (B) TAI	8-97535-051-0	02	1	9907-0610	●	●
87	SPACER MIR O/S RR VIEW WIDE<WU4> (B) TAI	1-71737-646-2	02	1	0611-	●	●
87	SPACER (A) TAI	8-97535-050-0	02	1	9811-0610	●	●
87	SPACER (A) TAI	1-71737-704-0	01	1	0611-	●	●
87	SPACER MIR O/S RR VIEW WIDE<WU4> (A) TAI	1-71737-704-0	01	1	0611-	●	●
90	BRACKET; MIRROR STAY	1-71798-229-4	01	1	9811-9903	●	●
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	9904-	●	●
90	BRACKET; MIRROR STAY	1-71798-228-4	01	1	9811-9903	●	●
90	BRACKET; MIRROR STAY	1-71798-828-1	01	1	9904-	●	●
151	WASHER; PL,MIRROR ID=8.4 OD=16.0 T=1.6 TAI	1-09985-191-0	02	1	9811-	●	●
181	SEAL; BRKT 25X25 TAI	8-94272-533-0	02	1	9902-	●	●
185	BOLT; BRKT M8X35 FLANGE	0-28690-835-0	02	1	9811-0512	●	●
185	BOLT; BRKT M8X35 FLANGE	0-28660-835-0	02	1	0601-0605	●	●
185	BOLT; BRKT M8X35 FLANGE	8-98046-876-0	02	1	0606-	●	●

2 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	MIRROR; ROOM TAI	1-73117-033-1	01	1	0611-	●
1	MIRROR; ROOM TAI	8-97535-038-0	01	1	9811-0610	●	●
1	MIRROR; ROOM TAI	8-97535-038-0	01	1	0611-		●
2	SCREW; MIRROR TO BODY M6X25 TAI	1-09981-441-0	02	1	9811-9906	●	●
2	SCREW; MIRROR TO BODY M6X20 TAI	1-09981-310-0	02	1	9907-	●	●

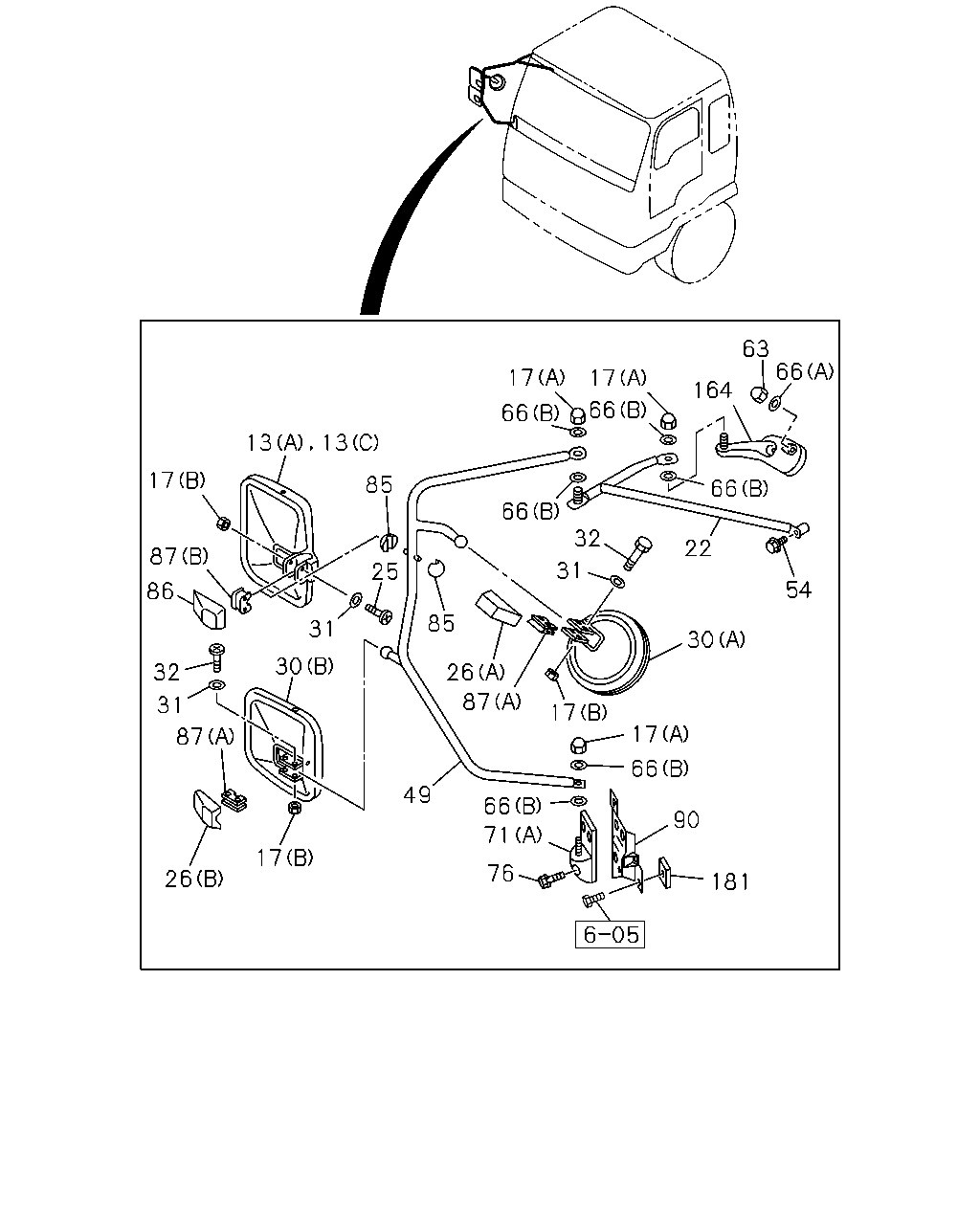

63 66 17 17 164 66 66 13 13 17 85 66 66 32 22 87 31 25 54 86 85 31 30 30 32 26 87 31 17 17 87 66 49 66 90 71 17 76 26 181

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	MIRROR ASM; OUTSIDE RR VIEW (A) TAI	8-97535-043-0	01	1	9811-0610	●	●
13	MIRROR ASM; OUTSIDE RR VIEW (B) TAI	1-71737-918-3	01	1	0611-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW (A) TAI	8-97535-044-0	01	1	9811-0610	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW WIDE<WU4> (C) TAI	1-71737-917-3	01	1	0611-	●	●
17	NUT; CAP,MIRROR STAY (A) M10 TAI	1-09984-134-0	01	1	0611-0611	●
17	NUT; CAP,MIRROR STAY (A) M10 TAI	1-09984-134-0	01	1	0611-	●	●
17	NUT; CAP,MIRROR STAY (A) M10 TAI	1-09984-183-0	05	1	9811-0208	●	●
17	NUT; CAP,MIRROR STAY (A) M10 TAI	1-09984-183-0	01	1	0209-0610	●	●
17	NUT; CAP,MIRROR STAY (B) M5 TAI	1-09984-124-0	02	1	0611-	●	●
17	NUT; CAP,MIRROR STAY (B) TAI	8-97535-069-0	02	1	9811-9906	●	●
17	NUT; CAP,MIRROR STAY (B) TAI	8-97535-069-0	08	1	9907-0610	●	●
17	NUT; CAP,MIRROR STAY MIR O/S RR VIEW WIDE<WU4> (B) M5 TAI	1-09984-124-0	06	1	0611-	●	●
17	NUT; CAP,MIRROR STAY (B) TAI	8-97535-069-0	06	1	9811-9906	●	●
17	NUT; CAP,MIRROR STAY (A) M10 TAI	1-09984-134-0	04	1	0209-	●	●
22	STAY; OUTSIDE MIRROR TAI	8-97535-055-0	01	1	9811-0610	●	●
22	STAY; OUTSIDE MIRROR TAI	1-71798-582-4	01	1	0611-	●	●
25	SCREW; OUTSIDE MIRROR TAI	8-97535-067-0	02	1	9811-9906	●	●
25	SCREW; OUTSIDE MIRROR TAI	8-97535-067-0	02	1	9811-9906	●	●
25	SCREW; OUTSIDE MIRROR TAI	8-97535-067-0	04	1	9907-0610	●	●
25	SCREW; OUTSIDE MIRROR	1-09981-541-0	02	1	0611-	●	●
25	SCREW; OUTSIDE MIRROR MIR O/S RR VIEW WIDE<WU4>	1-09981-541-0	02	1	0611-	●	●
26	COVER; OUTSIDE MIRROR (A) TAI	8-97535-053-0	01	1	9811-0610	●	●
26	COVER; OUTSIDE MIRROR MIR O/S RR VIEW WIDE<WU4> (A) BLACK TAI	1-71737-649-1	01	1	0611-	●	●
26	COVER; OUTSIDE MIRROR (B) TAI	8-97535-054-0	01	1	9811-0610	●	●
26	COVER; OUTSIDE MIRROR MIR O/S RR VIEW WIDE<WU4> (B) BLACK TAI	1-71737-652-1	01	1	0611-	●	●
30	MIRROR; UNDER (A) TAI	8-97535-045-0	01	1	9811-0610	●	●
30	MIRROR; UNDER MIR O/S RR VIEW WIDE<WU4> (A) TAI	1-71798-591-1	01	1	0611-	●	●
30	MIRROR; UNDER (B) TAI	8-97535-046-0	01	1	9811-0610	●	●
30	MIRROR; UNDER MIR O/S RR VIEW WIDE<WU4> (B) TAI	1-71798-592-1	01	1	0611-	●	●
31	PLATE; MIRROR TAI	8-97535-119-0	02	1	9901-9906	●	●
31	PLATE; MIRROR TAI	8-97535-119-0	08	1	9907-0610	●	●
31	PLATE; MIRROR TAI	8-97535-119-0	06	1	9901-9906	●	●
32	SCREW; UNDER MIRROR TAI	8-97535-068-0	04	1	9811-0610	●	●
32	SCREW; UNDER MIRROR MIR O/S RR VIEW WIDE<WU4> M5X40 W/PL WASHER TAI	1-71737-797-0	04	1	0611-	●	●
49	STAY; MIRROR SIDE TAI	8-97535-048-0	01	1	9811-9906	●
49	STAY; MIRROR SIDE TAI	8-97535-048-1	01	1	9907-0610	●	●
49	STAY; MIRROR SIDE MIR O/S RR VIEW WIDE<WU4> TAI	1-71798-762-2	01	1	0611-	●	●
49	STAY; MIRROR SIDE TAI	8-97535-047-0	01	1	9811-0610	●	●
49	STAY; MIRROR SIDE TAI	1-71798-491-3	01	1	0611-	●	●
49	STAY; MIRROR SIDE TAI	8-97535-049-0	01	1	9811-9906		●
54	BOLT; STAY M6X40 LK&PL WASHER	8-94279-215-0	02	1	9811-	●	●
63	NUT; STAY M8 TAI	1-09984-187-0	02	1	9811-	●	●
63	NUT; STAY M8	1-71707-105-0	02	1	0004-0005	●	●
66	WASHER; PL (B) ID=10.5 OD=26 T=2.6 TAI	1-09985-184-0	02	1	0611-0611	●
66	WASHER; PL (B) ID=10.5 OD=26 T=2.6 TAI	1-09985-184-0	02	1	0611-	●	●
66	WASHER; PL (B) ID=10.5 OD=26 T=2.6 TAI	1-09985-184-0	10	1	9811-0610	●	●
66	WASHER; PL (B) ID=10.5 OD=26 T=2.6 TAI	1-09985-184-0	08	1	0611-	●	●
66	WASHER; PL (A) ID=8.4 OD=16.0 T=1.6 TAI	1-09985-191-0	02	1	9811-	●	●
71	BRACKET; OUTSIDE MIRROR (B)	1-71798-484-1	01	1	9811-	●	●
71	BRACKET; OUTSIDE MIRROR (C)	1-71798-486-2	01	1	9811-	●	●
71	BRACKET; OUTSIDE MIRROR (A)	1-71798-580-3	01	1	9811-	●	●
76	BOLT; STAY BRKT M8X30 W/LK WASHER	8-94279-183-1	03	1	9811-	●	●
85	PIVOT; MAIN MIRROR MIR O/S RR VIEW WIDE<WU4> ID=22.2 TAI	1-71736-489-2	02	1	0611-	●	●
85	PIVOT; MAIN MIRROR TAI	8-97535-066-0	02	1	9811-9906	●	●
85	PIVOT; MAIN MIRROR TAI	8-97535-066-0	02	1	9811-9906	●	●
85	PIVOT; MAIN MIRROR TAI	8-97535-066-0	04	1	9907-0610	●	●
85	PIVOT; MAIN MIRROR ID=19.1 TAI	1-71737-633-2	02	1	0611-	●	●
86	COVER; STAY,OUTSIDE MIRROR TAI	8-97535-052-0	01	1	9811-9906	●	●
86	COVER; STAY,OUTSIDE MIRROR TAI	8-97535-052-0	01	1	9811-9906	●	●
86	COVER; STAY,OUTSIDE MIRROR TAI	8-97535-052-0	02	1	9907-0610	●	●
86	COVER; STAY,OUTSIDE MIRROR BLACK TAI	1-71737-760-1	01	1	0611-	●	●
86	COVER; STAY,OUTSIDE MIRROR MIR O/S RR VIEW WIDE<WU4> BLACK TAI	1-71737-760-1	01	1	0611-	●	●
87	SPACER (B) TAI	8-97535-051-0	01	1	9811-9906	●	●
87	SPACER (B) TAI	8-97535-051-0	01	1	9811-9906	●	●
87	SPACER (B) TAI	8-97535-051-0	02	1	9907-0610	●	●
87	SPACER MIR O/S RR VIEW WIDE<WU4> (B) TAI	1-71737-646-2	02	1	0611-	●	●
87	SPACER (A) TAI	8-97535-050-0	02	1	9811-0610	●	●
87	SPACER (A) TAI	1-71737-704-0	01	1	0611-	●	●
87	SPACER MIR O/S RR VIEW WIDE<WU4> (A) TAI	1-71737-704-0	01	1	0611-	●	●
90	BRACKET; MIRROR STAY	1-71798-229-4	01	1	9811-9903	●	●
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	9904-	●	●
90	BRACKET; MIRROR STAY	1-71798-228-4	01	1	9811-9903	●	●
90	BRACKET; MIRROR STAY	1-71798-828-1	01	1	9904-	●	●
164	STAY; ROOF TAI	1-71798-300-5	01	1	9811-	●	●
181	SEAL; BRKT 25X25 TAI	8-94272-533-0	02	1	9902-	●	●
