◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51032 - UCR/UCS-LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-06 - CLUTCH SLAVE CYLINDER ▶
2-06 — CLUTCH SLAVE CYLINDER (#74979) — 12 parça

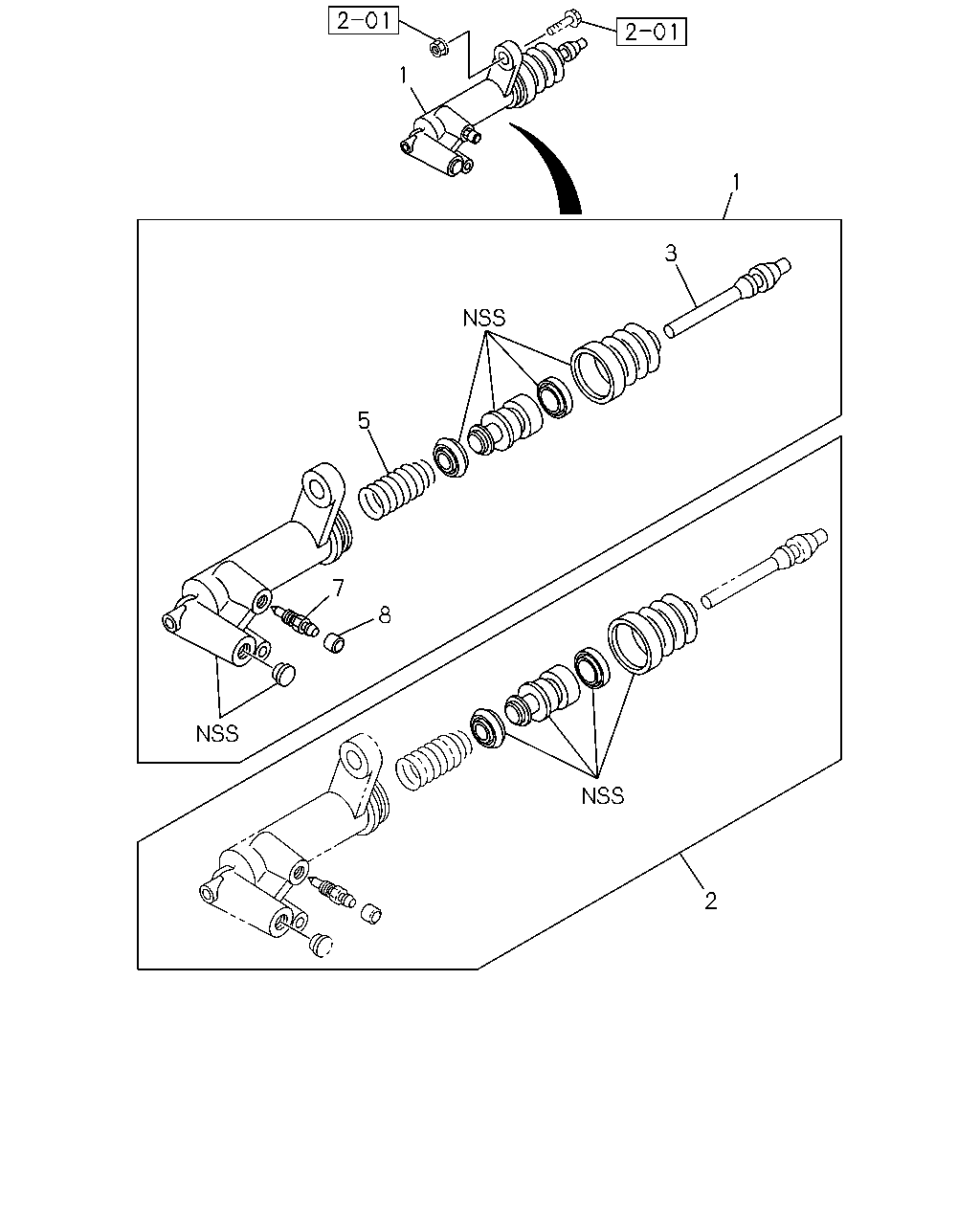

çizim 118537
1 1 3 5 7 8 2
BalonParca AdiParca NoAdetTipApplied Date
1 CYLINDER; SLAVE,CLU
M/T MUA 5 SPEED 5G(RSP) 		8-97941-515-0 01 1 0503-0606
1 CYLINDER; SLAVE,CLU
M/T MUA 5 SPEED 5H(MWQ) 		8-97945-177-0 01 1 0607-
2 REPAIR KIT; CLU SLAVE CYL
M/T MUA 5 SPEED 5G(RSP) 		5-87832-048-0 01 1 0503-0606
2 REPAIR KIT; CLU SLAVE CYL
M/T MUA 5 SPEED 5H(MWQ) 		5-87832-048-0 01 1 0607-
3 ROD; PUSH,SLAVE CYL
M/T MUA 5 SPEED 5G(RSP) 		8-97942-803-0 01 1 0503-0606
3 ROD; PUSH,SLAVE CYL
M/T MUA 5 SPEED 5H(MWQ) 		8-97945-722-0 01 1 0607-
5 SPRING ASM; PISTON,SLAVE CYL
M/T MUA 5 SPEED 5G(RSP) 		8-97942-801-0 01 1 0503-0606
5 SPRING ASM; PISTON,SLAVE CYL
M/T MUA 5 SPEED 5H(MWQ) 		8-97942-801-0 01 1 0607-
7 SCREW; BLEEDER,SLAVE CYL
M/T MUA 5 SPEED 5G(RSP) M8X16.5 		8-94115-113-0 01 1 0503-0606
7 SCREW; BLEEDER,SLAVE CYL
M/T MUA 5 SPEED 5H(MWQ) M8X10 		8-98020-477-0 01 1 0607-
8 CAP; BLEEDER,SLAVE CYL
M/T MUA 5 SPEED 5G(RSP) OD=10 		8-97940-638-0 01 1 0503-0606
8 CAP; BLEEDER,SLAVE CYL
M/T MUA 5 SPEED 5H(MWQ) OD=10 		8-97940-638-0 01 1 0607-
