2-05 — CLUTCH PIPING (#74978) — 21 parça

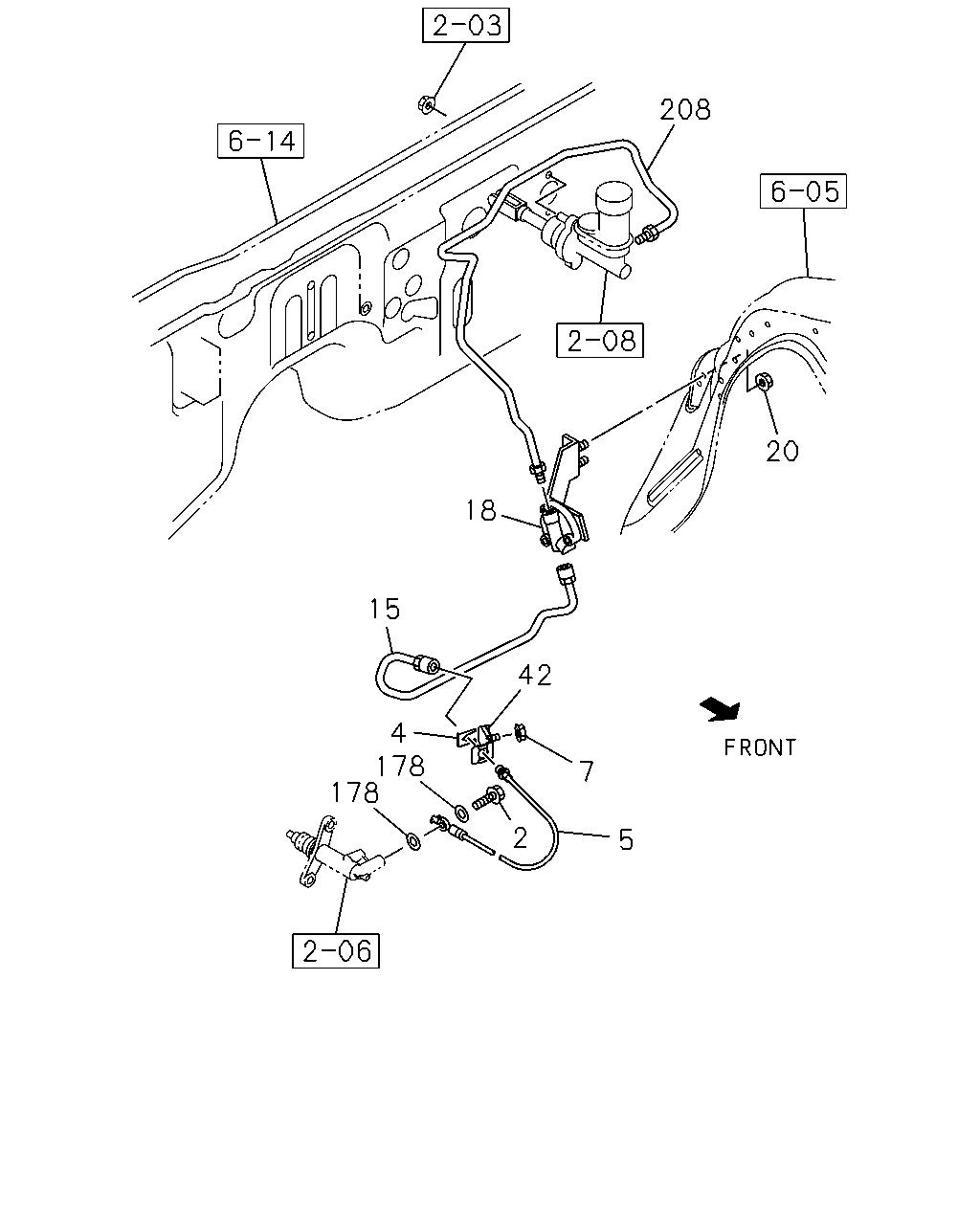

çizim 118536
208 20 18 15 42 4 178 178 7 2 5
BalonParca AdiParca NoAdetTipApplied Date
2 BOLT; EYE,SLAVE CYL
M/T MUA 5 SPEED 5G(RSP) M10X22 		5-09675-017-0 01 1 0503-0606
2 BOLT; EYE,SLAVE CYL
M/T MUA 5 SPEED 5H(MWQ) M10X22 		8-97359-818-0 01 1 0607-
4 CLIP; FLEX HOSE,CLU CONT
M/T MUA 5 SPEED 5G(RSP) 		8-94436-216-0 01 1 0503-0606
4 CLIP; FLEX HOSE,CLU CONT
M/T MUA 5 SPEED 5H(MWQ) 		8-94436-216-0 01 1 0607-0705
4 CLIP; FLEX HOSE,CLU CONT
M/T MUA 5 SPEED 5H(MWQ) 		8-97946-552-0 01 1 0706-
5 HOSE; FLEX,CLU PIPE
M/T MUA 5 SPEED 5G(RSP) 		8-97943-683-0 01 1 0503-0606
5 HOSE; FLEX,CLU PIPE
M/T MUA 5 SPEED 5H(MWQ) 		8-97945-178-0 01 1 0607-
7 NUT; FLEX HOSE,CLU CONT
M/T MUA 5 SPEED 5G(RSP) M8 FLANGE 		0-91180-108-0 01 1 0503-0606
7 NUT; FLEX HOSE,CLU CONT
M/T MUA 5 SPEED 5H(MWQ) M8 FLANGE 		0-91180-108-0 01 1 0607-
15 PIPE; CLU,FLEX HOSE
M/T MUA 5 SPEED 5G(RSP) 		8-97383-293-0 01 1 0503-0606
15 PIPE; CLU,FLEX HOSE
M/T MUA 5 SPEED 5H(MWQ) 		8-97944-808-0 01 1 0607-
18 DAMPER ASM; CLU OIL
M/T MUA 5 SPEED 5G(RSP) 		8-97943-172-0 01 1 0503-0606
18 DAMPER ASM; CLU OIL
M/T MUA 5 SPEED 5H(MWQ) 		8-97945-175-0 01 1 0607-
20 NUT; CLU OIL DAMPER
M/T MUA 5 SPEED 5G(RSP) M6 FLANGE 		0-91180-106-0 02 1 0503-0606
20 NUT; CLU OIL DAMPER
M/T MUA 5 SPEED 5H(MWQ) M6 FLANGE 		0-91180-106-0 02 1 0607-
42 BRACKET; FLEX HOSE,CLU CONT
M/T MUA 5 SPEED 5G(RSP) 		8-97943-835-0 01 1 0503-0606
42 BRACKET; FLEX HOSE,CLU CONT
M/T MUA 5 SPEED 5H(MWQ) 		8-97943-835-0 01 1 0607-
178 GASKET; FLEX HOSE TO M/CYL
M/T MUA 5 SPEED 5G(RSP) ID=10.2 OD=16.0 		9-09571-410-0 02 1 0503-0606
178 GASKET; FLEX HOSE TO M/CYL
M/T MUA 5 SPEED 5H(MWQ) ID=10.2 OD=16.0 		9-09571-410-0 02 1 0607-
208 PIPE; OIL,M/CYL TO DAMPER CYL
M/T MUA 5 SPEED 5G(RSP) 		8-97384-154-0 01 1 0503-0606
208 PIPE; OIL,M/CYL TO DAMPER CYL
M/T MUA 5 SPEED 5H(MWQ) 		8-97944-800-1 01 1 0607-
