2-03 — CLUTCH PEDAL AND CONTROL (#74977) — 35 parça

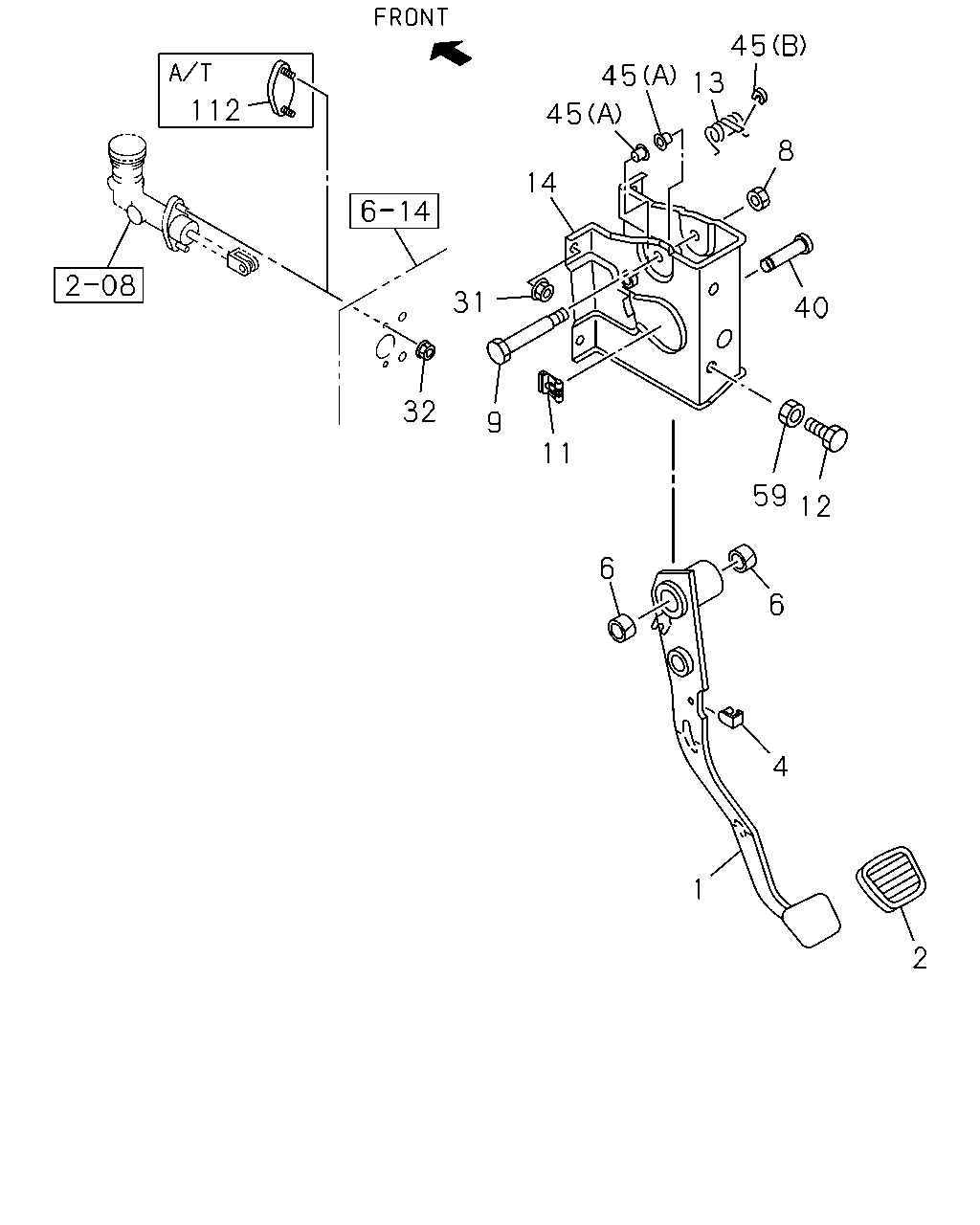

çizim 118535
45 45 13 112 45 8 14 31 40 32 9 11 59 12 6 6 4 1 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 PEDAL; CLU
M/T MUA 5 SPEED 5G(RSP) 		8-97943-104-0 01 1 0503-0606 ●
1 PEDAL; CLU
M/T MUA 5 SPEED 5H(MWQ) 		8-97943-104-0 01 1 0607- ●
2 COVER; CLU PEDAL
M/T MUA 5 SPEED 5G(RSP) 		8-97318-799-0 01 1 0503-0606 ●
2 COVER; CLU PEDAL
M/T MUA 5 SPEED 5H(MWQ) 		8-97318-799-0 01 1 0607- ●
4 STOPPER; CLU PEDAL
M/T MUA 5 SPEED 5G(RSP) 		8-94463-258-0 01 1 0503-0606 ●
4 STOPPER; CLU PEDAL
M/T MUA 5 SPEED 5H(MWQ) 		8-94463-258-0 01 1 0607- ●
6 BUSHING; CLU PEDAL
M/T MUA 5 SPEED 5G(RSP) 		8-97301-688-0 02 1 0503-0606 ●
6 BUSHING; CLU PEDAL
M/T MUA 5 SPEED 5H(MWQ) 		8-97301-688-0 02 1 0607-1008 ●
8 NUT; PIN TO PEDAL
M/T MUA 5 SPEED 5G(RSP) M10 LOCK NUT FLANGE 		0-91303-610-0 01 1 0503-0606 ●
8 NUT; PIN TO PEDAL
M/T MUA 5 SPEED 5H(MWQ) M10 LOCK NUT FLANGE 		0-91380-010-0 01 1 0607- ●
9 PIN; CLU PEDAL
M/T MUA 5 SPEED 5G(RSP) 		8-97942-315-0 01 1 0503-0606 ●
9 PIN; CLU PEDAL
M/T MUA 5 SPEED 5H(MWQ) 		8-97942-315-0 01 1 0607- ●
11 PIN; SNAP,PUSH ROD TO PEDAL
M/T MUA 5 SPEED 5G(RSP) 		8-97311-594-0 01 1 0503-0606 ●
11 PIN; SNAP,PUSH ROD TO PEDAL
M/T MUA 5 SPEED 5H(MWQ) 		8-98007-161-0 01 1 0607- ●
12 BOLT; CLU PEDAL ADJ
M/T MUA 5 SPEED 5G(RSP) M10X35 		0-20851-035-0 01 1 0503-0606 ●
12 BOLT; CLU PEDAL ADJ
M/T MUA 5 SPEED 5H(MWQ) M10X35 FLANGE 		0-28651-035-0 01 1 0607- ●
13 SPRING; ASSIST,CLU PEDAL
M/T MUA 5 SPEED 5G(RSP) 		8-97942-312-0 01 1 0503-0606 ●
13 SPRING; ASSIST,CLU PEDAL
M/T MUA 5 SPEED 5H(MWQ) 		8-97942-312-0 01 1 0607- ●
14 BRACKET ASM; CLU PEDAL MTG
M/T MUA 5 SPEED 5G(RSP) 		8-97943-426-0 01 1 0503-0606 ●
14 BRACKET ASM; CLU PEDAL MTG
M/T MUA 5 SPEED 5H(MWQ) 		8-97943-426-0 01 1 0607- ●
31 NUT; MTG BRKT TO BODY
M/T MUA 5 SPEED 5G(RSP) M8 FLANGE 		0-91180-108-0 04 1 0503-0606 ●
31 NUT; MTG BRKT TO BODY
M/T MUA 5 SPEED 5H(MWQ) M8 FLANGE 		0-91180-108-0 04 1 0607- ●
32 NUT; BRKT TO CLU M/CYL
M8 FLANGE 		0-91180-108-0 02 1 0503-0508 ●
32 NUT; BRKT TO CLU M/CYL
M8 FLANGE 		0-91180-108-0 02 1 0509- ● ●
40 PIN; JOINT,CLU DAMPER
M/T MUA 5 SPEED 5G(RSP) OD=7.9 L=27.5 		8-97312-338-0 01 1 0503-0606 ●
40 PIN; JOINT,CLU DAMPER
M/T MUA 5 SPEED 5H(MWQ) OD=7.9 L=27.5 		8-97312-338-0 01 1 0607- ●
45 BUSHING; ASSIST SPRING,CLU PEDAL
M/T MUA 5 SPEED 5G(RSP) (A) 		8-97942-313-0 02 1 0503-0606 ●
45 BUSHING; ASSIST SPRING,CLU PEDAL
M/T MUA 5 SPEED 5H(MWQ) (A) 		8-97942-313-0 02 1 0607- ●
45 BUSHING; ASSIST SPRING,CLU PEDAL
M/T MUA 5 SPEED 5G(RSP) (B) 		8-97942-314-0 01 1 0503-0606 ●
45 BUSHING; ASSIST SPRING,CLU PEDAL
M/T MUA 5 SPEED 5H(MWQ) (B) 		8-97942-314-0 01 1 0607- ●
59 NUT; CLU PEDAL ADJ
M/T MUA 5 SPEED 5G(RSP) M10 		0-91110-510-0 01 1 0503-0606 ●
59 NUT; CLU PEDAL ADJ
M/T MUA 5 SPEED 5H(MWQ) M10 		0-91110-510-0 01 1 0607- ●
112 PLUG; METAL,M/CYL
A/T 4 SPEED-JATCO(RMK) 		8-97911-271-1 01 1 0503-0508 ●
112 PLUG; METAL,M/CYL
A/T 4 SPEED-JATCO(RMK) 		8-97911-271-1 01 1 0509-0606 ● ●
112 PLUG; METAL,M/CYL
A/T 4 SPEED-JATCO(RMK) 		8-97945-168-0 01 1 0607- ● ●
