Isuzu WW
▶
SUV
▶
UCR
▶
51032 - UCR/UCS-LHD
▶
2 - Clutch, Transmission, Trans Axle
▶
2-01 - CLUTCH
▶

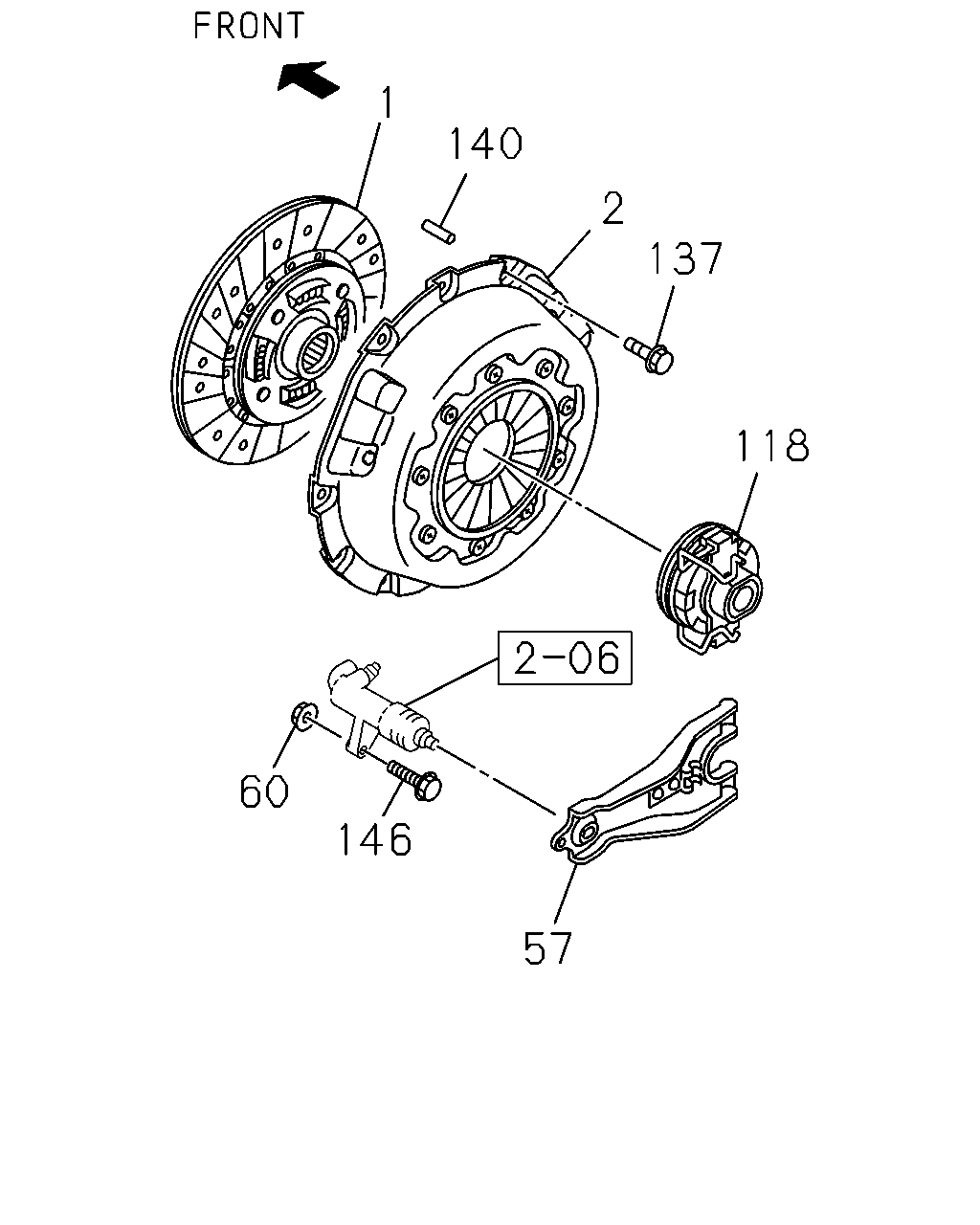

2-01 — CLUTCH
(#74976) — 17 parça
1
140
2
137
118
60
146
57
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DISC; CLUTCH
M/T MUA 5 SPEED 5G(RSP)
8-97944-277-0
01
1
0503-0606
1
DISC; CLUTCH
M/T MUA 5 SPEED 5H(MWQ)
8-97945-679-0
01
1
0607-0809
1
DISC; CLUTCH
M/T MUA 5 SPEED 5H(MWQ)
8-97947-166-0
01
1
0810-
2
PLATE ASM; PRESSURE,CLU
M/T MUA 5 SPEED 5G(RSP)
8-97941-522-0
01
1
0503-0606
2
PLATE ASM; PRESSURE,CLU
M/T MUA 5 SPEED 5H(MWQ)
8-97941-522-0
01
1
0607-
57
FORK; SHIFT,CLU
M/T MUA 5 SPEED 5G(RSP)
8-97365-654-0
01
1
0503-0606
57
FORK; SHIFT,CLU
M/T MUA 5 SPEED 5H(MWQ)
8-97365-654-0
01
1
0607-
60
NUT; SLAVE CYL
M/T MUA 5 SPEED 5G(RSP) M12 FLANGE
0-91180-112-0
01
1
0503-0606
60
NUT; SLAVE CYL
M/T MUA 5 SPEED 5H(MWQ) M12 FLANGE
0-91180-112-0
01
1
0607-
118
BEARING; CLU RELEASE
M/T MUA 5 SPEED 5G(RSP) NSK
8-97316-591-0
01
1
0503-0606
118
BEARING; CLU RELEASE
M/T MUA 5 SPEED 5H(MWQ) NSK
8-97316-591-0
01
1
0607-
137
BOLT; CLU COVER
M/T MUA 5 SPEED 5G(RSP) M8X16 FLANGE
0-28050-816-0
06
1
0503-0606
137
BOLT; CLU COVER
M/T MUA 5 SPEED 5H(MWQ) M8X16 FLANGE
0-28050-816-0
06
1
0607-
140
PIN; STRAIGHT
M/T MUA 5 SPEED 5G(RSP) OD=6 L=24
8-97920-965-0
02
1
0503-0606
140
PIN; STRAIGHT
M/T MUA 5 SPEED 5H(MWQ) OD=6 L=27
8-97945-592-0
02
1
0607-
146
BOLT; SLAVE CYL TO TRANS CASE
M/T MUA 5 SPEED 5G(RSP) M12X90 FLANGE
0-28051-290-0
02
1
0503-0606
146
BOLT; SLAVE CYL TO TRANS CASE
M/T MUA 5 SPEED 5H(MWQ) M12X90 FLANGE
0-28051-290-0
02
1
0607-
