Isuzu WW
▶
SUV
▶
UCR
▶
51032 - UCR/UCS-LHD
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-50 - EXHAUST PIPE AND SILENCER
▶

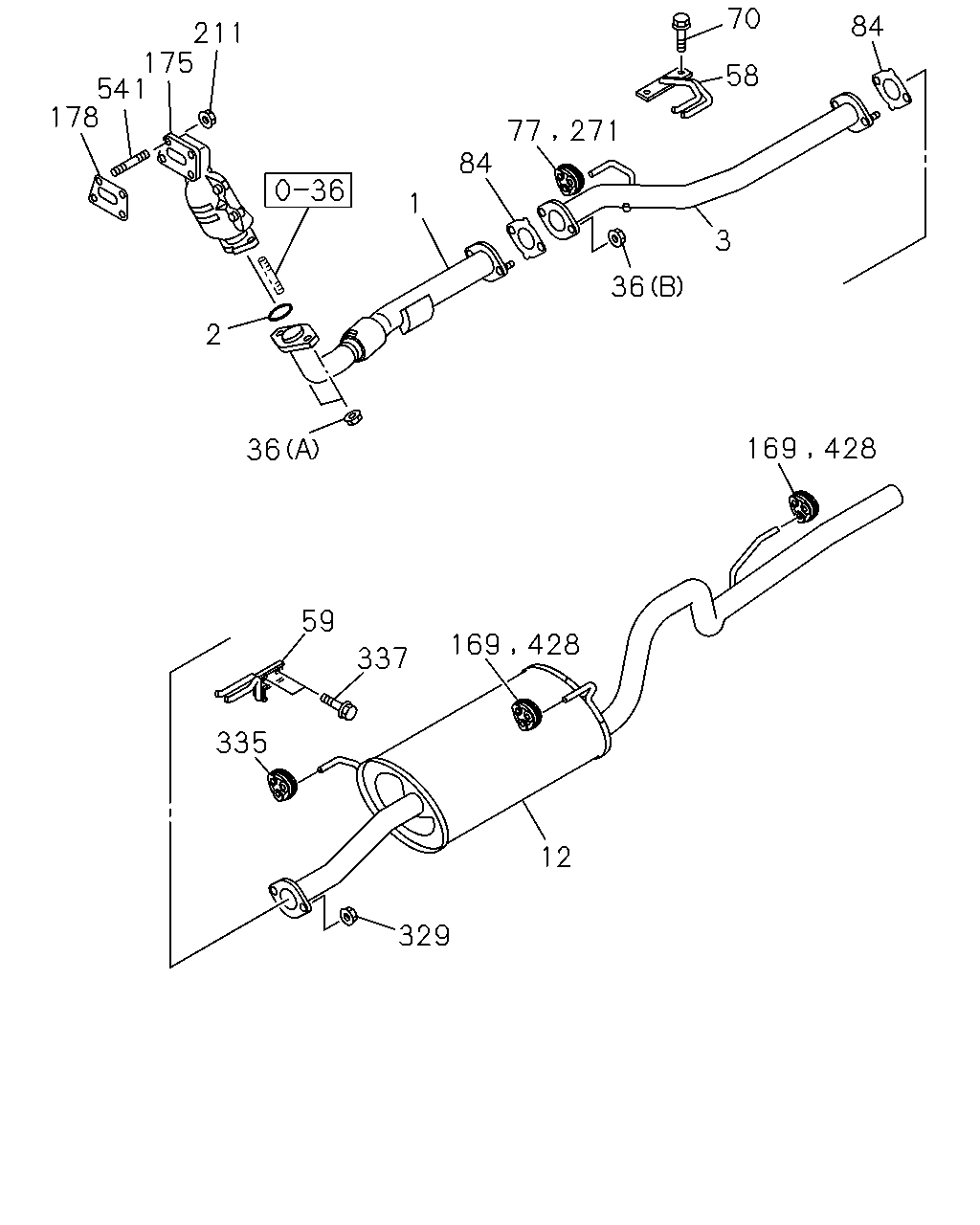

1-50 — EXHAUST PIPE AND SILENCER
(#74975) — 31 parça
70
84
211
175
541
178
58
84
1
3
36
2
36
59
337
335
12
329
169
428
77
271
169
428
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PIPE; EXH
8-97370-792-0
01
1
0503-0508
1
PIPE; EXH
8-98008-408-0
01
1
0509-
2
GASKET; PIPE TO MANIF
8-97069-287-0
01
1
0503-0509
2
GASKET; PIPE TO MANIF
8-98017-270-0
01
1
0510-
3
PIPE; EXH,CENTER
8-97363-498-0
01
1
0503-0508
3
PIPE; EXH,CENTER
8-98008-409-0
01
1
0509-
12
SILENCER ASM; EXH
8-97363-500-0
01
1
0503-0508
12
SILENCER ASM; EXH
8-98008-411-0
01
1
0509-0708
12
SILENCER ASM; EXH
8-98083-094-0
01
1
0709-
36
NUT; EXH PIPE
(B) M10 FLANGE
0-91180-110-0
02
1
0503-
36
NUT; EXH PIPE
(A) M10 FLANGE
8-97096-192-1
02
1
0503-
58
BRACKET; EXH PIPE,RR
8-97368-450-0
01
1
0503-
59
BRACKET; EXH SILENCER,FRT
8-97365-312-0
01
1
0503-
70
BOLT; BRKT
M10X28 W/LK&PL WASHER
8-97104-788-1
02
1
0503-0606
70
BOLT; BRKT
M10X28 W/LK&PL WASHER
8-98050-928-0
02
1
0607-
77
RUBBER; CUSHION,BRKT
8-97289-169-0
01
1
0503-1008
84
GASKET; EXH PIPE
ID=65
8-97263-052-0
01
1
0503-
84
GASKET; EXH PIPE
ID=65
8-97263-052-0
01
1
0503-
169
RING; DAMPER,EXH PIPE
8-97289-169-0
01
1
1009-
169
RING; DAMPER,EXH PIPE
8-97289-169-0
02
1
0503-1008
175
CONVERTER; CATALYST
8-97374-822-0
01
1
0503-0508
175
CONVERTER; CATALYST
8-98005-182-2
01
1
0509-
178
GASKET; CONV TO MANIF
8-97312-284-1
01
1
0503-
211
NUT; CONV
M8 FLANGE
8-97379-384-0
04
1
0503-
271
RUBBER; HANGER,RR PIPE
8-97289-169-0
01
1
1009-
329
NUT; EXH PIPE TO PIPE
M10 FLANGE
0-91180-110-0
02
1
0503-
335
RUBBER; SUPPORT,SILENCER
8-97289-169-0
01
1
0503-
337
BOLT; RUBBER,SUPPORT
M10X28 W/LK&PL WASHER
8-97104-788-1
02
1
0503-0606
337
BOLT; RUBBER,SUPPORT
M10X28 W/LK&PL WASHER
8-98050-928-0
02
1
0607-
428
RUBBER; MTG,CLAMP,EXH PIPE
8-97289-169-0
01
1
1009-
541
STUD; CONV TO PIPE
M8X25 L=36
8-97378-062-0
04
1
0503-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
