Sayfa 1-41 - Isuzu EPC

1-41 — FUEL PIPING; CHASSIS (#74974) — 362 parça

350 24 24 307 624 24 24 24 24 307 24 24 100 100 24 100 100 307 24 47 15 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
15	CLIP; FUEL PIPE (D)	8-98179-603-0	01	1	1012-
15	CLIP; FUEL PIPE (A)	8-97251-125-0	01	1	0503-
15	CLIP; FUEL PIPE (C) ID=11.8 & ID=18.6	8-97333-094-0	01	1	0503-
15	CLIP; FUEL PIPE (B)	8-97944-137-0	02	1	0503-
24	CLIP; FUEL HOSE 4X4(UCS***) (F)	8-98174-541-0	02	1	1012-
24	CLIP; FUEL HOSE (C) ID=16	8-94392-924-0	01	1	0503-0508
24	CLIP; FUEL HOSE (A) ID=14.2	8-97087-056-1	02	1	0503-0602
24	CLIP; FUEL HOSE (A) ID=14.2	8-98035-873-0	02	1	0603-
24	CLIP; FUEL HOSE (A) ID=14.2	8-97087-056-1	04	1	0503-0602
24	CLIP; FUEL HOSE (B) ID=11.5	8-97138-011-0	02	1	0503-0602
24	CLIP; FUEL HOSE (B) ID=11.5	8-98008-096-0	02	1	0603-
24	CLIP; FUEL HOSE (B) ID=11.5	8-97138-011-0	04	1	0503-0604
24	CLIP; FUEL HOSE (C) ID=16	8-98030-682-0	01	1	0605-
24	CLIP; FUEL HOSE (D) ID=17.8	8-97351-697-0	01	1	0503-0606
24	CLIP; FUEL HOSE (D) ID=17.8	8-97944-611-0	01	1	0607-
24	CLIP; FUEL HOSE (C) ID=16	8-94392-924-0	01	1	0509-0604
24	CLIP; FUEL HOSE (B) ID=11.5	8-98008-096-0	04	1	0605-0606
24	CLIP; FUEL HOSE (B) ID=11.5	8-98008-096-0	03	1	0607-
24	CLIP; FUEL HOSE (A) ID=14.2	8-98035-873-0	04	1	0603-
24	CLIP; FUEL HOSE (E) ID=11.5	8-98051-892-0	01	1	0607-
45	PIPE; FUEL,DELIVERY	8-97375-470-1	01	1	0503-0606
45	PIPE; FUEL,DELIVERY	8-97944-626-1	01	1	0607-
47	PIPE; FUEL,RETURN	8-97250-548-3	01	1	0503-0606
47	PIPE; FUEL,RETURN	8-98051-783-1	01	1	0607-
100	CLIP; FUEL PIPE (B) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	02	1	0503-0606
100	CLIP; FUEL PIPE (B) ID=10.3X3	8-98051-899-0	02	1	0607-
100	CLIP; FUEL PIPE (A)	8-97251-128-0	02	1	0503-
307	HOSE ASM; FUEL,DELIVERY & RETURN (C) L=150 SERVICED BY L=3000	0-01658-300-0	01	1	0503-
307	HOSE ASM; FUEL,DELIVERY & RETURN M/T MUA 5 SPEED 5G(RSP) (A)	8-97944-133-0	01	1	0503-0508
307	HOSE ASM; FUEL,DELIVERY & RETURN 4X2(UCB***) M/T MUA 5 SPEED 5G(RSP) (A)	8-97944-133-0	01	1	0509-0606
307	HOSE ASM; FUEL,DELIVERY & RETURN 4X4(UCS***) (A)	8-97944-133-0	01	1	0509-0606
307	HOSE ASM; FUEL,DELIVERY & RETURN 4X2(UCB***) M/T MUA 5 SPEED 5H(MWQ) (A)	8-97944-133-0	01	1	0607-1008
307	HOSE ASM; FUEL,DELIVERY & RETURN 4X4(UCS***) (A)	8-97944-133-0	01	1	0607-1008
307	HOSE ASM; FUEL,DELIVERY & RETURN M/T MUA 5 SPEED 5G(RSP) (B)	8-97944-134-0	01	1	0503-0508
307	HOSE ASM; FUEL,DELIVERY & RETURN 4X2(UCB***) M/T MUA 5 SPEED 5G(RSP) (B)	8-97944-134-0	01	1	0509-0606
307	HOSE ASM; FUEL,DELIVERY & RETURN 4X4(UCS***) (B)	8-97944-134-0	01	1	0509-0606
307	HOSE ASM; FUEL,DELIVERY & RETURN 4X2(UCB***) M/T MUA 5 SPEED 5H(MWQ) (B)	8-97944-134-0	01	1	0607-1008
307	HOSE ASM; FUEL,DELIVERY & RETURN 4X4(UCS***) (B)	8-97944-134-0	01	1	0607-1008
350	PIPE; FUEL,DEL & RET 4X4(UCS***) (G)	8-98179-684-0	01	1	1012-
350	PIPE; FUEL,DEL & RET A/T 4 SPEED-JATCO(RMK) (B)	8-97378-425-0	01	1	0503-0606
350	PIPE; FUEL,DEL & RET A/T 4 SPEED-JATCO(RMK) (B)	8-97944-713-1	01	1	0607-
350	PIPE; FUEL,DEL & RET M/T MUA 5 SPEED 5G(RSP) (C)	8-97378-419-0	01	1	0503-0508
350	PIPE; FUEL,DEL & RET 4X2(UCB***) M/T MUA 5 SPEED 5G(RSP) (C)	8-97378-419-0	01	1	0509-0606
350	PIPE; FUEL,DEL & RET 4X4(UCS***) (C)	8-97378-419-0	01	1	0509-0606
350	PIPE; FUEL,DEL & RET 4X2(UCB***) M/T MUA 5 SPEED 5H(MWQ) (E)	8-98051-790-0	01	1	0607-0804
350	PIPE; FUEL,DEL & RET 4X4(UCS***) (E)	8-98051-790-0	01	1	0607-0804
350	PIPE; FUEL,DEL & RET 4X2(UCB***) M/T MUA 5 SPEED 5H(MWQ) (E)	8-97946-526-0	01	1	0805-1011
350	PIPE; FUEL,DEL & RET 4X4(UCS***) (E)	8-97946-526-0	01	1	0805-1011
350	PIPE; FUEL,DEL & RET M/T MUA 5 SPEED 5H(MWQ) (E)	8-98177-463-0	01	1	1012-
350	PIPE; FUEL,DEL & RET M/T MUA 5 SPEED 5G(RSP) (A)	8-97378-427-0	01	1	0503-0606
350	PIPE; FUEL,DEL & RET M/T MUA 5 SPEED 5H(MWQ) (A)	8-97944-716-1	01	1	0607-
350	PIPE; FUEL,DEL & RET 4X2(UCB***) A/T 4 SPEED-JATCO(RMK) (D)	8-97378-416-0	01	1	0503-0606
350	PIPE; FUEL,DEL & RET 4X2(UCB***) A/T 4 SPEED-JATCO(RMK) (F)	8-98051-788-0	01	1	0607-0612
350	PIPE; FUEL,DEL & RET 4X2(UCB***) A/T 4 SPEED-JATCO(RMK) (F)	8-98060-310-0	01	1	0701-0805
350	PIPE; FUEL,DEL & RET 4X2(UCB***) A/T 4 SPEED-JATCO(RMK) (F)	8-97946-522-0	01	1	0806-1011
350	PIPE; FUEL,DEL & RET 4X2(UCB***) A/T 4 SPEED-JATCO(RMK) (F)	8-98177-462-0	01	1	1012-
624	VALVE; 1 WAY,FUEL	8-97375-919-0	01	1	0503-

350 24 24 624 24 29 24 24 24 100 24 24 100 24 100 100 98 307 199 24 47 15 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
15	CLIP; FUEL PIPE (D)	8-98179-603-0	01	1	1012-
15	CLIP; FUEL PIPE (A)	8-97251-125-0	01	1	0503-
15	CLIP; FUEL PIPE (C) ID=11.8 & ID=18.6	8-97333-094-0	01	1	0503-
15	CLIP; FUEL PIPE (B)	8-97944-137-0	02	1	0503-
24	CLIP; FUEL HOSE 4X4(UCS***) (F)	8-98174-541-0	02	1	1012-
24	CLIP; FUEL HOSE (C) ID=16	8-94392-924-0	01	1	0503-0508
24	CLIP; FUEL HOSE (A) ID=14.2	8-97087-056-1	02	1	0503-0602
24	CLIP; FUEL HOSE (A) ID=14.2	8-98035-873-0	02	1	0603-
24	CLIP; FUEL HOSE (A) ID=14.2	8-97087-056-1	04	1	0503-0602
24	CLIP; FUEL HOSE (B) ID=11.5	8-97138-011-0	02	1	0503-0602
24	CLIP; FUEL HOSE (B) ID=11.5	8-98008-096-0	02	1	0603-
24	CLIP; FUEL HOSE (B) ID=11.5	8-97138-011-0	04	1	0503-0604
24	CLIP; FUEL HOSE (C) ID=16	8-98030-682-0	01	1	0605-
24	CLIP; FUEL HOSE (D) ID=17.8	8-97351-697-0	01	1	0503-0606
24	CLIP; FUEL HOSE (D) ID=17.8	8-97944-611-0	01	1	0607-
24	CLIP; FUEL HOSE (C) ID=16	8-94392-924-0	01	1	0509-0604
24	CLIP; FUEL HOSE (B) ID=11.5	8-98008-096-0	04	1	0605-0606
24	CLIP; FUEL HOSE (B) ID=11.5	8-98008-096-0	03	1	0607-
24	CLIP; FUEL HOSE (A) ID=14.2	8-98035-873-0	04	1	0603-
24	CLIP; FUEL HOSE (E) ID=11.5	8-98051-892-0	01	1	0607-
29	HOSE; FUEL 4X2(UCB***) A/T 4 SPEED-JATCO(RMK)	8-97944-132-0	01	1	0503-0612
29	HOSE; FUEL 4X2(UCB***) A/T 4 SPEED-JATCO(RMK)	8-98060-820-0	01	1	0701-
45	PIPE; FUEL,DELIVERY	8-97375-470-1	01	1	0503-0606
45	PIPE; FUEL,DELIVERY	8-97944-626-1	01	1	0607-
47	PIPE; FUEL,RETURN	8-97250-548-3	01	1	0503-0606
47	PIPE; FUEL,RETURN	8-98051-783-1	01	1	0607-
98	BOLT; BRKT,FUEL PIPE 4X2(UCB***) A/T 4 SPEED-JATCO(RMK) M6X20 FLANGE	0-28650-620-0	03	1	0503-
100	CLIP; FUEL PIPE (B) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	02	1	0503-0606
100	CLIP; FUEL PIPE (B) ID=10.3X3	8-98051-899-0	02	1	0607-
100	CLIP; FUEL PIPE (A)	8-97251-128-0	02	1	0503-
199	PROTECTOR; FUEL PIPE 4X2(UCB***) A/T 4 SPEED-JATCO(RMK)	8-97365-105-0	01	1	0503-0606
199	PROTECTOR; FUEL PIPE 4X2(UCB***) A/T 4 SPEED-JATCO(RMK)	8-97944-851-0	01	1	0607-
307	HOSE ASM; FUEL,DELIVERY & RETURN (C) L=150 SERVICED BY L=3000	0-01658-300-0	01	1	0503-
307	HOSE ASM; FUEL,DELIVERY & RETURN M/T MUA 5 SPEED 5G(RSP) (A)	8-97944-133-0	01	1	0503-0508
307	HOSE ASM; FUEL,DELIVERY & RETURN 4X2(UCB***) M/T MUA 5 SPEED 5G(RSP) (A)	8-97944-133-0	01	1	0509-0606
307	HOSE ASM; FUEL,DELIVERY & RETURN 4X4(UCS***) (A)	8-97944-133-0	01	1	0509-0606
307	HOSE ASM; FUEL,DELIVERY & RETURN 4X2(UCB***) M/T MUA 5 SPEED 5H(MWQ) (A)	8-97944-133-0	01	1	0607-1008
307	HOSE ASM; FUEL,DELIVERY & RETURN 4X4(UCS***) (A)	8-97944-133-0	01	1	0607-1008
307	HOSE ASM; FUEL,DELIVERY & RETURN M/T MUA 5 SPEED 5G(RSP) (B)	8-97944-134-0	01	1	0503-0508
307	HOSE ASM; FUEL,DELIVERY & RETURN 4X2(UCB***) M/T MUA 5 SPEED 5G(RSP) (B)	8-97944-134-0	01	1	0509-0606
307	HOSE ASM; FUEL,DELIVERY & RETURN 4X4(UCS***) (B)	8-97944-134-0	01	1	0509-0606
307	HOSE ASM; FUEL,DELIVERY & RETURN 4X2(UCB***) M/T MUA 5 SPEED 5H(MWQ) (B)	8-97944-134-0	01	1	0607-1008
307	HOSE ASM; FUEL,DELIVERY & RETURN 4X4(UCS***) (B)	8-97944-134-0	01	1	0607-1008
350	PIPE; FUEL,DEL & RET 4X4(UCS***) (G)	8-98179-684-0	01	1	1012-
350	PIPE; FUEL,DEL & RET A/T 4 SPEED-JATCO(RMK) (B)	8-97378-425-0	01	1	0503-0606
350	PIPE; FUEL,DEL & RET A/T 4 SPEED-JATCO(RMK) (B)	8-97944-713-1	01	1	0607-
350	PIPE; FUEL,DEL & RET M/T MUA 5 SPEED 5G(RSP) (C)	8-97378-419-0	01	1	0503-0508
350	PIPE; FUEL,DEL & RET 4X2(UCB***) M/T MUA 5 SPEED 5G(RSP) (C)	8-97378-419-0	01	1	0509-0606
350	PIPE; FUEL,DEL & RET 4X4(UCS***) (C)	8-97378-419-0	01	1	0509-0606
350	PIPE; FUEL,DEL & RET 4X2(UCB***) M/T MUA 5 SPEED 5H(MWQ) (E)	8-98051-790-0	01	1	0607-0804
350	PIPE; FUEL,DEL & RET 4X4(UCS***) (E)	8-98051-790-0	01	1	0607-0804
350	PIPE; FUEL,DEL & RET 4X2(UCB***) M/T MUA 5 SPEED 5H(MWQ) (E)	8-97946-526-0	01	1	0805-1011
350	PIPE; FUEL,DEL & RET 4X4(UCS***) (E)	8-97946-526-0	01	1	0805-1011
350	PIPE; FUEL,DEL & RET M/T MUA 5 SPEED 5H(MWQ) (E)	8-98177-463-0	01	1	1012-
350	PIPE; FUEL,DEL & RET M/T MUA 5 SPEED 5G(RSP) (A)	8-97378-427-0	01	1	0503-0606
350	PIPE; FUEL,DEL & RET M/T MUA 5 SPEED 5H(MWQ) (A)	8-97944-716-1	01	1	0607-
350	PIPE; FUEL,DEL & RET 4X2(UCB***) A/T 4 SPEED-JATCO(RMK) (D)	8-97378-416-0	01	1	0503-0606
350	PIPE; FUEL,DEL & RET 4X2(UCB***) A/T 4 SPEED-JATCO(RMK) (F)	8-98051-788-0	01	1	0607-0612
350	PIPE; FUEL,DEL & RET 4X2(UCB***) A/T 4 SPEED-JATCO(RMK) (F)	8-98060-310-0	01	1	0701-0805
350	PIPE; FUEL,DEL & RET 4X2(UCB***) A/T 4 SPEED-JATCO(RMK) (F)	8-97946-522-0	01	1	0806-1011
350	PIPE; FUEL,DEL & RET 4X2(UCB***) A/T 4 SPEED-JATCO(RMK) (F)	8-98177-462-0	01	1	1012-
624	VALVE; 1 WAY,FUEL	8-97375-919-0	01	1	0503-

350 24 24 65 66 307 307 24 624 24 24 24 24 100 24 100 15 24 100 100 15 307 24 45 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
15	CLIP; FUEL PIPE (D)	8-98179-603-0	01	1	1012-
15	CLIP; FUEL PIPE (A)	8-97251-125-0	01	1	0503-
15	CLIP; FUEL PIPE (C) ID=11.8 & ID=18.6	8-97333-094-0	01	1	0503-
15	CLIP; FUEL PIPE (B)	8-97944-137-0	02	1	0503-
24	CLIP; FUEL HOSE 4X4(UCS***) (F)	8-98174-541-0	02	1	1012-
24	CLIP; FUEL HOSE (C) ID=16	8-94392-924-0	01	1	0503-0508
24	CLIP; FUEL HOSE (A) ID=14.2	8-97087-056-1	02	1	0503-0602
24	CLIP; FUEL HOSE (A) ID=14.2	8-98035-873-0	02	1	0603-
24	CLIP; FUEL HOSE (A) ID=14.2	8-97087-056-1	04	1	0503-0602
24	CLIP; FUEL HOSE (B) ID=11.5	8-97138-011-0	02	1	0503-0602
24	CLIP; FUEL HOSE (B) ID=11.5	8-98008-096-0	02	1	0603-
24	CLIP; FUEL HOSE (B) ID=11.5	8-97138-011-0	04	1	0503-0604
24	CLIP; FUEL HOSE (C) ID=16	8-98030-682-0	01	1	0605-
24	CLIP; FUEL HOSE (D) ID=17.8	8-97351-697-0	01	1	0503-0606
24	CLIP; FUEL HOSE (D) ID=17.8	8-97944-611-0	01	1	0607-
24	CLIP; FUEL HOSE (C) ID=16	8-94392-924-0	01	1	0509-0604
24	CLIP; FUEL HOSE (B) ID=11.5	8-98008-096-0	04	1	0605-0606
24	CLIP; FUEL HOSE (B) ID=11.5	8-98008-096-0	03	1	0607-
24	CLIP; FUEL HOSE (A) ID=14.2	8-98035-873-0	04	1	0603-
24	CLIP; FUEL HOSE (E) ID=11.5	8-98051-892-0	01	1	0607-
45	PIPE; FUEL,DELIVERY	8-97375-470-1	01	1	0503-0606
45	PIPE; FUEL,DELIVERY	8-97944-626-1	01	1	0607-
47	PIPE; FUEL,RETURN	8-97250-548-3	01	1	0503-0606
47	PIPE; FUEL,RETURN	8-98051-783-1	01	1	0607-
65	HOSE; FUEL,DELIVERY PIPE 4X2(UCB***) M/T MUA 5 SPEED 5H(MWQ)	8-97944-133-0	01	1	1009-
65	HOSE; FUEL,DELIVERY PIPE 4X4(UCS***)	8-97944-133-0	01	1	1009-
66	HOSE; FUEL,RETURN PIPE 4X2(UCB***) M/T MUA 5 SPEED 5H(MWQ)	8-97944-134-0	01	1	1009-
66	HOSE; FUEL,RETURN PIPE 4X4(UCS***)	8-97944-134-0	01	1	1009-
100	CLIP; FUEL PIPE (B) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	02	1	0503-0606
100	CLIP; FUEL PIPE (B) ID=10.3X3	8-98051-899-0	02	1	0607-
100	CLIP; FUEL PIPE (A)	8-97251-128-0	02	1	0503-
307	HOSE ASM; FUEL,DELIVERY & RETURN (C) L=150 SERVICED BY L=3000	0-01658-300-0	01	1	0503-
307	HOSE ASM; FUEL,DELIVERY & RETURN M/T MUA 5 SPEED 5G(RSP) (A)	8-97944-133-0	01	1	0503-0508
307	HOSE ASM; FUEL,DELIVERY & RETURN 4X2(UCB***) M/T MUA 5 SPEED 5G(RSP) (A)	8-97944-133-0	01	1	0509-0606
307	HOSE ASM; FUEL,DELIVERY & RETURN 4X4(UCS***) (A)	8-97944-133-0	01	1	0509-0606
307	HOSE ASM; FUEL,DELIVERY & RETURN 4X2(UCB***) M/T MUA 5 SPEED 5H(MWQ) (A)	8-97944-133-0	01	1	0607-1008
307	HOSE ASM; FUEL,DELIVERY & RETURN 4X4(UCS***) (A)	8-97944-133-0	01	1	0607-1008
307	HOSE ASM; FUEL,DELIVERY & RETURN M/T MUA 5 SPEED 5G(RSP) (B)	8-97944-134-0	01	1	0503-0508
307	HOSE ASM; FUEL,DELIVERY & RETURN 4X2(UCB***) M/T MUA 5 SPEED 5G(RSP) (B)	8-97944-134-0	01	1	0509-0606
307	HOSE ASM; FUEL,DELIVERY & RETURN 4X4(UCS***) (B)	8-97944-134-0	01	1	0509-0606
307	HOSE ASM; FUEL,DELIVERY & RETURN 4X2(UCB***) M/T MUA 5 SPEED 5H(MWQ) (B)	8-97944-134-0	01	1	0607-1008
307	HOSE ASM; FUEL,DELIVERY & RETURN 4X4(UCS***) (B)	8-97944-134-0	01	1	0607-1008
350	PIPE; FUEL,DEL & RET 4X4(UCS***) (G)	8-98179-684-0	01	1	1012-
350	PIPE; FUEL,DEL & RET A/T 4 SPEED-JATCO(RMK) (B)	8-97378-425-0	01	1	0503-0606
350	PIPE; FUEL,DEL & RET A/T 4 SPEED-JATCO(RMK) (B)	8-97944-713-1	01	1	0607-
350	PIPE; FUEL,DEL & RET M/T MUA 5 SPEED 5G(RSP) (C)	8-97378-419-0	01	1	0503-0508
350	PIPE; FUEL,DEL & RET 4X2(UCB***) M/T MUA 5 SPEED 5G(RSP) (C)	8-97378-419-0	01	1	0509-0606
350	PIPE; FUEL,DEL & RET 4X4(UCS***) (C)	8-97378-419-0	01	1	0509-0606
350	PIPE; FUEL,DEL & RET 4X2(UCB***) M/T MUA 5 SPEED 5H(MWQ) (E)	8-98051-790-0	01	1	0607-0804
350	PIPE; FUEL,DEL & RET 4X4(UCS***) (E)	8-98051-790-0	01	1	0607-0804
350	PIPE; FUEL,DEL & RET 4X2(UCB***) M/T MUA 5 SPEED 5H(MWQ) (E)	8-97946-526-0	01	1	0805-1011
350	PIPE; FUEL,DEL & RET 4X4(UCS***) (E)	8-97946-526-0	01	1	0805-1011
350	PIPE; FUEL,DEL & RET M/T MUA 5 SPEED 5H(MWQ) (E)	8-98177-463-0	01	1	1012-
350	PIPE; FUEL,DEL & RET M/T MUA 5 SPEED 5G(RSP) (A)	8-97378-427-0	01	1	0503-0606
350	PIPE; FUEL,DEL & RET M/T MUA 5 SPEED 5H(MWQ) (A)	8-97944-716-1	01	1	0607-
350	PIPE; FUEL,DEL & RET 4X2(UCB***) A/T 4 SPEED-JATCO(RMK) (D)	8-97378-416-0	01	1	0503-0606
350	PIPE; FUEL,DEL & RET 4X2(UCB***) A/T 4 SPEED-JATCO(RMK) (F)	8-98051-788-0	01	1	0607-0612
350	PIPE; FUEL,DEL & RET 4X2(UCB***) A/T 4 SPEED-JATCO(RMK) (F)	8-98060-310-0	01	1	0701-0805
350	PIPE; FUEL,DEL & RET 4X2(UCB***) A/T 4 SPEED-JATCO(RMK) (F)	8-97946-522-0	01	1	0806-1011
350	PIPE; FUEL,DEL & RET 4X2(UCB***) A/T 4 SPEED-JATCO(RMK) (F)	8-98177-462-0	01	1	1012-
624	VALVE; 1 WAY,FUEL	8-97375-919-0	01	1	0503-

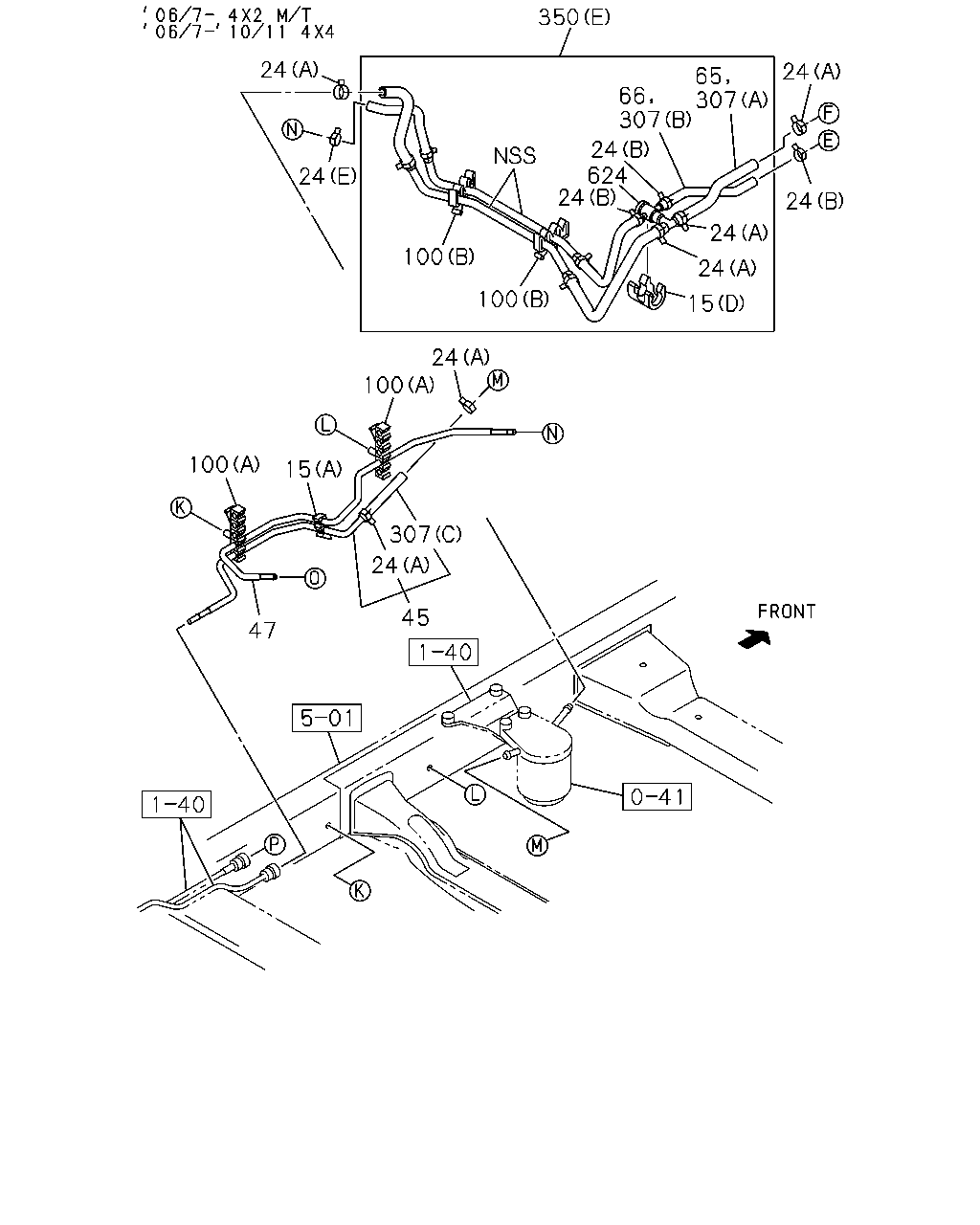

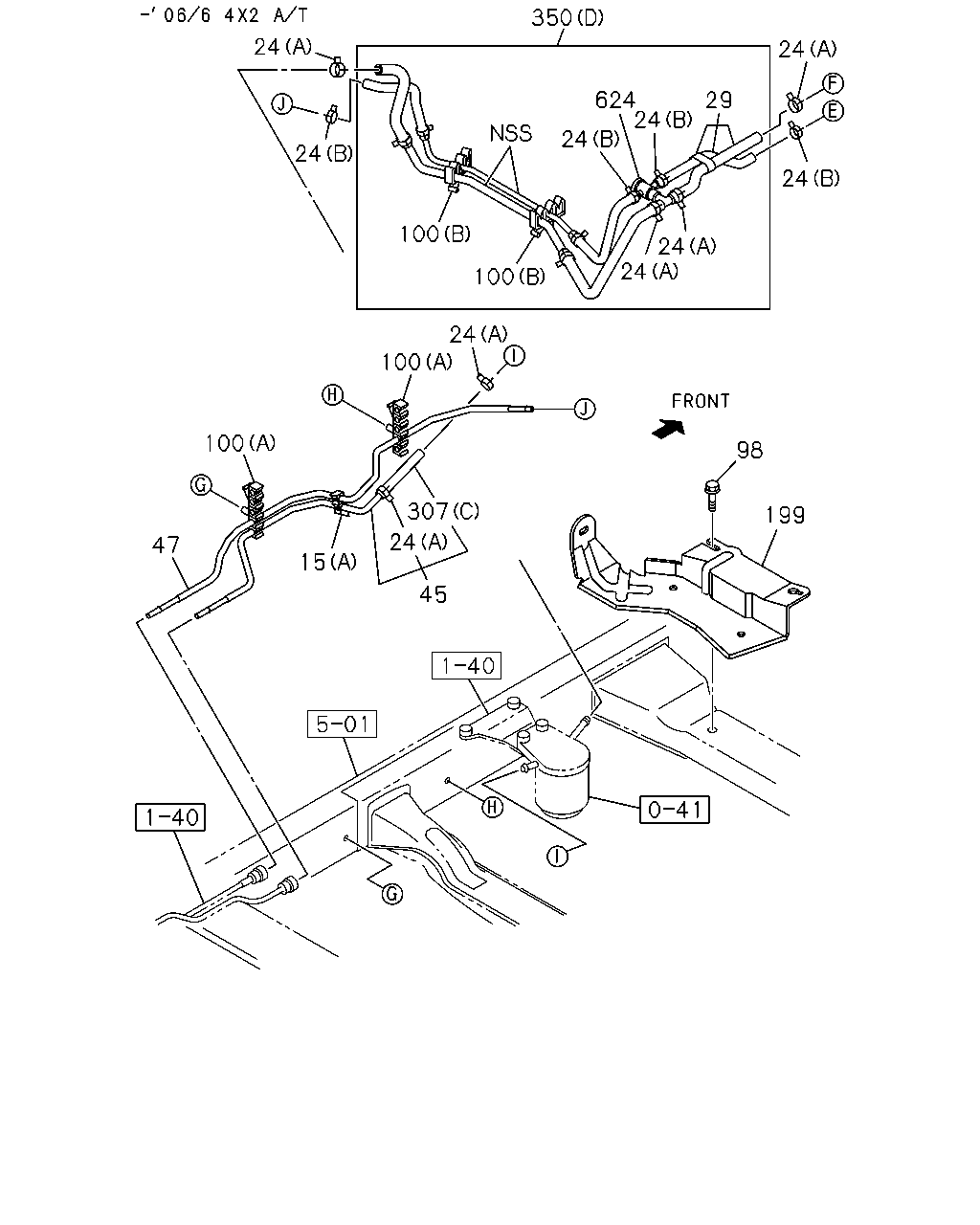

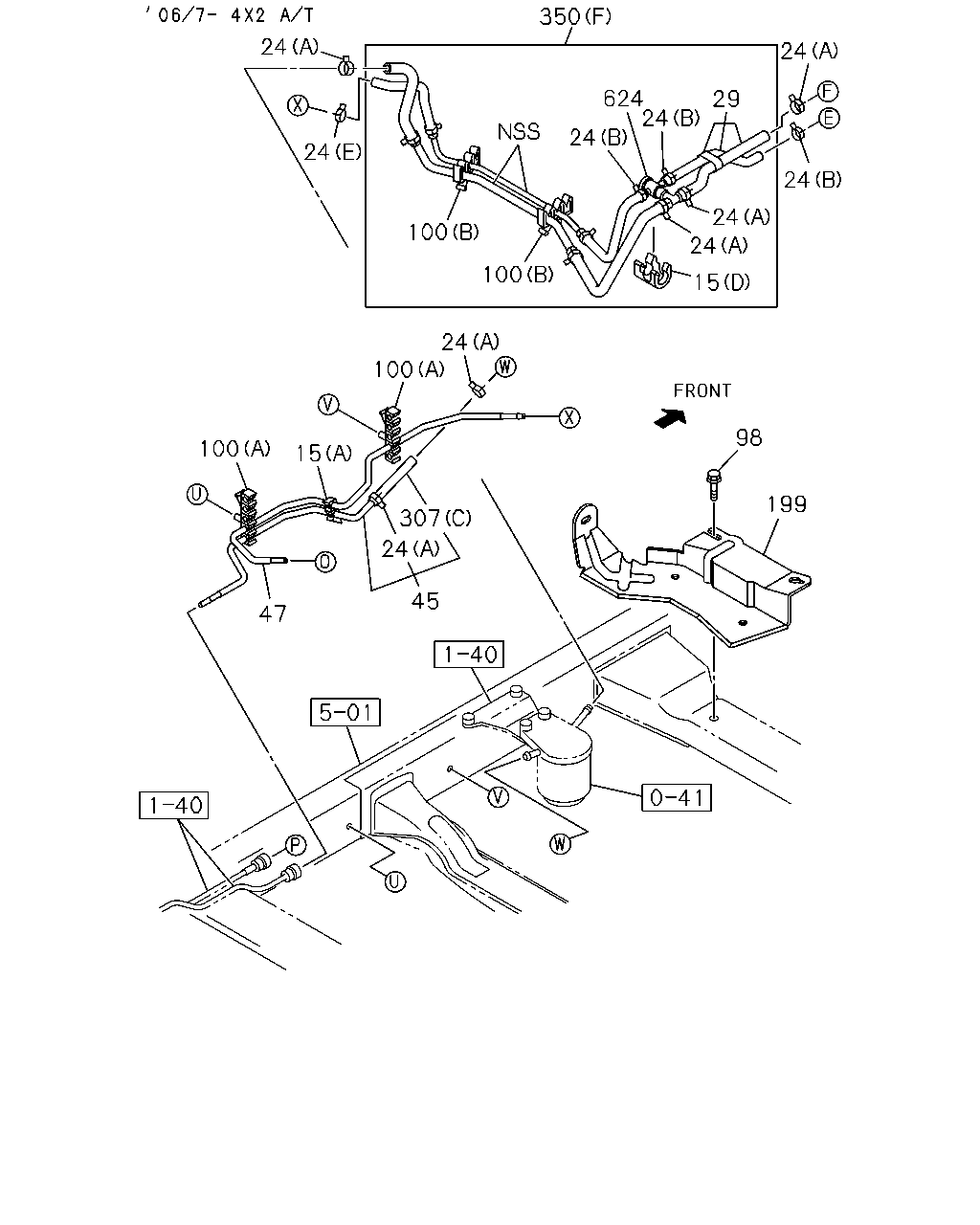

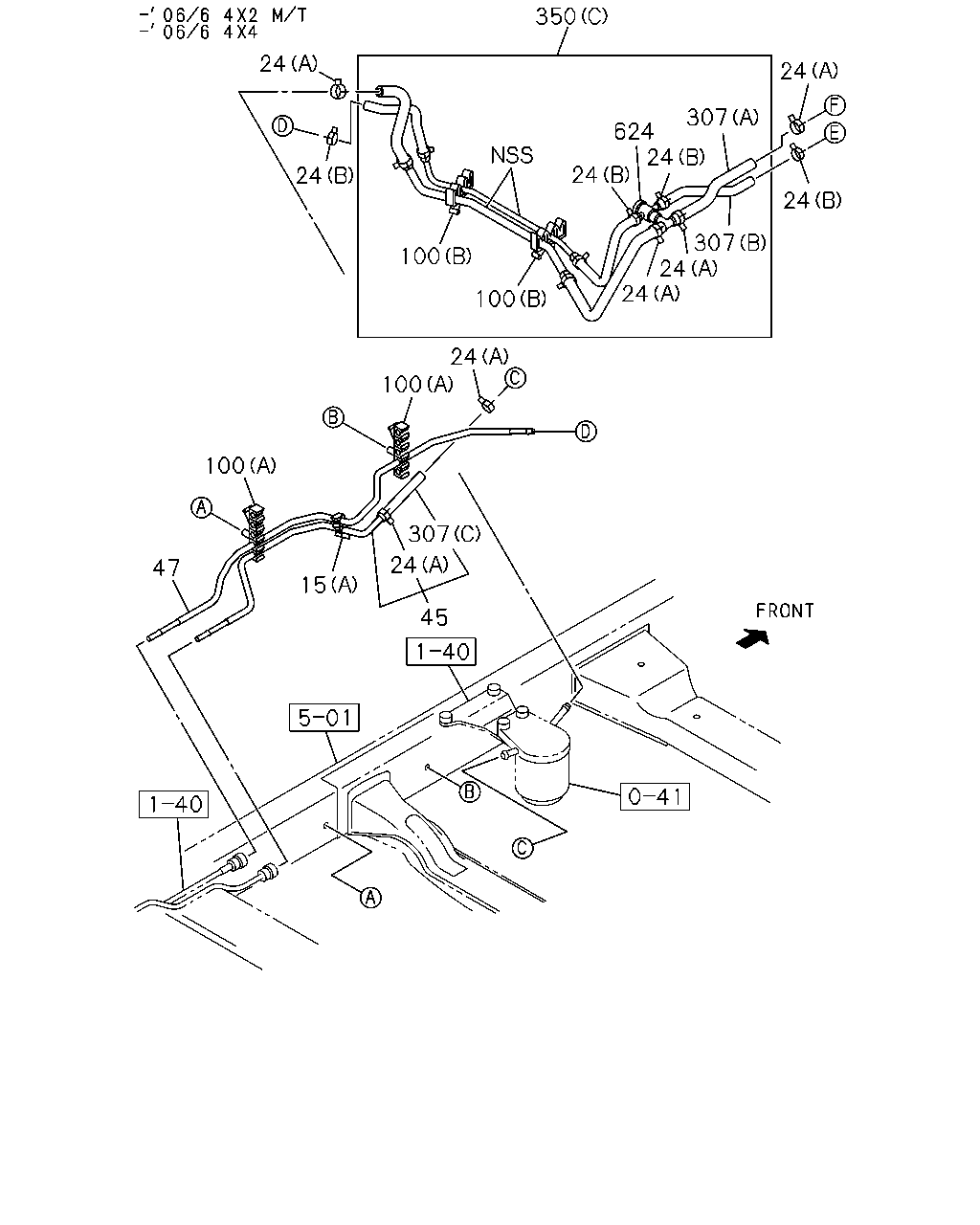

350 24 24 624 24 29 24 24 24 24 100 24 100 15 24 100 98 100 15 199 307 24 45 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
15	CLIP; FUEL PIPE (D)	8-98179-603-0	01	1	1012-
15	CLIP; FUEL PIPE (A)	8-97251-125-0	01	1	0503-
15	CLIP; FUEL PIPE (C) ID=11.8 & ID=18.6	8-97333-094-0	01	1	0503-
15	CLIP; FUEL PIPE (B)	8-97944-137-0	02	1	0503-
24	CLIP; FUEL HOSE 4X4(UCS***) (F)	8-98174-541-0	02	1	1012-
24	CLIP; FUEL HOSE (C) ID=16	8-94392-924-0	01	1	0503-0508
24	CLIP; FUEL HOSE (A) ID=14.2	8-97087-056-1	02	1	0503-0602
24	CLIP; FUEL HOSE (A) ID=14.2	8-98035-873-0	02	1	0603-
24	CLIP; FUEL HOSE (A) ID=14.2	8-97087-056-1	04	1	0503-0602
24	CLIP; FUEL HOSE (B) ID=11.5	8-97138-011-0	02	1	0503-0602
24	CLIP; FUEL HOSE (B) ID=11.5	8-98008-096-0	02	1	0603-
24	CLIP; FUEL HOSE (B) ID=11.5	8-97138-011-0	04	1	0503-0604
24	CLIP; FUEL HOSE (C) ID=16	8-98030-682-0	01	1	0605-
24	CLIP; FUEL HOSE (D) ID=17.8	8-97351-697-0	01	1	0503-0606
24	CLIP; FUEL HOSE (D) ID=17.8	8-97944-611-0	01	1	0607-
24	CLIP; FUEL HOSE (C) ID=16	8-94392-924-0	01	1	0509-0604
24	CLIP; FUEL HOSE (B) ID=11.5	8-98008-096-0	04	1	0605-0606
24	CLIP; FUEL HOSE (B) ID=11.5	8-98008-096-0	03	1	0607-
24	CLIP; FUEL HOSE (A) ID=14.2	8-98035-873-0	04	1	0603-
24	CLIP; FUEL HOSE (E) ID=11.5	8-98051-892-0	01	1	0607-
29	HOSE; FUEL 4X2(UCB***) A/T 4 SPEED-JATCO(RMK)	8-97944-132-0	01	1	0503-0612
29	HOSE; FUEL 4X2(UCB***) A/T 4 SPEED-JATCO(RMK)	8-98060-820-0	01	1	0701-
45	PIPE; FUEL,DELIVERY	8-97375-470-1	01	1	0503-0606
45	PIPE; FUEL,DELIVERY	8-97944-626-1	01	1	0607-
47	PIPE; FUEL,RETURN	8-97250-548-3	01	1	0503-0606
47	PIPE; FUEL,RETURN	8-98051-783-1	01	1	0607-
98	BOLT; BRKT,FUEL PIPE 4X2(UCB***) A/T 4 SPEED-JATCO(RMK) M6X20 FLANGE	0-28650-620-0	03	1	0503-
100	CLIP; FUEL PIPE (B) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	02	1	0503-0606
100	CLIP; FUEL PIPE (B) ID=10.3X3	8-98051-899-0	02	1	0607-
100	CLIP; FUEL PIPE (A)	8-97251-128-0	02	1	0503-
199	PROTECTOR; FUEL PIPE 4X2(UCB***) A/T 4 SPEED-JATCO(RMK)	8-97365-105-0	01	1	0503-0606
199	PROTECTOR; FUEL PIPE 4X2(UCB***) A/T 4 SPEED-JATCO(RMK)	8-97944-851-0	01	1	0607-
307	HOSE ASM; FUEL,DELIVERY & RETURN (C) L=150 SERVICED BY L=3000	0-01658-300-0	01	1	0503-
307	HOSE ASM; FUEL,DELIVERY & RETURN M/T MUA 5 SPEED 5G(RSP) (A)	8-97944-133-0	01	1	0503-0508
307	HOSE ASM; FUEL,DELIVERY & RETURN 4X2(UCB***) M/T MUA 5 SPEED 5G(RSP) (A)	8-97944-133-0	01	1	0509-0606
307	HOSE ASM; FUEL,DELIVERY & RETURN 4X4(UCS***) (A)	8-97944-133-0	01	1	0509-0606
307	HOSE ASM; FUEL,DELIVERY & RETURN 4X2(UCB***) M/T MUA 5 SPEED 5H(MWQ) (A)	8-97944-133-0	01	1	0607-1008
307	HOSE ASM; FUEL,DELIVERY & RETURN 4X4(UCS***) (A)	8-97944-133-0	01	1	0607-1008
307	HOSE ASM; FUEL,DELIVERY & RETURN M/T MUA 5 SPEED 5G(RSP) (B)	8-97944-134-0	01	1	0503-0508
307	HOSE ASM; FUEL,DELIVERY & RETURN 4X2(UCB***) M/T MUA 5 SPEED 5G(RSP) (B)	8-97944-134-0	01	1	0509-0606
307	HOSE ASM; FUEL,DELIVERY & RETURN 4X4(UCS***) (B)	8-97944-134-0	01	1	0509-0606
307	HOSE ASM; FUEL,DELIVERY & RETURN 4X2(UCB***) M/T MUA 5 SPEED 5H(MWQ) (B)	8-97944-134-0	01	1	0607-1008
307	HOSE ASM; FUEL,DELIVERY & RETURN 4X4(UCS***) (B)	8-97944-134-0	01	1	0607-1008
350	PIPE; FUEL,DEL & RET 4X4(UCS***) (G)	8-98179-684-0	01	1	1012-
350	PIPE; FUEL,DEL & RET A/T 4 SPEED-JATCO(RMK) (B)	8-97378-425-0	01	1	0503-0606
350	PIPE; FUEL,DEL & RET A/T 4 SPEED-JATCO(RMK) (B)	8-97944-713-1	01	1	0607-
350	PIPE; FUEL,DEL & RET M/T MUA 5 SPEED 5G(RSP) (C)	8-97378-419-0	01	1	0503-0508
350	PIPE; FUEL,DEL & RET 4X2(UCB***) M/T MUA 5 SPEED 5G(RSP) (C)	8-97378-419-0	01	1	0509-0606
350	PIPE; FUEL,DEL & RET 4X4(UCS***) (C)	8-97378-419-0	01	1	0509-0606
350	PIPE; FUEL,DEL & RET 4X2(UCB***) M/T MUA 5 SPEED 5H(MWQ) (E)	8-98051-790-0	01	1	0607-0804
350	PIPE; FUEL,DEL & RET 4X4(UCS***) (E)	8-98051-790-0	01	1	0607-0804
350	PIPE; FUEL,DEL & RET 4X2(UCB***) M/T MUA 5 SPEED 5H(MWQ) (E)	8-97946-526-0	01	1	0805-1011
350	PIPE; FUEL,DEL & RET 4X4(UCS***) (E)	8-97946-526-0	01	1	0805-1011
350	PIPE; FUEL,DEL & RET M/T MUA 5 SPEED 5H(MWQ) (E)	8-98177-463-0	01	1	1012-
350	PIPE; FUEL,DEL & RET M/T MUA 5 SPEED 5G(RSP) (A)	8-97378-427-0	01	1	0503-0606
350	PIPE; FUEL,DEL & RET M/T MUA 5 SPEED 5H(MWQ) (A)	8-97944-716-1	01	1	0607-
350	PIPE; FUEL,DEL & RET 4X2(UCB***) A/T 4 SPEED-JATCO(RMK) (D)	8-97378-416-0	01	1	0503-0606
350	PIPE; FUEL,DEL & RET 4X2(UCB***) A/T 4 SPEED-JATCO(RMK) (F)	8-98051-788-0	01	1	0607-0612
350	PIPE; FUEL,DEL & RET 4X2(UCB***) A/T 4 SPEED-JATCO(RMK) (F)	8-98060-310-0	01	1	0701-0805
350	PIPE; FUEL,DEL & RET 4X2(UCB***) A/T 4 SPEED-JATCO(RMK) (F)	8-97946-522-0	01	1	0806-1011
350	PIPE; FUEL,DEL & RET 4X2(UCB***) A/T 4 SPEED-JATCO(RMK) (F)	8-98177-462-0	01	1	1012-
624	VALVE; 1 WAY,FUEL	8-97375-919-0	01	1	0503-

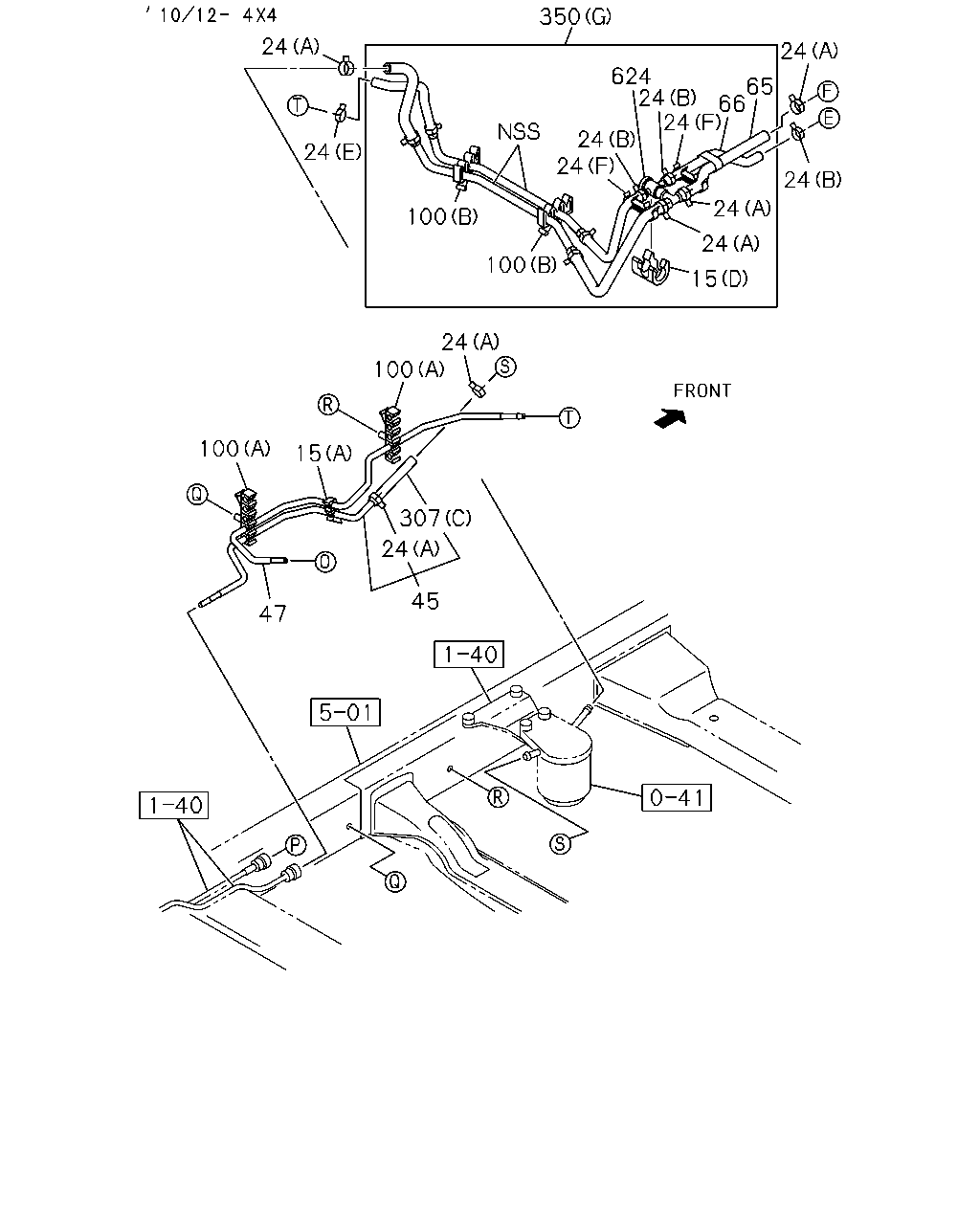

350 24 24 624 65 24 66 24 24 24 24 24 24 100 24 100 15 24 100 100 15 307 24 45 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
15	CLIP; FUEL PIPE (D)	8-98179-603-0	01	1	1012-
15	CLIP; FUEL PIPE (A)	8-97251-125-0	01	1	0503-
15	CLIP; FUEL PIPE (C) ID=11.8 & ID=18.6	8-97333-094-0	01	1	0503-
15	CLIP; FUEL PIPE (B)	8-97944-137-0	02	1	0503-
24	CLIP; FUEL HOSE 4X4(UCS***) (F)	8-98174-541-0	02	1	1012-
24	CLIP; FUEL HOSE (C) ID=16	8-94392-924-0	01	1	0503-0508
24	CLIP; FUEL HOSE (A) ID=14.2	8-97087-056-1	02	1	0503-0602
24	CLIP; FUEL HOSE (A) ID=14.2	8-98035-873-0	02	1	0603-
24	CLIP; FUEL HOSE (A) ID=14.2	8-97087-056-1	04	1	0503-0602
24	CLIP; FUEL HOSE (B) ID=11.5	8-97138-011-0	02	1	0503-0602
24	CLIP; FUEL HOSE (B) ID=11.5	8-98008-096-0	02	1	0603-
24	CLIP; FUEL HOSE (B) ID=11.5	8-97138-011-0	04	1	0503-0604
24	CLIP; FUEL HOSE (C) ID=16	8-98030-682-0	01	1	0605-
24	CLIP; FUEL HOSE (D) ID=17.8	8-97351-697-0	01	1	0503-0606
24	CLIP; FUEL HOSE (D) ID=17.8	8-97944-611-0	01	1	0607-
24	CLIP; FUEL HOSE (C) ID=16	8-94392-924-0	01	1	0509-0604
24	CLIP; FUEL HOSE (B) ID=11.5	8-98008-096-0	04	1	0605-0606
24	CLIP; FUEL HOSE (B) ID=11.5	8-98008-096-0	03	1	0607-
24	CLIP; FUEL HOSE (A) ID=14.2	8-98035-873-0	04	1	0603-
24	CLIP; FUEL HOSE (E) ID=11.5	8-98051-892-0	01	1	0607-
45	PIPE; FUEL,DELIVERY	8-97375-470-1	01	1	0503-0606
45	PIPE; FUEL,DELIVERY	8-97944-626-1	01	1	0607-
47	PIPE; FUEL,RETURN	8-97250-548-3	01	1	0503-0606
47	PIPE; FUEL,RETURN	8-98051-783-1	01	1	0607-
65	HOSE; FUEL,DELIVERY PIPE 4X2(UCB***) M/T MUA 5 SPEED 5H(MWQ)	8-97944-133-0	01	1	1009-
65	HOSE; FUEL,DELIVERY PIPE 4X4(UCS***)	8-97944-133-0	01	1	1009-
66	HOSE; FUEL,RETURN PIPE 4X2(UCB***) M/T MUA 5 SPEED 5H(MWQ)	8-97944-134-0	01	1	1009-
66	HOSE; FUEL,RETURN PIPE 4X4(UCS***)	8-97944-134-0	01	1	1009-
100	CLIP; FUEL PIPE (B) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	02	1	0503-0606
100	CLIP; FUEL PIPE (B) ID=10.3X3	8-98051-899-0	02	1	0607-
100	CLIP; FUEL PIPE (A)	8-97251-128-0	02	1	0503-
307	HOSE ASM; FUEL,DELIVERY & RETURN (C) L=150 SERVICED BY L=3000	0-01658-300-0	01	1	0503-
307	HOSE ASM; FUEL,DELIVERY & RETURN M/T MUA 5 SPEED 5G(RSP) (A)	8-97944-133-0	01	1	0503-0508
307	HOSE ASM; FUEL,DELIVERY & RETURN 4X2(UCB***) M/T MUA 5 SPEED 5G(RSP) (A)	8-97944-133-0	01	1	0509-0606
307	HOSE ASM; FUEL,DELIVERY & RETURN 4X4(UCS***) (A)	8-97944-133-0	01	1	0509-0606
307	HOSE ASM; FUEL,DELIVERY & RETURN 4X2(UCB***) M/T MUA 5 SPEED 5H(MWQ) (A)	8-97944-133-0	01	1	0607-1008
307	HOSE ASM; FUEL,DELIVERY & RETURN 4X4(UCS***) (A)	8-97944-133-0	01	1	0607-1008
307	HOSE ASM; FUEL,DELIVERY & RETURN M/T MUA 5 SPEED 5G(RSP) (B)	8-97944-134-0	01	1	0503-0508
307	HOSE ASM; FUEL,DELIVERY & RETURN 4X2(UCB***) M/T MUA 5 SPEED 5G(RSP) (B)	8-97944-134-0	01	1	0509-0606
307	HOSE ASM; FUEL,DELIVERY & RETURN 4X4(UCS***) (B)	8-97944-134-0	01	1	0509-0606
307	HOSE ASM; FUEL,DELIVERY & RETURN 4X2(UCB***) M/T MUA 5 SPEED 5H(MWQ) (B)	8-97944-134-0	01	1	0607-1008
307	HOSE ASM; FUEL,DELIVERY & RETURN 4X4(UCS***) (B)	8-97944-134-0	01	1	0607-1008
350	PIPE; FUEL,DEL & RET 4X4(UCS***) (G)	8-98179-684-0	01	1	1012-
350	PIPE; FUEL,DEL & RET A/T 4 SPEED-JATCO(RMK) (B)	8-97378-425-0	01	1	0503-0606
350	PIPE; FUEL,DEL & RET A/T 4 SPEED-JATCO(RMK) (B)	8-97944-713-1	01	1	0607-
350	PIPE; FUEL,DEL & RET M/T MUA 5 SPEED 5G(RSP) (C)	8-97378-419-0	01	1	0503-0508
350	PIPE; FUEL,DEL & RET 4X2(UCB***) M/T MUA 5 SPEED 5G(RSP) (C)	8-97378-419-0	01	1	0509-0606
350	PIPE; FUEL,DEL & RET 4X4(UCS***) (C)	8-97378-419-0	01	1	0509-0606
350	PIPE; FUEL,DEL & RET 4X2(UCB***) M/T MUA 5 SPEED 5H(MWQ) (E)	8-98051-790-0	01	1	0607-0804
350	PIPE; FUEL,DEL & RET 4X4(UCS***) (E)	8-98051-790-0	01	1	0607-0804
350	PIPE; FUEL,DEL & RET 4X2(UCB***) M/T MUA 5 SPEED 5H(MWQ) (E)	8-97946-526-0	01	1	0805-1011
350	PIPE; FUEL,DEL & RET 4X4(UCS***) (E)	8-97946-526-0	01	1	0805-1011
350	PIPE; FUEL,DEL & RET M/T MUA 5 SPEED 5H(MWQ) (E)	8-98177-463-0	01	1	1012-
350	PIPE; FUEL,DEL & RET M/T MUA 5 SPEED 5G(RSP) (A)	8-97378-427-0	01	1	0503-0606
350	PIPE; FUEL,DEL & RET M/T MUA 5 SPEED 5H(MWQ) (A)	8-97944-716-1	01	1	0607-
350	PIPE; FUEL,DEL & RET 4X2(UCB***) A/T 4 SPEED-JATCO(RMK) (D)	8-97378-416-0	01	1	0503-0606
350	PIPE; FUEL,DEL & RET 4X2(UCB***) A/T 4 SPEED-JATCO(RMK) (F)	8-98051-788-0	01	1	0607-0612
350	PIPE; FUEL,DEL & RET 4X2(UCB***) A/T 4 SPEED-JATCO(RMK) (F)	8-98060-310-0	01	1	0701-0805
350	PIPE; FUEL,DEL & RET 4X2(UCB***) A/T 4 SPEED-JATCO(RMK) (F)	8-97946-522-0	01	1	0806-1011
350	PIPE; FUEL,DEL & RET 4X2(UCB***) A/T 4 SPEED-JATCO(RMK) (F)	8-98177-462-0	01	1	1012-
624	VALVE; 1 WAY,FUEL	8-97375-919-0	01	1	0503-

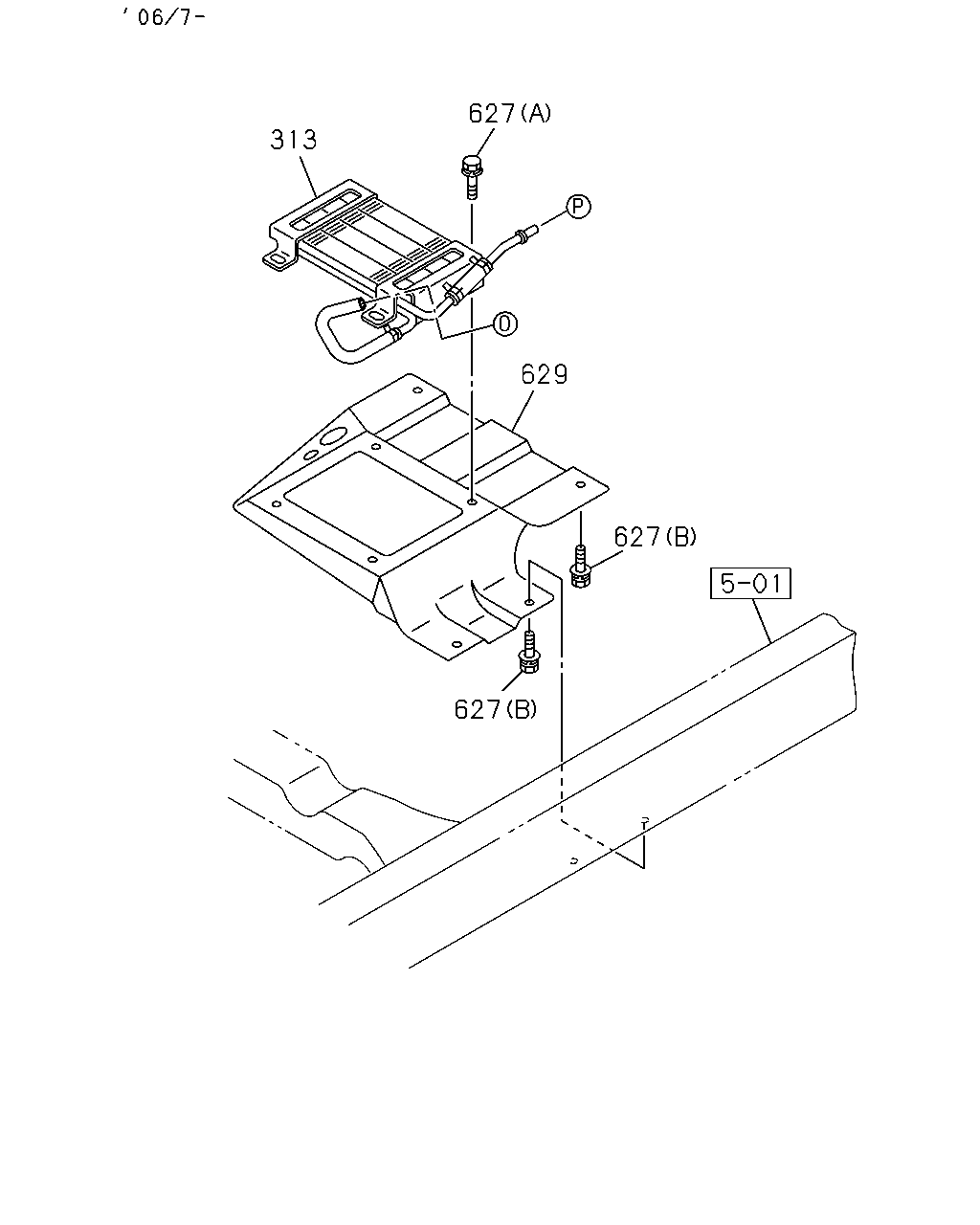

627 313 629 627 627

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
313	COOLER ASM; FUEL	8-97945-750-0	01	1	0607-0803
313	COOLER ASM; FUEL	8-97946-973-0	01	1	0804-
627	BOLT; FUEL CLR (A) M6X20 FLANGE	0-28650-620-0	04	1	0607-
627	BOLT; FUEL CLR (B) M10X28 W/LK&PL WASHER	8-97943-077-0	04	1	0607-0611
627	BOLT; FUEL CLR (B) M10X28 W/LK&PL WASHER	8-97945-706-0	04	1	0612-
629	BRACKET; FUEL CLR 4X2(UCB***)	8-97945-719-0	01	1	0607-0907
629	BRACKET; FUEL CLR 4X2(UCB***)	8-97945-577-0	01	1	0908-
629	BRACKET; FUEL CLR 4X4(UCS***) A/T 4 SPEED-JATCO(RMK)	8-97945-720-0	01	1	0607-0907
629	BRACKET; FUEL CLR 4X4(UCS***) A/T 4 SPEED-JATCO(RMK)	8-97945-578-0	01	1	0908-

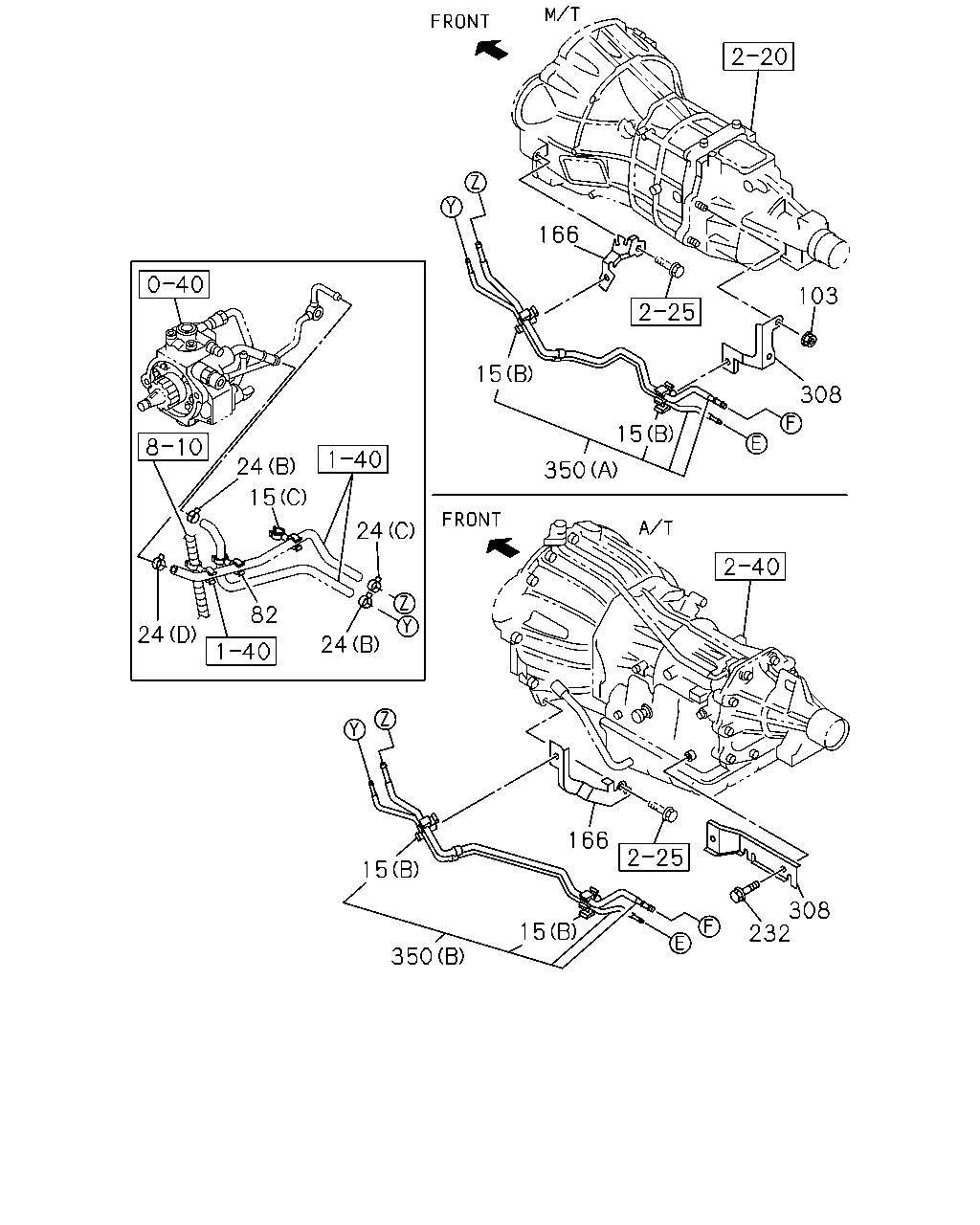

166 103 15 308 15 24 350 15 24 82 24 24 166 15 308 232 15 350

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
15	CLIP; FUEL PIPE (D)	8-98179-603-0	01	1	1012-
15	CLIP; FUEL PIPE (A)	8-97251-125-0	01	1	0503-
15	CLIP; FUEL PIPE (C) ID=11.8 & ID=18.6	8-97333-094-0	01	1	0503-
15	CLIP; FUEL PIPE (B)	8-97944-137-0	02	1	0503-
24	CLIP; FUEL HOSE 4X4(UCS***) (F)	8-98174-541-0	02	1	1012-
24	CLIP; FUEL HOSE (C) ID=16	8-94392-924-0	01	1	0503-0508
24	CLIP; FUEL HOSE (A) ID=14.2	8-97087-056-1	02	1	0503-0602
24	CLIP; FUEL HOSE (A) ID=14.2	8-98035-873-0	02	1	0603-
24	CLIP; FUEL HOSE (A) ID=14.2	8-97087-056-1	04	1	0503-0602
24	CLIP; FUEL HOSE (B) ID=11.5	8-97138-011-0	02	1	0503-0602
24	CLIP; FUEL HOSE (B) ID=11.5	8-98008-096-0	02	1	0603-
24	CLIP; FUEL HOSE (B) ID=11.5	8-97138-011-0	04	1	0503-0604
24	CLIP; FUEL HOSE (C) ID=16	8-98030-682-0	01	1	0605-
24	CLIP; FUEL HOSE (D) ID=17.8	8-97351-697-0	01	1	0503-0606
24	CLIP; FUEL HOSE (D) ID=17.8	8-97944-611-0	01	1	0607-
24	CLIP; FUEL HOSE (C) ID=16	8-94392-924-0	01	1	0509-0604
24	CLIP; FUEL HOSE (B) ID=11.5	8-98008-096-0	04	1	0605-0606
24	CLIP; FUEL HOSE (B) ID=11.5	8-98008-096-0	03	1	0607-
24	CLIP; FUEL HOSE (A) ID=14.2	8-98035-873-0	04	1	0603-
24	CLIP; FUEL HOSE (E) ID=11.5	8-98051-892-0	01	1	0607-
82	CLIP; FUEL HOSE ID=11.8 & ID=18.6	8-97333-094-0	01	1	0503-
103	NUT; BRKT M/T MUA 5 SPEED 5G(RSP) M10 FLANGE	8-94242-425-0	02	1	0503-0606
103	NUT; BRKT M/T MUA 5 SPEED 5H(MWQ) M10 FLANGE	8-94242-425-0	02	1	0607-
166	PROTECTOR; FUEL HOSE A/T 4 SPEED-JATCO(RMK)	8-97215-314-2	01	1	0503-0606
166	PROTECTOR; FUEL HOSE A/T 4 SPEED-JATCO(RMK)	8-97944-739-0	01	1	0607-
166	PROTECTOR; FUEL HOSE M/T MUA 5 SPEED 5G(RSP)	8-97215-311-3	01	1	0503-0606
166	PROTECTOR; FUEL HOSE M/T MUA 5 SPEED 5H(MWQ)	8-97944-738-0	01	1	0607-
232	BOLT; CLIP,PIPE A/T 4 SPEED-JATCO(RMK) M6X12 FLANGE	0-28050-612-0	01	1	0503-
308	BRACKET; FUEL PIPE A/T 4 SPEED-JATCO(RMK)	8-97328-217-0	01	1	0503-0608
308	BRACKET; FUEL PIPE A/T 4 SPEED-JATCO(RMK)	8-98050-708-0	01	1	0609-
308	BRACKET; FUEL PIPE M/T MUA 5 SPEED 5G(RSP)	8-97215-294-1	01	1	0503-0606
308	BRACKET; FUEL PIPE M/T MUA 5 SPEED 5H(MWQ)	8-97944-746-0	01	1	0607-
350	PIPE; FUEL,DEL & RET 4X4(UCS***) (G)	8-98179-684-0	01	1	1012-
350	PIPE; FUEL,DEL & RET A/T 4 SPEED-JATCO(RMK) (B)	8-97378-425-0	01	1	0503-0606
350	PIPE; FUEL,DEL & RET A/T 4 SPEED-JATCO(RMK) (B)	8-97944-713-1	01	1	0607-
350	PIPE; FUEL,DEL & RET M/T MUA 5 SPEED 5G(RSP) (C)	8-97378-419-0	01	1	0503-0508
350	PIPE; FUEL,DEL & RET 4X2(UCB***) M/T MUA 5 SPEED 5G(RSP) (C)	8-97378-419-0	01	1	0509-0606
350	PIPE; FUEL,DEL & RET 4X4(UCS***) (C)	8-97378-419-0	01	1	0509-0606
350	PIPE; FUEL,DEL & RET 4X2(UCB***) M/T MUA 5 SPEED 5H(MWQ) (E)	8-98051-790-0	01	1	0607-0804
350	PIPE; FUEL,DEL & RET 4X4(UCS***) (E)	8-98051-790-0	01	1	0607-0804
350	PIPE; FUEL,DEL & RET 4X2(UCB***) M/T MUA 5 SPEED 5H(MWQ) (E)	8-97946-526-0	01	1	0805-1011
350	PIPE; FUEL,DEL & RET 4X4(UCS***) (E)	8-97946-526-0	01	1	0805-1011
350	PIPE; FUEL,DEL & RET M/T MUA 5 SPEED 5H(MWQ) (E)	8-98177-463-0	01	1	1012-
350	PIPE; FUEL,DEL & RET M/T MUA 5 SPEED 5G(RSP) (A)	8-97378-427-0	01	1	0503-0606
350	PIPE; FUEL,DEL & RET M/T MUA 5 SPEED 5H(MWQ) (A)	8-97944-716-1	01	1	0607-
350	PIPE; FUEL,DEL & RET 4X2(UCB***) A/T 4 SPEED-JATCO(RMK) (D)	8-97378-416-0	01	1	0503-0606
350	PIPE; FUEL,DEL & RET 4X2(UCB***) A/T 4 SPEED-JATCO(RMK) (F)	8-98051-788-0	01	1	0607-0612
350	PIPE; FUEL,DEL & RET 4X2(UCB***) A/T 4 SPEED-JATCO(RMK) (F)	8-98060-310-0	01	1	0701-0805
350	PIPE; FUEL,DEL & RET 4X2(UCB***) A/T 4 SPEED-JATCO(RMK) (F)	8-97946-522-0	01	1	0806-1011
350	PIPE; FUEL,DEL & RET 4X2(UCB***) A/T 4 SPEED-JATCO(RMK) (F)	8-98177-462-0	01	1	1012-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
