1-35 — CHARGE AIR COOLER
(#74972) — 22 parça
◀

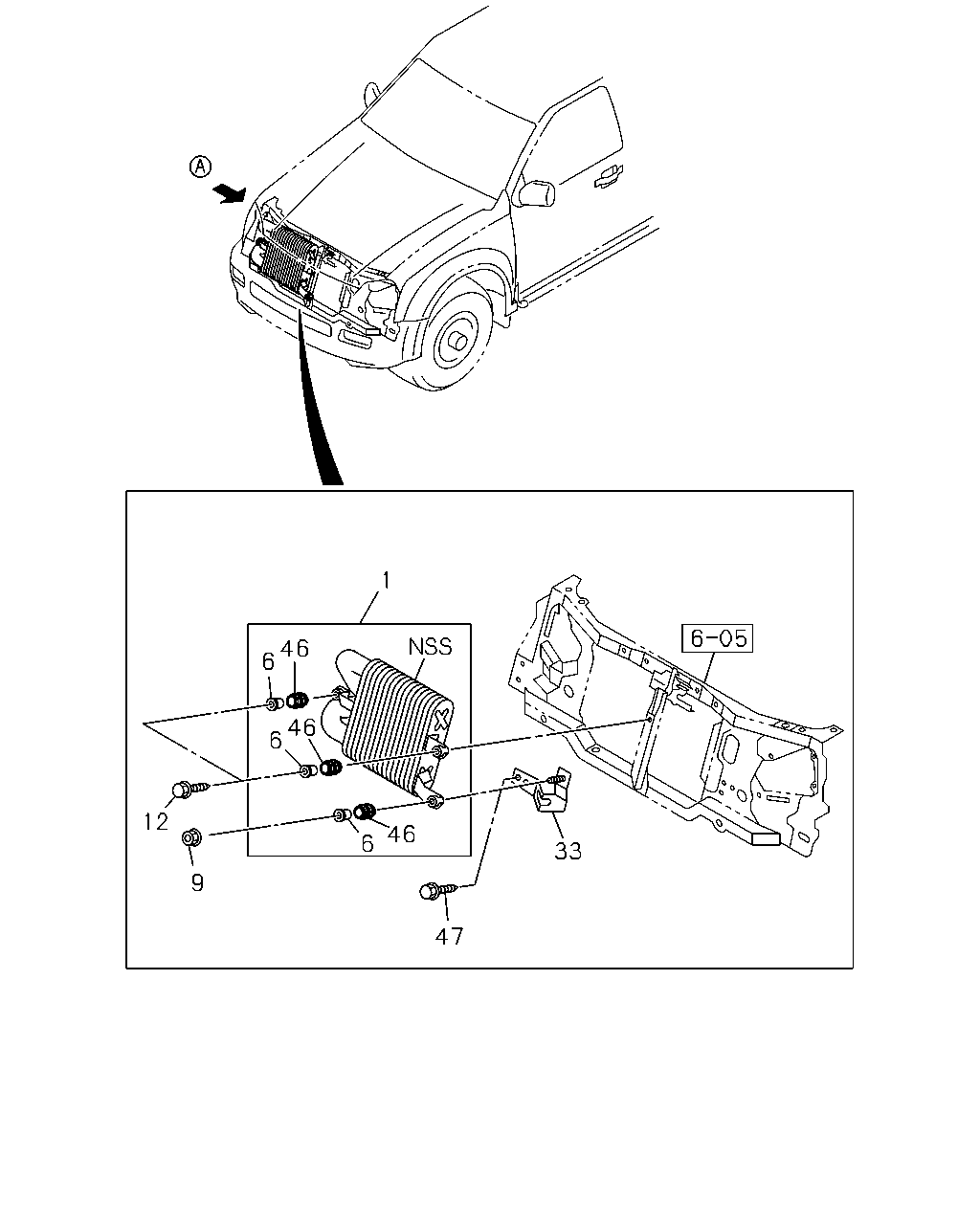

[135A] NO.1 (10 parça)

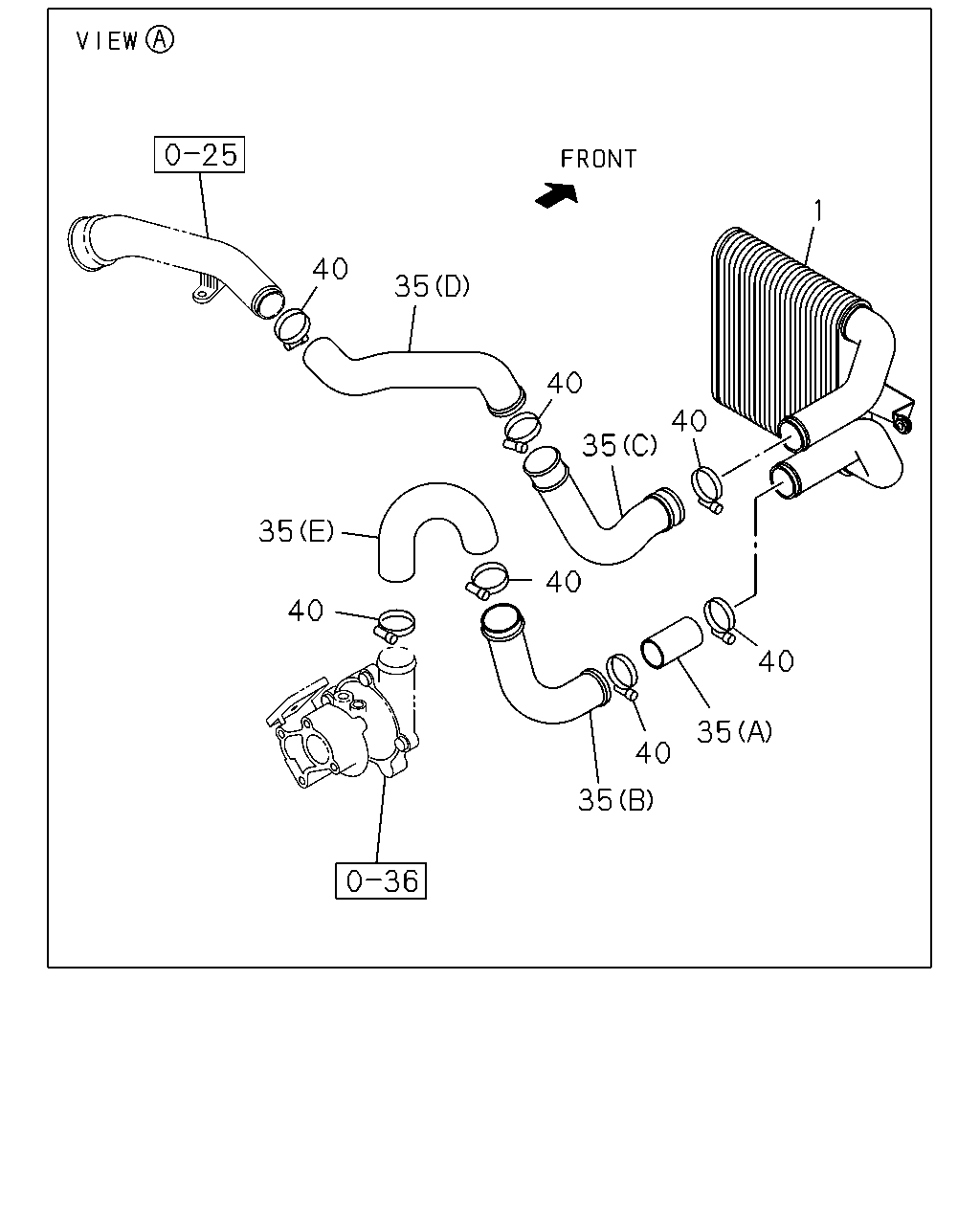

[135A] NO.2 (12 parça)
▶
1
46
6
46
6
12
46
6
33
9
47
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
COOLER; CHARGE AIR
8-98000-270-1
01
1
0503-
6
COLLAR; MTG,CHARGE AIR COOLER
8-97386-100-0
03
1
0503-
9
NUT; CHARGE AIR COOLER
M8 FLANGE
0-91150-108-0
01
1
0503-0603
9
NUT; CHARGE AIR COOLER
M8 FLANGE
0-91180-108-0
01
1
0604-
12
BOLT; CHARGE AIR COOLER
8-97943-079-0
02
1
0503-0812
12
BOLT; CHARGE AIR COOLER
M8X32.5 W/PL WASHER
8-98136-077-0
02
1
0901-
33
BRACKET; CHARGE AIR COOLER,FRT
8-97326-994-0
01
1
0503-
46
RUBBER; MTG,CHARGE AIR COOLER
8-97942-930-0
03
1
0503-
47
BOLT; CHARGE AIR COOLER BRKT
M8X20 FLANGE
0-28680-820-0
02
1
0503-0601
47
BOLT; CHARGE AIR COOLER BRKT
M8X20 FLANGE
0-28650-820-0
02
1
0602-
1
40
35
40
40
35
35
40
40
40
35
40
35
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
COOLER; CHARGE AIR
8-98000-270-1
01
1
0503-
35
HOSE; CONNECTING
(A)
8-97320-881-2
01
1
0503-
35
HOSE; CONNECTING
(B)
8-97370-538-1
01
1
0503-0707
35
HOSE; CONNECTING
(B)
8-98092-322-0
01
1
0708-
35
HOSE; CONNECTING
(D)
8-97370-563-1
01
1
0503-
35
HOSE; CONNECTING
(C)
8-97385-978-0
01
1
0503-
35
HOSE; CONNECTING
(E)
8-98002-516-0
01
1
0503-
40
CLIP; RUBBER HOSE
ID=55-75
8-98141-459-0
01
1
0903-0911
40
CLIP; RUBBER HOSE
ID=50-70
8-98141-460-0
06
1
0912-
40
CLIP; RUBBER HOSE
ID=50-65
8-98000-117-0
07
1
0503-0902
40
CLIP; RUBBER HOSE
ID=45-65
8-98133-396-0
06
1
0903-0911
40
CLIP; RUBBER HOSE
ID=45-65
8-98133-396-0
01
1
0912-
