◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10775 - FRR/FVR(TAIWAN) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#7497) — 19 parça

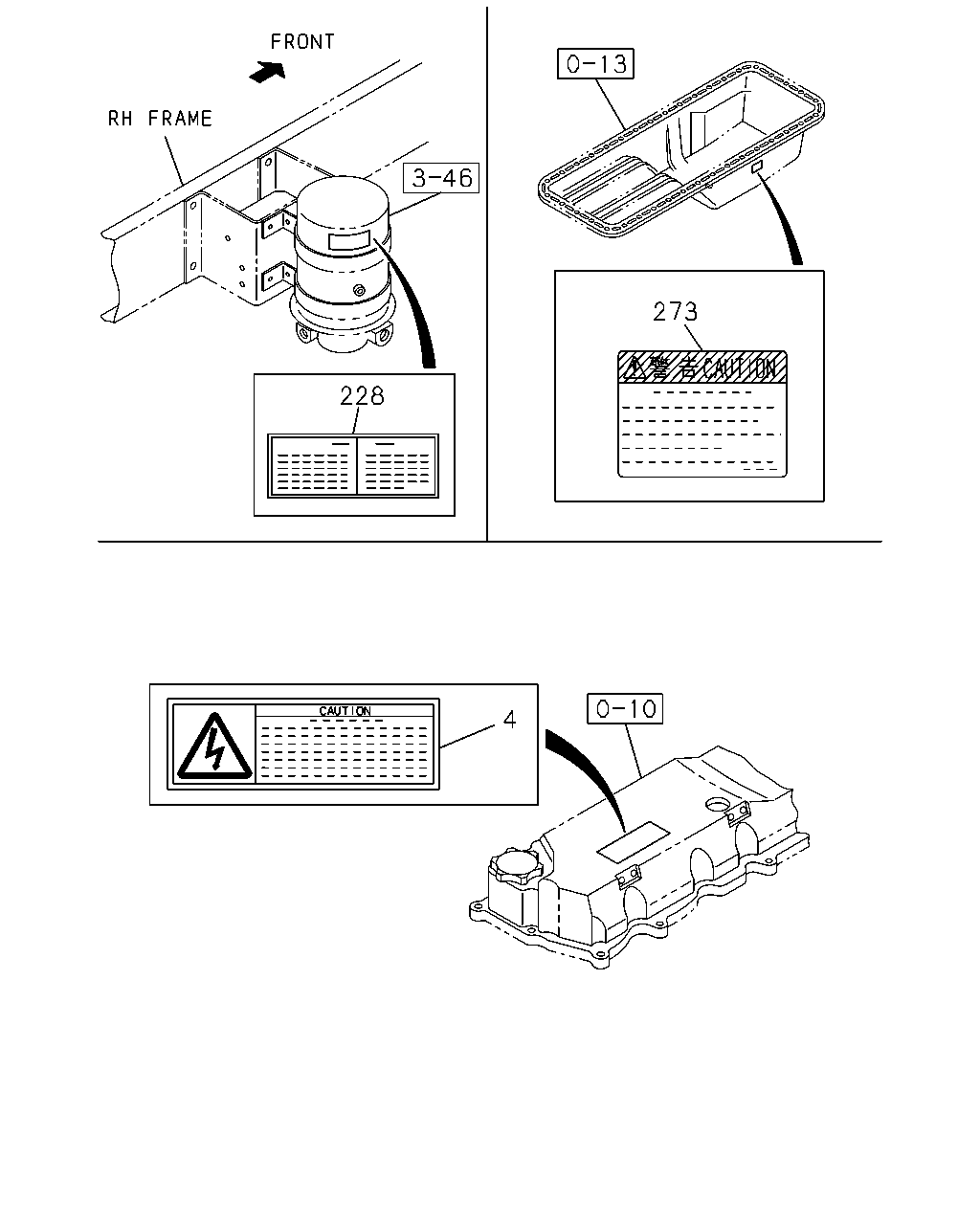

çizim 26218
273 228 4
BalonParca AdiParca NoAdetTipApplied Date A B
4 LABEL; ENG MAINTENANCE 8-94391-524-0 01 1 9907-0610 ● ●
228 PLATE; CAUTION,AIR DRYER
TAI 		8-97530-422-0 01 1 9811-0610 ● ●
228 PLATE; CAUTION,AIR DRYER
TAI 		1-48199-325-0 01 1 0611- ● ●
273 LABEL; CAUTION,OIL
6HK1 TCN ENG(82L) HEATER & DEFROSTER(C41),A/C MAN CONT(C60) GEN NIKKO 24V-60A 1.5KW(SC8) 		8-98070-064-0 01 1 0701- ●
273 LABEL; CAUTION,OIL
6HK1 TCC ENG(81L) GEN NIKKO 24V-60A 1.5KW(SC8) 		8-98070-064-0 01 1 0701- ●

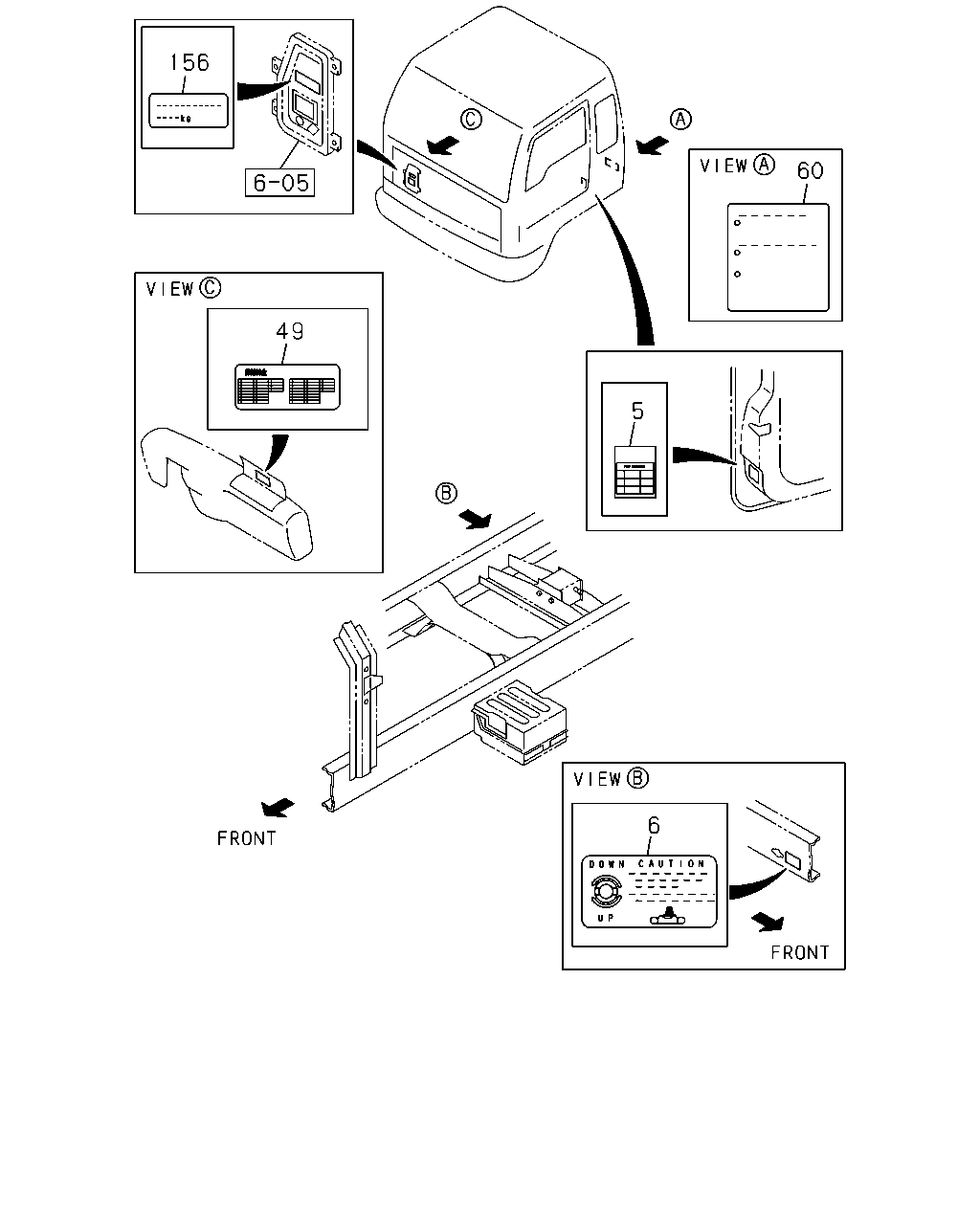

çizim 26382
156 60 49 5 6
BalonParca AdiParca NoAdetTipApplied Date A B
5 LABEL; TIRE AIR PRESSURE
TAI 		8-97535-118-0 01 1 9811-0610 ●
5 LABEL; TIRE AIR PRESSURE
TAI 		8-97535-117-0 01 1 9811- ●
6 PLATE; CAUTION,SPARE TIRE
TAI 		8-97530-423-0 01 1 9811-0610 ● ●
6 PLATE; CAUTION,SPARE TIRE
TAI 		1-53639-004-0 01 1 0611-0708 ● ●
6 PLATE; CAUTION,SPARE TIRE
TAI 		8-98082-437-0 01 1 0709- ● ●
49 PLATE; CAUTION,FUSE BOX
TAI 		8-97530-315-0 01 1 9811-0002 ● ●
49 PLATE; CAUTION,FUSE BOX
TAI 		8-97531-237-0 01 1 0003-0610 ● ●
49 PLATE; CAUTION,FUSE BOX
TAI 		1-85878-551-1 01 1 0611- ● ●
60 PLATE; CAUTION,CAB TILT
TAI 		1-85883-169-0 01 1 0611- ●
60 PLATE; CAUTION,CAB TILT
TAI 		8-97530-424-0 01 1 9811-0610 ● ●
60 PLATE; CAUTION,CAB TILT
TAI 		8-97530-424-0 01 1 0611- ●
156 PLATE; CAUTION,A/C
TAI 		8-97530-759-0 01 1 9903-0610 ● ●
çizim 99049
274 51
BalonParca AdiParca NoAdetTipApplied Date A B
51 PLATE; CAUTION,WARNING
TAI 		1-85880-707-1 01 1 0611- ●
274 PLATE; CAUTION,DPD
TAI 		8-97616-473-0 01 1 0611- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
