0-66 — GENERATOR (#74966) — 14 parça

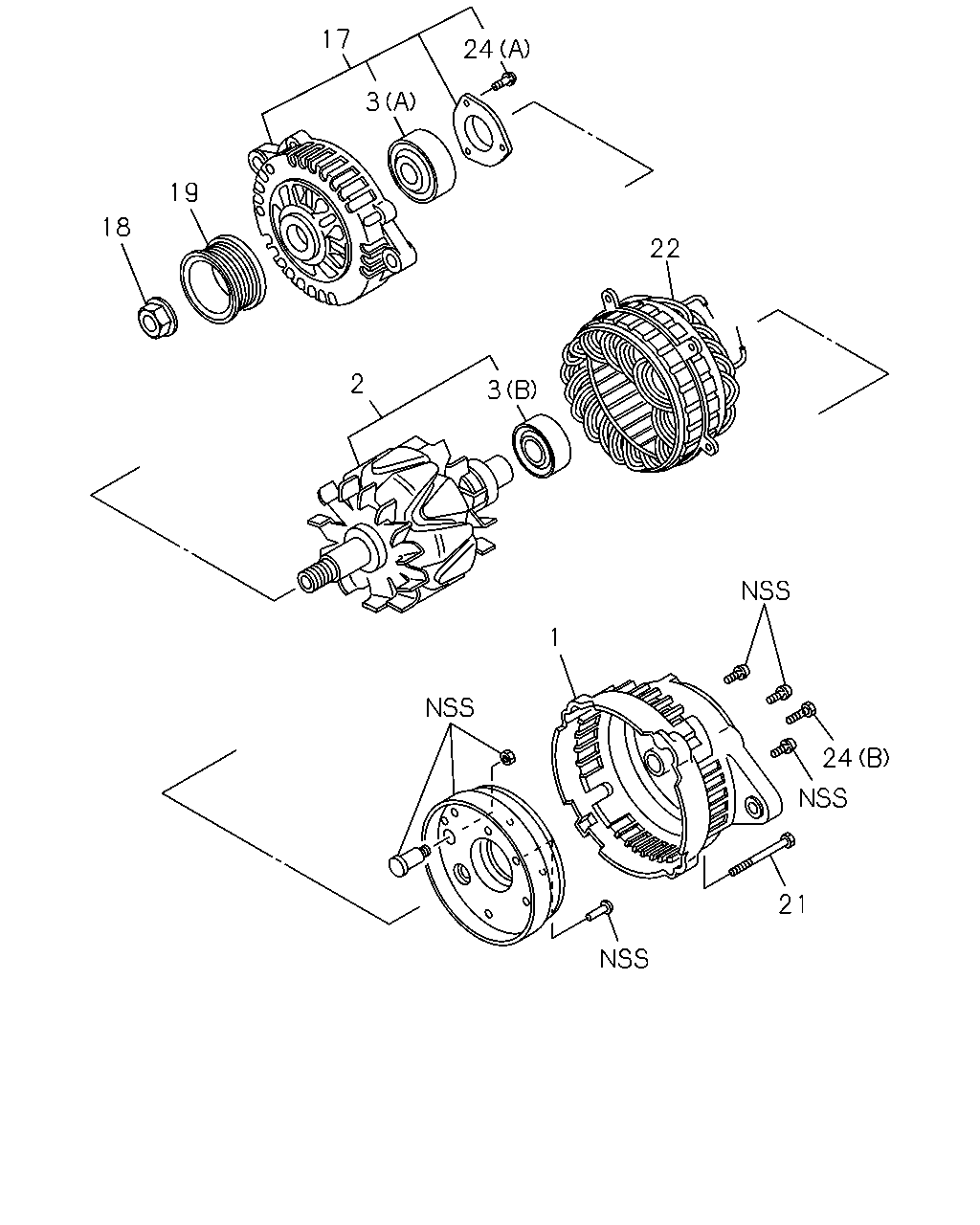

çizim 118521
17 24 3 19 18 22 2 3 1 24 21
BalonParca AdiParca NoAdetTipApplied Date
1 COVER ASM; RR,GEN
ASM PART: A = 8-97369-714-0 		8-98014-278-0 01 1 -
1 COVER ASM; RR,GEN
ASM PART: B = 8-98006-085-0 		8-98036-868-0 01 1 -1209
1 COVER ASM; RR,GEN
ASM PART: B = 8-98006-085-0 		8-98232-050-0 01 1 1210-
2 ROTOR; GEN
ASM PART: A = 8-97369-714-0, B = 8-98006-085-0 		8-97374-374-0 01 1 -
3 BEARING; ROTOR,GEN
(A) ASM PART: A = 8-97369-714-0 		8-94462-859-0 01 1 -
3 BEARING; ROTOR,GEN
(B) ASM PART: A = 8-97369-714-0, B = 8-98006-085-0 		8-97103-807-0 01 1 -
3 BEARING; ROTOR,GEN
(A) ASM PART: B = 8-98006-085-0 		8-98159-457-0 01 1 -
17 COVER ASM; FRT,GEN
ASM PART: A = 8-97369-714-0, B = 8-98006-085-0 		8-97374-376-0 01 1 -
18 NUT; PULLEY,GEN
ASM PART: A = 8-97369-714-0, B = 8-98006-085-0 		8-97074-927-0 01 1 -
19 PULLEY; GEN
ASM PART: A = 8-97369-714-0, B = 8-98006-085-0 		8-97379-555-0 01 1 -
21 BOLT; THROUGH,GEN
ASM PART: A = 8-97369-714-0, B = 8-98006-085-0 		8-97182-960-0 04 1 -
22 STATOR; GEN
ASM PART: A = 8-97369-714-0, B = 8-98006-085-0 		8-98014-283-0 01 1 -
24 SCREW; RECTIFIER,GEN
(A) ASM PART: A = 8-97369-714-0, B = 8-98006-085-0 		8-94233-653-0 01 1 -
24 SCREW; RECTIFIER,GEN
(B) ASM PART: A = 8-97369-714-0, B = 8-98006-085-0 		8-97120-257-0 01 1 -
