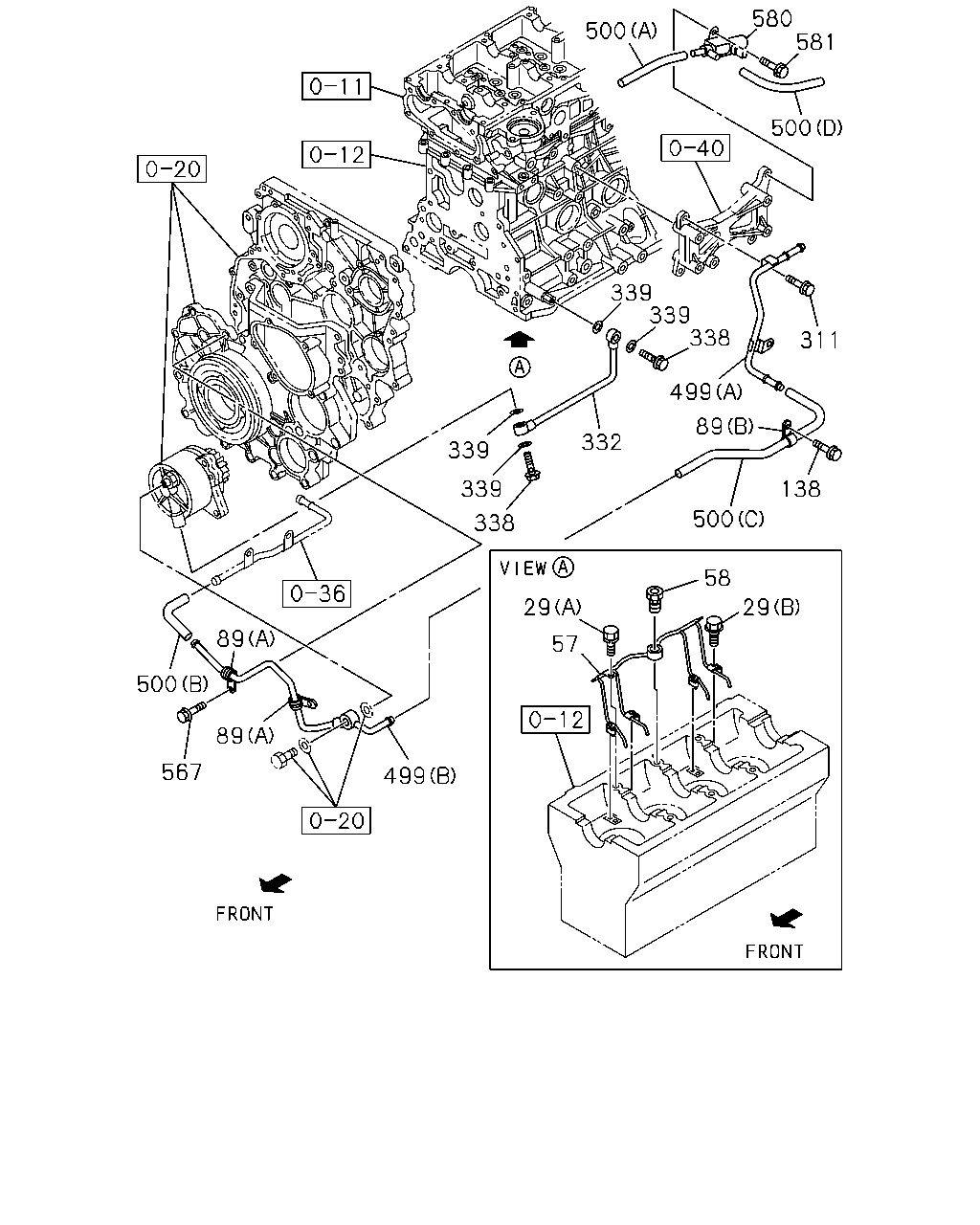

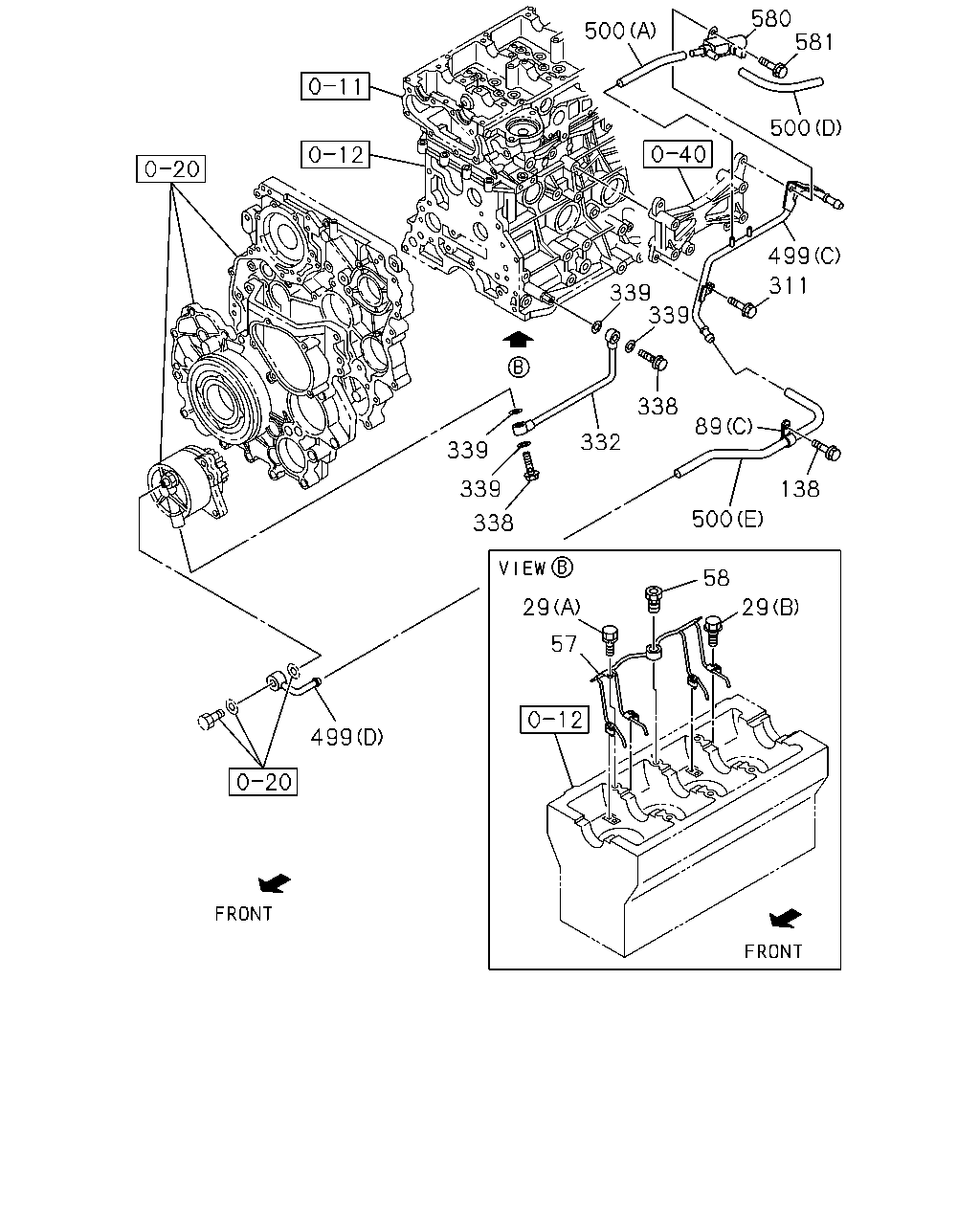

0-52 — OIL AND VACUUM PIPING; ENGINE (#74961) — 74 parça

580 500 581 499 311 138 29 58 500 89 338 332 29 57 499 338 339 339 339 339 500

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	BOLT; OIL PIPE,OIL JET (A) M8X10 FLANGE	0-28050-810-0	01	1	0503-
29	BOLT; OIL PIPE,OIL JET (B) M6X20 FLANGE	8-97380-673-1	04	1	0503-
57	PIPE; OIL,OIL JET	8-97312-132-2	01	1	0503-
58	VALVE; RELIEF,OIL JET,PISTON COOLING	8-97379-464-0	01	1	0503-
89	CLIP; VAC HOSE (A) ID=12 L=20	1-09700-911-1	02	1	0503-0606
89	CLIP; VAC HOSE (C) ID=16 L=20	0-95235-536-0	01	1	0607-
89	CLIP; VAC HOSE (B)	9-09520-835-0	01	1	0503-0606
138	BOLT; CLIP FIX M8X16 FLANGE	0-28050-816-0	01	1	0503-
311	BOLT; PIPE FIX M6X12 FLANGE	0-28050-612-0	02	1	0503-0606
311	BOLT; PIPE FIX M6X12 FLANGE	0-28050-612-0	01	1	0607-
332	PIPE; OIL,C/BL TO VAC PUMP	8-97312-302-1	01	1	0503-0606
332	PIPE; OIL,C/BL TO VAC PUMP	8-98038-929-0	01	1	0607-
338	BOLT; JOINT,OIL PIPE M8X20 EYE-BOLT	8-97910-296-1	02	1	0503-
339	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=8.2 OD=14.0 T=1.0	9-09571-408-0	04	1	0503-
499	PIPE; VACUUM (B)	8-97357-846-2	01	1	0503-0606
499	PIPE; VACUUM (D)	8-98011-527-1	01	1	0607-
499	PIPE; VACUUM (A)	8-97369-442-2	01	1	0503-0606
499	PIPE; VACUUM (C)	8-98013-802-1	01	1	0607-
500	HOSE; VACUUM (A)	0-04320-160-0	01	1	0503-0606
500	HOSE; VACUUM (A)	0-04420-110-0	01	1	0607-
500	HOSE; VACUUM (B)	8-97358-019-0	01	1	0503-0606
500	HOSE; VACUUM (E)	0-08508-230-0	01	1	0607-
500	HOSE; VACUUM (C)	8-97369-587-1	01	1	0503-0606
500	HOSE; VACUUM (D)	8-97369-589-0	01	1	0503-
580	VALVE; VAC SW	8-97352-145-0	01	1	0503-
581	BOLT; VSV M8X16 FLANGE	0-28050-816-0	01	1	0503-

500 581 580 500 339 339 338 311 499 89 138 500 58 29 29 57 339 339 338 499 89 89 500 567 332

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	BOLT; OIL PIPE,OIL JET (A) M8X10 FLANGE	0-28050-810-0	01	1	0503-
29	BOLT; OIL PIPE,OIL JET (B) M6X20 FLANGE	8-97380-673-1	04	1	0503-
57	PIPE; OIL,OIL JET	8-97312-132-2	01	1	0503-
58	VALVE; RELIEF,OIL JET,PISTON COOLING	8-97379-464-0	01	1	0503-
89	CLIP; VAC HOSE (A) ID=12 L=20	1-09700-911-1	02	1	0503-0606
89	CLIP; VAC HOSE (C) ID=16 L=20	0-95235-536-0	01	1	0607-
89	CLIP; VAC HOSE (B)	9-09520-835-0	01	1	0503-0606
138	BOLT; CLIP FIX M8X16 FLANGE	0-28050-816-0	01	1	0503-
311	BOLT; PIPE FIX M6X12 FLANGE	0-28050-612-0	02	1	0503-0606
311	BOLT; PIPE FIX M6X12 FLANGE	0-28050-612-0	01	1	0607-
332	PIPE; OIL,C/BL TO VAC PUMP	8-97312-302-1	01	1	0503-0606
332	PIPE; OIL,C/BL TO VAC PUMP	8-98038-929-0	01	1	0607-
338	BOLT; JOINT,OIL PIPE M8X20 EYE-BOLT	8-97910-296-1	02	1	0503-
339	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=8.2 OD=14.0 T=1.0	9-09571-408-0	04	1	0503-
499	PIPE; VACUUM (B)	8-97357-846-2	01	1	0503-0606
499	PIPE; VACUUM (D)	8-98011-527-1	01	1	0607-
499	PIPE; VACUUM (A)	8-97369-442-2	01	1	0503-0606
499	PIPE; VACUUM (C)	8-98013-802-1	01	1	0607-
500	HOSE; VACUUM (A)	0-04320-160-0	01	1	0503-0606
500	HOSE; VACUUM (A)	0-04420-110-0	01	1	0607-
500	HOSE; VACUUM (B)	8-97358-019-0	01	1	0503-0606
500	HOSE; VACUUM (E)	0-08508-230-0	01	1	0607-
500	HOSE; VACUUM (C)	8-97369-587-1	01	1	0503-0606
500	HOSE; VACUUM (D)	8-97369-589-0	01	1	0503-
567	CLIP; PIPE M6X16 FLANGE	0-28650-616-0	02	1	0503-0606
580	VALVE; VAC SW	8-97352-145-0	01	1	0503-
581	BOLT; VSV M8X16 FLANGE	0-28050-816-0	01	1	0503-

2 147 63 147 48 48 248 44 3 3 147 414 149 150 534 563

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	BOLT; EYE,OIL PIPE M10X24	9-09906-205-1	01	1	0503-0506
2	BOLT; EYE,OIL PIPE M10X24	8-97944-505-0	01	1	0507-0606
2	BOLT; EYE,OIL PIPE M10X27 FLANGE	8-94443-535-0	01	1	0607-
3	GASKET; EYE BOLT,OIL PIPE ID=10.2 OD=16.0	9-09571-410-0	02	1	0503-
44	BOLT; CLIP,OIL PIPE M6X30 FLANGE	0-28680-630-0	01	1	0503-0601
44	BOLT; CLIP,OIL PIPE M6X30 FLANGE	0-28650-630-0	01	1	0602-
48	CLIP; OIL PIPE (A)	8-97389-843-1	01	1	0503-
48	CLIP; OIL PIPE (B)	8-97389-844-0	01	1	0503-
63	PIPE; OIL,TURBOCHARGER FEED	8-97355-452-1	01	1	0503-0606
63	PIPE; OIL,TURBOCHARGER FEED	8-98011-899-0	01	1	0607-
147	GASKET; OIL PIPE TO TURBOCHARGER (A)	8-97354-056-0	01	1	0503-
147	GASKET; OIL PIPE TO TURBOCHARGER (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	0503-
149	PIPE; OIL RETURN,TURBOCHARGER	8-97355-431-4	01	1	0503-0606
149	PIPE; OIL RETURN,TURBOCHARGER	8-98011-900-0	01	1	0607-
150	GASKET; OIL PIPE TO C/BL	8-97920-587-0	01	1	0503-1008
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-98132-018-1	01	1	1009-
248	CONNECTOR; TURBOCHARGER OIL FEED PIPE M10X24	9-09906-205-1	01	1	0503-0506
248	CONNECTOR; TURBOCHARGER OIL FEED PIPE M10X24	8-97944-505-1	01	1	0507-
414	BOLT; OIL PIPE M6X20 FLANGE	0-28650-620-0	02	1	0503-
534	NUT; OIL PIPE M8 FLANGE	0-91180-208-0	02	1	0503-
563	STUD; OIL PIPE M8X20 L=32	0-41010-820-0	02	1	0503-
