Isuzu WW
▶
SUV
▶
UCR
▶
51032 - UCR/UCS-LHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-50 - OIL COOLER AND OIL FILTER
▶

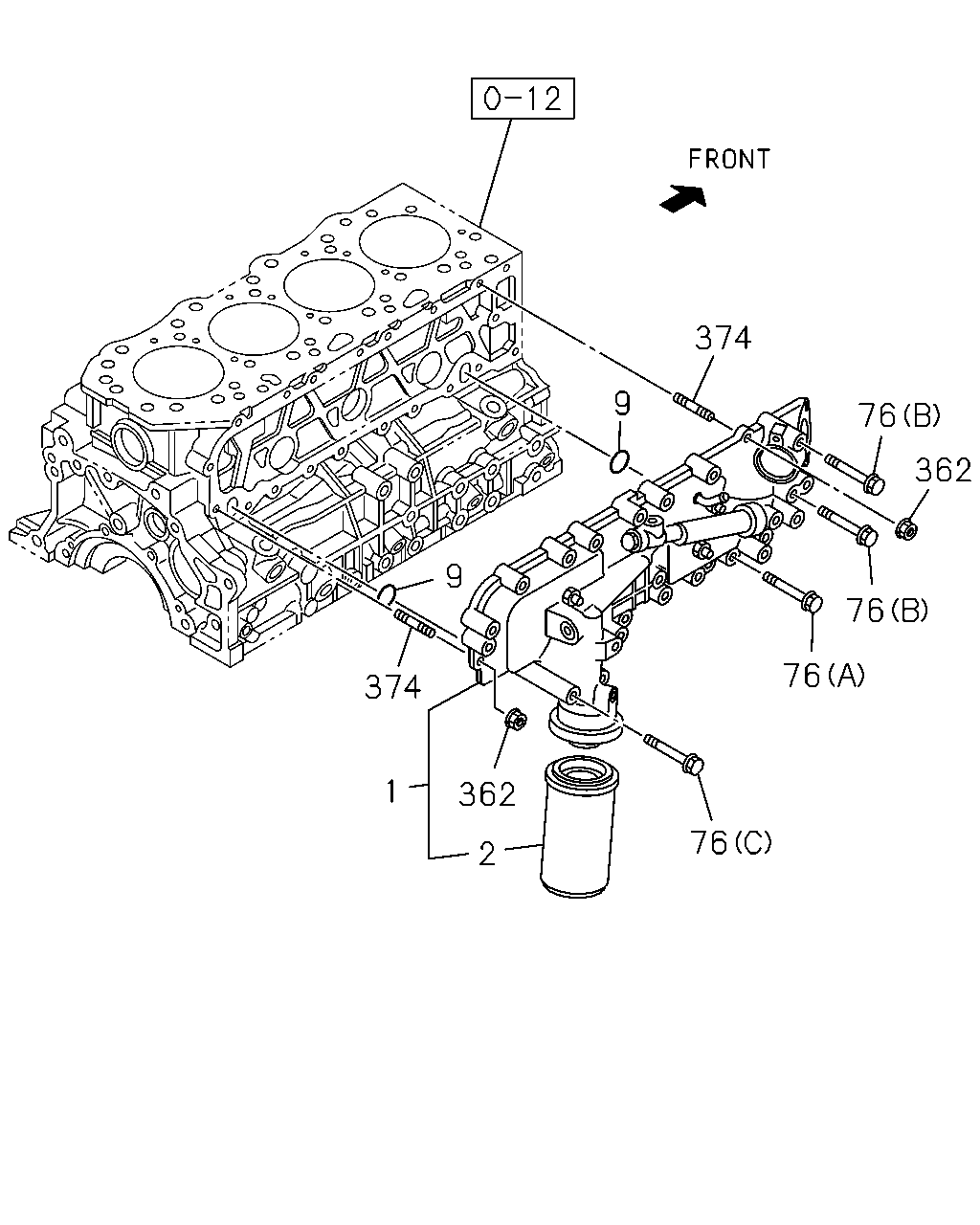

0-50 — OIL COOLER AND OIL FILTER
(#74959) — 10 parça
374
9
76
362
9
76
76
374
1
362
76
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
FILTER & COOLER ASM; OIL
8-97355-454-3
01
1
0503-0508
1
FILTER & COOLER ASM; OIL
8-98011-680-1
01
1
0509-0606
1
FILTER & COOLER ASM; OIL
8-98025-403-4
01
1
0607-
2
ELEMENT; OIL FILTER
8-97358-720-0
01
1
0503-
9
GASKET; CENTER BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=26.2
9-09566-226-0
02
1
0503-
76
BOLT; OIL FILTER
(A) M8X45 FLANGE
0-28050-845-0
14
1
0503-
76
BOLT; OIL FILTER
(B) M8X70 FLANGE
0-28050-870-0
02
1
0503-
76
BOLT; OIL FILTER
(C) M8X110 FLANGE
0-28055-811-0
02
1
0503-
362
NUT; OIL FILTER
M8 FLANGE
0-91180-208-0
02
1
0503-
374
STUD; OIL FILTER
M8X20 L=32
0-41010-820-0
02
1
0503-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
