◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51032 - UCR/UCS-LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-40 - FUEL INJECTION SYSTEM ▶
0-40 — FUEL INJECTION SYSTEM (#74957) — 143 parça

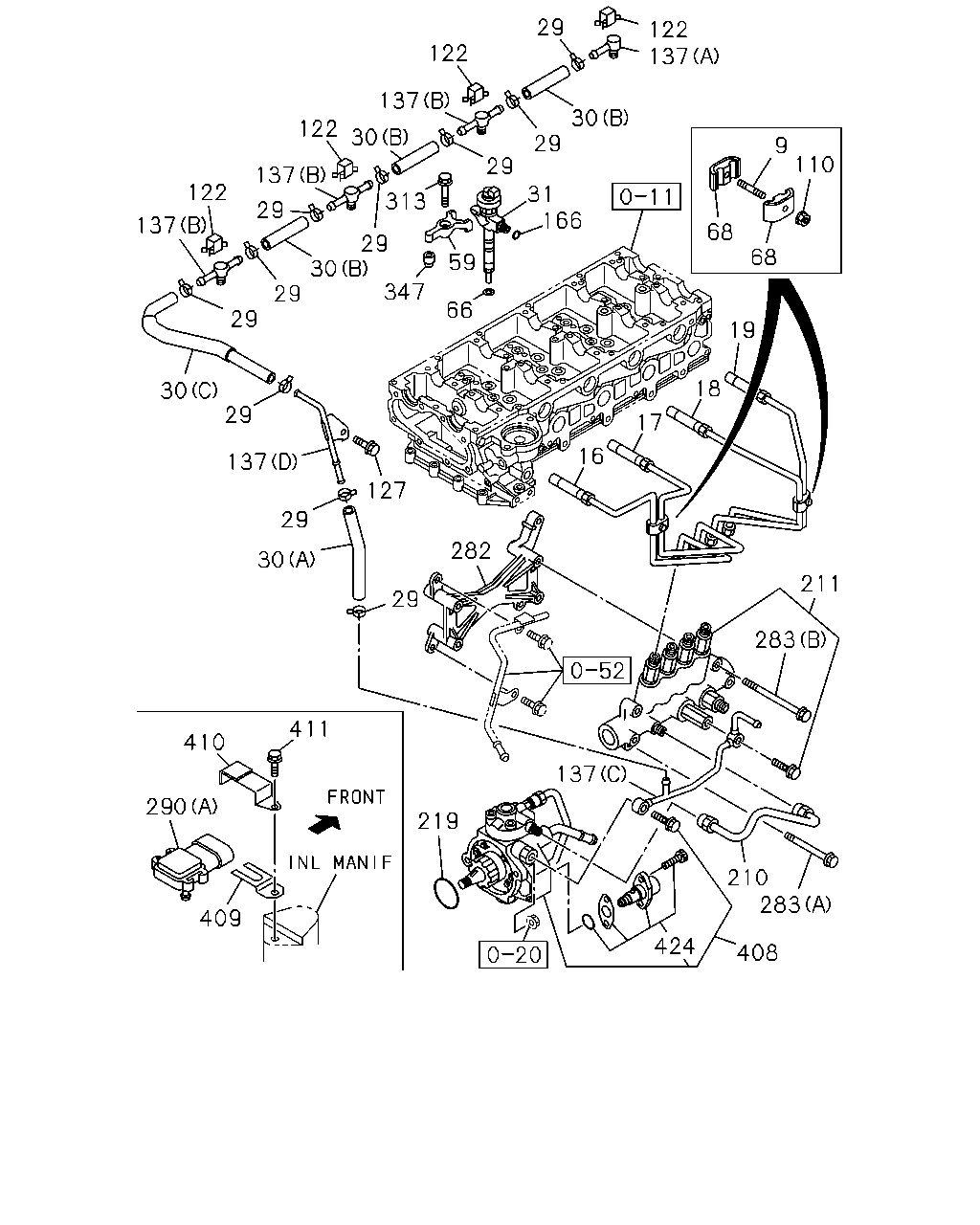

çizim 118506
29 122 137 122 137 30 122 30 29 9 110 29 137 122 31 166 313 29 137 68 29 30 68 59 347 29 66 29 19 18 30 29 17 16 137 127 29 282 30 211 29 283 411 410 137 290 219 210 283 409 424 408
BalonParca AdiParca NoAdetTipApplied Date
9 STUD; CLIP
M6X25 L=36 		8-97214-234-1 02 1 0503-
16 PIPE; INJ NO.1 8-97312-099-2 01 1 0503-0606
16 PIPE; INJ NO.1 8-98011-606-0 01 1 0607-
17 PIPE; INJ NO.2 8-97312-100-2 01 1 0503-0606
17 PIPE; INJ NO.2 8-98043-684-0 01 1 0607-
18 PIPE; INJ NO.3 8-97312-101-2 01 1 0503-0606
18 PIPE; INJ NO.3 8-98011-608-0 01 1 0607-
19 PIPE; INJ NO.4 8-97312-102-2 01 1 0503-0606
19 PIPE; INJ NO.4 8-98011-609-0 01 1 0607-
29 CLIP; HOSE
ID=10.5 		8-97944-126-0 10 1 0503-
30 HOSE; RUBBER,FUEL LEAK
(A) L=130 		0-01804-130-0 01 1 0503-0611
30 HOSE; RUBBER,FUEL LEAK
(A) L=130 		8-98053-692-0 01 1 0612-
30 HOSE; RUBBER,FUEL LEAK
(B) L=98 		8-97354-652-0 03 1 0503-0611
30 HOSE; RUBBER,FUEL LEAK
(B) L=96 		8-98053-693-0 03 1 0612-
30 HOSE; RUBBER,FUEL LEAK
(C) L=150 		8-97362-306-2 01 1 0503-0810
30 HOSE; RUBBER,FUEL LEAK
(C) 		8-98112-034-0 01 1 0811-
31 NOZZLE ASM; INJ 8-97311-372-4 04 1 0503-0606
31 NOZZLE ASM; INJ 8-98011-604-0 04 1 0607-0704
31 NOZZLE ASM; INJ 8-98055-862-3 04 1 0705-1306
31 NOZZLE ASM; INJ 8-98011-604-5 04 1 1307-
59 CLAMP; NOZZLE HOLDER 8-97374-468-0 04 1 0503-0606
59 CLAMP; NOZZLE HOLDER 8-98011-528-2 04 1 0607-0710
59 CLAMP; NOZZLE HOLDER 8-98092-539-0 04 1 0711-
66 GASKET; INJ NOZZLE 8-97251-334-0 04 1 0503-0608
66 GASKET; INJ NOZZLE 8-98057-731-0 04 1 0609-0701
66 GASKET; INJ NOZZLE 8-98077-165-0 04 1 0702-1012
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98181-540-0 04 1 1101-
68 CLIP; INJ PIPE 8-97213-481-0 04 1 0503-
110 NUT; CLIP
M6 FLANGE 		0-91150-106-0 02 1 0503-0605
110 NUT; CLIP
M6 FLANGE 		0-91180-106-0 02 1 0606-
122 CLIP; LEAK OFF PIPE 8-97315-286-0 04 1 0503-
127 BOLT; CLIP LEAK OFF PIPE
M8X12 FLANGE 		0-28050-812-0 01 1 0503-
137 PIPE ASM; LEAK OFF
(A) 		8-97315-230-2 01 1 0503-
137 PIPE ASM; LEAK OFF
(B) 		8-97315-231-2 03 1 0503-
137 PIPE ASM; LEAK OFF
(C) 		8-97357-916-4 01 1 0503-
137 PIPE ASM; LEAK OFF
(D) 		8-97372-938-3 01 1 0503-
166 GASKET; FUEL INJECTOR
ID=11 OD=14.8 		9-09566-111-0 04 1 0503-
210 PIPE; INJ,C/R 8-97388-902-0 01 1 0503-
211 RAIL ASM; COMMON 8-97311-370-2 01 1 0503-0606
211 RAIL ASM; COMMON 8-98011-888-0 01 1 0607-0708
211 RAIL ASM; COMMON 8-98052-238-1 01 1 0709-
219 GASKET
ID=49.7 		1-09623-541-0 01 1 0503-
282 BRACKET; COMMON RAIL 8-97312-104-4 01 1 0503-0606
282 BRACKET; COMMON RAIL 8-98011-890-1 01 1 0607-
283 BOLT; COMMON RAIL
(A) M8X70 FLANGE 		0-28050-870-0 02 1 0503-
283 BOLT; COMMON RAIL
(B) M8X81 FLANGE 		8-97354-584-0 02 1 0503-
290 SENSOR; PRESS
(A) 		8-09350-899-1 01 1 0503-0606
290 SENSOR; PRESS
(B) 		8-98020-514-0 01 1 0607-
290 SENSOR; PRESS
(C) 		8-97318-684-0 01 1 0607-0708
290 SENSOR; PRESS
(C) 		8-98014-320-0 01 1 0709-1208
290 SENSOR; PRESS
(C) 		8-98181-616-0 01 1 1209-
313 BOLT; BRKT,INJ NOZZLE
M8X50 W/WASHER 		8-97372-144-0 04 1 0503-0707
313 BOLT; BRKT,INJ NOZZLE
M8X50 W/WASHER 		8-98095-575-0 04 1 0708-
347 PIN 8-97383-286-0 04 1 0503-1012
347 PIN 8-98165-035-0 04 1 1101-
408 PUMP ASM; FUEL,SUPPLY 8-97311-373-9 01 1 0503-1008
408 PUMP ASM; FUEL,SUPPLY 8-98155-988-1 01 1 1009-
409 PLATE; SENSOR 8-97377-206-0 01 1 0503-0606
410 BRACKET; SENSOR 8-97374-929-0 01 1 0503-0606
410 BRACKET; SENSOR 8-98013-801-1 01 1 0607-
411 BOLT; SENSOR
M6X12 FLANGE 		0-28050-612-0 01 1 0503-
411 BOLT; SENSOR
M6X20 FLANGE 		0-28650-620-0 02 1 0607-
424 OVERHAUL KIT; SUPPLY PUMP
W/ADAPTER 		8-98145-453-0 01 1 0503-0808
424 OVERHAUL KIT; SUPPLY PUMP 8-98145-455-0 01 1 0809-

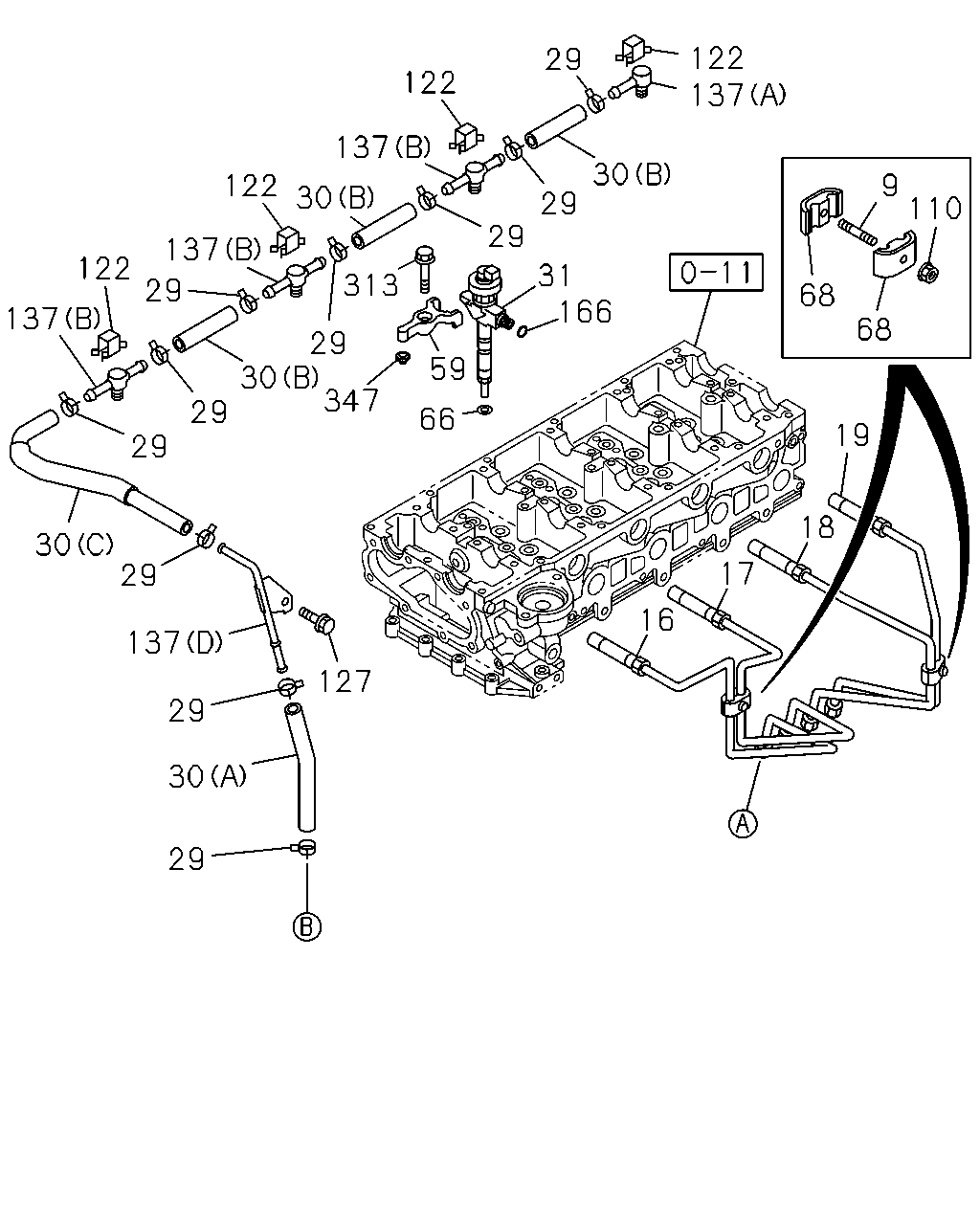

çizim 118744
122 137 29 122 137 30 9 110 122 30 29 29 137 122 31 166 313 29 68 137 68 29 30 347 59 29 66 19 29 18 30 29 17 16 137 127 29 30 29
BalonParca AdiParca NoAdetTipApplied Date
9 STUD; CLIP
M6X25 L=36 		8-97214-234-1 02 1 0503-
16 PIPE; INJ NO.1 8-97312-099-2 01 1 0503-0606
16 PIPE; INJ NO.1 8-98011-606-0 01 1 0607-
17 PIPE; INJ NO.2 8-97312-100-2 01 1 0503-0606
17 PIPE; INJ NO.2 8-98043-684-0 01 1 0607-
18 PIPE; INJ NO.3 8-97312-101-2 01 1 0503-0606
18 PIPE; INJ NO.3 8-98011-608-0 01 1 0607-
19 PIPE; INJ NO.4 8-97312-102-2 01 1 0503-0606
19 PIPE; INJ NO.4 8-98011-609-0 01 1 0607-
29 CLIP; HOSE
ID=10.5 		8-97944-126-0 10 1 0503-
30 HOSE; RUBBER,FUEL LEAK
(A) L=130 		0-01804-130-0 01 1 0503-0611
30 HOSE; RUBBER,FUEL LEAK
(A) L=130 		8-98053-692-0 01 1 0612-
30 HOSE; RUBBER,FUEL LEAK
(B) L=98 		8-97354-652-0 03 1 0503-0611
30 HOSE; RUBBER,FUEL LEAK
(B) L=96 		8-98053-693-0 03 1 0612-
30 HOSE; RUBBER,FUEL LEAK
(C) L=150 		8-97362-306-2 01 1 0503-0810
30 HOSE; RUBBER,FUEL LEAK
(C) 		8-98112-034-0 01 1 0811-
31 NOZZLE ASM; INJ 8-97311-372-4 04 1 0503-0606
31 NOZZLE ASM; INJ 8-98011-604-0 04 1 0607-0704
31 NOZZLE ASM; INJ 8-98055-862-3 04 1 0705-1306
31 NOZZLE ASM; INJ 8-98011-604-5 04 1 1307-
59 CLAMP; NOZZLE HOLDER 8-97374-468-0 04 1 0503-0606
59 CLAMP; NOZZLE HOLDER 8-98011-528-2 04 1 0607-0710
59 CLAMP; NOZZLE HOLDER 8-98092-539-0 04 1 0711-
66 GASKET; INJ NOZZLE 8-97251-334-0 04 1 0503-0608
66 GASKET; INJ NOZZLE 8-98057-731-0 04 1 0609-0701
66 GASKET; INJ NOZZLE 8-98077-165-0 04 1 0702-1012
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98181-540-0 04 1 1101-
68 CLIP; INJ PIPE 8-97213-481-0 04 1 0503-
110 NUT; CLIP
M6 FLANGE 		0-91150-106-0 02 1 0503-0605
110 NUT; CLIP
M6 FLANGE 		0-91180-106-0 02 1 0606-
122 CLIP; LEAK OFF PIPE 8-97315-286-0 04 1 0503-
127 BOLT; CLIP LEAK OFF PIPE
M8X12 FLANGE 		0-28050-812-0 01 1 0503-
137 PIPE ASM; LEAK OFF
(A) 		8-97315-230-2 01 1 0503-
137 PIPE ASM; LEAK OFF
(B) 		8-97315-231-2 03 1 0503-
137 PIPE ASM; LEAK OFF
(C) 		8-97357-916-4 01 1 0503-
137 PIPE ASM; LEAK OFF
(D) 		8-97372-938-3 01 1 0503-
166 GASKET; FUEL INJECTOR
ID=11 OD=14.8 		9-09566-111-0 04 1 0503-
313 BOLT; BRKT,INJ NOZZLE
M8X50 W/WASHER 		8-97372-144-0 04 1 0503-0707
313 BOLT; BRKT,INJ NOZZLE
M8X50 W/WASHER 		8-98095-575-0 04 1 0708-
347 PIN 8-97383-286-0 04 1 0503-1012
347 PIN 8-98165-035-0 04 1 1101-

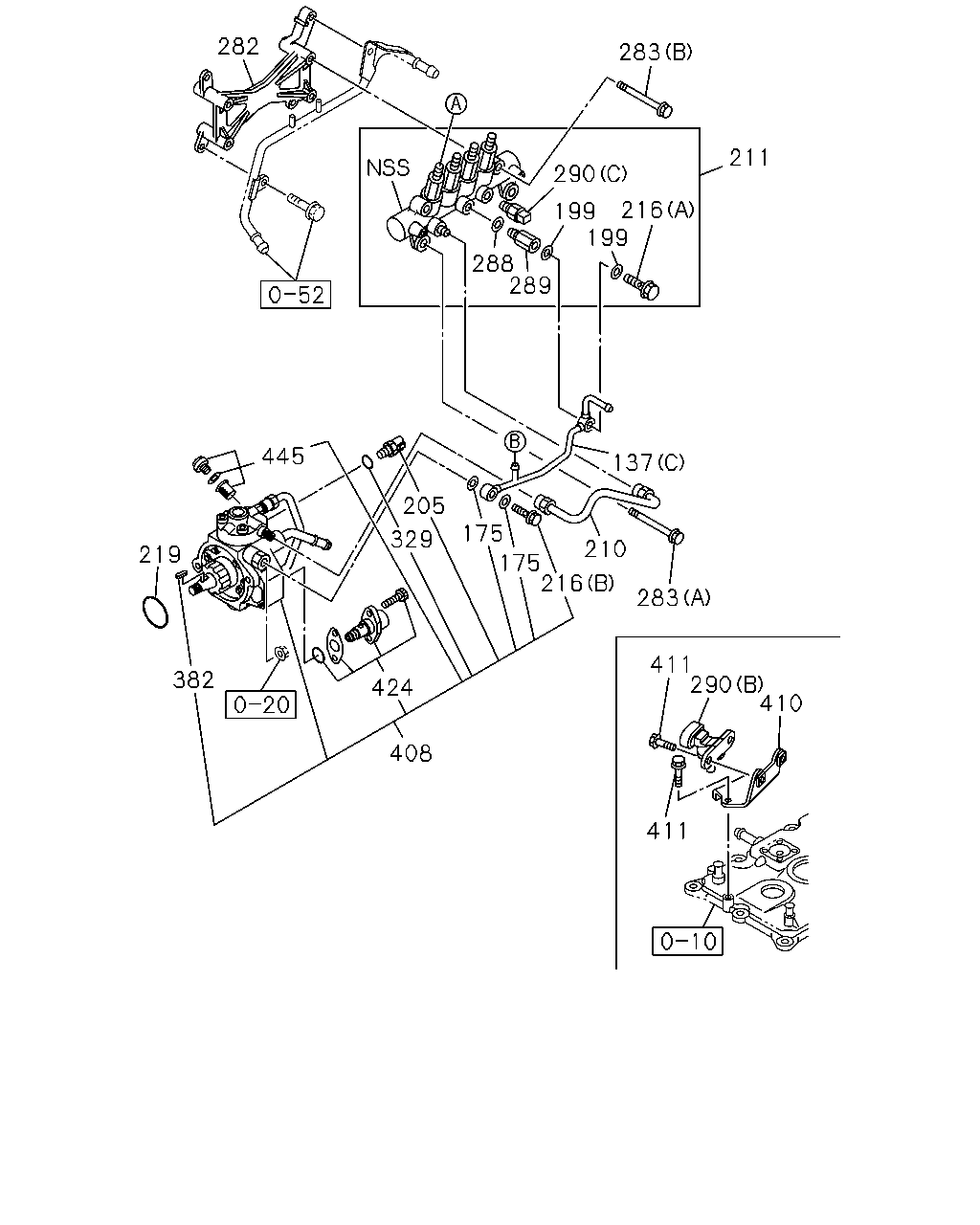

çizim 118761
411 410 290 411 283 216 210 137 175 175 205 329 424 408 382 219 445 216 211 199 199 290 289 288 283 282
BalonParca AdiParca NoAdetTipApplied Date
137 PIPE ASM; LEAK OFF
(A) 		8-97315-230-2 01 1 0503-
137 PIPE ASM; LEAK OFF
(B) 		8-97315-231-2 03 1 0503-
137 PIPE ASM; LEAK OFF
(C) 		8-97357-916-4 01 1 0503-
137 PIPE ASM; LEAK OFF
(D) 		8-97372-938-3 01 1 0503-
175 GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP
ID=10.2 OD=15.2 		1-09630-083-0 02 1 0612-
199 GASKET; EYE BOLT 8-97602-218-0 02 1 0607-
205 SENSOR; FUEL TEMP 8-97216-283-0 01 1 0607-0611
205 SENSOR; FUEL TEMP 8-98023-581-0 01 1 0612-
210 PIPE; INJ,C/R 8-97388-902-0 01 1 0503-
211 RAIL ASM; COMMON 8-97311-370-2 01 1 0503-0606
211 RAIL ASM; COMMON 8-98011-888-0 01 1 0607-0708
211 RAIL ASM; COMMON 8-98052-238-1 01 1 0709-
216 BOLT; EYE
(B) 		9-88130-088-0 01 1 0809-
216 BOLT; EYE
(B) 		8-98056-937-0 01 1 0612-0808
216 BOLT; EYE
(A) 		8-98043-033-0 01 1 0607-
219 GASKET
ID=49.7 		1-09623-541-0 01 1 0503-
282 BRACKET; COMMON RAIL 8-97312-104-4 01 1 0503-0606
282 BRACKET; COMMON RAIL 8-98011-890-1 01 1 0607-
283 BOLT; COMMON RAIL
(A) M8X70 FLANGE 		0-28050-870-0 02 1 0503-
283 BOLT; COMMON RAIL
(B) M8X81 FLANGE 		8-97354-584-0 02 1 0503-
288 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 0607-
289 LIMITER; FUEL PRESS 8-98032-549-0 01 1 0607-
290 SENSOR; PRESS
(A) 		8-09350-899-1 01 1 0503-0606
290 SENSOR; PRESS
(B) 		8-98020-514-0 01 1 0607-
290 SENSOR; PRESS
(C) 		8-97318-684-0 01 1 0607-0708
290 SENSOR; PRESS
(C) 		8-98014-320-0 01 1 0709-1208
290 SENSOR; PRESS
(C) 		8-98181-616-0 01 1 1209-
329 GASKET; SENSOR,FUEL TEMP
ID=9.8 OD=11.7 		9-09566-110-0 01 1 0709-
382 KEY; DRIVE SHAFT 8-97375-384-0 01 1 1009-
408 PUMP ASM; FUEL,SUPPLY 8-97311-373-9 01 1 0503-1008
408 PUMP ASM; FUEL,SUPPLY 8-98155-988-1 01 1 1009-
410 BRACKET; SENSOR 8-97374-929-0 01 1 0503-0606
410 BRACKET; SENSOR 8-98013-801-1 01 1 0607-
411 BOLT; SENSOR
M6X12 FLANGE 		0-28050-612-0 01 1 0503-
411 BOLT; SENSOR
M6X20 FLANGE 		0-28650-620-0 02 1 0607-
424 OVERHAUL KIT; SUPPLY PUMP
W/ADAPTER 		8-98145-453-0 01 1 0503-0808
424 OVERHAUL KIT; SUPPLY PUMP 8-98145-455-0 01 1 0809-
445 SCREW; FILTER,INLET 8-98209-778-0 01 1 1009-
