0-36 — TURBOCHARGER SYSTEM (#74955) — 24 parça

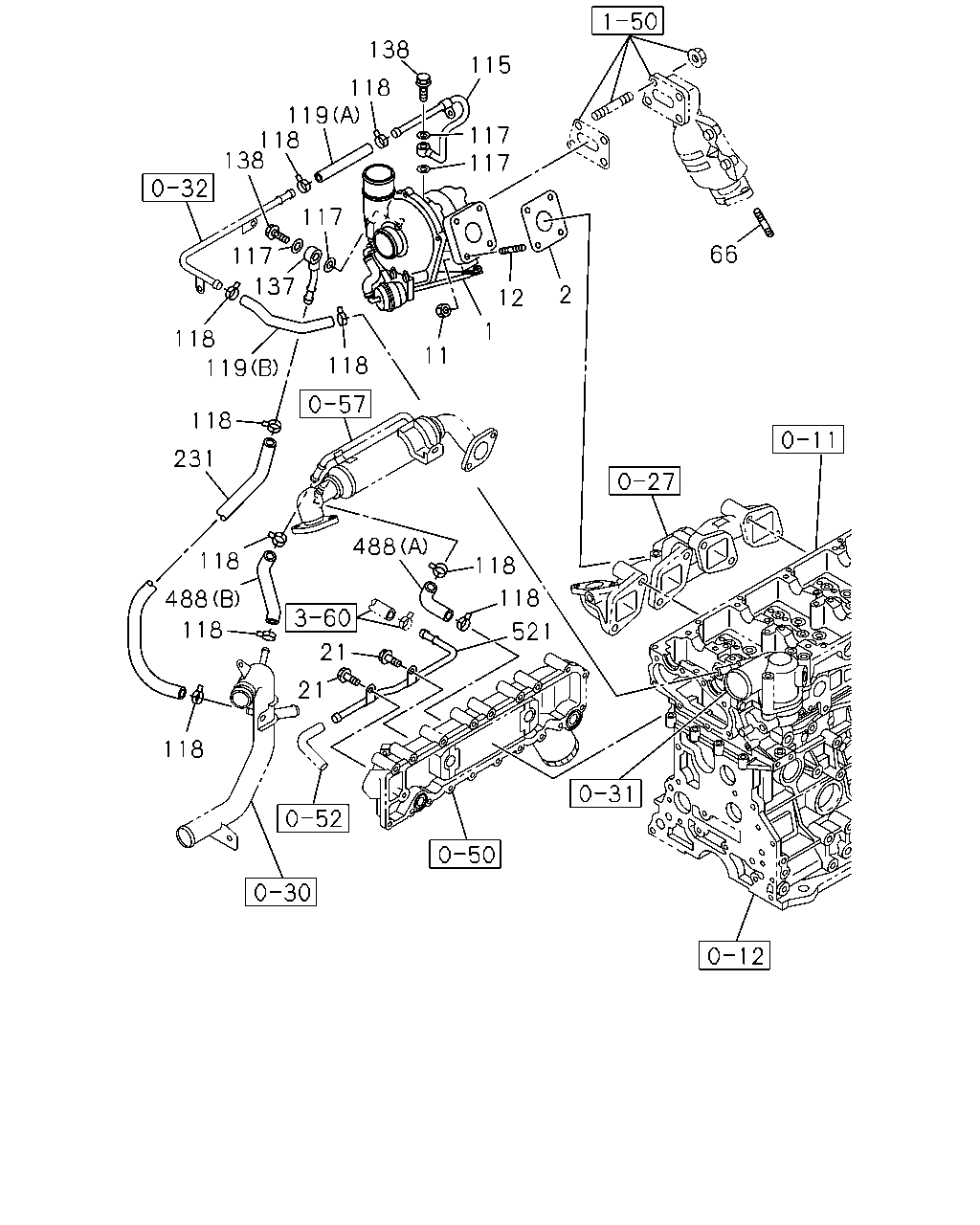

çizim 118507
138 115 118 119 118 138 117 117 117 66 117 137 2 12 1 118 11 118 119 118 231 488 118 118 118 488 118 521 21 21 118
BalonParca AdiParca NoAdetTipApplied Date
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-97355-408-3 01 1 0503-0606
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-98011-892-3 01 1 0607-
2 GASKET; TURBOCHARGER TO EXH MANIF 8-97912-697-0 01 1 0503-
11 NUT; TURBOCHARGER
M8 FLANGE 		8-97379-384-0 04 1 0503-
12 STUD; TURBOCHARGER
M8X20 L=31 		8-97378-060-0 04 1 0503-
21 BOLT; PIPE
M6X16 FLANGE 		0-28650-616-0 02 1 0503-0606
66 STUD; EXH PIPE
M10X25 L=40 		0-44011-025-0 02 1 0503-0508
66 STUD; EXH PIPE
M10X22 L=43 		0-43211-022-0 02 1 0509-
115 PIPE; WATER,TURBOCHARGER OUT 8-97312-288-1 01 1 0503-0606
115 PIPE; WATER,TURBOCHARGER OUT 8-98011-902-0 01 1 0607-
117 GASKET; WATER PIPE
ID=14.2 OD=20.0 		9-09571-414-0 04 1 0503-
118 CLIP; WATER HOSE
ID=12.8 		8-97944-125-0 10 1 0503-
119 HOSE; WATER,TURBOCHARGER
(A) L=100 SERVICED BY L=3000 		0-03559-300-0 01 1 0503-0606
119 HOSE; WATER,TURBOCHARGER
(A) L=210 SERVICED BY L=3000 		0-03559-300-0 01 1 0607-
119 HOSE; WATER,TURBOCHARGER
(B) 		8-97369-590-1 01 1 0503-
137 PIPE; WATER,TURBOCHARGER IN 8-97312-289-2 01 1 0503-0606
137 PIPE; WATER,TURBOCHARGER IN 8-98011-903-0 01 1 0607-
138 BOLT; EYE,WATER PIPE
M14X27 EYE-BOLT 		1-09675-193-0 02 1 0503-0606
138 BOLT; EYE,WATER PIPE
M14X31 EYE-BOLT 		8-98037-067-0 02 1 0607-
231 HOSE; RUBBER,TURBOCHARGER OUT
L=220 SERVICED BY L=3000 		0-03559-300-0 01 1 0503-0606
231 HOSE; RUBBER,TURBOCHARGER OUT
L=210 SERVICED BY L=3000 		0-03559-300-0 01 1 0607-
488 HOSE; RUBBER
(A) L=150 SERVICED BY L=3000 		0-03559-300-0 01 1 0503-
488 HOSE; RUBBER
(B) L=170 SERVICED BY L=3000 		0-03559-300-0 01 1 0503-
521 PIPE; VAC 8-97357-847-3 01 1 0503-0606
