◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51032 - UCR/UCS-LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-31 - THERMOSTAT AND HOUSING ▶
0-31 — THERMOSTAT AND HOUSING (#74952) — 10 parça

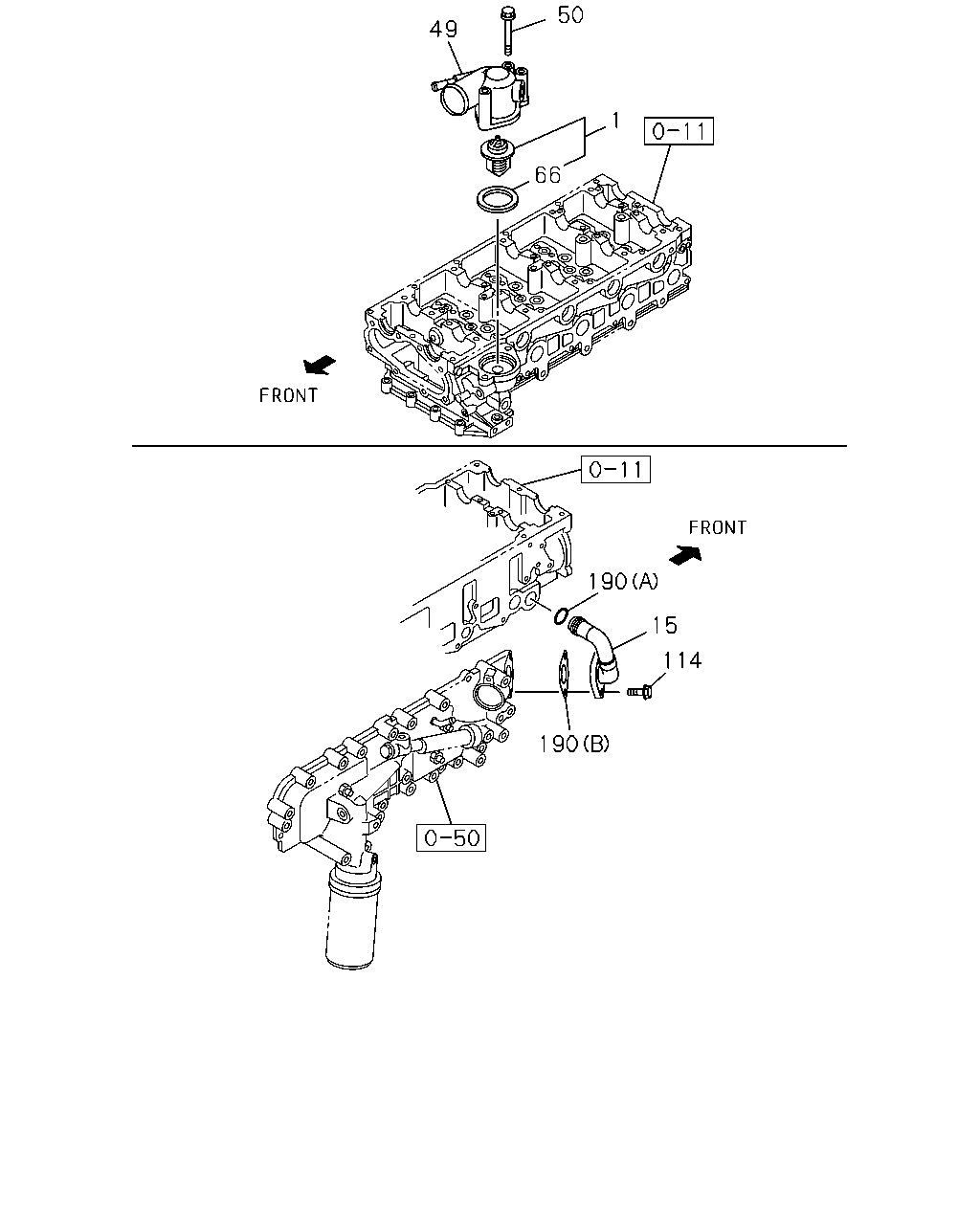

çizim 118515
50 49 1 66 190 15 114 190
BalonParca AdiParca NoAdetTipApplied Date
1 THERMOSTAT
85 CELSIUS 		8-97312-158-0 01 1 0503-0606
1 THERMOSTAT
85 CELSIUS 		8-98017-027-1 01 1 0607-
15 PIPE; BYPASS 8-97318-732-2 01 1 0503-
49 PIPE; WATER OUTLET 8-97355-456-7 01 1 0503-0809
49 PIPE; WATER OUTLET 8-98120-945-0 01 1 0810-
50 BOLT; OUTLET PIPE
M8X80 FLANGE 		0-28050-880-0 02 1 0503-
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98114-587-0 01 1 0809-
114 BOLT; BYPASS PIPE
M8X25 FLANGE 		0-28650-825-0 02 1 0503-
190 GASKET; BYPASS PIPE
(A) 		0-95690-226-0 01 1 0503-
190 GASKET; BYPASS PIPE
(B) 		8-97318-494-2 01 1 0503-
