◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51032 - UCR/UCS-LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-25 - INLET MANIFOLD ▶
0-25 — INLET MANIFOLD (#74949) — 16 parça

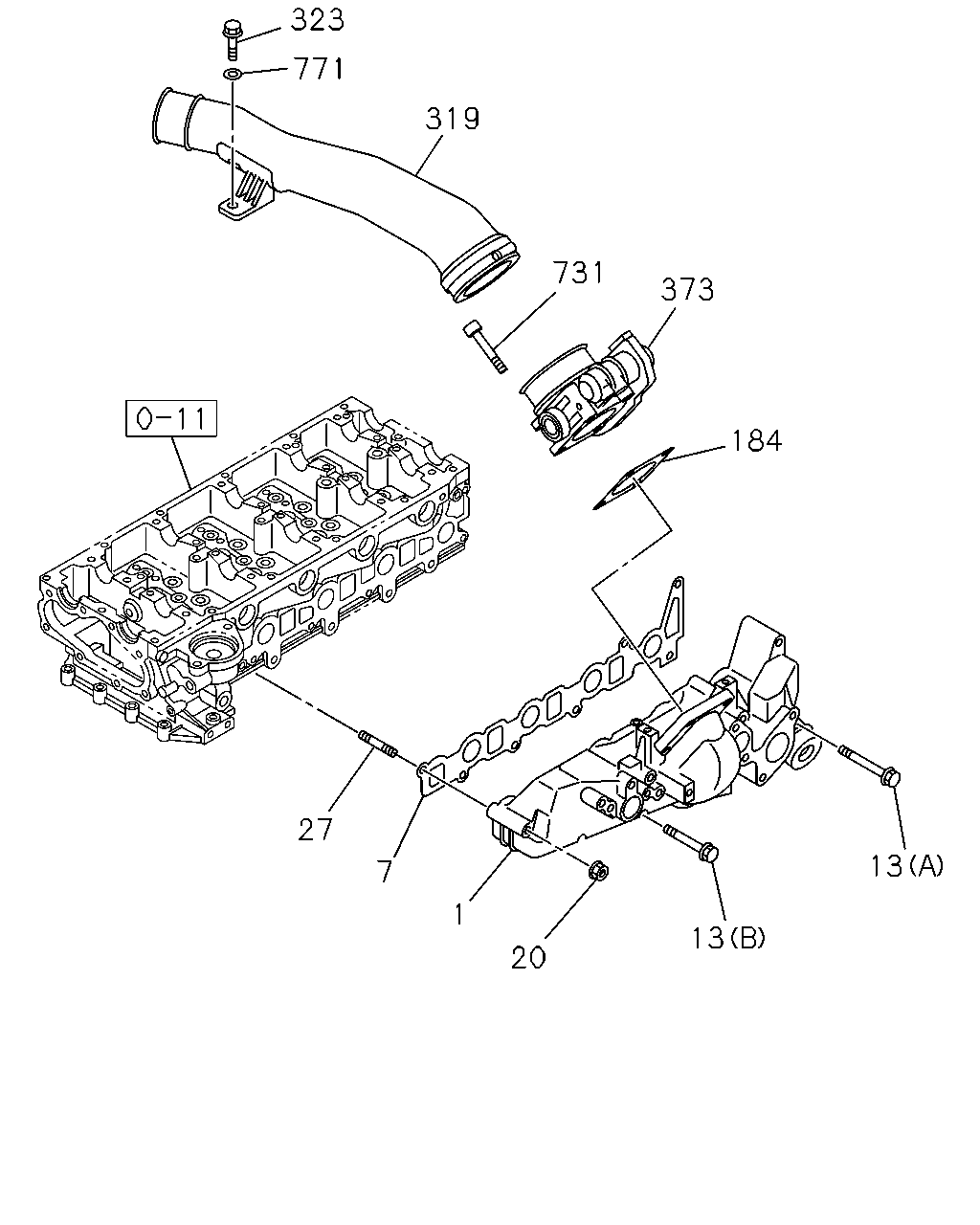

çizim 118499
323 771 319 731 373 184 27 13 7 1 13 20
BalonParca AdiParca NoAdetTipApplied Date
1 MANIFOLD; INL 8-97312-063-5 01 1 0503-
7 GASKET; INL MANIF TO HD 8-97312-067-1 01 1 0503-
13 BOLT; INL MANIF
(A) M8X110 FLANGE 		0-28055-811-0 02 1 0503-
13 BOLT; INL MANIF
(B) M8X70 12-POINT HEAD 		8-97101-065-0 04 1 0503-
20 NUT; INL MANIF
M8 FLANGE 		0-91180-208-0 02 1 0503-
27 STUD; INL MANIF
M8X71 L=83 		8-97367-083-0 02 1 0503-
184 GASKET; T/V 8-97366-784-1 01 1 0503-
319 DUCT; INL,TURBOCHARGER 8-97356-891-2 01 1 0503-0602
319 DUCT; INL,TURBOCHARGER 8-97945-196-0 01 1 0603-1111
319 DUCT; INL,TURBOCHARGER 8-98209-860-0 01 1 1112-
323 BOLT; DUCT
M8X20 FLANGE 		0-28050-820-0 02 1 0503-
373 THROTTLE ASM; INT 8-97370-833-2 01 1 0503-0509
373 THROTTLE ASM; INT 8-97945-347-0 01 1 0510-0606
373 THROTTLE ASM; INT 8-97945-522-4 01 1 0607-
731 BOLT; THROTTLE ASM
M6X50 HEX SOCKET 		0-58330-650-0 04 1 0503-
771 WASHER; DUCT
ID=8.4 OD=16 		0-91610-508-0 02 1 0503-
