◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51032 - UCR/UCS-LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-22 - ENGINE MOUNTING ▶
0-22 — ENGINE MOUNTING (#74948) — 32 parça

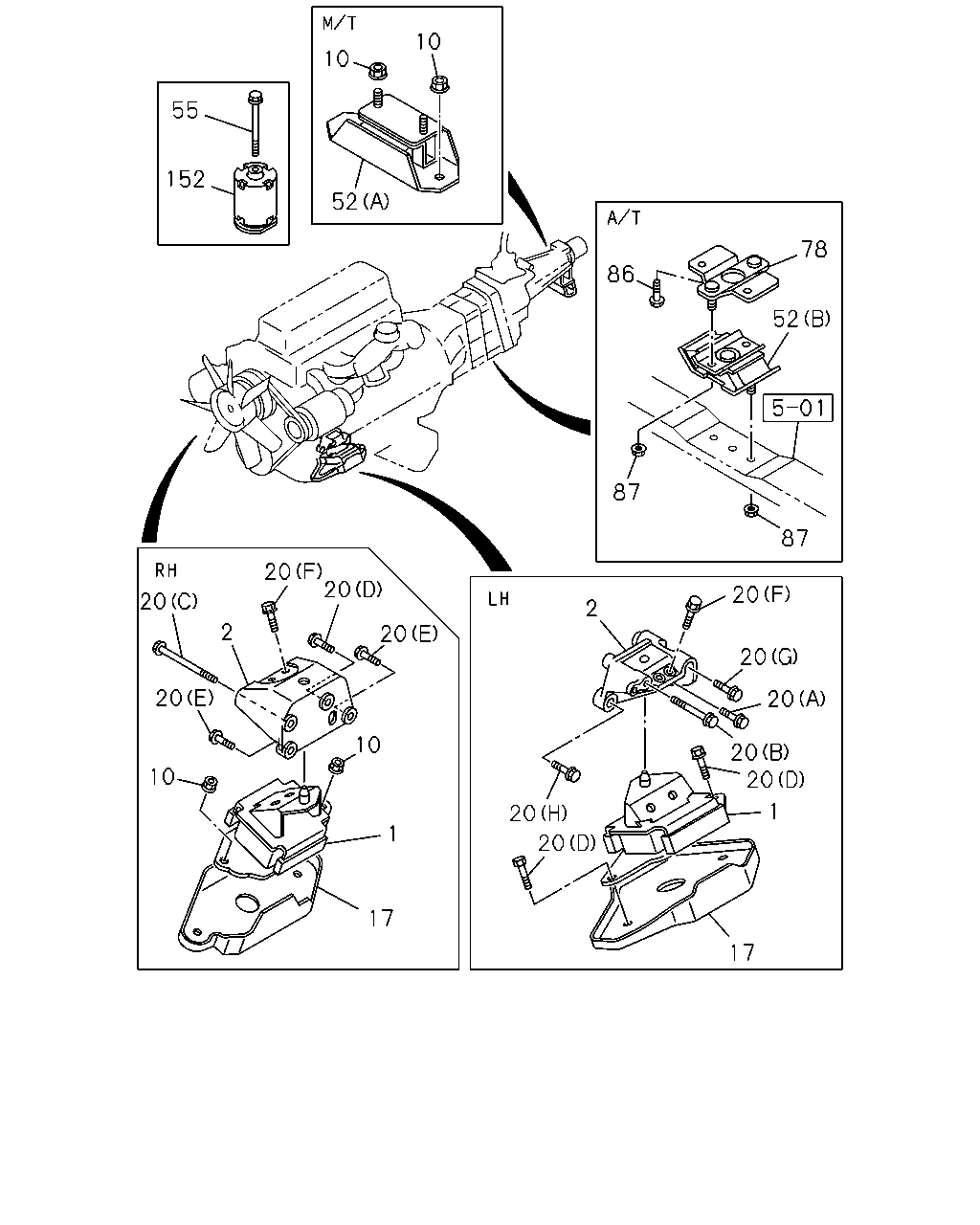

çizim 118492
10 10 55 152 52 78 86 52 87 87 20 20 20 20 2 2 20 20 20 20 10 20 20 10 1 20 20 17 17 1
BalonParca AdiParca NoAdetTipApplied Date
1 RUBBER; ENG FOOT,FRT 8-97367-273-0 01 1 0503-
1 RUBBER; ENG FOOT,FRT 8-97363-543-0 01 1 0503-
2 FOOT; ENG 8-97355-478-1 01 1 0503-
2 FOOT; ENG 8-97355-476-0 01 1 0503-
10 NUT; MTG RUBBER
M/T MUA 5 SPEED 5G(RSP) M10 FLANGE 		0-91180-210-0 02 1 0503-0606
10 NUT; MTG RUBBER
M10 FLANGE 		0-91180-210-0 02 1 0503-0606
10 NUT; MTG RUBBER
M10 FLANGE 		0-91180-210-0 02 1 0607-
10 NUT; MTG RUBBER
M/T MUA 5 SPEED 5H(MWQ) M10 FLANGE 		0-91180-210-0 02 1 0607-
17 COVER; CUSHION RUBBER,FRT 8-97385-745-0 01 1 0503-
17 COVER; CUSHION RUBBER,FRT 8-97381-228-0 01 1 0503-
20 BOLT; ENG FOOT
(B) M10X100 FLANGE 		0-28051-000-0 01 1 0503-
20 BOLT; ENG FOOT
(A) M10X20 FLANGE 		0-28051-020-0 01 1 0503-
20 BOLT; ENG FOOT
(C) M10X80 FLANGE 		0-28051-080-0 01 1 0503-
20 BOLT; ENG FOOT
(D) M10X25 FLANGE 		0-28651-025-0 01 1 0503-
20 BOLT; ENG FOOT
(F) M10X30 FLANGE 		0-28651-030-0 04 1 0503-
20 BOLT; ENG FOOT
(E) M10X30 FLANGE 		0-28651-030-0 02 1 0503-
20 BOLT; ENG FOOT
(G) M10X40 FLANGE 		0-28651-040-0 01 1 0503-
20 BOLT; ENG FOOT
(H) M14X45 FLANGE 		0-28851-445-0 01 1 0503-
20 BOLT; ENG FOOT
(D) M10X25 FLANGE 		0-28651-025-0 02 1 0503-
52 RUBBER; CUSHION,ENG MTG,RR
M/T MUA 5 SPEED 5G(RSP) (A) 		8-97367-632-0 01 1 0503-0606
52 RUBBER; CUSHION,ENG MTG,RR
4X2(UCB***) M/T MUA 5 SPEED 5H(MWQ) (A) 		8-97367-632-0 01 1 0607-0610
52 RUBBER; CUSHION,ENG MTG,RR
4X2(UCB***) M/T MUA 5 SPEED 5H(MWQ) (A) 		8-98051-338-0 01 1 0611-
52 RUBBER; CUSHION,ENG MTG,RR
4X2(UCB***) A/T 4 SPEED-JATCO(RMK) (B) 		8-97378-743-0 01 1 0503-
52 RUBBER; CUSHION,ENG MTG,RR
4X4(UCS***) (B) 		8-97373-238-0 01 1 0509-
55 BOLT; BRKT,ENG MTG,RR
4X4(UCS***) M10X120 		8-97134-968-0 01 1 0509-0610
55 BOLT; BRKT,ENG MTG,RR
4X4(UCS***) M10X120 		8-98051-536-0 01 1 0611-
78 BRACKET; ENG MTG,RR
4X2(UCB***) A/T 4 SPEED-JATCO(RMK) 		8-97373-240-0 01 1 0503-
78 BRACKET; ENG MTG,RR
4X4(UCS***) 		8-97373-239-0 01 1 0509-
86 BOLT; ENG MTG RR TO FRAME
A/T 4 SPEED-JATCO(RMK) M10X35 FLANGE 		0-28751-035-0 02 1 0503-
87 NUT; ENG MTG RR
M10 FLANGE 		0-91180-210-0 02 1 0503-
87 NUT; ENG MTG RR
A/T 4 SPEED-JATCO(RMK) M10 FLANGE 		0-91180-210-0 02 1 0503-
152 DAMPER; DYNAMIC,ENG MTG
4X4(UCS***) 		8-97373-873-0 01 1 0509-
