51032 - UCR/UCS-LHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-12 - CYLINDER BLOCK
▶
0-12 — CYLINDER BLOCK
(#74943) — 49 parça
◀

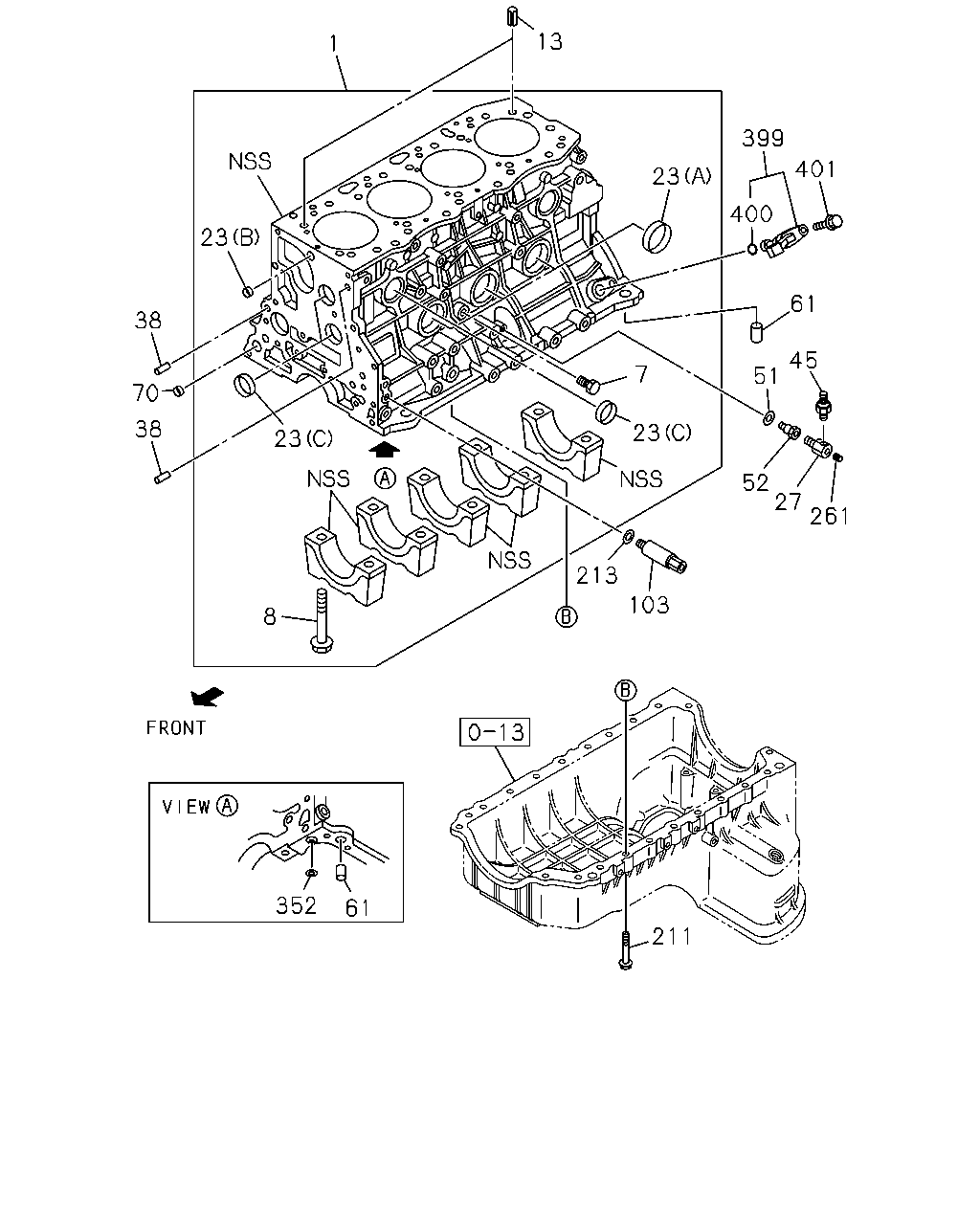

[012A] NO.1 (31 parça)

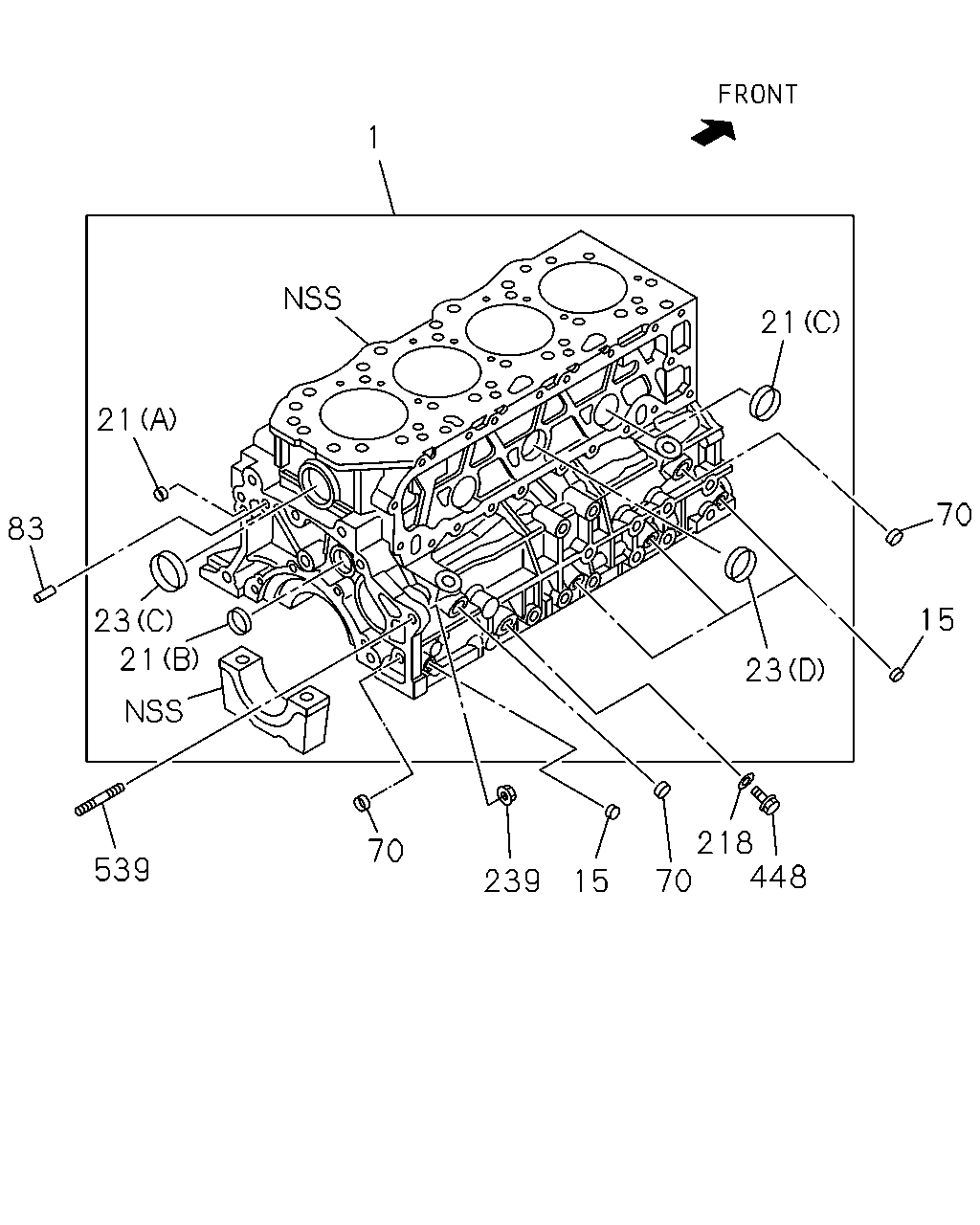

[012A] NO.2 (18 parça)
▶
13
1
399
401
23
400
23
61
38
45
7
51
70
38
23
23
52
27
261
213
103
8
352
61
211
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BLOCK ASM; CYL
8-97310-721-9
01
1
0503-0507
1
BLOCK ASM; CYL
8-98013-824-2
01
1
0508-1209
1
BLOCK ASM; CYL
8-98231-833-0
01
1
1210-1302
1
BLOCK ASM; CYL
8-98223-994-0
01
1
1303-
7
PLUG; WATER DRAIN
PT1/4
9-09664-001-0
01
1
0503-
8
BOLT; BRG CAP
M14X89 FLANGE
8-94432-642-0
10
1
0503-
13
DOWEL; C/BL TO HD
OD=14
8-94453-344-0
02
1
0503-
23
CUP; SEALING,C/BL FRT & RR
(B) OD=18
5-11219-008-0
02
1
0503-
23
CUP; SEALING,C/BL FRT & RR
(C) OD=32
5-11219-015-0
04
1
0503-
23
CUP; SEALING,C/BL FRT & RR
(D) OD=36
5-11219-018-0
02
1
0503-
23
CUP; SEALING,C/BL FRT & RR
(A) OD=45
8-97036-550-1
03
1
0503-
27
NIPPLE; OIL GALLERY
8-97231-967-3
01
1
0503-0503
27
NIPPLE; OIL GALLERY
8-98005-299-1
01
1
0504-
38
PIN; TIMING GEAR CASE
OD=10 L=20
9-08151-020-0
02
1
0503-
45
SWITCH; OIL PRESSURE
9-82720-209-2
01
1
0503-0606
45
SWITCH; OIL PRESSURE
8-97176-230-0
01
1
0607-
51
GASKET; OIL PRESS WARNING SW,C/BL
8-97912-498-0
01
1
0503-
52
NIPPLE; OIL PRESS WARNING SW,C/BL
8-97943-174-0
01
1
0503-0703
52
NIPPLE; OIL PRESS WARNING SW,C/BL
8-98084-434-0
01
1
0704-
61
PIN; STRAIGHT
L=31
8-97920-964-1
02
1
0503-
70
CUP; SEALING,FRT & RR
OD=16
5-11129-006-0
06
1
0503-
103
NIPPLE; OIL FEED
8-97316-983-4
01
1
0503-
211
BOLT; CRANKCASE
M8X30 FLANGE
0-28050-830-0
05
1
0503-
211
BOLT; CRANKCASE
M8X25 FLANGE
0-28650-825-0
14
1
0503-
211
BOLT; CRANKCASE
M8X40 FLANGE
0-28650-840-0
01
1
0503-
213
GASKET; NIPPLE,OIL FEED
ID=10.2 OD=16.0
9-09571-410-0
01
1
0503-
261
PLUG; OIL PRESS UNIT
PT1/8
1-09605-050-0
01
1
0503-
352
GASKET; C/BL TO CRANKCASE
9-09566-116-0
01
1
0503-
399
SENSOR; CRANKSHAFT POSITION
8-97312-108-1
01
1
0503-
400
GASKET; CRANKSHAFT POSITION SENSOR
ID=14.2 OD=18.8
8-97369-404-0
01
1
0503-
401
BOLT; SENSOR
M6X16 FLANGE
0-28050-616-0
01
1
0503-
1
21
21
70
83
15
23
21
23
218
70
448
70
539
239
15
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BLOCK ASM; CYL
8-97310-721-9
01
1
0503-0507
1
BLOCK ASM; CYL
8-98013-824-2
01
1
0508-1209
1
BLOCK ASM; CYL
8-98231-833-0
01
1
1210-1302
1
BLOCK ASM; CYL
8-98223-994-0
01
1
1303-
15
PLUG; OIL GALLERY
PT1/8
1-09605-050-0
04
1
0503-
21
CUP; SEALING,RR
(A) OD=12.3
5-09600-013-0
01
1
0503-
21
CUP; SEALING,RR
(B) OD=38
5-11219-017-0
01
1
0503-
21
CUP; SEALING,RR
(C) OD=36
5-11219-018-0
01
1
0503-
23
CUP; SEALING,C/BL FRT & RR
(B) OD=18
5-11219-008-0
02
1
0503-
23
CUP; SEALING,C/BL FRT & RR
(C) OD=32
5-11219-015-0
04
1
0503-
23
CUP; SEALING,C/BL FRT & RR
(D) OD=36
5-11219-018-0
02
1
0503-
23
CUP; SEALING,C/BL FRT & RR
(A) OD=45
8-97036-550-1
03
1
0503-
70
CUP; SEALING,FRT & RR
OD=16
5-11129-006-0
06
1
0503-
83
PIN; FLYWHEEL HSG
OD=10 L=32
9-08161-032-0
01
1
0503-
218
GASKET; PLUG,C/BL SIDE
ID=14.2 OD=20.0
9-09571-414-0
01
1
0503-
239
NUT; STUD,C/BL
M10 FLANGE
0-91180-110-0
01
1
0503-
448
PLUG; C/BL
8-97379-656-1
01
1
0503-
539
STUD; REAMER
M10X40 L=75.5
8-97371-842-1
01
1
0503-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
