8-90 — RADIO AND TV (#74936) — 63 parça

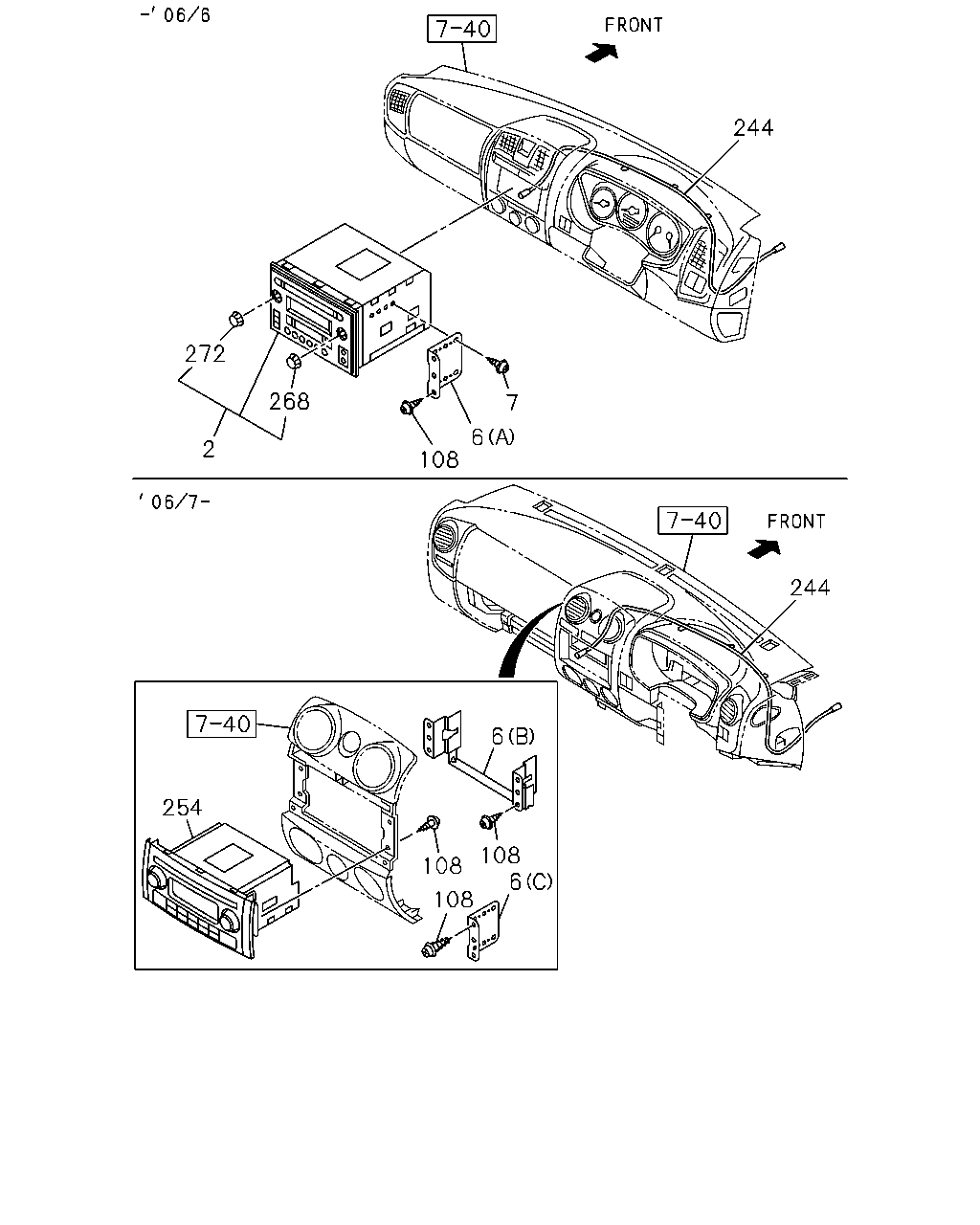

çizim 14455
6 7 108 268 2 272 244 244 6 108 6 108 108 254
BalonParca AdiParca NoAdetTipApplied Date A B
2 RADIO & CASSETTE DECK ASM
THA 		8-97361-183-0 01 1 0411-0508 ● ●
2 RADIO & CASSETTE DECK ASM
THA 		8-98018-275-0 01 1 0509-0606 ● ●
6 BRACKET; RADIO TO PANEL
(A) THA 		8-97238-471-0 02 1 0411-0606 ● ●
6 BRACKET; RADIO TO PANEL
RADIO AM/FM W/CD,W/MP3<ULA> (B) THA 		8-98004-773-0 01 1 0607- ● ●
6 BRACKET; RADIO TO PANEL
RADIO DELETE<UL5> (C) THA 		8-98007-736-0 02 1 0610- ● ●
7 SCREW; RADIO
M5X10 W/LK+PL WASHER THA 		9-03920-510-0 08 1 0411-0605 ● ●
7 SCREW; RADIO
M5X10 W/LK+PL WASHER IMA 		0-36230-510-0 08 1 0606-0606 ● ●
108 SCREW; BRKT
M5X16 TAPPING THA 		9-09829-323-1 04 1 0411-0606 ● ●
108 SCREW; BRKT
RADIO AM/FM W/CD,W/MP3<ULA> M5X16 TAPPING THA 		9-09829-323-1 08 1 0607-0702 ● ●
108 SCREW; BRKT
RADIO AM/FM W/CD,W/MP3<ULA> M5X16 TAPPING THA 		8-98061-685-0 08 1 0703-1005 ● ●
108 SCREW; BRKT
RADIO AM/FM W/CD,W/MP3<ULA> M5X16 TAPPING THA 		8-98167-449-0 08 1 1006- ● ●
108 SCREW; BRKT
RADIO DELETE<UL5> M5X16 TAPPING THA 		9-09829-323-1 04 1 0612-0702 ● ●
108 SCREW; BRKT
RADIO DELETE<UL5> M5X16 TAPPING THA 		8-98061-685-0 04 1 0703-1005 ● ●
108 SCREW; BRKT
RADIO DELETE<UL5> M5X16 TAPPING THA 		8-98167-449-0 04 1 1006- ● ●
244 CABLE; FEEDER
THA 		8-97238-487-1 01 1 0411- ● ●
254 RADIO CONTROL ASM; STEREO,AM-FM
RADIO AM/FM W/CD,W/MP3<ULA> LIGHT GRAY THA 		8-97403-882-1 01 1 0607-0609 ● ●
254 RADIO CONTROL ASM; STEREO,AM-FM
RADIO AM/FM W/CD,W/MP3<ULA> LIGHT GRAY THA 		8-97409-206-0 01 1 0610-1001 ● ●
254 RADIO CONTROL ASM; STEREO,AM-FM
RADIO AM/FM W/CD,W/MP3<ULA> LIGHT GRAY THA 		8-97418-481-0 01 1 1002-1009 ● ●
254 RADIO CONTROL ASM; STEREO,AM-FM
RADIO AM/FM W/CD,W/MP3<ULA> THA 		8-97422-203-0 01 1 1010-1010 ● ●
254 RADIO CONTROL ASM; STEREO,AM-FM
INTERIOR COLOR BEIGE<184> RADIO AM/FM W/CD,W/MP3<ULA> THA 		8-97422-203-0 01 1 1011-1107 ●
254 RADIO CONTROL ASM; STEREO,AM-FM
RADIO AM/FM W/CD,W/MP3<ULA> THA 		8-97422-203-0 01 1 1011-1107 ●
254 RADIO CONTROL ASM; STEREO,AM-FM
INTERIOR COLOR BEIGE<184> RADIO AM/FM W/CD,W/MP3<ULA> THA 		8-97422-203-0 01 1 1108- ● ●
268 KNOB; VOL
THA 		8-97380-561-0 01 1 0411-0508 ● ●
272 KNOB; AUDIO CONTROL
THA 		8-97380-561-0 01 1 0411-0508 ● ●

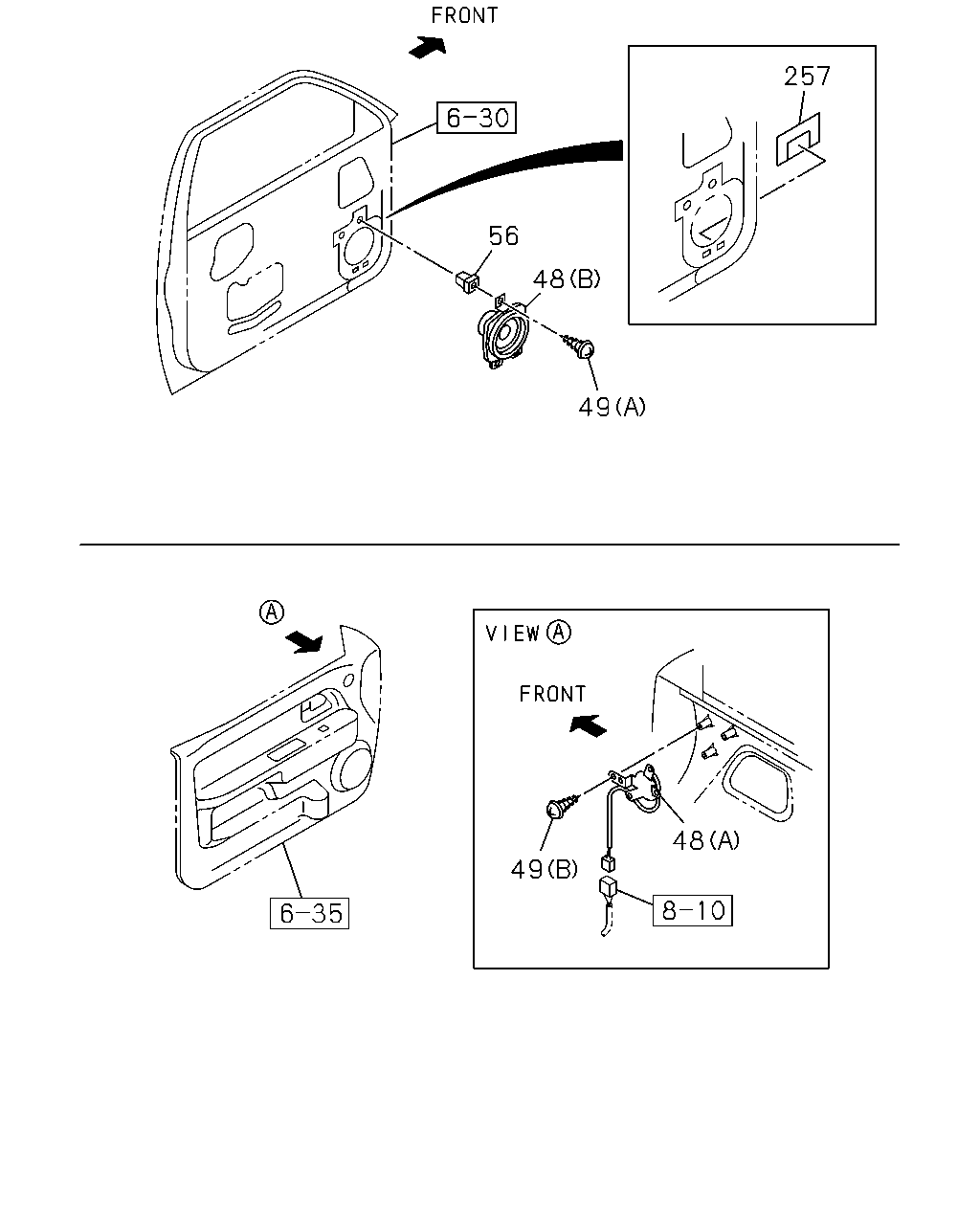

çizim 14510
257 56 49 48 49 48
BalonParca AdiParca NoAdetTipApplied Date A B
48 SPEAKER; AUDIO
(B) THA 		8-97357-982-0 02 1 0411-0606 ● ●
48 SPEAKER; AUDIO
(B) THA 		8-98035-069-0 02 1 0607-1404 ● ●
48 SPEAKER; AUDIO
(B) THA 		8-98273-210-0 02 1 1405- ● ●
48 SPEAKER; AUDIO
(C) THA 		8-97374-934-0 02 1 0411-0606 ● ●
48 SPEAKER; AUDIO
(C) THA 		8-98035-070-0 02 1 0607-1404 ● ●
48 SPEAKER; AUDIO
(C) THA 		8-98273-207-0 02 1 1405- ● ●
48 SPEAKER; AUDIO
(A) THA 		8-97238-543-0 01 1 0411-0606 ● ●
48 SPEAKER; AUDIO
(A) THA 		8-98035-075-0 01 1 0607-1404 ● ●
48 SPEAKER; AUDIO
(A) THA 		8-98273-205-0 01 1 1405- ● ●
48 SPEAKER; AUDIO
(A) THA 		8-97259-628-0 01 1 0411-0606 ● ●
48 SPEAKER; AUDIO
(A) THA 		8-98035-071-0 01 1 0607-1404 ● ●
48 SPEAKER; AUDIO
(A) THA 		8-98273-204-0 01 1 1405- ● ●
49 SCREW; SPEAKER
(A) M5X14 THA 		8-94152-495-0 04 1 0411- ● ●
49 SCREW; SPEAKER
(B) M4X10 THA 		9-93497-410-0 06 1 0411-0606 ● ●
49 SCREW; SPEAKER
(B) M4X10 THA 		0-34218-410-0 06 1 0607- ● ●
56 NUT; SPEAKER,RADIO OR STEREO
THA 		8-94152-494-0 04 1 0411- ● ●
257 SEAL; SPEAKER
THA 		8-97328-113-0 02 1 0411- ● ●

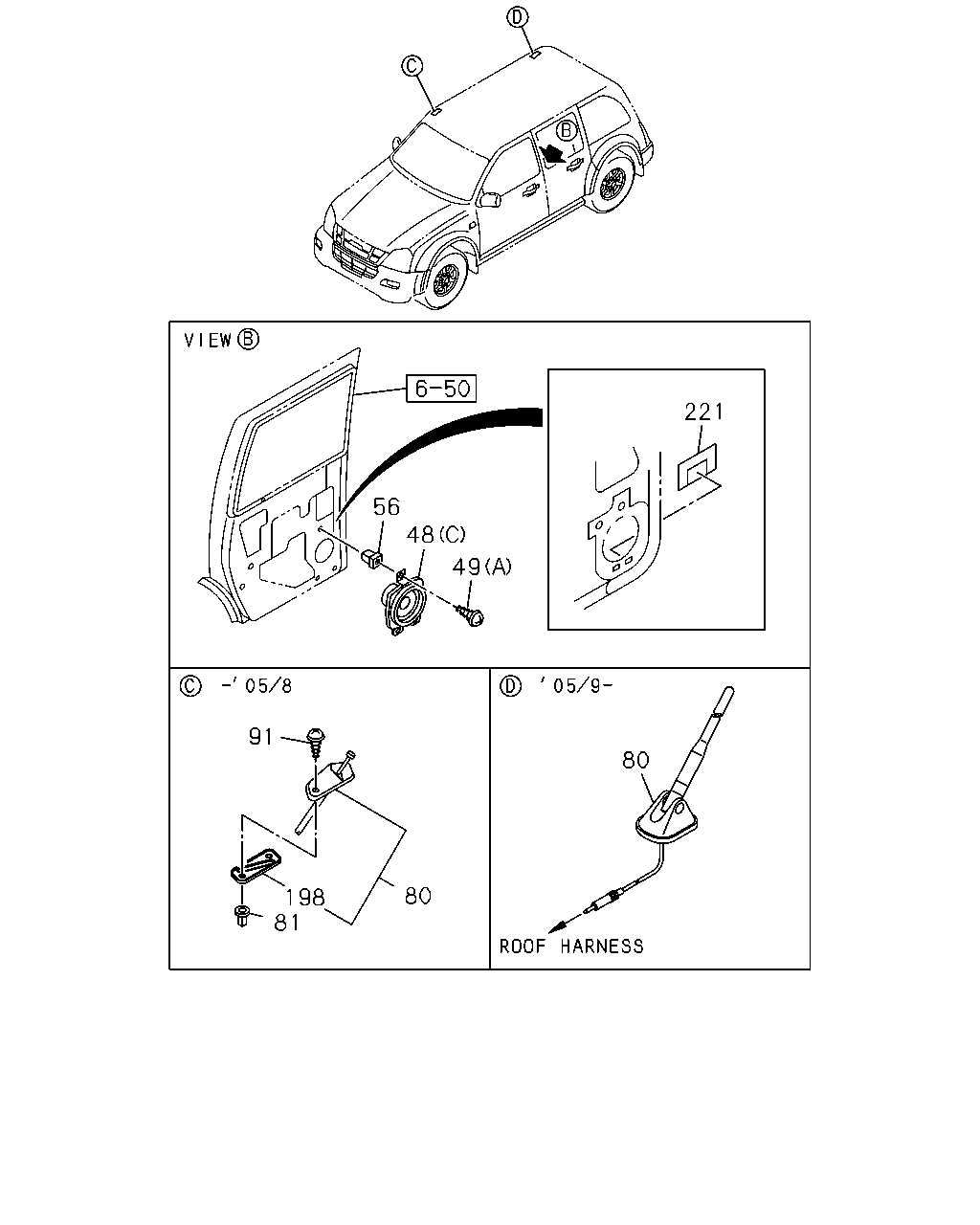

çizim 185460
80 91 80 198 81 49 221 48 56
BalonParca AdiParca NoAdetTipApplied Date A B
48 SPEAKER; AUDIO
(B) THA 		8-97357-982-0 02 1 0411-0606 ● ●
48 SPEAKER; AUDIO
(B) THA 		8-98035-069-0 02 1 0607-1404 ● ●
48 SPEAKER; AUDIO
(B) THA 		8-98273-210-0 02 1 1405- ● ●
48 SPEAKER; AUDIO
(C) THA 		8-97374-934-0 02 1 0411-0606 ● ●
48 SPEAKER; AUDIO
(C) THA 		8-98035-070-0 02 1 0607-1404 ● ●
48 SPEAKER; AUDIO
(C) THA 		8-98273-207-0 02 1 1405- ● ●
48 SPEAKER; AUDIO
(A) THA 		8-97238-543-0 01 1 0411-0606 ● ●
48 SPEAKER; AUDIO
(A) THA 		8-98035-075-0 01 1 0607-1404 ● ●
48 SPEAKER; AUDIO
(A) THA 		8-98273-205-0 01 1 1405- ● ●
48 SPEAKER; AUDIO
(A) THA 		8-97259-628-0 01 1 0411-0606 ● ●
48 SPEAKER; AUDIO
(A) THA 		8-98035-071-0 01 1 0607-1404 ● ●
48 SPEAKER; AUDIO
(A) THA 		8-98273-204-0 01 1 1405- ● ●
49 SCREW; SPEAKER
(A) M5X14 THA 		8-94152-495-0 04 1 0411- ● ●
49 SCREW; SPEAKER
(B) M4X10 THA 		9-93497-410-0 06 1 0411-0606 ● ●
49 SCREW; SPEAKER
(B) M4X10 THA 		0-34218-410-0 06 1 0607- ● ●
56 NUT; SPEAKER,RADIO OR STEREO
THA 		8-94152-494-0 04 1 0411- ● ●
80 ANTENNA
THA 		8-97378-375-0 01 1 0411-0508 ● ●
80 ANTENNA
THA 		8-98018-276-1 01 1 0509- ● ●
81 NUT; ANTENNA POLE
M5 POP NUT THA 		8-97249-574-0 02 1 0411-0508 ● ●
91 BOLT; ANTENNA
M5X16 IMA 		8-97375-569-0 02 1 0411-0508 ● ●
198 SHEET; ANTENNA
THA 		8-97354-772-0 01 1 0411-0508 ● ●
221 SEAL; SPEAKER PANEL
THA 		8-97328-113-0 02 1 0411- ● ●
