◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51027 - UCR/UCS(THAILAND) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-85 - REAR WIPER AND WASHER ▶
8-85 — REAR WIPER AND WASHER (#74935) — 14 parça

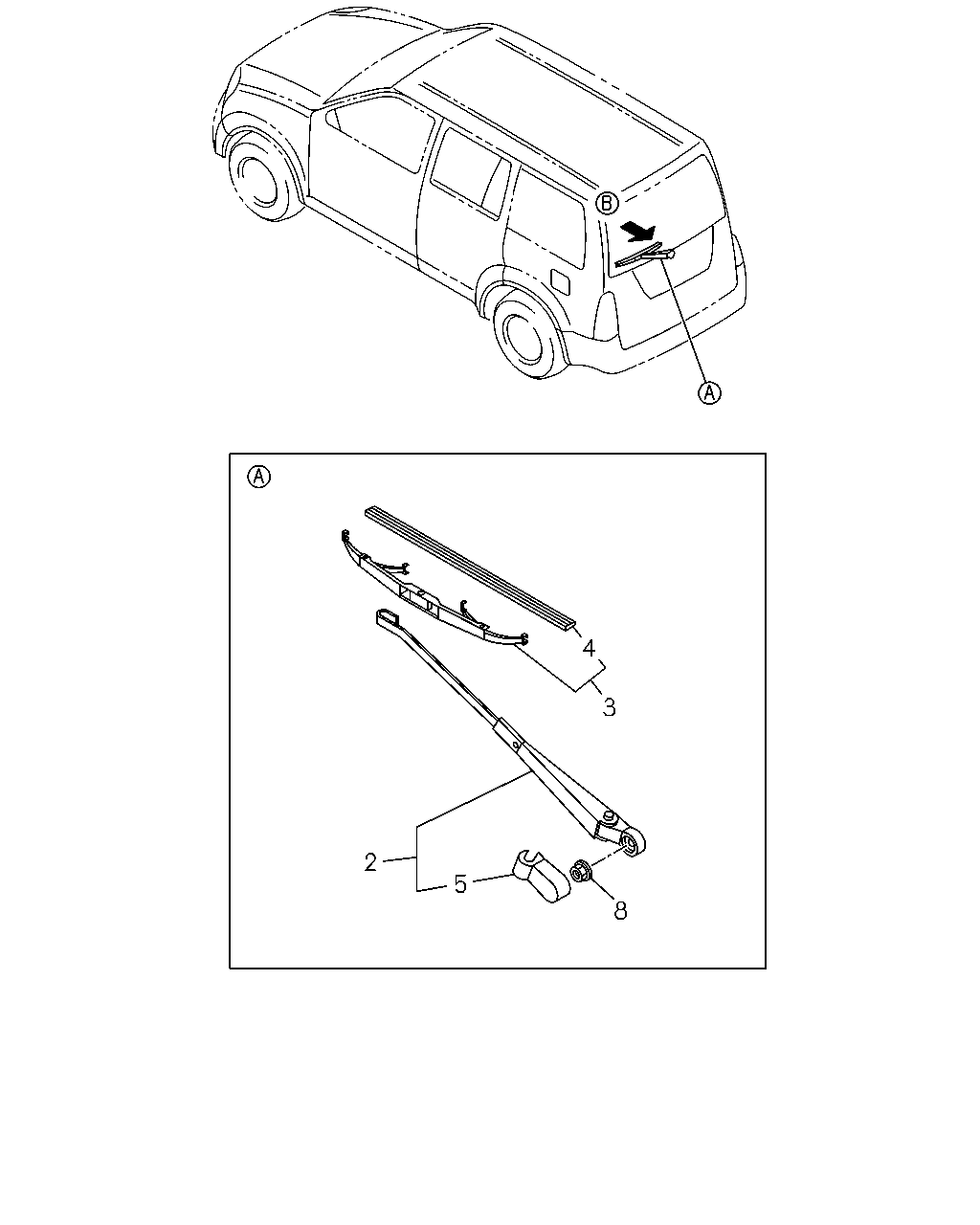

çizim 158198
4 3 2 5 8
BalonParca AdiParca NoAdetTipApplied Date A B
2 ARM ASM; REAR WIPER
THA 		8-98000-869-0 01 1 0411- ● ●
3 BLADE ASM; REAR WIPER
THA 		8-98000-871-0 01 1 0411- ● ●
4 RUBBER; BLADE,RR WIPER
THA 		8-98000-872-0 01 1 0411- ● ●
5 COVER; REAR WIPER ARM
THA 		8-98000-870-0 01 1 0411- ● ●
8 NUT; RR WIPER ARM TO WIPER MOTOR
M6 THA 		0-91111-506-0 01 1 0411- ● ●

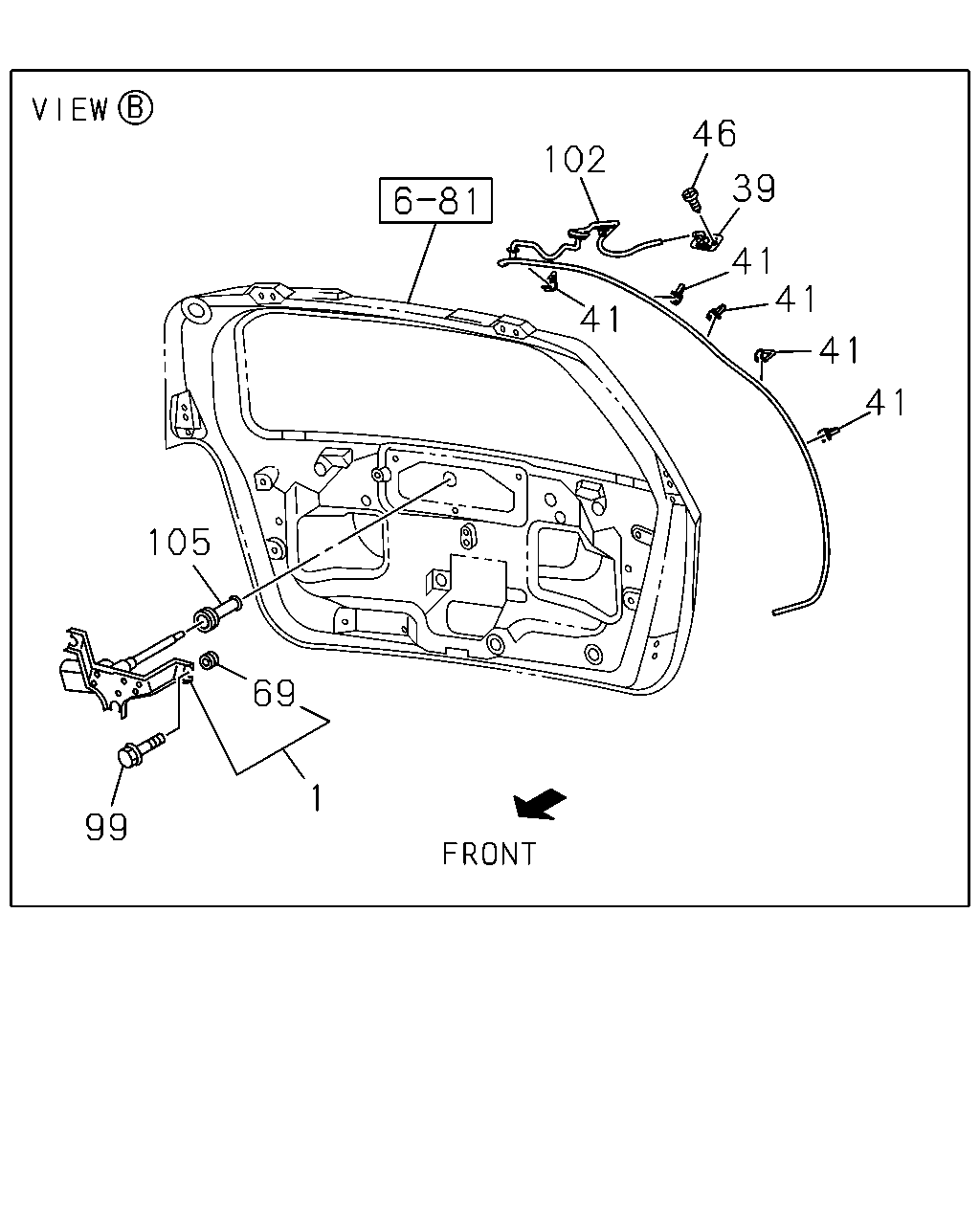

çizim 158222
102 41 41 41 41 41 46 39 69 1 99 105
BalonParca AdiParca NoAdetTipApplied Date A B
1 MOTOR ASM; RR WIPER
THA 		8-97364-082-1 01 1 0411- ● ●
39 NOZZLE; RR WINDSHIELD,WASHER
THA 		8-97364-009-1 01 1 0411- ● ●
41 CLIP; RR WASHER TANK HOSE
ID=7 THA 		8-97014-713-0 05 1 0411- ● ●
46 SCREW; NOZZLE,RR WASHER
THA 		0-71260-510-0 02 1 0411- ● ●
69 RUBBER; CUSHION,RR,WIPER
THA 		8-97373-513-0 03 1 0411- ● ●
99 BOLT; WIPER MOTOR
M6X22 W/PL WASHER THA 		8-97012-072-0 03 1 0411-0906 ● ●
99 BOLT; WIPER MOTOR
M6X22 W/PL WASHER THA 		8-98136-167-0 03 1 0907- ● ●
102 HOSE; REAR WASHER
THA 		8-97372-439-1 01 1 0411- ● ●
105 GROMMET; RR WIPER MOTOR
THA 		8-97364-085-1 01 1 0411- ● ●
