8-80 — WINDSHIELD WIPER AND WASHER (#74934) — 72 parça

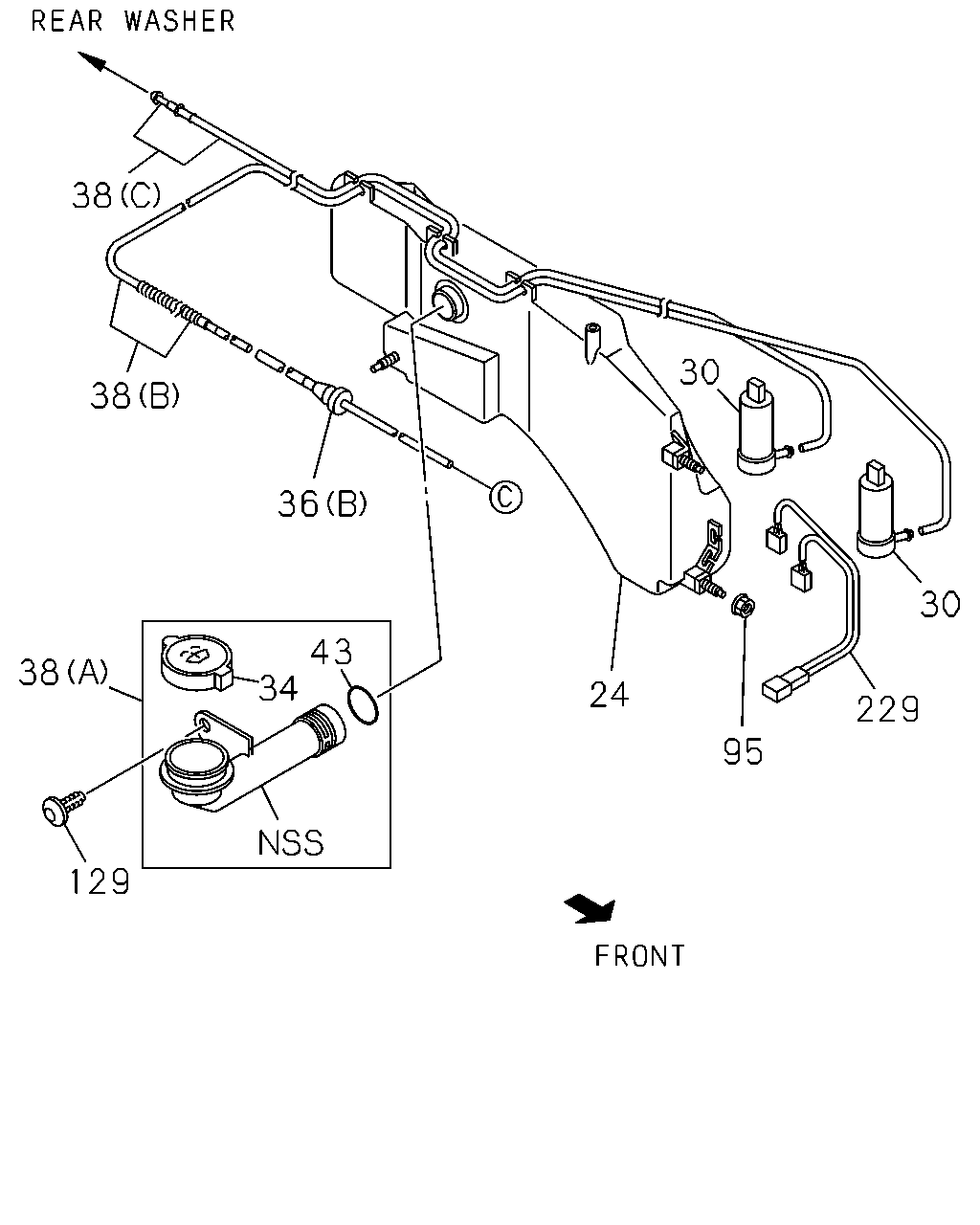

38 38 36 43 34 38 129 24 95 30 229 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	TANK ASM; WASHER THA	8-97373-636-0	01	1	0411-	●	●
30	MOTOR ASM; FRT WASHER TANK THA	8-97373-838-0	02	1	0411-	●	●
34	CAP; WASHER TANK THA	8-97349-905-0	01	1	0411-	●	●
36	HOSE; WASHER 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> (B) THA	8-97364-086-1	01	1	0809-0809	●	●
36	HOSE; WASHER 4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ>,A/T AISIN<RMD> (B) THA	8-97364-086-1	01	1	0809-0809	●	●
36	HOSE; WASHER 4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ>,A/T AISIN<RMD> (B) THA	8-97364-086-1	01	1	0810-	●	●
36	HOSE; WASHER 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> (B) THA	8-97364-086-1	01	1	0810-	●	●
36	HOSE; WASHER (A) SERVICED BY L=10000 THA	8-97349-607-0	01	1	0411-	●	●
36	HOSE; WASHER 4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> (B) THA	8-97364-086-0	01	1	0411-0606	●	●
36	HOSE; WASHER 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> (B) THA	8-97364-086-0	01	1	0607-0609	●	●
36	HOSE; WASHER M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> (B) THA	8-97364-086-0	01	1	0610-0708	●	●
36	HOSE; WASHER 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> (B) THA	8-97364-086-1	01	1	0709-0709	●	●
36	HOSE; WASHER M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> (B) THA	8-97364-086-1	01	1	0710-	●	●
38	HOSE; JOINT,TANK (A) THA	8-97310-064-1	01	1	0411-	●	●
38	HOSE; JOINT,TANK (B) THA	8-97373-840-0	01	1	0411-	●	●
38	HOSE; JOINT,TANK (C) THA	8-97373-841-0	01	1	0411-	●	●
43	RUBBER; GASKET,TANK THA	8-97349-906-0	01	1	0411-	●	●
95	NUT; WASHER TANK M6 W/DISHED WASHER THA	8-94170-192-0	03	1	0411-0610	●	●
95	NUT; WASHER TANK M6 W/DISHED WASHER THA	8-98049-368-0	03	1	0611-	●	●
129	CLIP; JOINT HOSE L=19 BLACK IMA	8-94363-776-0	01	1	0411-	●	●
229	HARNESS; WASHER TANK THA	8-97373-839-0	01	1	0411-	●	●

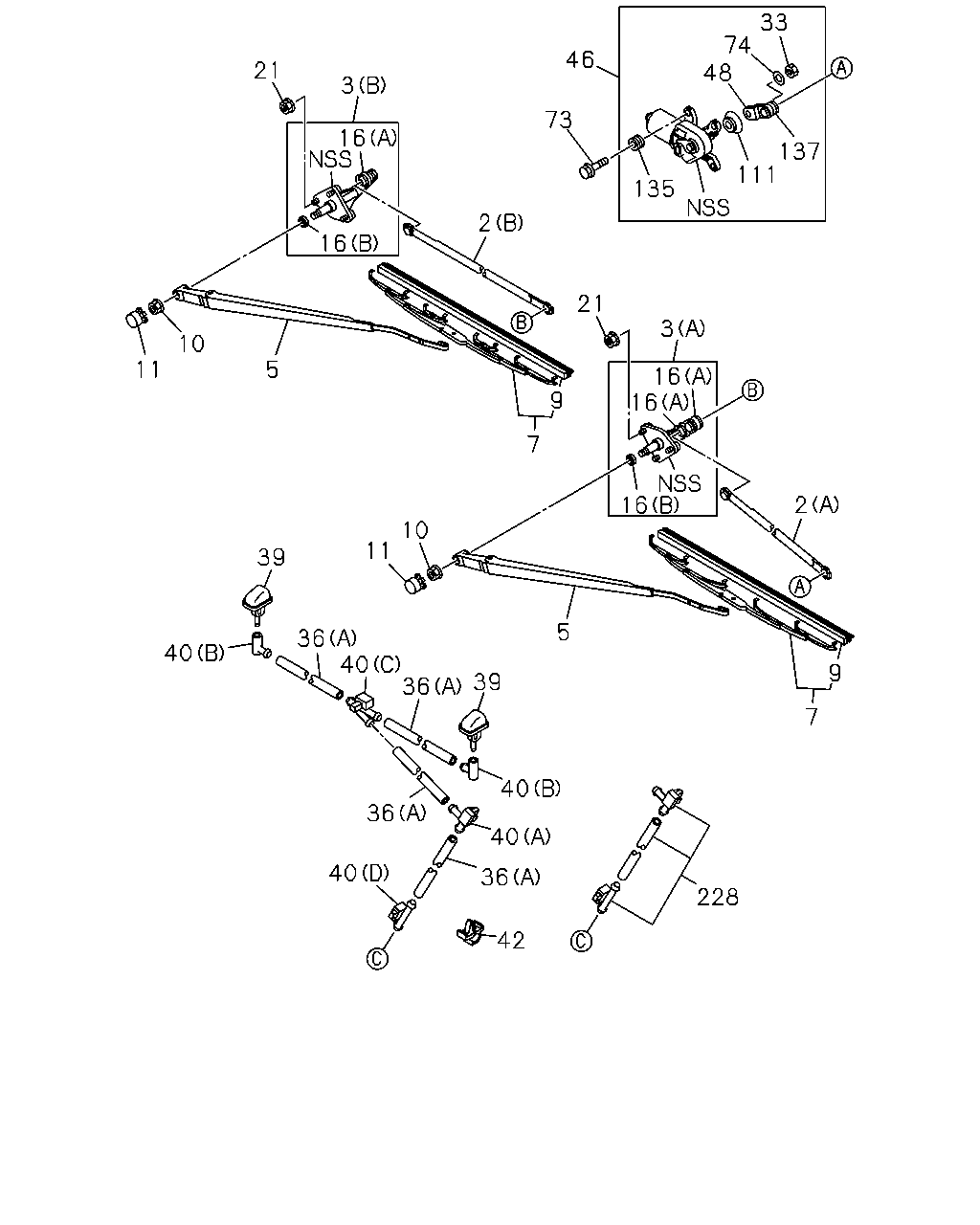

33 74 48 46 21 3 73 16 137 111 135 2 16 21 3 10 11 5 16 16 9 7 16 2 10 11 39 5 36 40 36 40 9 39 7 40 36 40 40 36 228 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	LINK; FRT WIPER (A) THA	8-97349-892-0	01	1	0411-	●	●
2	LINK; FRT WIPER (B) THA	8-97349-893-0	01	1	0411-	●	●
3	PIVOT ASM; FRT WIPER (A) THA	8-97349-890-0	01	1	0411-0612	●	●
3	PIVOT ASM; FRT WIPER (A) THA	8-98057-712-0	01	1	0701-	●	●
3	PIVOT ASM; FRT WIPER (B) THA	8-97349-891-0	01	1	0411-0612	●	●
3	PIVOT ASM; FRT WIPER (B) THA	8-98057-714-0	01	1	0701-	●	●
5	ARM; WIPER THA	8-97349-902-0	01	1	0411-	●	●
5	ARM; WIPER THA	8-97349-899-0	01	1	0411-	●	●
7	BLADE; WIPER L=475 THA	8-97349-903-0	01	1	0411-	●	●
7	BLADE; WIPER L=550 THA	8-97349-900-0	01	1	0411-	●	●
9	RUBBER; FRT WIPER BLADE L=475 THA	8-97349-904-0	01	1	0411-	●	●
9	RUBBER; FRT WIPER BLADE L=550 THA	8-97349-901-0	01	1	0411-	●	●
10	NUT; WIPER ARM TO WIPER PIVOT M10 FLANGE THA	8-94144-220-0	02	1	0411-0610	●	●
10	NUT; WIPER ARM TO WIPER PIVOT M10 FLANGE THA	8-98049-367-0	02	1	0611-	●	●
11	COVER; WIPER ARM THA	8-94367-999-0	02	1	0411-	●	●
16	SEAL; BALL JOINT (A) THA	8-97025-889-0	03	1	0411-	●	●
16	SEAL; BALL JOINT (B) THA	8-97349-894-0	02	1	0411-	●	●
21	NUT; WIPER LINK PIVOT M6 W/DISHED WASHER THA	8-94423-325-0	06	1	0411-0509	●	●
21	NUT; WIPER LINK PIVOT M6 FLANGE THA	0-91150-106-0	06	1	0510-0603	●	●
21	NUT; WIPER LINK PIVOT M6 FLANGE THA	0-91180-106-0	06	1	0604-	●	●
33	NUT; MOTOR TO ARM THA	8-97349-898-0	01	1	0411-	●	●
36	HOSE; WASHER 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> (B) THA	8-97364-086-1	01	1	0809-0809	●	●
36	HOSE; WASHER 4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ>,A/T AISIN<RMD> (B) THA	8-97364-086-1	01	1	0809-0809	●	●
36	HOSE; WASHER 4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ>,A/T AISIN<RMD> (B) THA	8-97364-086-1	01	1	0810-	●	●
36	HOSE; WASHER 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> (B) THA	8-97364-086-1	01	1	0810-	●	●
36	HOSE; WASHER (A) SERVICED BY L=10000 THA	8-97349-607-0	01	1	0411-	●	●
36	HOSE; WASHER 4JJ1-TCS ENG<LFB> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> (B) THA	8-97364-086-0	01	1	0411-0606	●	●
36	HOSE; WASHER 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> (B) THA	8-97364-086-0	01	1	0607-0609	●	●
36	HOSE; WASHER M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> (B) THA	8-97364-086-0	01	1	0610-0708	●	●
36	HOSE; WASHER 4JJ1-TCS ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> (B) THA	8-97364-086-1	01	1	0709-0709	●	●
36	HOSE; WASHER M/T MUA 5 SPEED 5H<MWQ>,M/T MUX 5 SPEED 5S<MZJ>, A/T AISIN<RMD> (B) THA	8-97364-086-1	01	1	0710-	●	●
39	NOZZLE; WINDSHIELD WASHER THA	8-97238-519-0	02	1	0411-0606	●	●
39	NOZZLE; WINDSHIELD WASHER THA	8-98008-112-0	02	1	0607-	●	●
40	JOINT; WASHER HOSE (A) THA	8-94335-627-0	01	1	0411-0708	●	●
40	JOINT; WASHER HOSE (B) IMA	8-97178-847-0	02	1	0411-	●	●
40	JOINT; WASHER HOSE (C) THA	8-97215-337-0	01	1	0411-	●	●
40	JOINT; WASHER HOSE (D) THA	8-97314-270-0	01	1	0411-0708	●	●
42	CLIP; WASHER HOSE ID=5.8 L=8 THA	8-94155-681-0	01	1	0411-0606	●	●
42	CLIP; WASHER HOSE ID=5.8 L=8 THA	8-94155-681-0	03	1	0607-	●	●
46	MOTOR ASM; FRT WINDSHIELD WIPER THA	8-97364-369-0	01	1	0411-0612	●	●
46	MOTOR ASM; FRT WINDSHIELD WIPER THA	8-98057-621-0	01	1	0701-	●	●
48	ARM; WIPER MOTOR THA	8-97349-895-0	01	1	0411-0612	●	●
48	ARM; WIPER MOTOR THA	8-98057-654-0	01	1	0701-	●	●
73	BOLT M6X33 W/PL WASHER THA	8-97164-266-0	04	1	0411-0609	●	●
73	BOLT M6X33 W/PL WASHER THA	8-98048-997-0	04	1	0610-	●	●
74	WASHER; ARM TO MOTOR THA	8-97349-897-0	01	1	0411-	●	●
111	SEAL; FRT WIPER MOTOR TO BRKT THA	8-97349-896-0	01	1	0411-	●	●
135	RUBBER; CUSHION,WIPER MOTOR THA	8-94387-088-0	04	1	0411-0612	●	●
135	RUBBER; CUSHION,WIPER MOTOR THA	8-98057-655-0	04	1	0701-	●	●
137	SEAL; JOINT,WIPER MOTOR THA	8-97025-889-0	01	1	0411-	●	●
228	HOSE ASM; WASHER THA	8-98115-892-0	01	1	0709-	●	●
